Dell PowerSwitch S5148F-ON RA 48x 25Gb SFP28 6x 100Gb QSFP28 L3 Switch OS10 Perp

Name: Dell PowerSwitch S5148F-ON RA 48x 25Gb SFP28 6x 100Gb QSFP28 L3 Switch OS10 Perp
Brand: Dell EMC
Price: 798.00 GBP
Availability: InStock

product code: S5148F-ON/REF

mpn: Switch

product brand: Dell EMC

product condition: Used

excluding vat: £665.00

including vat: £798.00

information

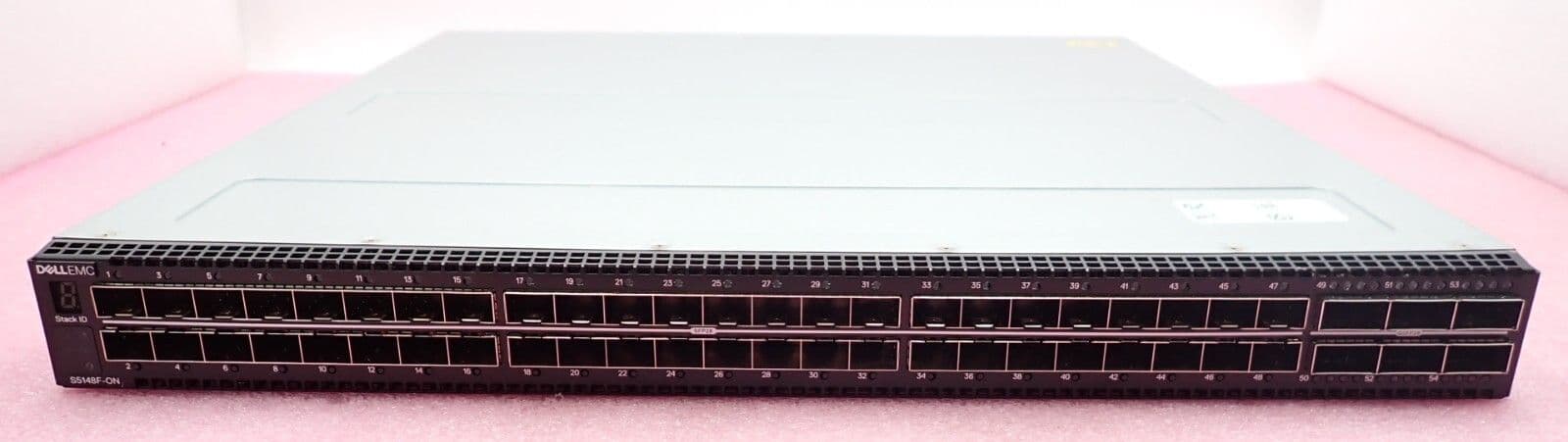

Dell PowerSwitch S5148F-ON RA 48x 25Gb SFP28 6x 100Gb QSFP28 L3 Switch OS10 Perpetual

Model: S5148F-ON

In Good Condition, Full Working Order

Tested

2 Year Warranty

Reverse Airflow (Back to Front)

OS10 Perpetual Pre-Installed

Included:

1 x Dell PowerSwitch S5148F-ON RA 48x 25Gb SFP28 6x 100Gb QSFP28 L3 Switch OS10 Perpetual
- 2 x 750W Power Supply (PSU to IO) - R17R1
- 4 x Fan Modules (PSU to IO) - X3WCP

Description:

Maximum performance and functionality

The Dell EMC Networking S-Series S5148F-ON is a high-performance, multi-function, 10/25/40/50/100 GbE ToR switch purpose-built for applications in high-performance data center, cloud and computing environments.

In addition, the S5148F-ON incorporates multiple architectural features that optimize data center network flexibility, efficiency, and availability, including IO panel to PSU airflow or PSU to IO panel airflow for hot/cold aisle environments, and redundant, hot-swappable power supplies and fans.

Key applications

Organizations looking to enter the software-defined data center era with a choice of networking technologies designed to deliver the flexibility they need
Use cases that require customization to any packet processing steps or supporting new protocols
Native high-density 25 GbE ToR server access in highperformance data center environments
25 GbE backward compatible to 10G and 1G for future proofing and data center server migration to faster uplink speeds.
Capability to support mixed 25G and 10G servers on front panel ports without any limitations
iSCSI storage deployment including DCB converged lossless transactions
Suitable as a ToR or Leaf switch in 100G Active Fabric implementations
As a high speed VXLAN L2/L3 gateway that connects the hypervisor-based overlay networks with non-virtualized
Infrastructure
Emerging applications requiring hardware support for new protocols

Key features

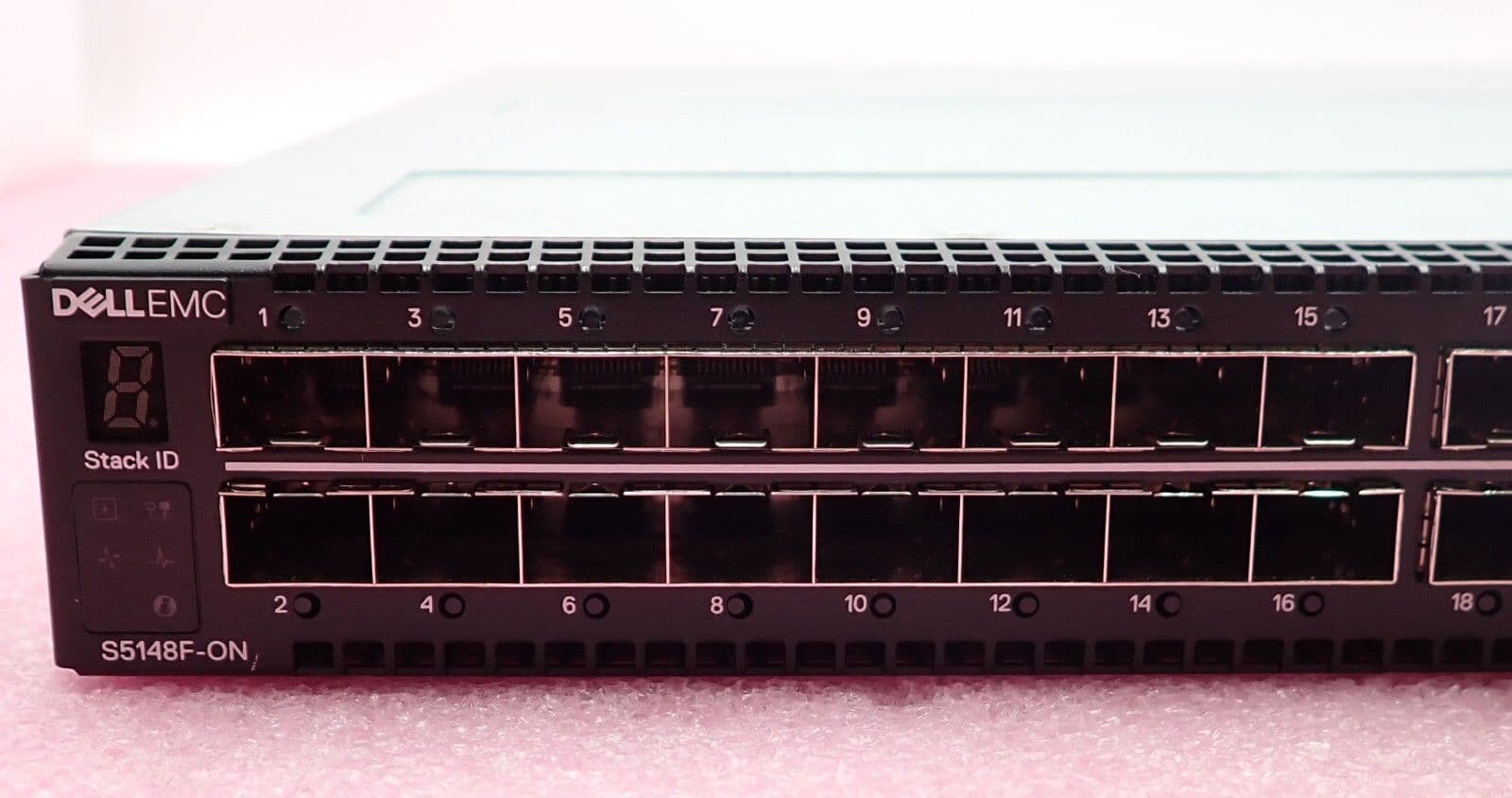

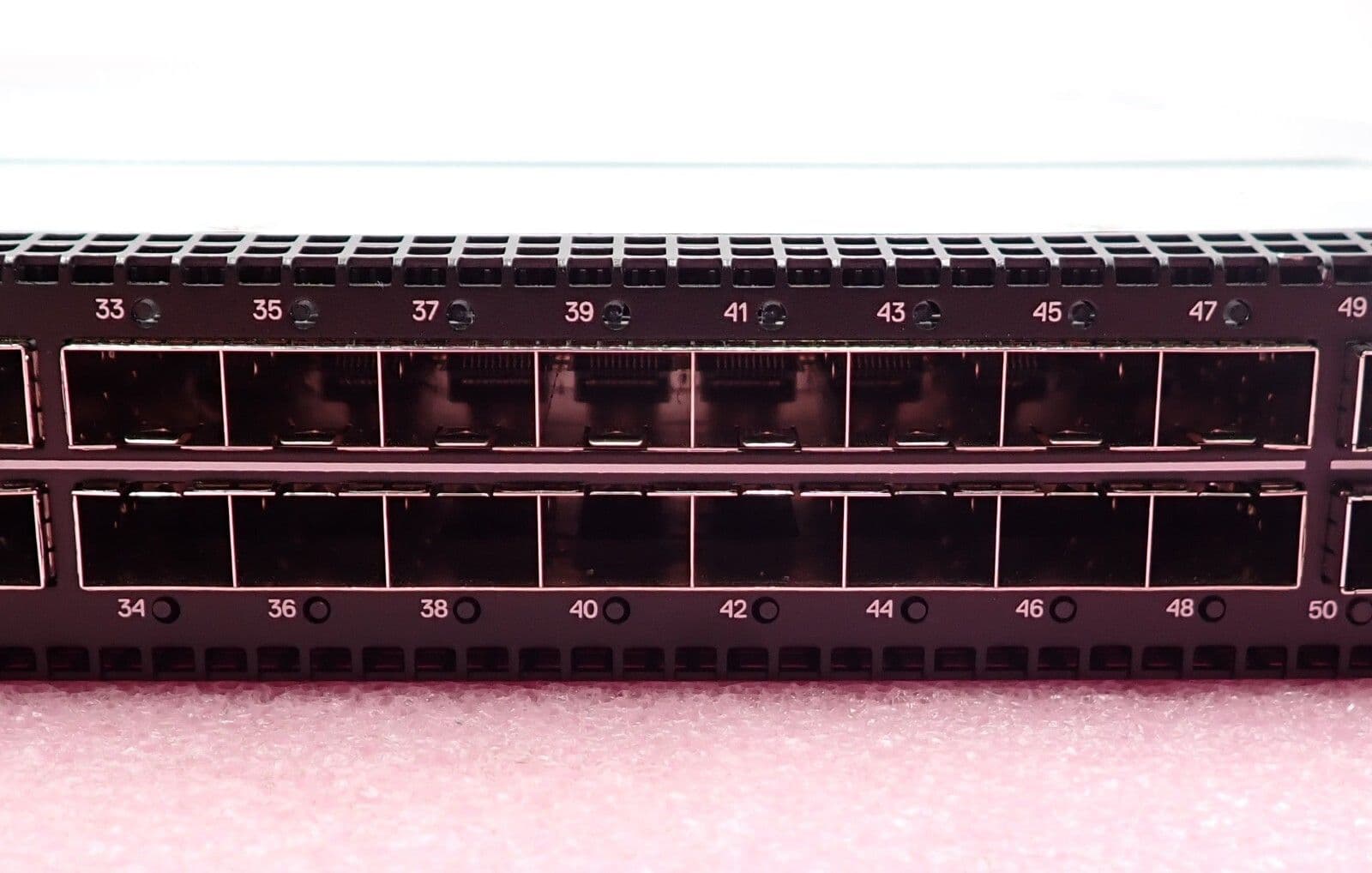

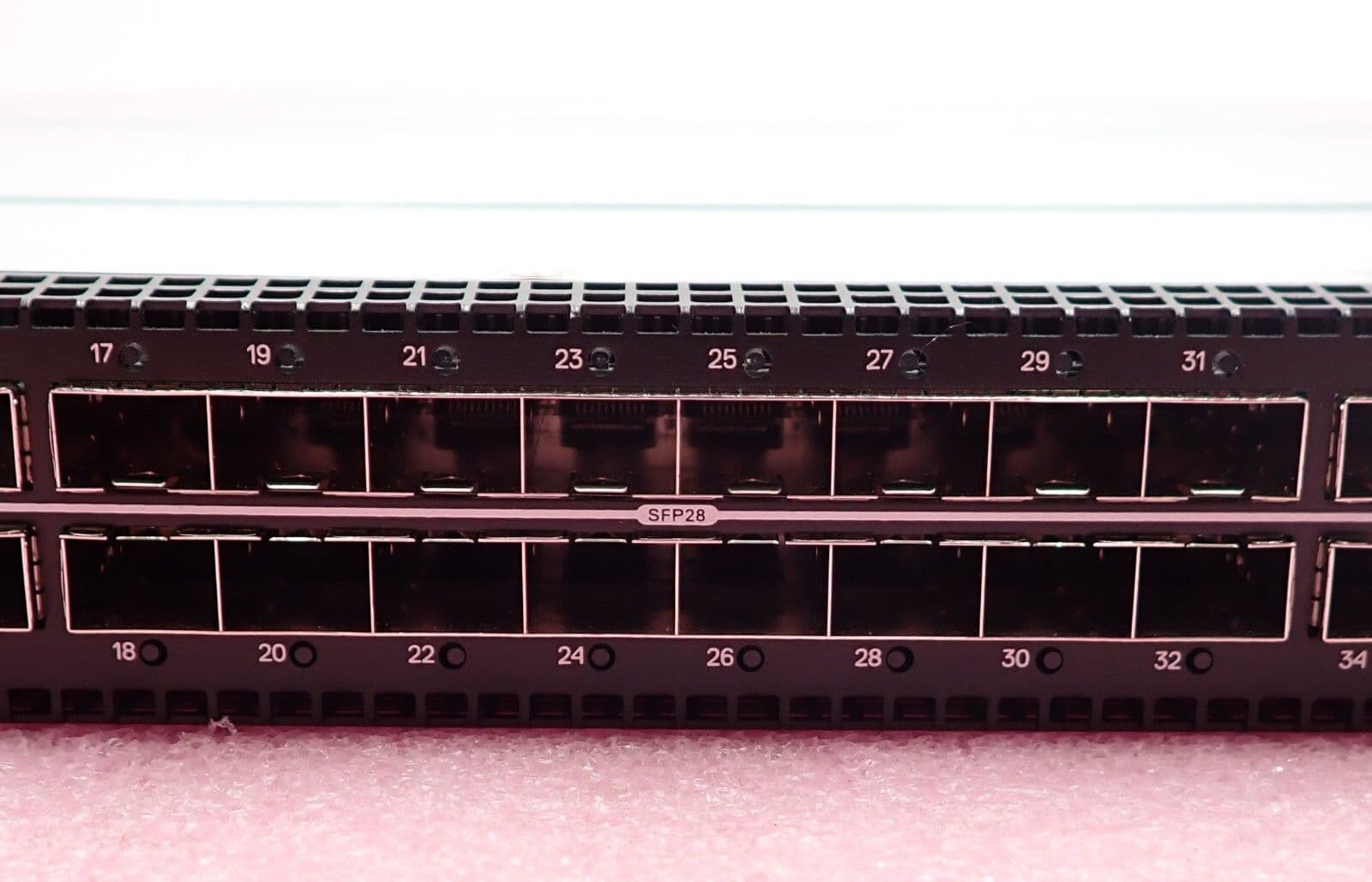

1RU high-density 25/10/1 GbE ToR switch with up to forty eight ports of native 25 GbE (SFP28) ports supporting 25 GbE without breakout cables

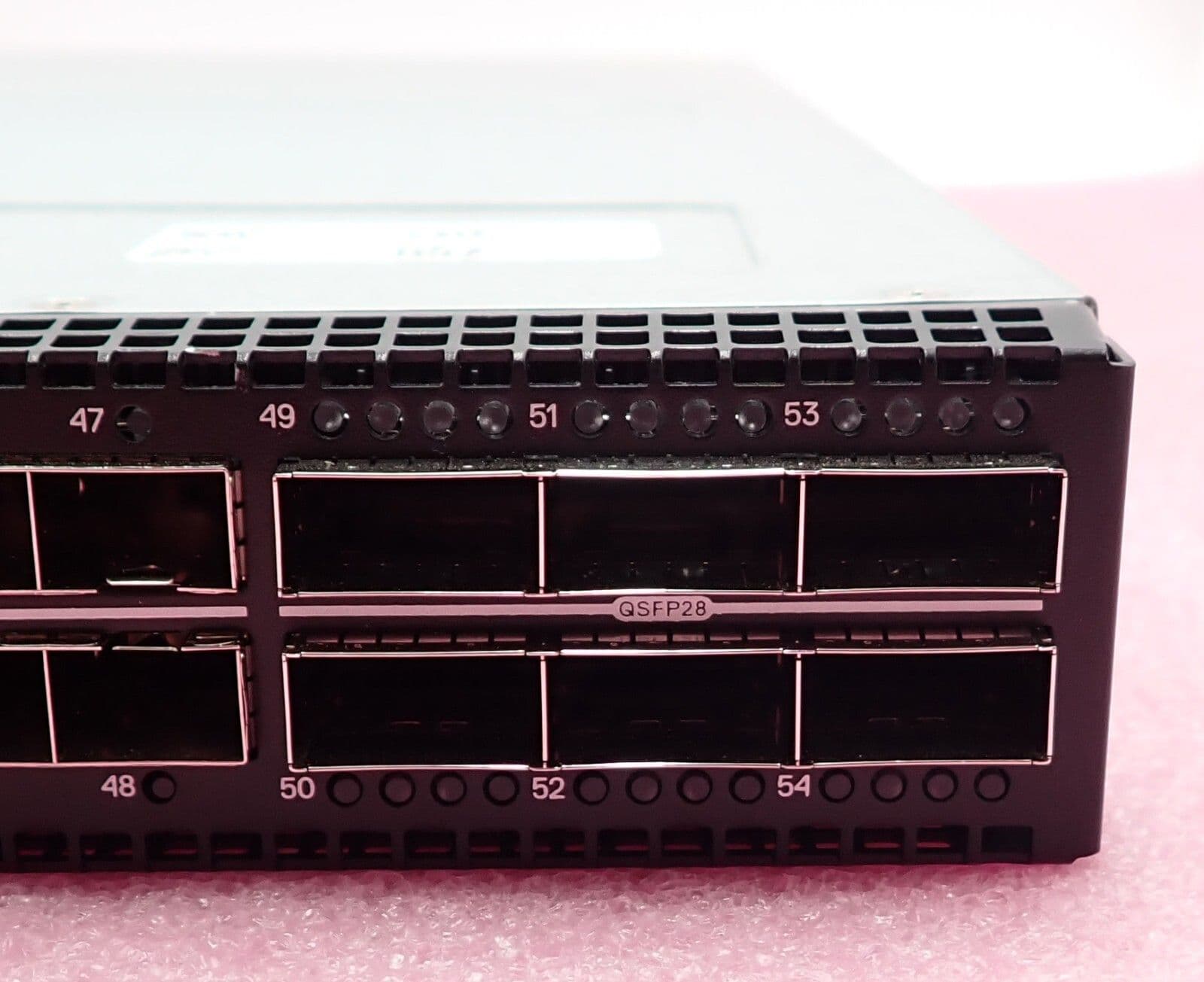

Multi-rate 100GbE ports support 10/25/40/50 GbE
3.6 Tbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load**
Programmable packet modification and forwarding
Programmable packet mirroring and multi-pathing
Converged network support for DCB and ECN capability
IO panel to PSU airflow or PSU to IO panel airflow
Redundant, hot-swappable power supplies and fans
IEEE 1588v2 PTP hardware support
Supports the open source Open Network Install Environment (ONIE) for zero touch installation of alternate network operating systems
FCoE transit (FIP Snooping)
Full data center bridging (DCB) support for lossless iSCSI SANs, RoCE and converged network.
Redundant, hot-swappable power supplies and fans
I/O panel to PSU airflow or PSU to I/O panel airflow (reversable airflow)
VRF-lite enables sharing of networking infrastructure and provides L3 traffic isolation across tenants
16, 28, 40, 52, 64 10GbE ports available

Boot Log:

OS10# showversion
Dell EMCNetworking OS10-Enterprise
Copyright (c)1999-2019 by Dell Inc. All Rights Reserved.
OS Version:10.4.3.6
Build Version:10.4.3.6.244
Build Time: 2019-08-19T17:26:44-0700
System Type:S5148F-ON
Architecture:x86_64
Up Time: 00:02:20
OS10# showinventory
Product : S5148F-ON
Description : S5148F-ON 48x25GbE, 6x100GbEQSFP28 Interface Module
Softwareversion : 10.4.3.6
Product Base :
Product SerialNumber :
Product PartNumber :

Unit Type Part Number Rev Piece Part ID Svc Tag Exprs Svc Code
-------------------------------------------------------------------------------------------------
* 1 S5148F-ON 0DR3YR A00 CN-0DR3YR-CES00-9CJ-0010 6LTC9Z2 143 797 653 74
1 S5148F-ON-PWR-1-AC-R 0R17R1 A00 CN-0R17R1-DED00-9AP-0FOZ
1 S5148F-ON-PWR-2-AC-R 0R17R1 A00 CN-0R17R1-DED00-9AP-0FO2
1 S5148F-ON-FANTRAY-1-R 0X3WCP A00 CN-0X3WCP-CES00-9C7-0059
1 S5148F-ON-FANTRAY-2-R 0X3WCP A00 CN-0X3WCP-CES00-9C7-0029
1 S5148F-ON-FANTRAY-3-R 0X3WCP A00 CN-0X3WCP-CES00-9C7-0056
1 S5148F-ON-FANTRAY-4-R 0X3WCP A00 CN-0X3WCP-CES00-9C7-0057

OS10# showlicense status

SystemInformation
---------------------------------------------------------
Vendor Name : Dell EMC
Product Name : S5148F-ON
HardwareVersion : A00
PlatformName : x86_64-dellemc_s5100_c2538-r0
PPID : CN0DR3YRCES009CJ0010
Service Tag : 6LTC9Z2
Product Base :
Product SerialNumber:
Product PartNumber :
License Details
----------------
Software : OS10-Enterprise
Version : 10.4.3.6
License Type : PERPETUAL
LicenseDuration: Unlimited
LicenseStatus : Active
Licenselocation: /mnt/license/6LTC9Z2.lic
---------------------------------------------------------
OS10# showenvironment

Unit State Temperature
-------------------------------------
1 up 43

Thermal sensors
Unit Sensor-Id Sensor-name Temperature
------------------------------------------------------------------------------
1 1 CPU On-Board temp sensor 27
1 2 Switch board temp sensor 30
1 3 System Inlet Ambient-1 temp sensor 27
1 4 System Inlet Ambient-2 tempsensor 26
1 5 System Inlet Ambient-3 tempsensor 26
1 6 Switch board 2 temp sensor 28
1 7 Switch board 3 temp sensor 41
1 8 NPU temp sensor 43

CS 320018 320019 320020 320021 320022 320023 dup .com
