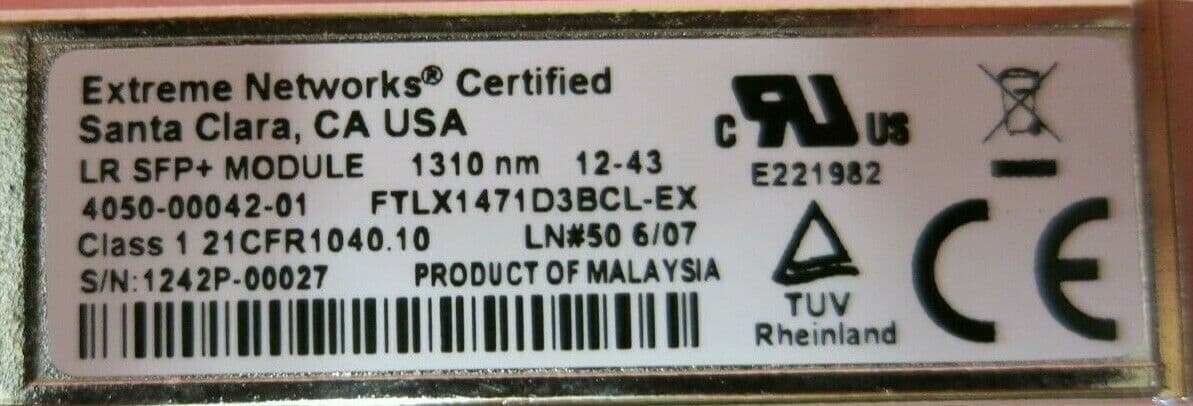

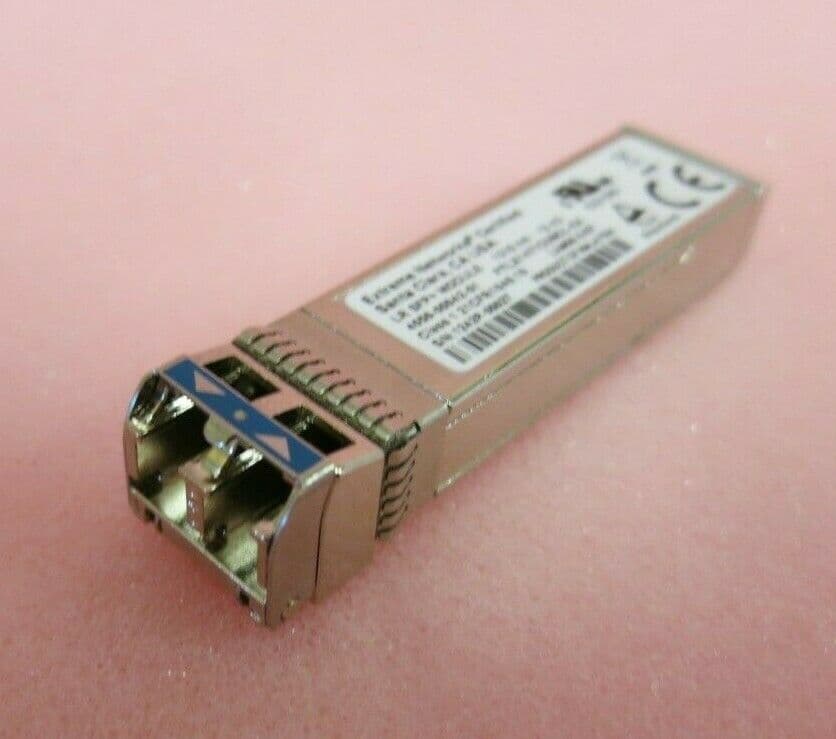

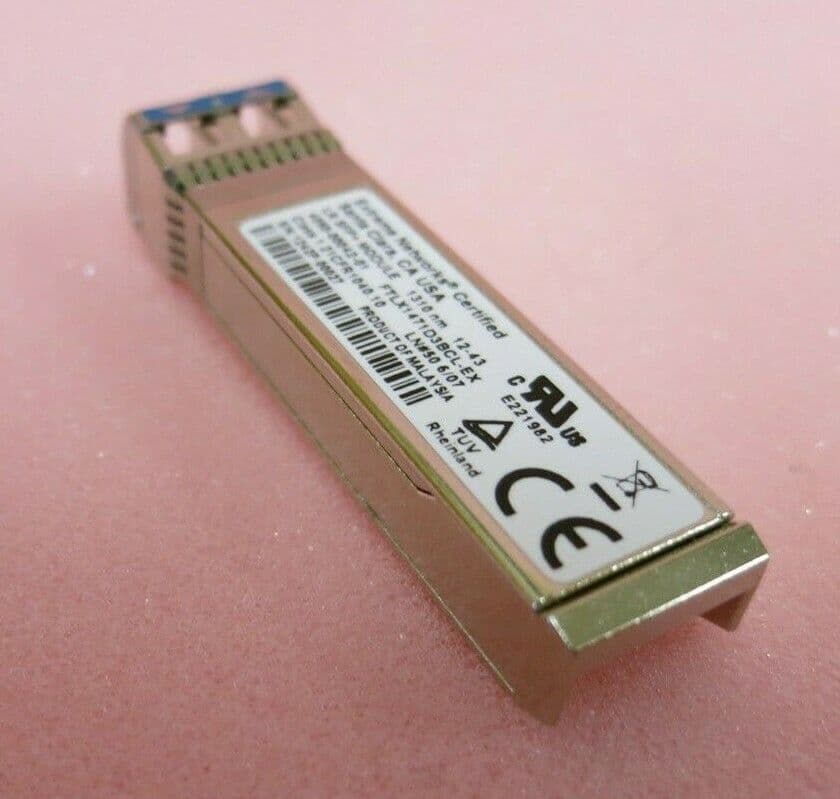

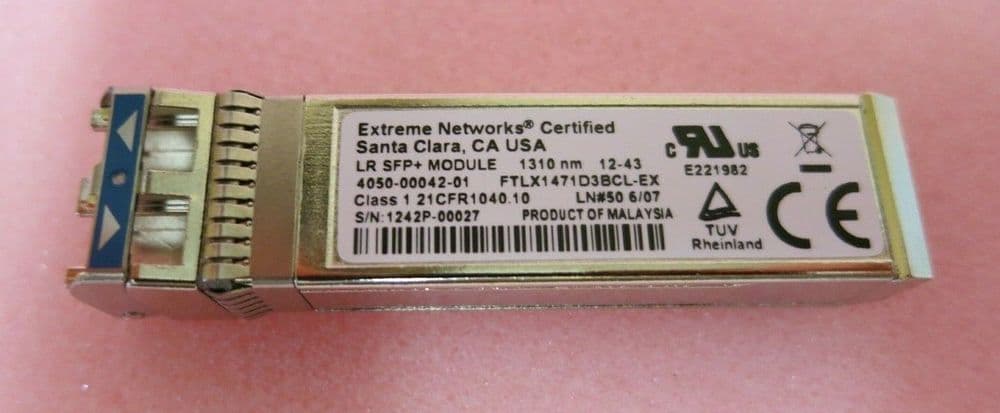

Extreme Networks 4050-00042-01 FTLX1471D3BCL-EX LR 10km 1310nm SFP+ Transceiver

LR SFP+

• 10GBASE-LR transceivers are most commonly deployed in inter-building single mode connections
• 10GBASE-LR transceiver support with a link length up to 10 kilometers over 1310nm single mode fiber, LC Connector

Physical Specifications

• Dimensions (HxWxD): 0.48x0.54x2.70 in 1.22x1.38x6.86 cm)
• Weight: 0.06 lb (25.1 g) unpackaged, 0.30 lb (135 g) packaged

ENVIRONMENTAL CONDITIONS OPERATIONAL

• Operating Temperature: 0° C to +40° C (32° F to 104° F)
• Operating Humidity: 10% to 93% non-condensing
• Altitude: 0 - 4000 meters (13,000 ft)
• Operational Shock: 30 m/s2 (3g), 11ms
• Operational Random Vibration: 5 - 500 Hz @ 1.5 Grms

TRANSPORTATION & STORAGE

• Temperature: -40° C to 70° C (-40° F to 158° F)
• Relative Humidity: 10% to 93%
• Shock: 180 m/s2 (18g), 6ms
• Random Vibration: 5 - 20 Hz @ 1.0 ASD w/-3dB/ oct. from 20 - 200 Hz
• Drop: 42" (105cm)

ENVIRONMENTAL STANDARDS

• EN 300 019-2-3 v2.1.2 (2003-04), Stationary Use, Class 3.1e
• EN 300 019-2-2 v2.1.2 (1999-09), Public Transportation, Class 2.3
• EN 300 019-2-1 v2.1.2 (2000-09), Storage, Class 1.2
• RoHS 6 compliant
