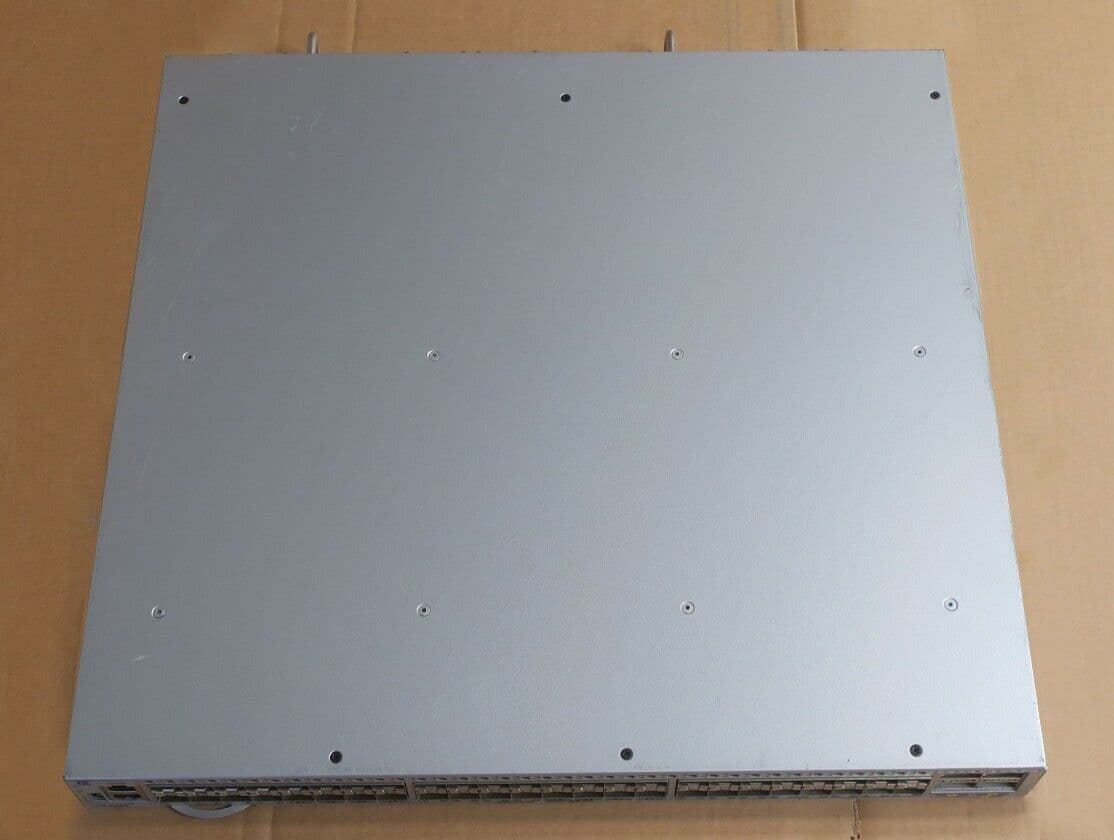

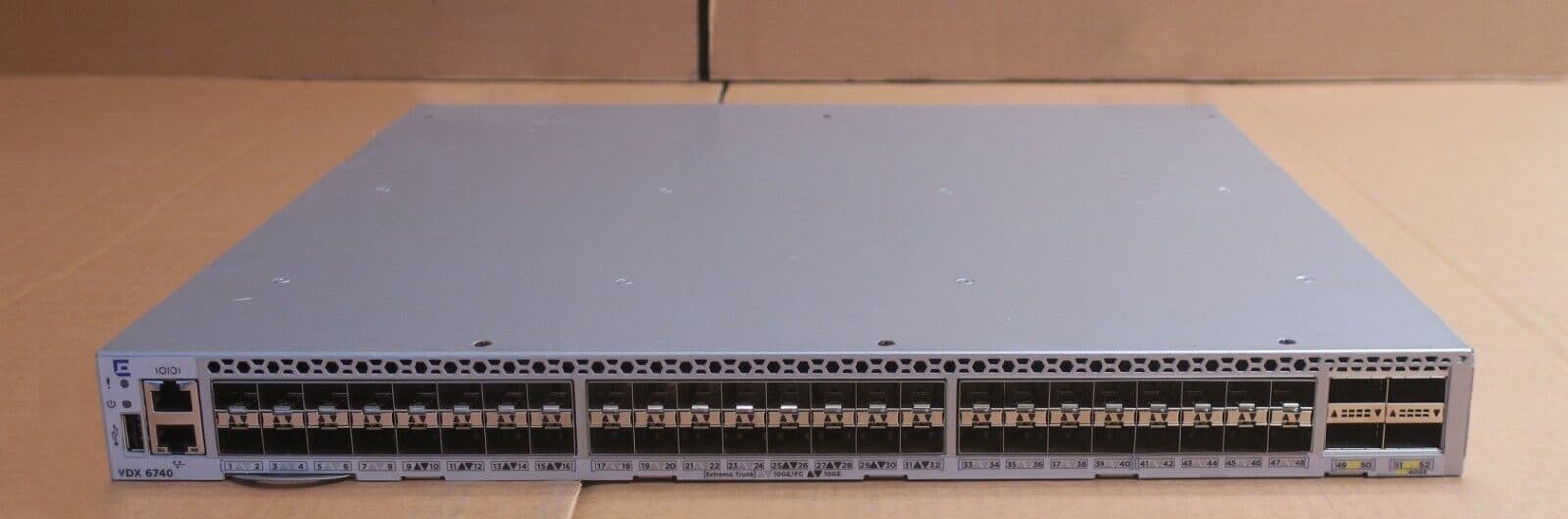

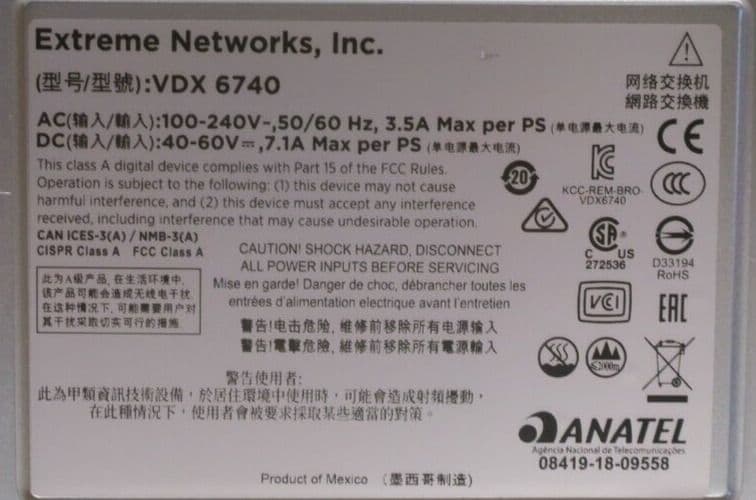

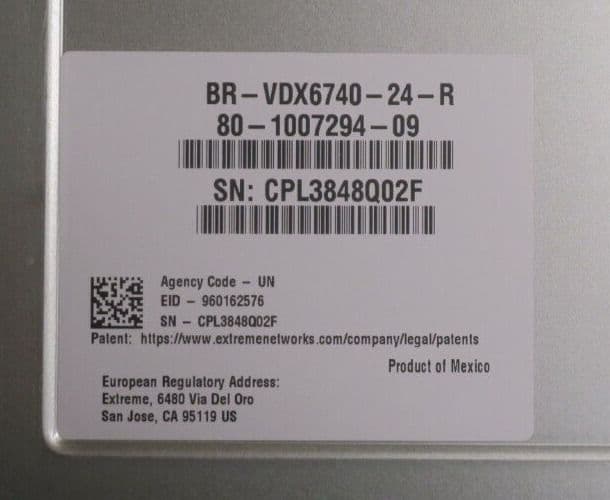

- 1 x Extreme Networks VDX 6740 BR-VDX6740-24-R 48x 1/10GbE SFP+ +4x 40Gb QSFP+ Switch
- 2 x Power Supply
- Form factor: 1U
- Switching bandwidth (data rate, full duplex): 1.28Tbps
- Switch performance: 960 Mpps
- Port-to-port latency: 850 ns
- Dimensions and weight
- Height: 4.32 cm (1.75 in)
- Depth: 40.99 cm (16.14 in)
- Weight: 8.66 kg (19.1lb)
- 10GbE SFP+ ports: Up to 64
- 2/4/8/16Gbps Fibre Channel* Flex Ports:
- Up to 32 (out of 64 10GbE ports)
- Port types supported:
- E_Port (connecting to EX_Port only),
- F_Port, N_Port (Access Gateway mode)
- 1/10GBASE-T: N/A
- 40 GbE QSFP+ (10 GbE breakout cable): 4
- 10 GbE Port s on Demand (PoD): 24, 32, 40, 48, 56, 64
- 10 GbE Capacity on Demand (CoD): N/A

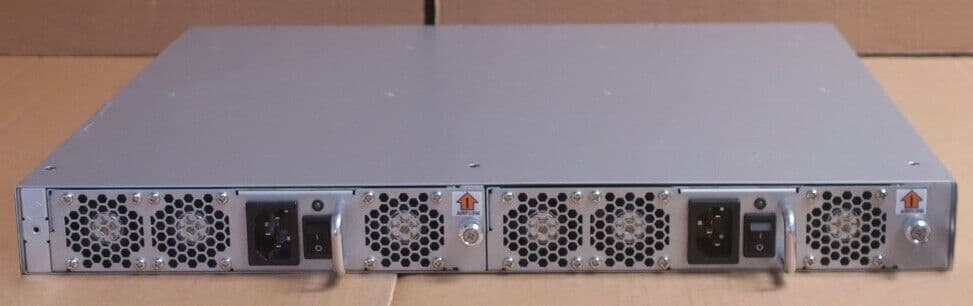

- Power supplies: Two hot-swappable, load-sharing
- Cooling fans: N+1 Redundant, integrated into power supplies
- Airflow: Back to front
- Connector options:
- Out-of-band Ethernet management: RJ45 (fixed)
- Console management: RJ45 to RS-232 (fixed)
- Firmware and diagnostic: USB
- Maximum VLANs: 4,096
- Maximum MAC addresses: 160,000
- Maximum port profiles (AMPP): 1,024
- Maximum members in a standard LAG: 64
- Maximum per-port priorit y pause level: 8
- Maximum switches that a vLAG can span: 8
- Maximum members in a vLAG: 64
- Maximum ACLs: 13,000
- Maximum ARP entries: 32,000
- Maximum IPv4 unicast routes: 12,000
- Maximum IPv6 unicast routes: 3,0002
- HA/ ISSU: ISSU fully supported
- Enclosure: Rear-to-front airflow; 19-inch EIA-compliant; power from non-port side
- Temperature:
- Operating: 0 °C to 40 °C (32°F to 10 4°F)
- Non-operating and storage: -25°C to 70 °C (-13°F to 158°F)
- Humidity:
- Operating: 10 % to 85% non-condensing
- Non-operating and storage: 10 % to 90 % non-condensing
- Altitude:
- Operating: Up to 3,0 48 meters (10,0 0 0 feet)
- Non-operating and storage: Up to 12 kilometers (39,370 feet)
- Shock:
- Operating: 20 G, 11ms half-sine
- Non-operating and storage: Square wave, 44 G, 15 ms
- Vibration:
- Operating: 0.5 G peak, 0.7 G ms random, 5 to 50 0 Hz
- Non-operating and storage: 2.0 g sine, 1.4 G rms random, 5 to 50 0 Hz
- Airflow:
- Port-side-exhaust:
- Maximum: 25.7 CFM
- Nominal: 11.5 CFM
- Port-side-exhaust:
- Heat Dissipation: 1,672.41BTU/ hr
- Power Supplies: Two internal, redundant, field-replaceable, load-sharing AC power supplies
- Power Inlet: C13
- Input Voltage: 85 to 264 VAC nominal
- Input Line Frequency: 50 to 60 Hz
- Inrush Current: Limited to 30 A peak at 240 VAC during cold startup at 25°C ambien
- Maximum Current: 66 A max at 10 0 VAC/ 60 Hz
- Maximum Power Consumption: 110 W
sw0# show version
Network OperatingSystem Software
Network OperatingSystem Version: 7.2.0d
Copyright (c)2017-2018 Extreme Networks, Inc.
Firmwarename: 7.2.0d
Build Time: 11:18:12 Nov 28, 2019
InstallTime: 00:03:05 Jan 1, 1970
Kernel: 2.6.34.6
BootProm: 1.0.1
ControlProcessor: e500mc with 4096 MB of memory
Slot Name Primary/Secondary Versions Status
---------------------------------------------------------------------------
SW/0 NOS 7.2.0d ACTIVE*
7.2.0d
SW/1 NOS 7.2.0d STANDBY
7.2.0d
sw0# showinventory
NAME:FAN 1 DESCR:Chassis Fan module
PN:N/A SN:N/A
NAME:FAN 2 DESCR:Chassis Fan module
PN:N/A SN:N/A
NAME:POWER SUPPLY1 DESCR:Chassis PS module
PN:23-1000044-01 SN:N/A
NAME:POWER SUPPLY2 DESCR:Chassis PS module
PN:23-1000044-01 SN:N/A
NAME:Chassis DESCR:System Chassis
SID:BR-VDX6740 SwitchType:131
PN:40-1000927-09 SN:CPL3848Q02F
sw0# show license
rbridge-id: 1
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
10G Port Upgrade license
Feature name:PORT_10G_UPGRADE
License is valid
Capacity: 24
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
40G Port Upgrade license
Feature name:PORT_40G_UPGRADE
License is valid
Capacity: 4
sw0# show dpod
rbridge-id: 1
48 10G ports are available in this switch
4 40G ports are available in this switch
10G Port Upgrade license is installed
40G Port Upgrade license is installed
Dynamic POD method is in use
48 10G port assignments are provisioned foruse in this switch:
24 10G port assignments are provisionedby the base switch license
24 10G port assignments are provisionedby the 10G Port Upgrade license
0 10G ports are assigned to installedlicenses:
0 10G ports are assigned to the baseswitch license
0 10G ports are assigned to the 10GPort Upgrade license
10G ports assigned to the base switchlicense:
None
10G ports assigned to the 10G Port Upgradelicense:
None
10G ports not assigned to a license:
1/0/1, 1/0/2, 1/0/3, 1/0/4, 1/0/5, 1/0/6,1/0/7, 1/0/8, 1/0/9, 1/0/10
1/0/11, 1/0/12, 1/0/13, 1/0/14, 1/0/15,1/0/16, 1/0/17, 1/0/18, 1/0/19, 1/0/20
1/0/21, 1/0/22, 1/0/23, 1/0/24, 1/0/25,1/0/26, 1/0/27, 1/0/28, 1/0/29, 1/0/30
1/0/31, 1/0/32, 1/0/33, 1/0/34, 1/0/35,1/0/36, 1/0/37, 1/0/38, 1/0/39, 1/0/40
1/0/41, 1/0/42, 1/0/43, 1/0/44, 1/0/45,1/0/46, 1/0/47, 1/0/48
48 license reservations are still availablefor use by unassigned ports
4 40G port assignments are provisioned foruse in this switch:
0 40G port assignments are provisionedby the base switch license
4 40G port assignments are provisionedby the 40G Port Upgrade license
0 40G ports are assigned to installedlicenses:
0 40G ports are assigned to the baseswitch license
0 40G ports are assigned to the 40GPort Upgrade license
40G ports assigned to the base switchlicense:
None
40G ports assigned to the 40G Port Upgradelicense:
None
40G ports not assigned to a license:
1/0/49, 1/0/50, 1/0/51, 1/0/52
4 license reservations are still availablefor use by unassigned ports
sw0# showenvironment fan
Fan 1 is Ok,speed is 2963 RPM
Fan 2 is Ok,speed is 3071 RPM
Airflow direction: Port side EXHAUST
sw0# showenvironment power
Power Supply #1is OK
,23-1000044-01,AC-DC,AirFlow:Port Side Exhaust
Power Supply #2is OK
,23-1000044-01,AC-DC,AirFlow:Port Side Exhaust
sw0# showenvironment temp
Sensor State Centigrade Fahrenheit
ID
=================================================
1 Ok 31 87
2 Ok 33 91
3 Ok 27 80
4 Ok 29 84
-
MPN:VDX 6740
