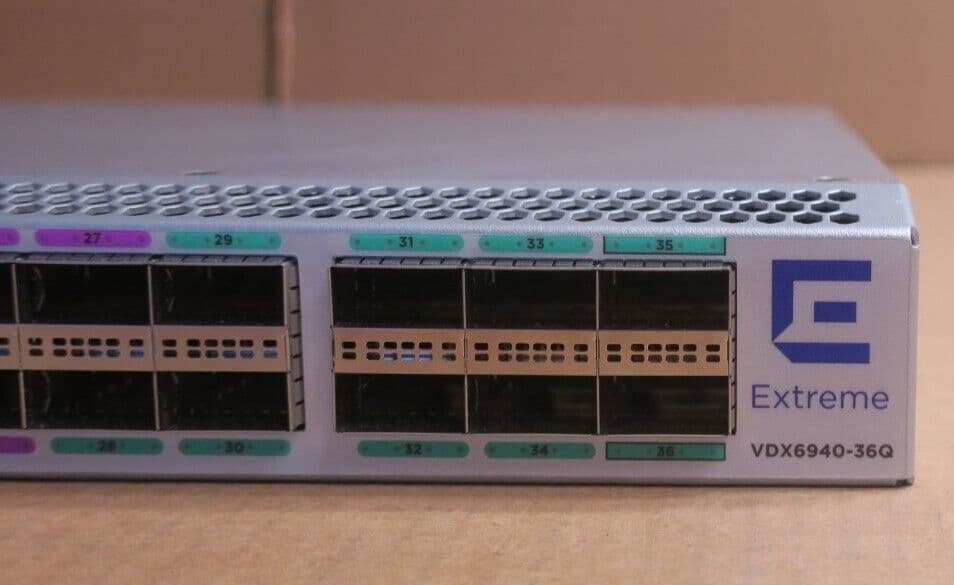

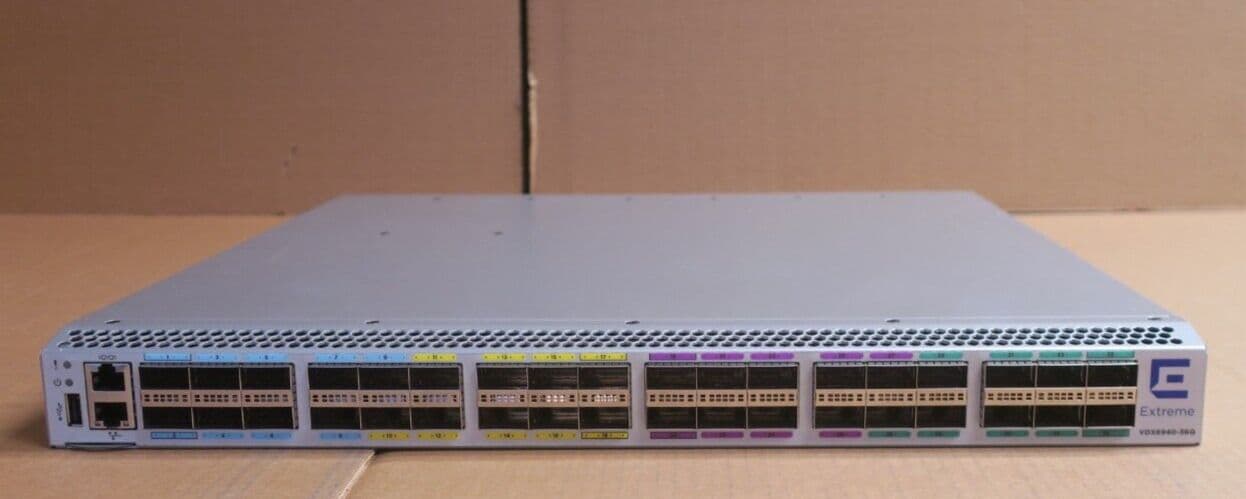

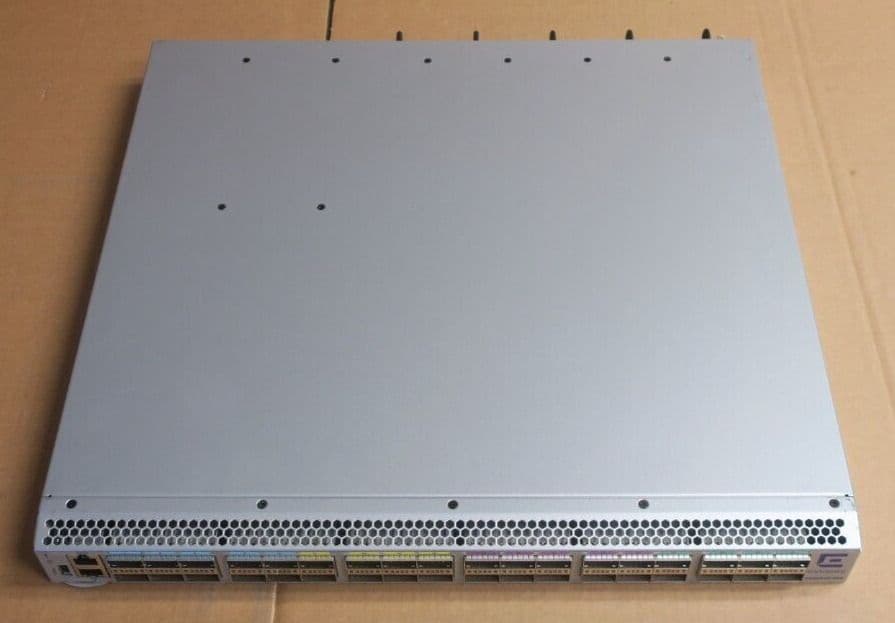

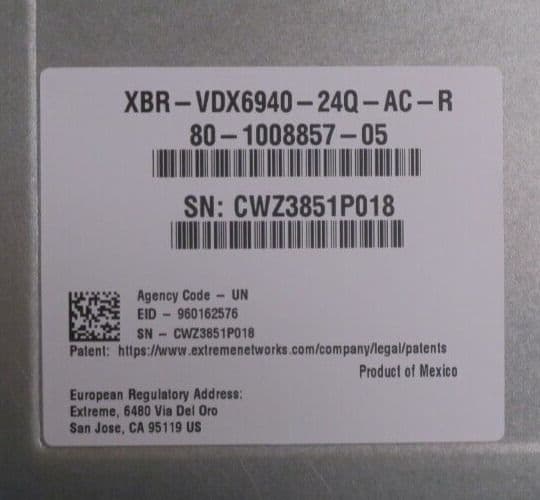

- 1 x Extreme VDX6940-36Q XBR-VDX6940-24Q-AC-R 36x 40GbE QSFP+ Port Switch (24-Active)
- 2 x Power Supply
- 5 x Fan Modules
- Form factor: 1U
- Switching bandwidth (data rate, full duplex): 2.88 Tbps
- Switch performance: 2.16 Bpps
- Port-to-port latency: 800 ns
- Dimensions and weight
- Width: 44 cm (17.32 in.)
- Height: 4.4 cm (1.73 in.)
- Depth: 43.8 cm (17.22 in.)
- Weight:
- 8.9 kg (19.6 lb) without media;
- 10.1 kg (22.3 lb) with media
- 10 GbE SFP+ ports: 144 10 GbE ports using breakout cables
- 1 GbE SFP: 0
- 1/10 GBASE-T: 0
- 40 GbE QSFP+: 36
- 100 GbE QSFP28: 0
- 40 GbE Ports on Demand (PoD): 24, 36
- 10 GbE Ports on Demand (PoD): N/A
- Power supplies: Two internal, redundant, field-replaceable, load-sharing AC/DC power supplies

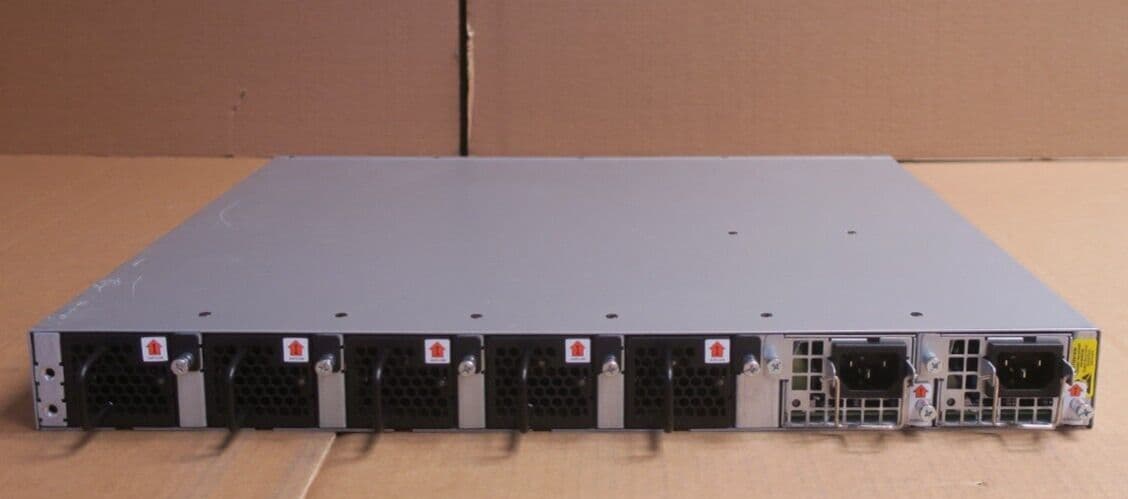

- Cooling fans: 5 field-replaceable fans (FRUs); each fan FRU has 2 fans
- Airflow: Rear-to-front or front-to-rear airflow
- Connector options:
- Out-of-band Ethernet management: RJ45 (fixed)
- Console management: RJ45 to RS-232 (fixed)
- Firmware and diagnostic: USB
- Maximum VLANs: 4,096
- Maximum MAC addresses: 112,000 (L2 MACs); fabric-wide 256,000 (CML)
- Maximum port profiles (AMPP): 512
- Maximum members in a standard LAG: 16
- Maximum per-port priorit y pause level: 8
- Maximum switches that a vLAG can span: 8
- Maximum members in a vLAG: 64
- Maximum jumbo frame size: 9,216 bytes
- Queues per port: 8
- DCB Priority Flow Control (PFC) classes: 8
- Maximum ACLs: 10,000
- Maximum ARP entries: 84,000
- Maximum IPv4 unicast routes: 12,000
- Maximum IPv6 unicast routes: 3,000
- DCB Priority Flow Control (PFC) classes: 8
- HA/ISSU: ISSU fully supported
- Enclosure: Rear-to-front airflow; 19-inch EIA-compliant; power from non-port side
- Temperature:
- Operating: 0°C to 40°C (32°F to 104°F)
- Non-operating and storage: −25°C to 70°C (−13°F to 158°F)
- Humidity:
- Operating: 5% to 93% at 50°C (122°F)
- Non-operating and storage: 10% to 95% at 60°C (140°F)
- Altitude:
- Operating: 0 to 3,000 m (9,842 ft.)
- Non-operating and storage: 0 to 12,000 m (39,370 ft.)
- Shock:
- Operating: 15 G, 11 ms, half-sine wave
- Non-operating and storage: 33 G, 11 ms, half-sine wave, 5/ea axis, and 33 G 6 ms, trapezoidal, 1/ea axis
- Vibration:
- Operating: 1 G sine, 0.5 gms random, 5 to 500 Hz
- Non-operating and storage: 2.4 G sine, 1.1 gms random, 5 to 500 Hz
- Airflow:
- Port-side-exhaust:
- Maximum: 159 CMH (94 CFM)
- Minimum: 65 CMH (38 CFM)
- Power Supplies: Two internal, redundant, field-replaceable, loadsharing power supplies
- Power Inlet: C13
- Input Voltage: 100 to 240 V or 48 V DC
- Input Line Frequency: 50 to 60 Hz
- Inrush Current: 30 A peak at cold start and 50 A peak at warm start for <10 ms, 10 A peak for cycles 10 ms to 150 ms, <7 A peak for >150 ms
- Maximum Current: 6 A at 100 VAC / 7 A at 90 VAC
- Maximum Power Consumption:
- At 100 VAC 2.84 A, 282 W, 962.5 BTU/hr
- At 200 VAC 1.44 A, 276 W, 942 BTU/hr
- Input current calculated with 1 PSU; watts and BTU/hour with 2 PSUs
sw0# show version
Network OperatingSystem Software
Network OperatingSystem Version: 7.1.0b3
Copyright (c)1995-2016 Brocade Communications Systems, Inc.
Firmwarename: 7.1.0b3
Build Time: 07:44:37 Oct 12, 2018
InstallTime: 12:39:44 Apr 29, 2021
Kernel: 2.6.34.6
BootProm: 1.0.1
ControlProcessor: e500mc with 8192 MB of memory
Slot Name Primary/Secondary Versions Status
---------------------------------------------------------------------------
SW/0 NOS 7.1.0b3 ACTIVE*
7.1.0b3
SW/1 NOS 7.1.0b3 STANDBY
7.1.0b3
sw0# showinventory
NAME:FAN 1 DESCR:Chassis Fan module
PN:N/A SN:N/A
NAME:FAN 2 DESCR:Chassis Fan module
PN:N/A SN:N/A
NAME:FAN 3 DESCR:Chassis Fan module
PN:N/A SN:N/A
NAME:FAN 4 DESCR:Chassis Fan module
PN:N/A SN:N/A
NAME:FAN 5 DESCR:Chassis Fan module
PN:N/A SN:N/A
NAME:POWER SUPPLY1 DESCR:Chassis PS module
PN:23-1000063-02 SN:CUA2V41P8T9
NAME:POWER SUPPLY2 DESCR:Chassis PS module
PN:23-1000063-02 SN:CUA2V41P90N
NAME:Chassis DESCR:System Chassis
SID:BR-VDX6940-36Q SwitchType:153
PN:40-1001012-11 SN:CWZ3851P018
sw0# show license
rbridge-id: 47
No entriesavailable for rbridge-id 47
sw0# show dpod
rbridge-id: 47
36 40G ports are available in this switch
No 40G Port Upgrade license is installed
Dynamic POD method is in use
24 40G port assignments are provisioned foruse in this switch:
24 40G port assignments are provisionedby the base switch license
0 40G ports are assigned to installedlicenses:
0 40G ports are assigned to the baseswitch license
40G ports assigned to the base switchlicense:
None
40G ports assigned to the 40G Port Upgradelicense:
None
40G ports not assigned to a license:
47/0/1, 47/0/2, 47/0/3, 47/0/4, 47/0/5,47/0/6, 47/0/7, 47/0/8, 47/0/9, 47/0/10
47/0/11, 47/0/12, 47/0/13, 47/0/14,47/0/15, 47/0/16, 47/0/17, 47/0/18, 47/0/19, 47/0/20
47/0/21, 47/0/22, 47/0/23, 47/0/24,47/0/25, 47/0/26, 47/0/27, 47/0/28, 47/0/29, 47/0/30
47/0/31, 47/0/32, 47/0/33, 47/0/34,47/0/35, 47/0/36
24 license reservations are still availablefor use by unassigned ports
sw0# showenvironment fan
Fan 1 is Ok,speed is 14637 RPM
Fan 2 is Ok,speed is 14637 RPM
Fan 3 is Ok,speed is 14637 RPM
Fan 4 is Ok,speed is 14297 RPM
Fan 5 is Ok,speed is 14637 RPM
Airflow direction: Port side EXHAUST
sw0# showenvironment power
Power Supply #1is OK
BEL POWER,23-1000063-02,CUA2V41P8T9 ,AirFlow: Port Side Exhaust
Power Supply #2is OK
BEL POWER,23-1000063-02,CUA2V41P90N ,AirFlow: Port Side Exhaust
sw0# showenvironment temp
Sensor State Centigrade Fahrenheit
ID
=================================================
1 Ok 51 123
2 Ok 24 75
3 Ok 25 77
4 Ok 25 77
5 Ok 25 77
6 Ok 28 82
7 Ok 29 84
8 Ok 30 86
9 Ok 27 80
-
MPN:VDX6940-36Q
