P/N: 200-0356-06
System Version: 13.1.5
License Version: 13.1.3
Full Working Order
Tested
Cosmetic Marks/Scratches
SEE BOOT LOG BELOW FOR LICENCES
Includes:

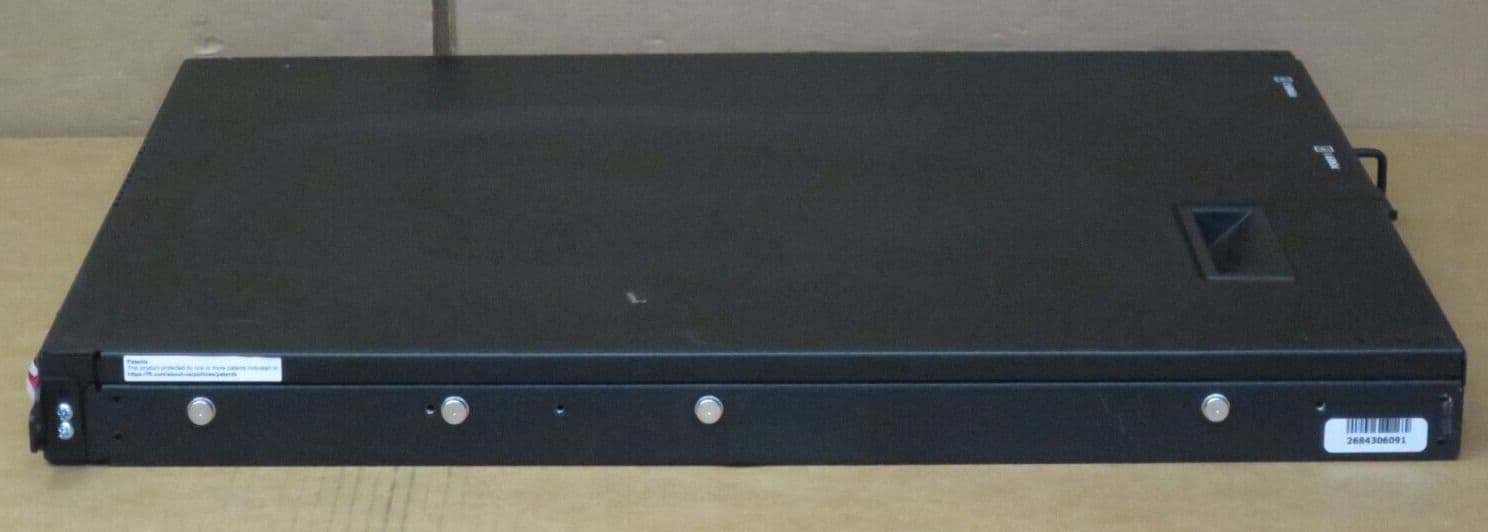

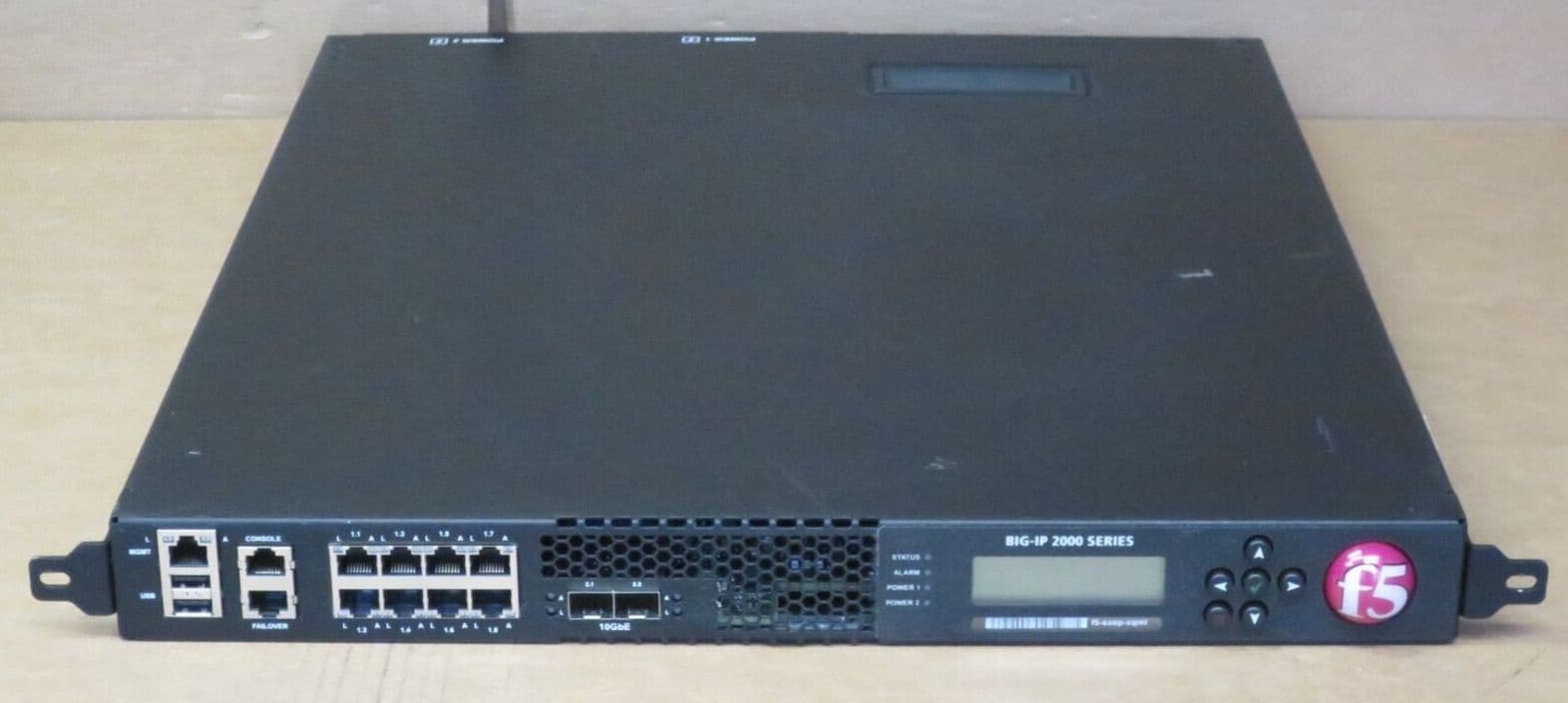

- 1 x F5 Network Big-IP 2000S LTM Local Traffic Manager Load Balancer
- 1 x Power Supply
- Intelligent Traffic Processing:
- L7 requests per second: 212K
- L4 connections per second: 75K
- L4 HTTP requests per second: 550K
- Maximum L4 concurrent connections: 5M
- Throughput: 5 Gbps L4/L7
- Hardware SSL:
- Included: 2,000 TPS (2K keys)
- Maximum: 2,000 TPS (2K keys)
- 4 Gbps bulk encryption*
- FIPS SSL: N/A
- Hardware DDoS Protection: N/A
- Hardware Compression: N/A
- Software Compression:
- Included: 2.5 Gbps
- Maximum: 2.5 Gbps
- Software Architecture: 64-bit TMOS
- On-Demand Upgradable: Yes
- Processor: Intel dual core (total 4 hyperthreaded logical processing cores)
- Memory: 8 GB
- Hard Drive: 500 GB

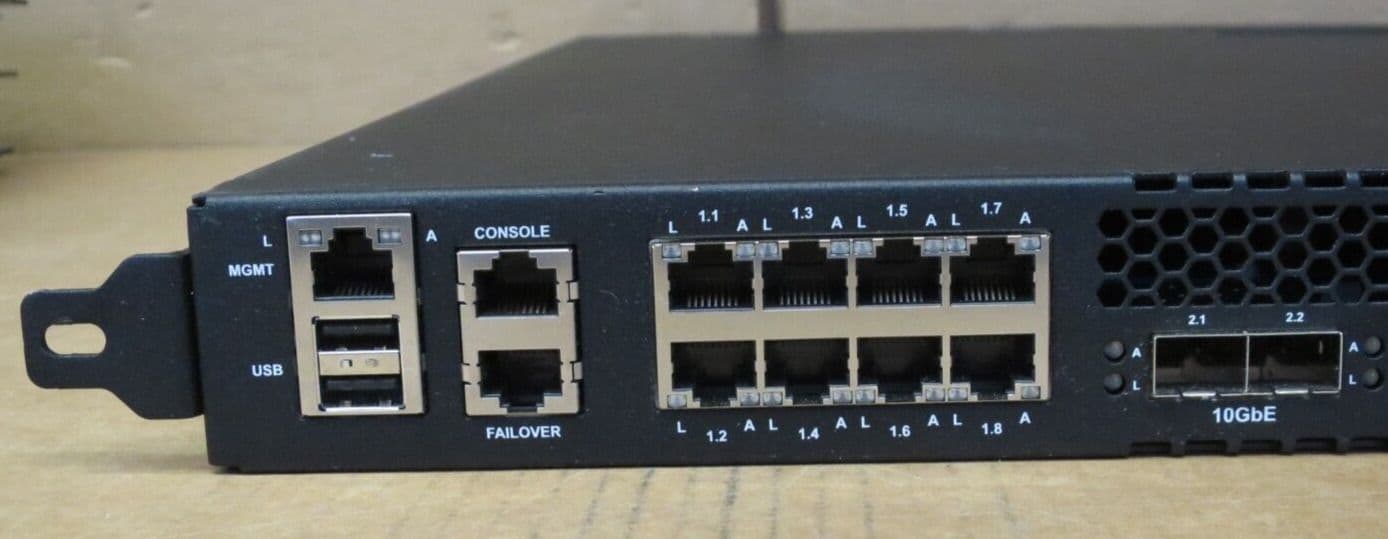

- Gigabit Ethernet CU Ports: 8
- Gigabit Fiber Ports (SFP): Optional SFP (SX, LX, or copper)
- 10 Gigabit Fiber Ports (SFP+):
- 2 SR or LR (sold separately);
- Optional 10G copper direct attach
- 40 Gigabit Fiber Ports (QSFP+): N/A

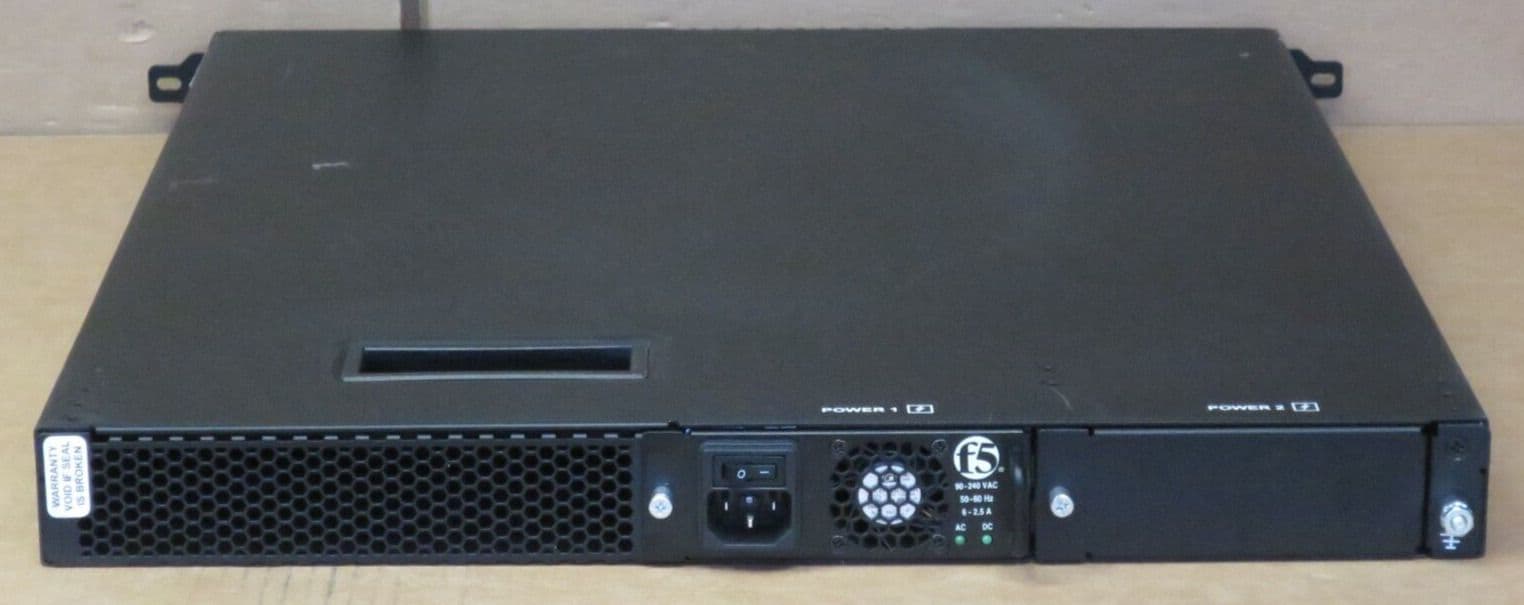

- Power Supply: One 400W included (80+ Platinum efficiency), dual power and DC options
- Typical Consumption: 74W (single supply, 110V input)**
- Input Voltage: 90-240 VAC +/- 10% auto switching, 50/60hz
- Typical Heat Output: 252 BTU/hour (single supply, 110V input)**
- Dimensions:
- 1.75" (4.45 cm) H x 17" (43.18 cm) W x 21" (53.34 cm) D
- 1U industry standard rack-mount chassis
- Weight: 20 lbs. (9.1 kg) (one power supply)
- Operating Temperature: 32° to 104° F (0° to 40° C)
- Operational Relative Humidity: 5 to 85% at 40° C
- Safety Agency Approval:
- UL 60950-1 2nd Edition
- CAN/CSA C22.2 No. 60950-1-07
- EN 60950-1:2006, 2nd Edition
- IEC 60950-1:2006, 2nd Edition
- Evaluated to all CB Countries
- Certifications/Susceptibility Standards:
- EN 300 386 V1.5.1 (2010-10)
- EN 55022:2006 + A1:2007
- EN 61000-3-2:2006
- EN 61000-3-3:1995 + A1:2000 + A2:2005
- EN 55024: 2010
- USA FCC Class A
[root@localhost:Active:Standalone] config # tmsh show sys version
Sys::Version
Main Package
Product BIG-IP
Version 13.1.5
Build 0.0.32
Edition Final
Date Mon Apr 11 23:04:38 PDT 2022
[root@localhost:Active:Standalone] config # tmsh show sys license
Sys::License
Licensed Version 13.1.3
Registration key *****-*****-*****-*****-*******
Licensed On 2022/05/22
Service Check Date 2022/05/22
Platform ID C112
Appliance Serial Number f5-holx-nukn
Active Modules
LTM, Base, 2000S (*******-*******)
Application Acceleration Manager, Core
APM, Limited
IPV6 Gateway
Rate Shaping
Anti-Virus Checks
Base Endpoint Security Checks
Firewall Checks
Network Access
Secure Virtual Keyboard
APM, Web Application
Machine Certificate Checks
Protected Workspace
Remote Desktop
App Tunnel
SSL, 2000S
Ram Cache
[root@localhost:Active:Standalone] config # tmsh show sys hardware
Sys::Hardware
Chassis Fan Status
Index Status Low Limit(rpm) Fan Speed(rpm)
1 up 1000 11261
2 up 1000 11619
3 up 1000 11619
4 up 1000 11619
Chassis Information
Maximum MAC Count 2
Registration Key -
Chassis Power Supply Status
Index Status Current
1 up AC
2 not-present NA
Chassis Temperature Status
Index Lo Limit(C) Temp(degC) Hi Limit(C) Location
1 0 26 46 Main board inlet IC temperature
2 0 26 62 Main board outlet IC temperature
3 0 26 67 Power supply #1 meas. inlet temperature
4 0 31 62 Main board near power supplies temperature
CPU Status
Index Temp(degC) Fan Speed(rpm)
1 38 11619
Hardware Version Information
Name HD1
Type physical-disk
Model WDC WD5003ABYZ-011FA0
Parameters -- --
SerialNumber WD-WMAYP0P3FDLD
Size 465.76G
Firmware Version 01.01S03
Media Type HDD
Hardware Version Information
Name cpld
Type pic
Model F5 CPLD
Parameters -- --
version 0xa
Hardware Version Information
Name cpus
Type base-board
Model Intel(R) Core(TM) i3- CPU @ 2.00GHz
Parameters -- --
cache size 3072 KB
cores 4 (physical:2)
cpu MHz 1200.000
cpu sockets 1
cpu stepping 7
Hardware Version Information
Name lop
Type pic
Model F5
Parameters -- --
Boot loader version 1.05
Firmware version 4.08
Hardware Version Information
Name mainboard
Type base-board
Model F5
Parameters -- --
Assembly serial pca0280zbd54
Board type N/A
PCA PCA-0280-09 REV B
Part Number PCA-0280-09 REV B
Revision N/A
Hardware Version Information
Name psu1
Type psu
Model SPAFFIV-03G
Parameters -- --
Location 1
Manufacturer BEL POWER
Revision 07
Serial number C0466
Name psu2
Type psu
Model N/A
Parameters -- --
Location 2
Manufacturer N/A
Revision N/A
Serial number N/A
Hardware Version Information
Name qa0
Type coproc
Model Cave Creek SKU3 C1 Crypto/Compression Coprocessor
Parameters -- --
version QA API: 1.7.0-30, FW: 1.7.0
Platform
Name BIG-IP 2000
BIOS Revision OBJ-0433-xx Build: 2.04.010.0 07/21/2015
Base MAC f4:15:63:a9:d8:00
System Information
Type C112
Chassis Serial f5-holx-nukn
Level 200/400 Part 200-0356-06 REV O
Switchboard Serial
Switchboard Part Revision
Host Board Serial pca0280zbd54
Host Board Part Revision
-
MPN:200-0356-06
