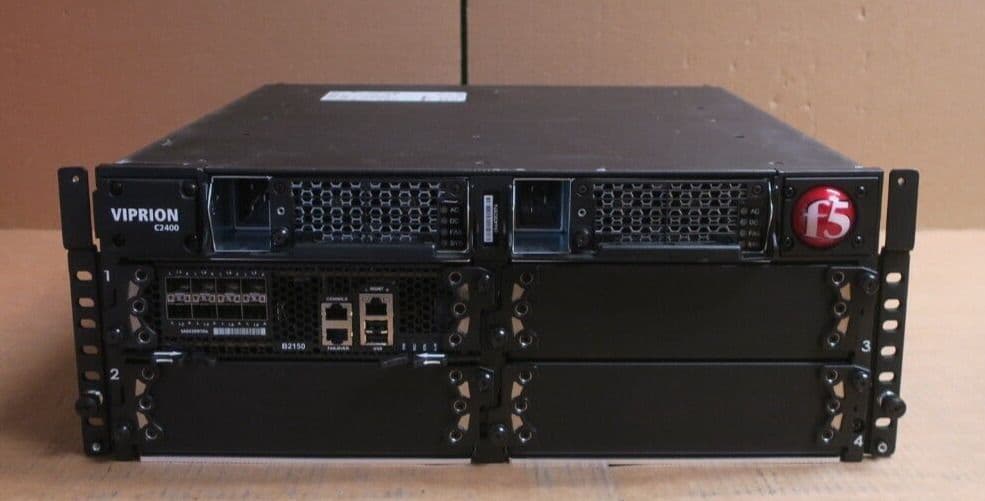

F5 Viprion C2400 4-Slot Local Traffic Manager LTM Blade Chassis +1x B2150 Blade
Chassis Model: F5 Viprion C2400
Chassis P/N: F5-VPR-LTM-C2400-AC
Blade Model: B2150
Blade P/N: F5-VPR-LTM-B2150
In Good Condition
Tested
Powered On
Sold As Hardware Only - No Operating System/Firmware, No Hard Drives Included
Includes:
- 1 x F5 Viprion C2400 4-Slot Blade Chassis
- 2 x 1400W Power Supply

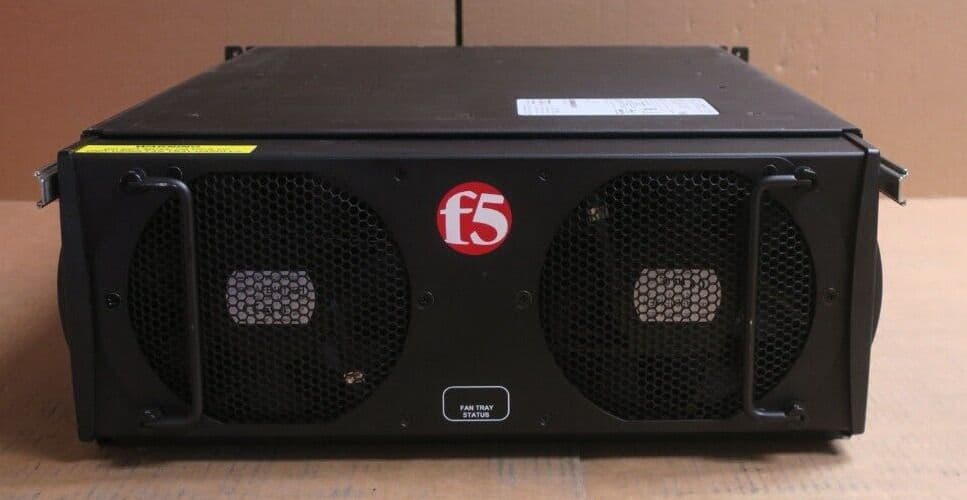

- 1 x Fan Tray
- 1 x F5 Viprion B2150 Blade (No HDD/SSD)
Chassis Specification:
- Dimensions:
- 6.89" (17.5 cm) H x 17.64" (44.8 cm) W x 21.18" (53.8 cm) D
- 4U industry standard rack-mount chassis
- Weight: 42.5 lbs. (19.3 kg) (3 blank line cards, 0 power supplies, 0 blades, 1 fan tray)
- Power Supply:
- AC power supply
- One to two 100-127 VAC (1200W)/200-240 VAC (1400W) auto ranging (80+ Gold Efficiency)
- 17A per input line (max)
- DC power supply (option)
- One to two 1400W 44 to 65 VDC
- 44A per input (max)
- Note: Please refer to the Platform Guide: VIPRION 2400 on askf5.com for the latest specific power ratings.
- Operating Temperature: 32° to 104° F (0° to 40° C)
- Relative Humidity: 5 to 85% at 104° F (40° C)

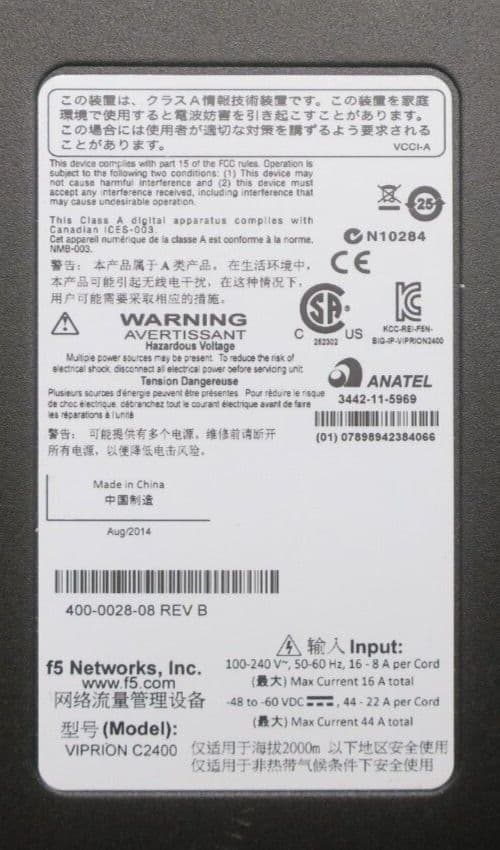

- Safety Agency Approval
- EN 60950-1:2006, 2nd Edition
- Evaluated to all CB Countries
- UL 60950-1, 2nd Edition, CSA C22.2 No. 60950-1-03
- Certifications/ Susceptibility Standards:
- FCC Part 15 Class A
- VCCI Class A
- EN 300 386 V1.3.2 (2003-05)
- EN 55022:2006 + C1:2006
- EN 61000-3-2:2000
- EN 61000-3-3:1995 +A1:2000
- EN 55022:2006 + C1:2006 Class A
- EN 61000-3-3:1995 +A1:2000+ A2:2005
- EN 55024:1998 +A1: 2001 +A2:2003
B2150 Blade Specification:
- Intelligent Traffic Processing:
- 1M L7 requests per second
- 400K L4 connections per second
- 7M L4 HTTP requests per second
- 24M max L4 concurrent connections
- 40 Gbps L4, 18 Gbps L7
- 400 Mbps included compression
- 10 Gbps maximum hardware compression
- Included SSL TPS: 4,000/Blade
- Maximum SSL TPS: 10,000 TPS (2K keys)
- Bulk crypto: 9 Gbps
- Note: Compression and SSL resources are allocated evenly across the number of vCMP guests set up.
- Hardware DDoS Protection: Hardware SYN cookies: 40M SYN cookies per second
- Software Architecture: 64-bit TMOS
- Virtualization (Max Number of vCMP Guests): 32 (4 B2150 blades, 8 per blade)
- Processors: Single Intel quad core Xeon processor (total 8 hyperthreaded logical processor cores)
- Memory: 32 GB
- Hard Drive Capacity: 400 GB solid state drive (Not Included)

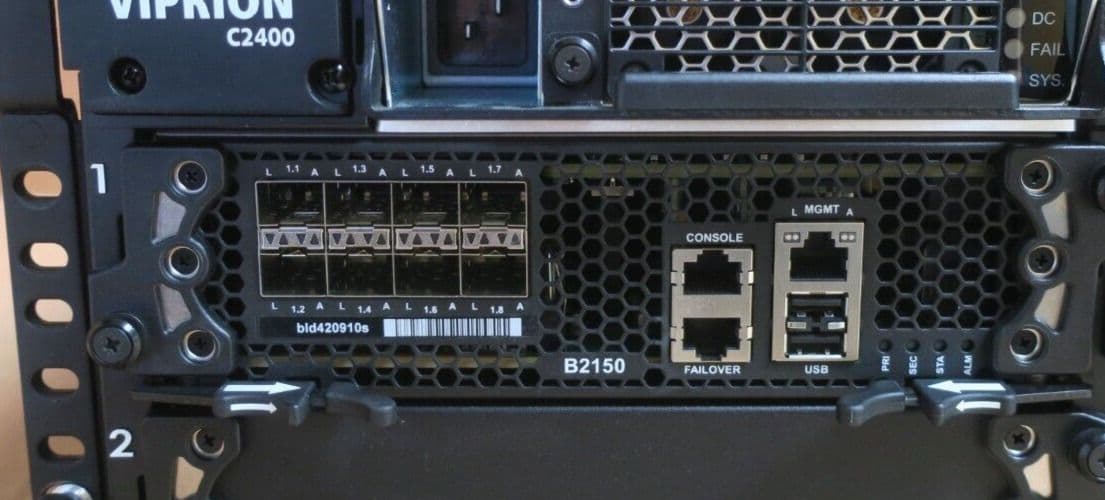

- Network Interfaces: One 10/100/1,000 Mbps Ethernet management portEight 1,000 Mbps/10 Gbps SFP+ ports(2 ea. 10GBASE-SR - 850nm transceivers included)(Optional 1G SFP fiber SX or LX) or copper RJ45 transceivers, 10G SFP+ SR or LR, 10G copper direct attach)Note: Only optics provided by F5 are supported.
- Power Consumption and Heat Output: Note: Please refer to the VIPRION 2200 Platform Guide or the VIPRION 2400 Platform Guide for the latest relevant blade power ratings.
- Weight: 9.5 lbs. (4.3 kg)
CS 287877 287878 287876
specifications
-
MPN:Viprion C2400
