Home / Networking / Network Switch Modules / F5 Viprion PB100 Blade 2x AMD Opteron 2218 Dual Core 2.6GHz, 8GB, No HDD

F5 Viprion PB100 Blade 2x AMD Opteron 2218 Dual Core 2.6GHz, 8GB, No HDD

mpn: PB100

product brand: F5

product condition: Used

excluding vat: £950.00

including vat: £1,140.00

information

F5 Viprion PB100 Blade 2x AMD Opteron 2218 Dual Core 2.6GHz, 8GB, No HDD Model: PB100 In Good Condition, Full Working Order No Hard Drives Included Includes:

1 x F5 Viprion PB100 Blade
- 2x AMD Opteron 2218 Dual Core 2.6GHz
- 8GB Ram
- No HDD

Description:

A blade is the primary component that handles the traffic management within the VIPRION platform. You can install up to four blades in a VIPRION chassis. These blades comprise a group, called a cluster. The chassis includes blanks in the slots where blades are not installed. Blanks must be installed in all unused slots, as they help ensure proper airflow within the chassis and EMC compliance of the unit.

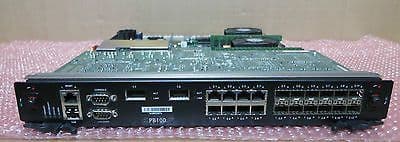

Front view of the PB100 blade
1. Compression screw 2. Indicator LEDs 3. Management port 4. USB ports 5. Console port 6. Hard-wired failover port 7. XFP ports 8. 10/100/1000 interfaces 9. SFP ports

PB100 Factory Specification:

Item	Specification
Dimensions	Proprietary to fit F5 Networks chassis
Weight	14.5 lbs (6.58 kg)
Processors	Two Dual-Core AMD Opteron processors
Network Interfaces	1x10/100/1000 Ethernet Management port 8x10/100/1000 Copper ports 12x1000Base-X SFP Fiber/Copper ports 1000BASE-SX - 850nm (LC Connector, 4 modules included) 1000BASE-LX - 1310nm (LC Connector, optional) 1000BASE-T Copper SFP (RJ45 Connector, optional) 10BaseT, 100BaseT, 1000BaseT Copper SFP (RJ45 Connector, optional) 2x10 Gigabit XFP ports 10GBASE-SR - 850nm (LC Connector, optional)
Hard Drive Capacity	160 Gigabyte ATA hard drive 8 Gigabyte Compact Flash
RAM	8 GB
Typical power draw(under heavy load)	300W
Maximum power draw	325W
Typical heat generated	1025 BTU/hour
Maximum heatgenerated	1100 BTU/hour

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK

CS 156429 156430 In Chassis 156427 dup

CS 157601 157602 In Chassis 157600 dup

CS In Chassis 157605 -3
