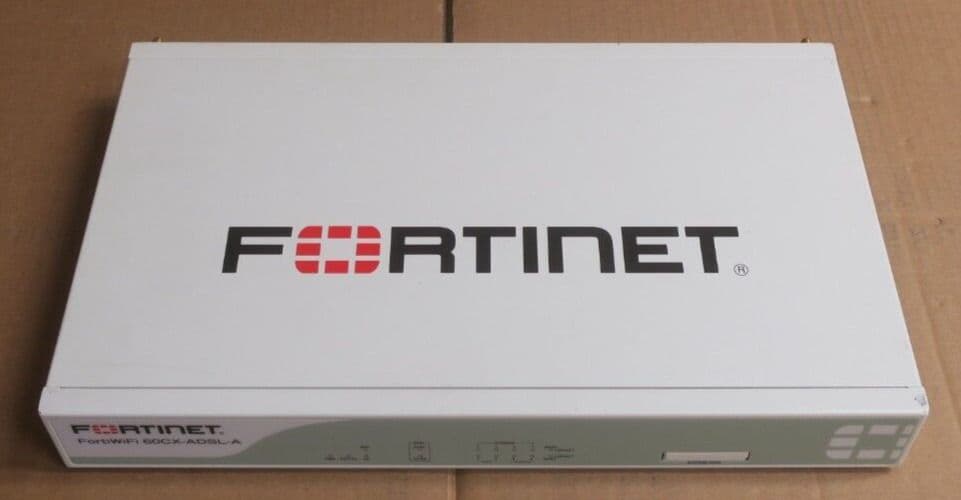

Fortinet FortiWiFi 60CX-ADSL-A Wireless Firewall 4x 1GE + 4x FE LAN + 2x 1GE WAN

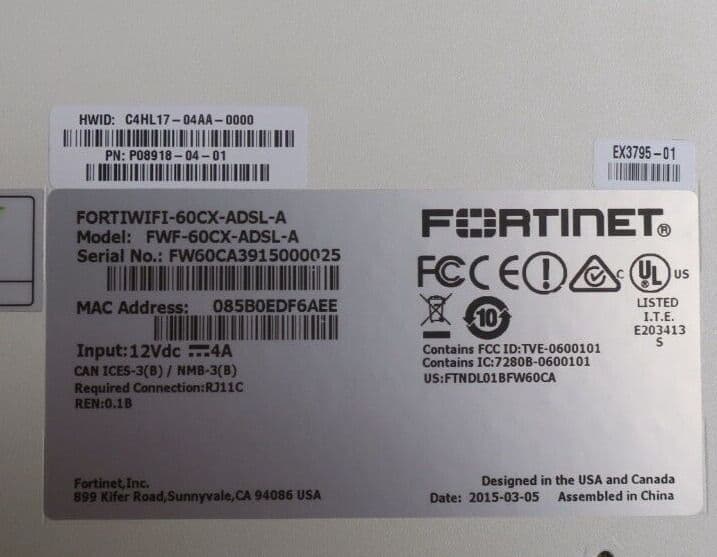

Model: FWF-60CX-ADSL-A
PN: P08918-04
In Good Condition
No AC Adapter Included
No Antenna Included
Untested
Includes:
- 1 x Fortinet FortiWiFi 60CX-ADSL-A Wireless Firewall 4x 1GE + 4x FE LAN + 2x 1GE WAN
Specifications:
Interfaces
- 10/100/1000 Internal Switch Interfaces (Copper, RJ-45): 4
- 10/100 Internal Switch Interfaces (Copper, RJ-45): 4
- 10/100/1000 WAN Interfaces (Copper, RJ-45): 2
- 10/100/1000 DMZ Interfaces (Copper, RJ-45): -
- Modem Port: -
- ADSL2+ Annex A Interface: 1
- Management Console Interface (Copper, RJ-45): 1
- USB Interfaces: 2 (1 Type-A, 1 Type-B)
- ExpressCard Slot: 1
- Internal Storage: 8GB
- Wireless Standards Supported: 802.11 a/b/g/n
System Performance
- Firewall Throughput (1518 / 512 / 64 byte UDP packets): 1 / 1 / 1 Gbps
- Firewall Latency (64 byte UDP packets): 4 μs
- Firewall Throughput (Packets Per Second): 1.5 Mpps
- Concurrent Sessions (TCP): 400,000
- New Sessions/Sec (TCP): 3,000
- Firewall Policies (System / VDOM): 5,000 / 500
- IPSec VPN Throughput (512 byte packets): 70 Mbps
- Gateway-to-Gateway IPSec VPN Tunnels (System / VDOM): 50 / 50
- Client-to-Gateway IPSec VPN Tunnels: 500
- SSL-VPN Throughput: 15 Mbps
- Concurrent SSL-VPN Users (Recommended Max): 60
- IPS Throughput: 135 Mbps
- Antivirus Throughput (Proxy Based / Flow Based): 20 / 40 Mbps
- Virtual Domains (Max / Default): 10 / 10
- Max Number of FortiAPs: 5
- Max Number of FortiTokens: 500
- High Availability Configurations: Active/Active, Active/Passive, Clustering
- Unlimited User Licenses: Yes
Dimensions
- Height x Width x Length: 1.74 x 13.51 x 8.27 in (4.44 x 34.33 x 21.0 cm)
- Weight: 4.67lb (2.12 kg)
- Wall Mountable: No
Environment
- Power Required: 100-240 VAC, 50-60 Hz, 1.5 Amp Max
- Power Consumption (AVG): 19.7 W
- Heat Dissipation: 81.9 BTU
- Operating Temperature: 32 - 104 deg F (0 - 40 deg C)
- Storage Temperature: -13 - 158 deg F (-25 - 70 deg C)
- Humidity: 5 to 95% non-condensing
CS 305689
