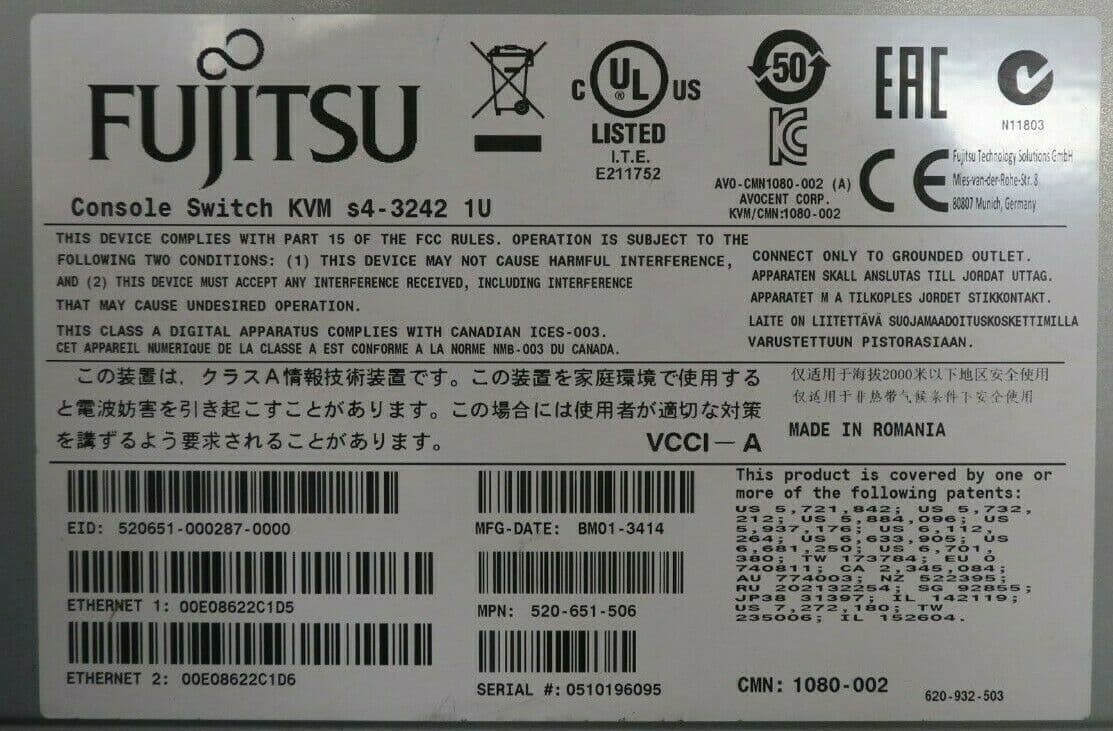

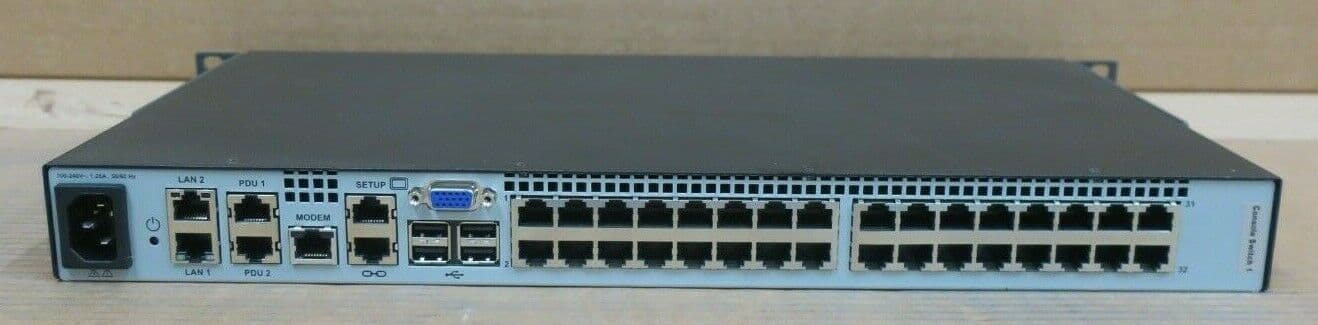

Fujitsu S4-3242 32-Port CAT5 USB Digital 1U KVM Console Switch S26361-K1393-V32

Fujitsu S4-3242 32-Port CAT5 USB Digital 1U KVM Console Switch S26361-K1393-V32

In Good condition, Full Working Order

Includes Rack Mount Ears

Includes:

• 1 x Fujitsu S4-3242 32-Port CAT5 USB Digital 1U KVM Console Switch S26361-K1393-V32

Technical details

• Installation format: Rack-optimized,1U
• Console connections: Four remote consoles via TCP/IP (10/100/1000MBit/s auto sense), Redandent LAN port, One local console
• Supported displays:
  • Monitor: VGA, SVGA (XGA, XGA-II with adapter)
  • Monitor: Wide Screen support (WXGA)
  • Local port: up to 1600 x 1200 @75Hz
• Supported keyboards: USB, RC23/24, RC24/RC25
• Supported mouse systems: USB, RC23/24, RC24/RC25
• Server selection: By Advanced On-Board WEB-Interface (OBWI)
• Configuration: By Advanced On-Board WEB-Interface (OBWI)
• OSD languages: English, German, French, Spanish, Italian, Japanese
• Remote access: Via KVM S4 client software or On-Board WEB-Interface (OBWI)
• KVM client software: Linux, Windows
• Browser support (OBWI): Firefox 10x, Microsoft (IE8, IE9, IE11)
• Client software languages: English, German, French, Japanese, Italian
• Virtual media support: All with PRIMERGY servers released USB 2.0 devices, inclusive boot via USB 2.0 (if supported by server BIOS).,Only in connection with KVM s3-adapter USB2.
• Released server for virtual media via USB: Servers BIOS has to support "Composite USB2.0" in boot phase.
• Color coding: VGA and PS/2 according to PC99
• Dimensions (W x D x H): 431.8 x 340 x 43.7mm for 16/32 port,431.8 x 234 x 43.7
• mm for 8 port,17 x 13.38 x 1.72 in for 16/32 port
• Weight: 3.67 kg without cable
• Rated voltage range: 100 V - 240 V
• Rated frequency range: 50 Hz - 60 Hz
• Active power (max. configuration): 40 W
