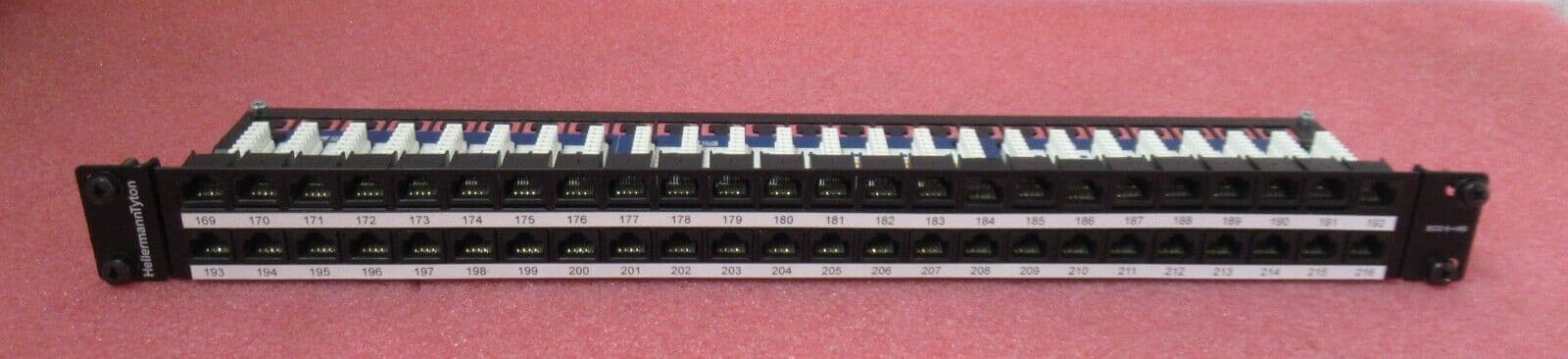

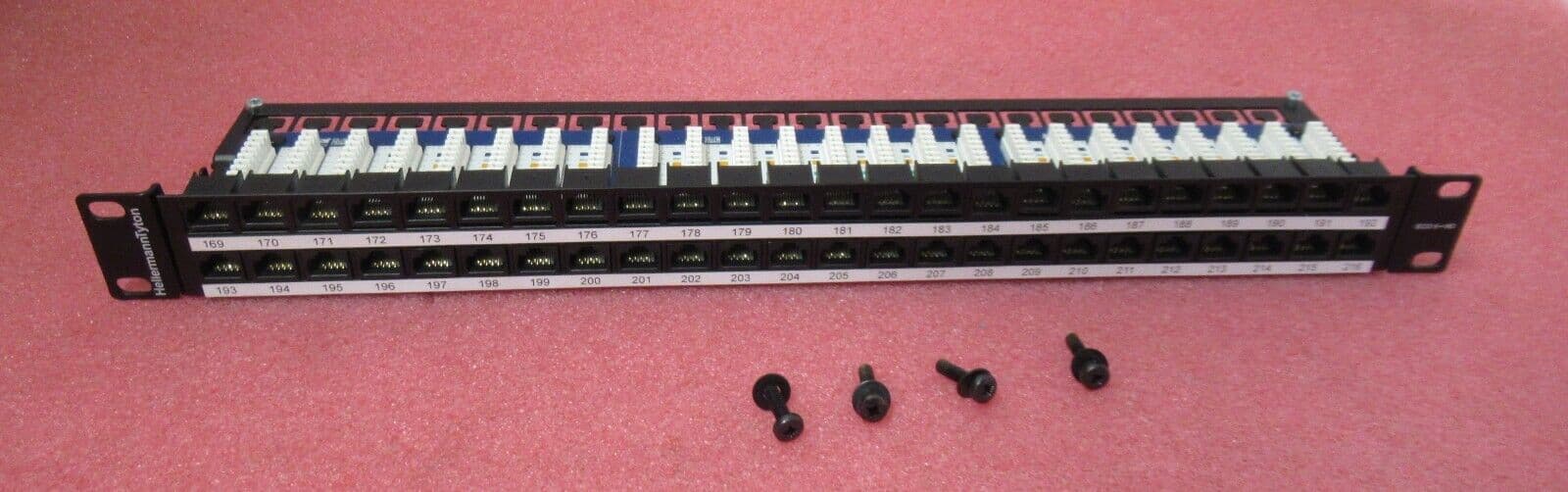

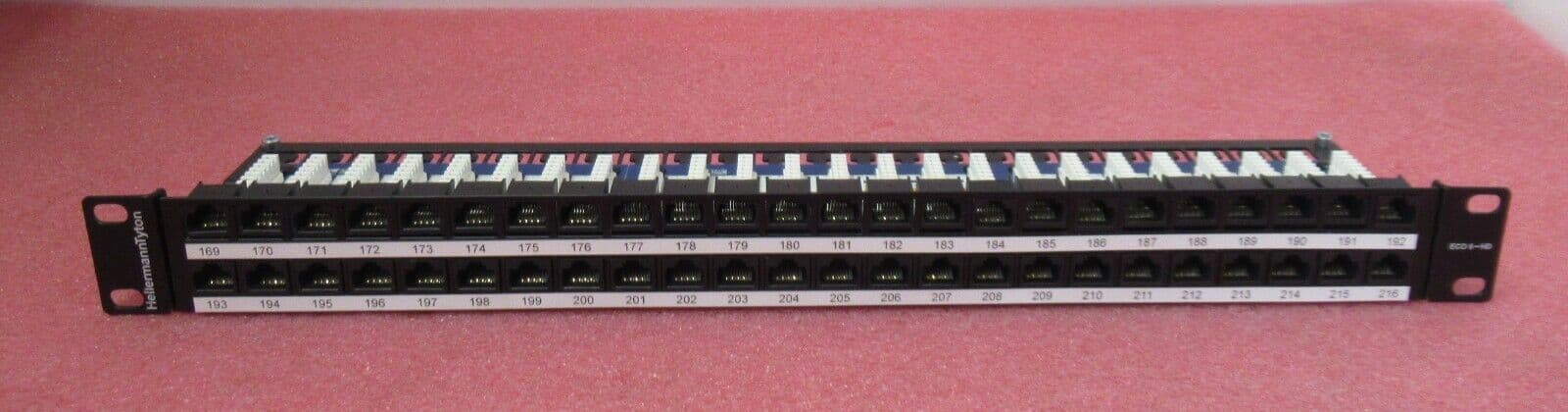

HellermannTyton CAT6 Unshielded 48 Port 1U Right Angled RJ45 Patch Panel Black

Cat6 48 Port Unscreened Patch Panel 1U LSA Punch Down Right Angled Black, available as part of a range of Cat6 Patch Panels in stock at Mayflex. Excel Category 6 Unscreened Patch Panels have been designed to meet or exceed the latest ISO and TIA requirements for category 6 compliance. Ease of installation is assured with built in rear cable management at a 90? angle to the panel facia.

Each panel has a screen-printed labelling field positioned above each port, included with the panel is a pre-printed self-adhesive labelling sheet, pre-numbered 1- 96, for fast and easy labelling on site.

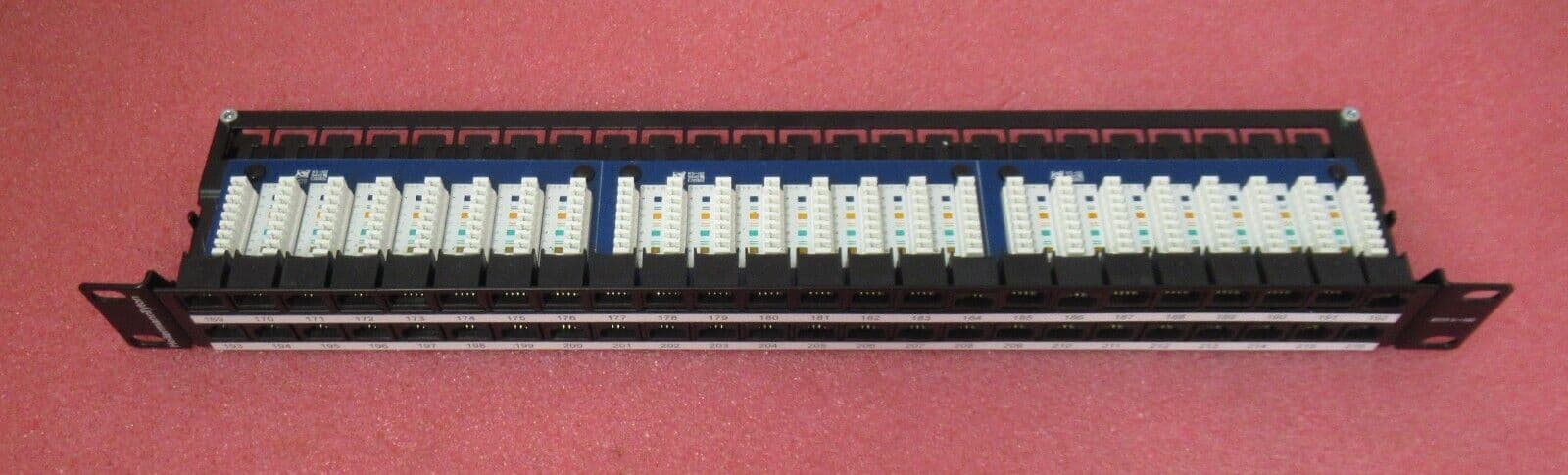

Termination can be made using LSA compatible tools, and cable tie bridges are positioned between the IDC blocks to relieve cable stress.

• Unshielded 1U 48 ports
• Right Angled LSA Punch Down Presentation
• 568A/B wiring options
• Numbered Ports
• Supplied with Rack Snap mounting fixings
• Exceptional Category 6 performance
• Backwards compatible with cat5e and voice applications
• Integral rear cable rear managment

Colour	Black (BK)
Local order number	1/4808IDC C6/BK
PART DESCRIPTION	1/4808IDC C6/BK
Panel Fixing Method	rack snap
Performance Category	Category 6 (Class E)
Port count	48
Product Family	1U Right Angled
Product Group	CAT6 Unshielded 48 Port Panel
Technical Description	HellermannTytons Category 6 product range is designed and manufactured to offer exceptional performance and reliability, supporting any voice and data protocol capable of running over a Category 6 system. The right angled presentation of these panels offer a stable and easy termination platform, which also acts as the rear cable manager. Available in 1U 24 port and a high density 1U 48 port variation. Each panel is supplied with Rack Snap fixings as standard.
Type	1/4808IDC C6/BK
