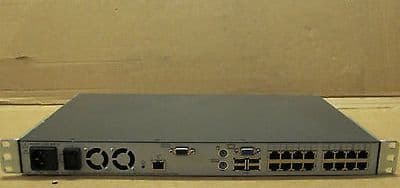

HP - USB / IP, Server Console KVM 4X1X16 Ethernet Rack Mount Switch 410531-001

mpn: 410531-001 - 408965-002

product brand: HP

product condition: Used

excluding vat: £380.00

including vat: £456.00

information

HP - USB / IP, Server Console KVM 4X1X16 Ethernet Rack Mount Switch

HP Spares: 410531-001

In good condition and in full working order

Included:

1 x HP - USB / IP, Server Console KVM 4X1X16 Ethernet Rack Mount Switch 410531-001

Specification

Product Description	HP IP Console Switch with Virtual Media 4x1x16 - KVM switch - 16 ports
Device Type	KVM switch - PS/2 - CAT5 - cascadable
Form Factor	External - 1U
Dimensions (WxDxH)	17.2 in x 11 in x 1.7 in
Weight	7.3 lbs
Ports Qty	16
KVM Users Qty	1 local user , 4 IP users
Remote Management Protocol	SNMP
Features	Firmware upgradable
Power	AC 120/230 V ( 50/60 Hz )

General
Device Type	KVM switch - cascadable
Enclosure Type	External - 1U
Width	17.2 in
Depth	11 in
Height	1.7 in
Weight	7.3 lbs
Networking
Ports Qty	16
Remote Management Protocol	SNMP
Connectivity Technology	Wired
Features	Firmware upgradable
KVM
Keyboard / Mouse Interface	PS/2
KVM Local Users Qty	1 local user
KVM IP Users Qty	4 IP users
Server Connection Via Twisted Pair	CAT5
Max Cascading Depth	3
Max Resolution	1280 x 1024
Expansion / Connectivity
Interfaces	16 x keyboard / video / mouse (KVM) - RJ-45 1 x management - 9 pin D-Sub (DB-9)
Connections	1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x network - RJ-45 4 x Hi-Speed USB - 4 pin USB Type A
Miscellaneous
Encryption Algorithm	DES, Triple DES, SSL
Authentication Method	LDAP
Pricing Type	Factory integrated
Power
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Software / System Requirements
Software Included	IP Viewer 3.0
Environmental Parameters
Min Operating Temperature	50 °F
Max Operating Temperature	122 °F
Humidity Range Operating	20 - 80%

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK

LM 84711 (I/B: 86127)

specifications

MPN:

410531-001 - 408965-002
