HP AF622A IP KVM Console G2 Switch 32-Port RJ-45 4x1Ex32 CAT5 580647-001

Overview
Want a switch for remote management of all your servers, network devices, and technology infrastructure?
HPE Enterprise IP KVM switches can allow an administrator to manage up to 1024 servers across two tiers from a single local console in cascaded environments. When tiered with additional HPE switches application installations and upgrades can be pushed to any server from the local console or remotely. HPE IP KVM switches along with the IP Console Viewer allows remote access to multiple servers running various operating systems. Virtual Media allows a removable drive or ISO image to be remotely mapped to an attached server or a remote office. An intuitive Local Console User Interface provides menus for configuration, virtual media, display, security and upgrades that is the same as the On Board Web Interface (OBWI) used for remote management. Implement two-factor authentication to increase security in the data center with CAC compatibility.

Features
Improved Functionality, Performance, and Security to the Data Center

• HPE Enterprise IP KVM switches provides Smart Card or Common Access Card (CAC) support to the server.
• Tiering port. For companies requiring direct remote access in every rack can now aggregate local access to the IP Console Switches for a row of racks to a single console as well as at each rack giving them two local users.
• New video compression allows 1600x1200 @ 60Hz or 1680 x 1050 @ 60Hz 16-bit color for remote sessions without impacting performance.
• Access using SSH or Telnet compliant clients.
• Up to (32) target server ports per switch for a wider range of rack density support.

Enhanced Remote Functionality for Quick and Easy Management

• HPE Enterprise IP KVM switches includes full remote KVM functionality giving you remote KVM control of servers and serially attached devices at near local performance.
• Easily load and update software and firmware from anywhere on the LAN or WAN when used with Virtual Media Interface Adapters.
• iLO compatibility-Easily switch between remote KVM and iLO sessions directly from the IP Viewer software.
• Remote KVM control of servers and serially attached devices at near local performance

Robust Local Console User Interface

• HPE Enterprise IP KVM switches displays all system-related information on the console monitor. Same look and feel as the remote On-Board Web Interface (OBWI).
• Programmable Scanning-An evaluation of system performance can be made by sequentially scanning any or all of the computers in the system. Programmable scanning allows you to determine which computers to include as well as the duration of the connection.
• Configuration NVRAM-NVRAM (non-volatile RAM) makes it easy to set configuration information using commands entered from the keyboard. The NVRAM stores the resulting configuration until a user decision is made to change the information, even if the unit loses power.
• Password Protection-For protection against unauthorized users, the switch box provides a local password option for security purposes as well as individual user authentication and access rights for remote users.

Flexible, Versatile Design

• HPE Enterprise IP KVM switches may be mounted behind a HPE 1U Rackmount KVM Console such as the LCD8500 with slide rails provided with the switch. It can also be mounted in the side of an HPE rack with the included rails.
• PS2 Virtual Media Interface Adapter supports servers with PS2 mouse and keyboard connection and a USB port for virtual media. This is the recommended interface adapter for virtual media.
• USB Virtual Media Interface Adapter supports servers without PS2 mouse and keyboard connections such as Integrity servers running Microsoft Windows.

Specifications
General

• Device Type: KVM switch - 32 ports - cascadable
• Enclosure Type: Desktop 1U
• Subtype: KVM
• Ports: 32 x KVM port(s)
• KVM Local Users Qty: 1 local user
• KVM IP Users Qty: 4 IP users
• Keyboard / Mouse Interface: USB
• Encryption Algorithm: DES, Triple DES, AES, SSL
• Authentication Method: LDAP
• Max Resolution: 1600 x 1200
• Features: Firmware upgradable

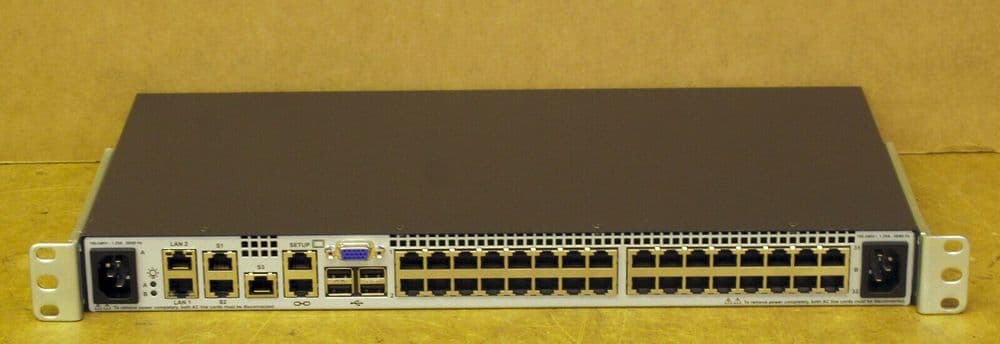

Expansion / Connectivity
Interfaces

• 32 x KVM RJ-45
• 1 x RJ-45 management
• 1 x keyboard (USB) Type A
• 1 x mouse (USB) Type A
• 1 x VGA HD-15
• 1 x LAN RJ-45
• 4 x USB Type A

Power

• Power Device: Internal power supply
• Power Redundancy: Yes
• Power Redundancy Scheme: 1+1
• Voltage Required: AC 120/230 V (50/60 Hz)

Dimensions & Weight

• Width: 17.2 in
• Depth: 9.3 in
• Height: 1.7 in
• Weight: 7.5 lbs

Environmental Parameters

• Min Operating Temperature: 50 °F
• Max Operating Temperature: 122 °F
• Humidity Range Operating: 20 - 80%

Compatibility Information
Designed For

• HPE 10642 G2 1200mm deep Shock Rack, 10647 G2 1200mm deep Shock Rack, 600mm x 1075mm Advanced Pallet Rack, 600mm x 1075mm Advanced Shock Rack, 600mm x 1075mm Enterprise Crate Rack, 600mm x 1075mm Enterprise Pallet Rack, 600mm x 1075mm Enterprise Shock Rack, 600mm x 1200mm Advanced Pallet Rack, 600mm x 1200mm Advanced Shock Rack, 600mm x 1200mm Enterprise Air Duct Rack, 600mm x 1200mm Enterprise Pallet Rack, 600mm x 1200mm Enterprise Shock Network Rack, 600mm x 1200mm Enterprise Shock Rack, 600mm x 1200mm Grey Enterprise Air Duct Rack, 600mm x 1200mm Grey Enterprise Shock Rack, 600mm x 1200mm Network Advanced Shock Rack, 800mm x 1075mm Enterprise Pallet Rack, 800mm x 1075mm Enterprise Shock Rack, 800mm x 1200mm Advanced Pallet Rack, 800mm x 1200mm Advanced Shock Rack, 800mm x 1200mm Enterprise Pallet Rack, 800mm x 1200mm Enterprise Shock Network Rack, 800mm x 1200mm Enterprise Shock Rack, 800mm x 1200mm Grey Enterprise Shock Network Rack, 800mm x 1200mm Grey Enterprise Shock Rack, 800mm x 1200mm Network Advanced Shock Rack
• HPE Advanced Series Racks 42U 600mm x 1075mm Kitted Advanced Pallet Rack with Side Panels and Baying, 42U 600mm x 1075mm Kitted Advanced Shock Rack with Side Panels and Baying
• HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL320e Gen8 v2 Entry, DL360p Gen8, DL360p Gen8 CMS, DL380 G6, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL60 Gen9, DL60 Gen9 Base, DL60 Gen9 Entry, DL80 Gen9, DL80 Gen9 Base, DL80 Gen9 Entry, e2000 G6, m350, m400, m710, m800, ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML150 Gen9, ML150 Gen9 Base, ML150 Gen9 Entry, ML150 Gen9 Performance, ML350p Gen8
• HPE Rack
