information

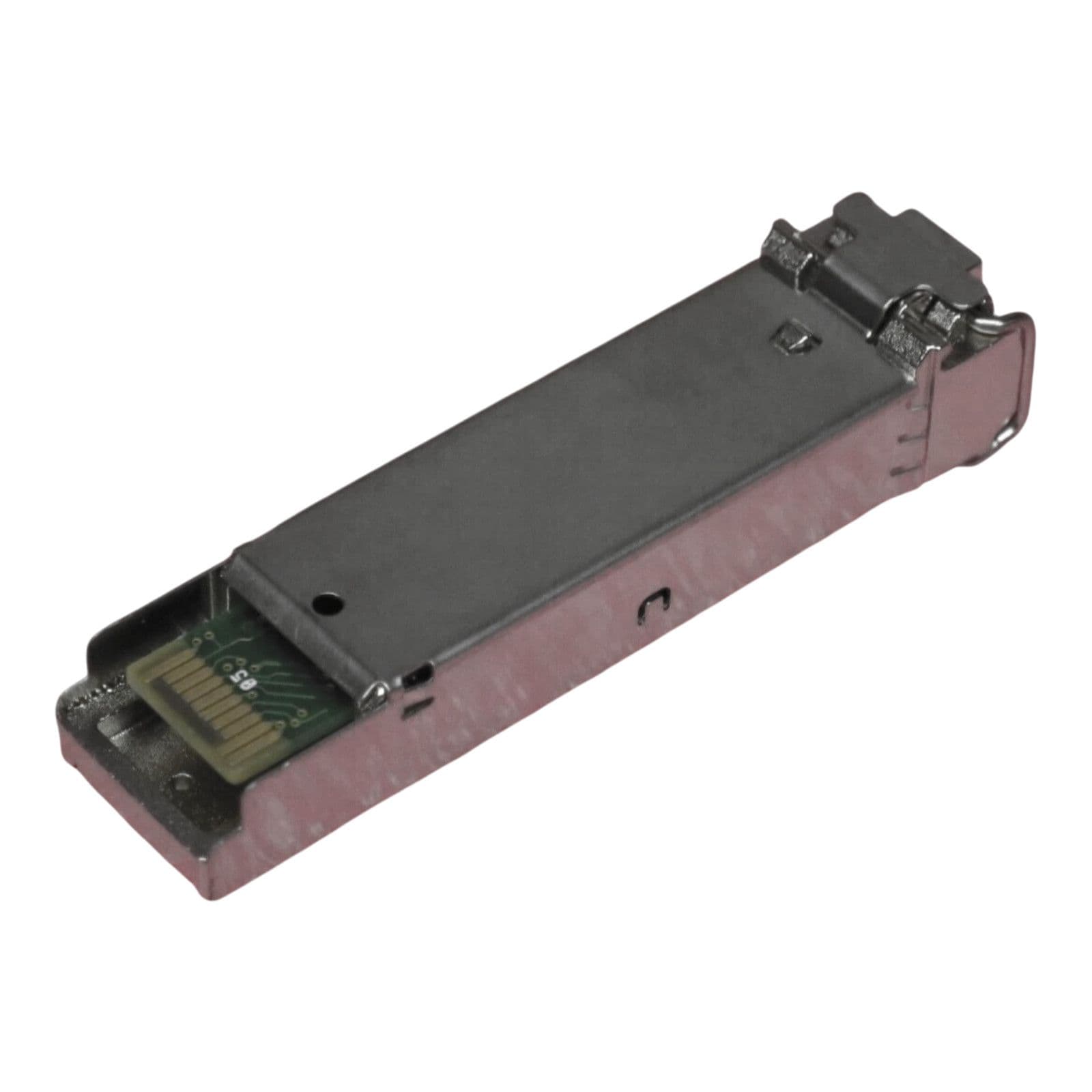

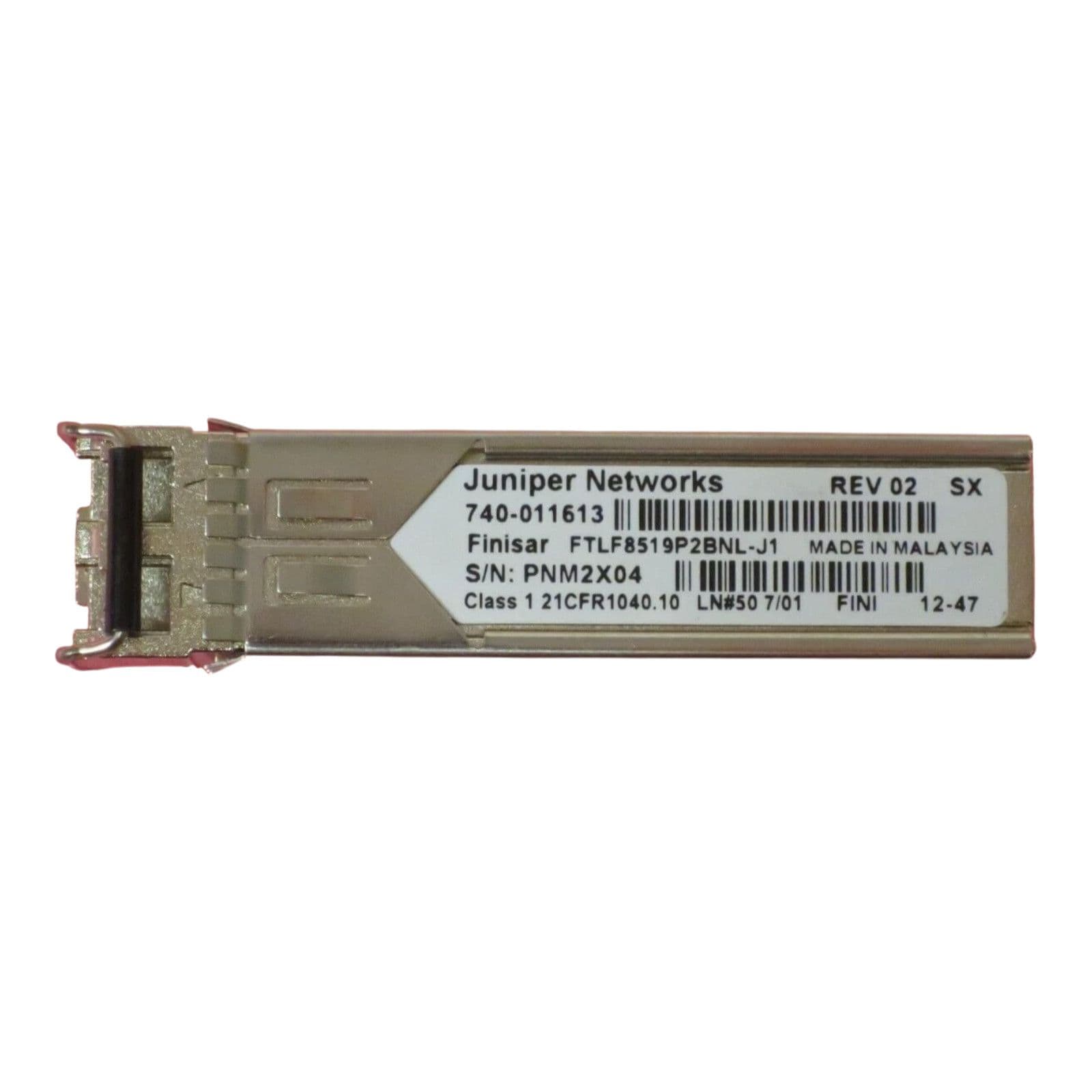

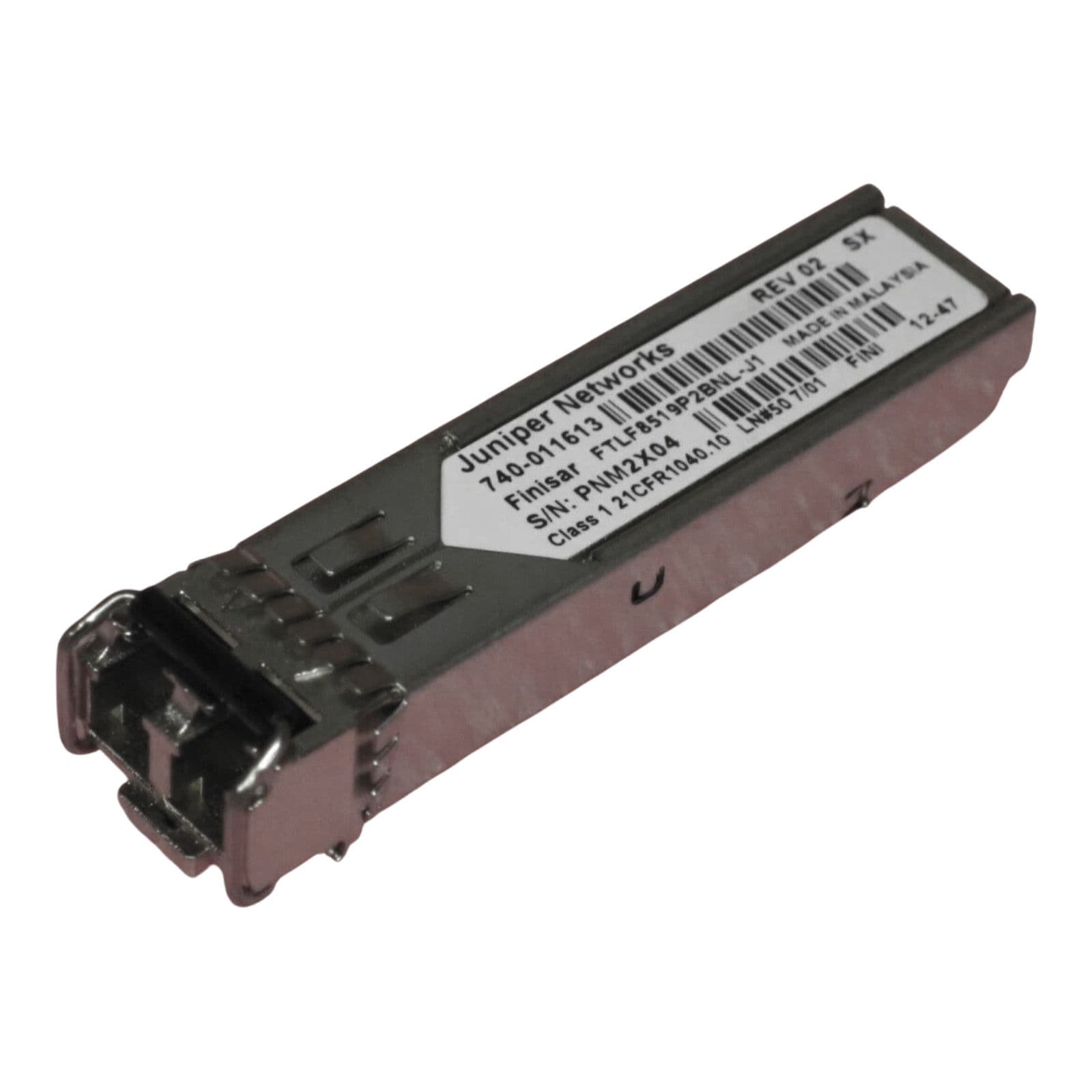

Juniper Finisar FTLF8519P2BNL-J1 1000Base-SX 850nm Transceiver SFP 740-011613
Finisar P/N: FTLF8519P2BNL-J1
Product Number: EX-SFP-1GE-SX
Juniper P/N: 740-011613
In Good Condition
Full Working Order
Tested
2 Years Warranty Included
Included
- 1 x Juniper Finisar FTLF8519P2BNL-J1 1000Base-SX 850nm Transceiver SFP 740-011613
Specification
Part Number
740-011613
Speed
Gigabit Ethernet
Breakout Capable
No
Transceiver Type
SFP
Product Type
Optical Transceiver
Connector
Duplex LC
Monitoring Available
Yes
Digital Optical Monitoring
Yes
Standard: 1000BASE-SX
Signaling rate, each lane
1000 Mbps
Transmitter fibers
Dual
Transmitter wavelengths (range)
850 nm
Transmitter output power, each lane (minimum)
-9.5 dBm
Transmitter output power, each lane (maximum)
-3 dBm
Receiver input power, each lane (minimum)
-21 dBm
Receiver input power, each lane (maximum)
0 dBm
Cable type
MMF
Core size/cladding
62.5 µm
62.5 µm
50 µm
50 µm
50 µm
50 µm
Fiber grade
FDDI
OM1
-
OM2
OM3
OM4
Effective modal bandwidth
160 MHz x km
200 MHz x km
400 MHz x km
500 MHz x km
2000 MHz x km
4700 MHz x km
Distance
220 m
275 m
500 m
550 m
500 m
550 m
Maximum Power consumption (W)
1 W
Operating Temperature (range)
-10° C to 85° C
Storage temperature
-40° C to 85° C
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£15 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
MJ 740-011613/REF -4
specifications
-
MPN:FTLF8519P2BNL-J1
