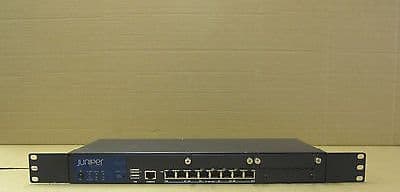

The SRX220 Services Gateway consolidates security, routing, switching, and WAN connectivity, in an all-in-one, 1RU device that supports up to 950 Mbps firewall, 100 Mbps IPSec VPN, and 100 Mbps IPS. Unified threat management (UTM) features include antivirus, application security, IPS, antispam, and enhanced Web filtering. The SRX220 Services Gateway is ideally suited for securing small to medium distributed enterprise locations.
Specifications
Junos OS version tested Junos OS 12.1X44-D15
Firewall performance (max) 950 Mbps
IPS performance (NSS 4.2.1) 80 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance 100 Mbps
Maximum concurrent sessions 96K
New sessions/second (sustained, TCP, 3-way) 2,800
Maximum security policies 2,048
Maximum users supported Unrestricted
Maximum available slots for IOCs 2 x SRX Series Mini-PIM
WAN / LAN fixed ports
8 x 10/100/1000BASE-T
CX111 3G/4G modem support Yes
WAN / LAN PIMs
T1/E1
ADSL2 Annex A
ADSL2 Annex B
G.SHDSL
VDSL2
DOCSIS 3.0 Cable Modem
GbE SFP
Sync Serial
High-availability support Yes
AppSecure Services Junos OS 11.4
Dimensions and Power
Dimensions (W x H x D): 14.31 x 1.73 x 7.11 in (36.3 x 4.4 x 18.1 cm)
Weight: Chassis: 3.43 lb (1.56 kg) Non-PoE No interface modules
Power supply (AC) 100–240 VAC, 60 W (Non-PoE) / 200 W PoE
Maximum power draw: 120 W
Average power consumption: 28 W (LM)
