Lenovo DBB9003L1 03x7538 40AC Thunderbolt 3 Docking Station USB-C RJ45 DP HDMI
FRU Part Number: 03x7133
Model Number: DBB9003L1
Type: 40AC
In Good Condition
Full Working Order
Tested
2 Years Warranty Included
135W Lenovo AC Adapter Included
USB-C Thunderbolt Cable Not Included
Includes:
- 1 x Lenovo DBB9003L1 03x7538 40AC Thunderbolt 3 Docking Station USB-C RJ45 DP HDMI

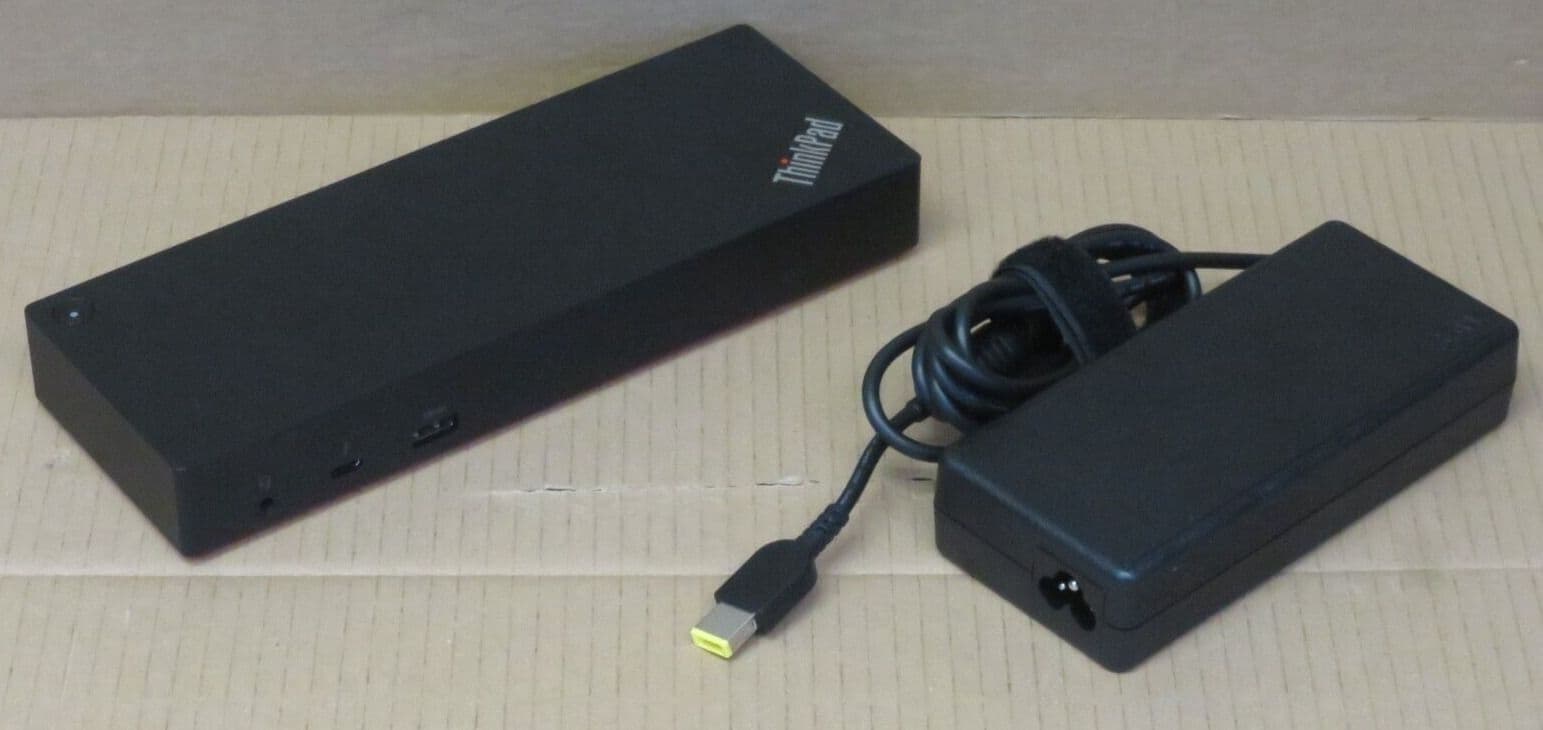

- 1 x 135W Lenovo Power Supply
More Info:
- The ThinkPad Thunderbolt 3 Dock (40AC) is a pioneering, 13 port docking solution powered by Intel Thunderbolt™ technology. Now, you can connect and rapidly charge like never before via a USB Type-C TM port all while experiencing complete control of your workstation and essential accessories. The dock not only lets you transfer data at lightning fast speeds, but also gives you the option to display and share your files in vibrant 4k resolution. Having your most productive and innovative workstation to date is as simple as connecting your system to the dock.
Features includes:
- A Power Hub on Your Desk: Experience stable, reliable, and continuous power for your laptop and mobile devices - with the Thunderbolt port and always-power-on USB 3.0 port. Plus perfect pairing for ThinkPad X1 rapid charging.
- Need to see detail while multi-tasking? Enjoy UHD video experience with dual video output or with up to three FHD displays for multi-tasking with ease.
- All Your Accessories: Just How You Want Them Displays, Gigabit Ethernet, speakers and other USB peripherals - get immediate connection to peripherals with a single cable.
- Lightning Fast Big Data Transfer: The front Thunderbolt port offers up to 40Gbps data transfer speeds - 4 times faster than the average dock for larger files such as video editing or CAD files.
- Enterprise IT Companion: Now it's easier for your IT team to manage selected ThinkPad systems with solutions such as PXE boot, and Wake-On LAN. Plus, it also support passing ThinkPad MAC address through the dock for the IT to identify the system - adding an extra level of safety against unauthorized users, and boosting your network security.
Ports, Connectors, Security
- Docking Interface: USB Type-C (Thunderbolt 3) Port
- Videos Ports: Two DisplayPort, HDMI, VGA
- USB Ports: Five USB 3.0 (1 is powered), 1 USB-C (Thunderbolt 3 downstream, 5V, 3A)
- Ethernet: Gigabit Ethernet.
- Security: Kensington Lock Slot
Physical Specifications (approximate)
- Height: 30 mm (1.18 in)
- Width: 220 mm (8.66 in)
- Depth: 80 mm (3.15 in)
- Weight: 250 g (0.55 lb)
Operating Environment
- Temperature: 5 deg to 40 deg C (41 deg to 104 deg (F))
- Relative humidity: 5% to 95%
LJM 302813 -5
specifications
-
MPN:DBB9003L1
