information

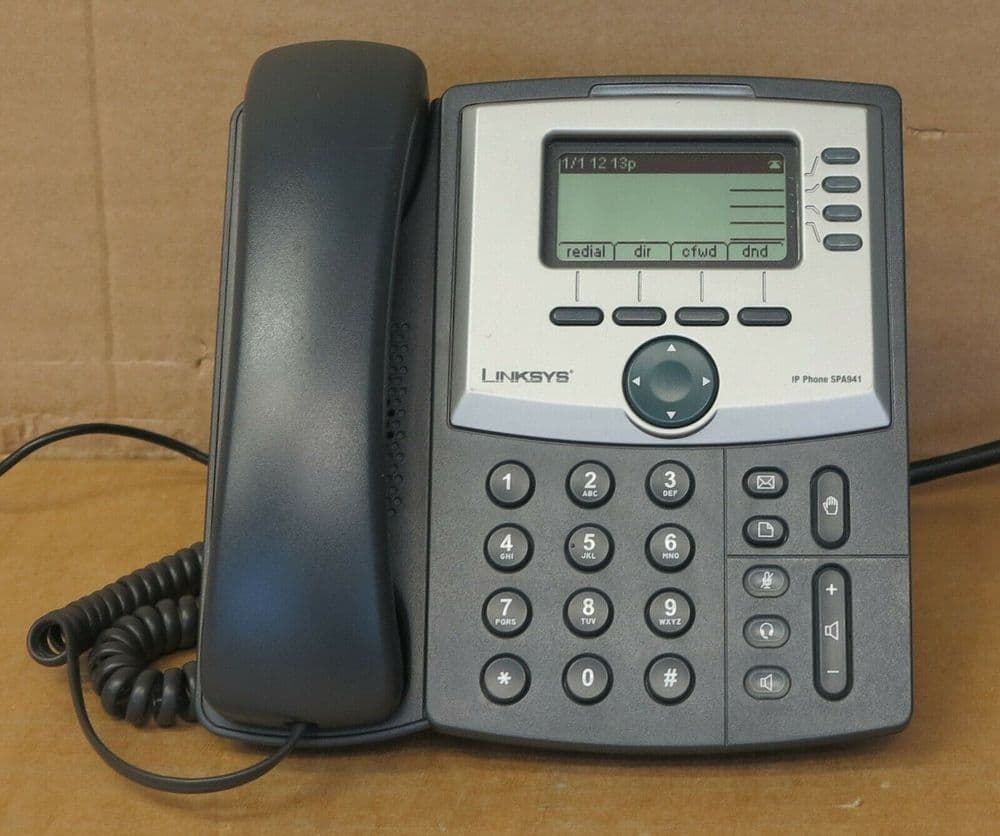

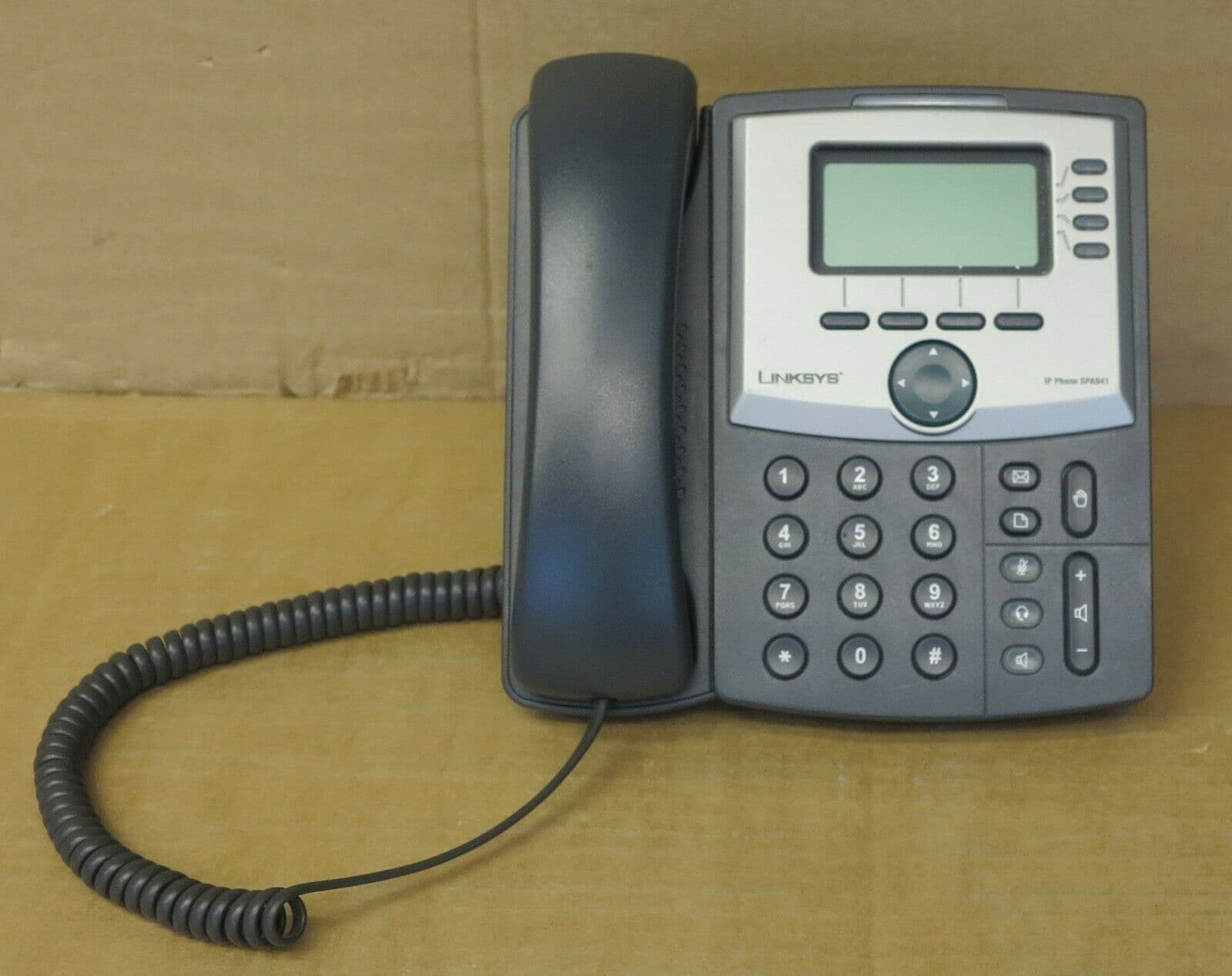

Linksys SPA941 IP 2-Line VoIP Business Desktop Display
Telephone + Stand
Model: SPA941
In Full Working Order
Tested
Supplied With 2 Years Warranty

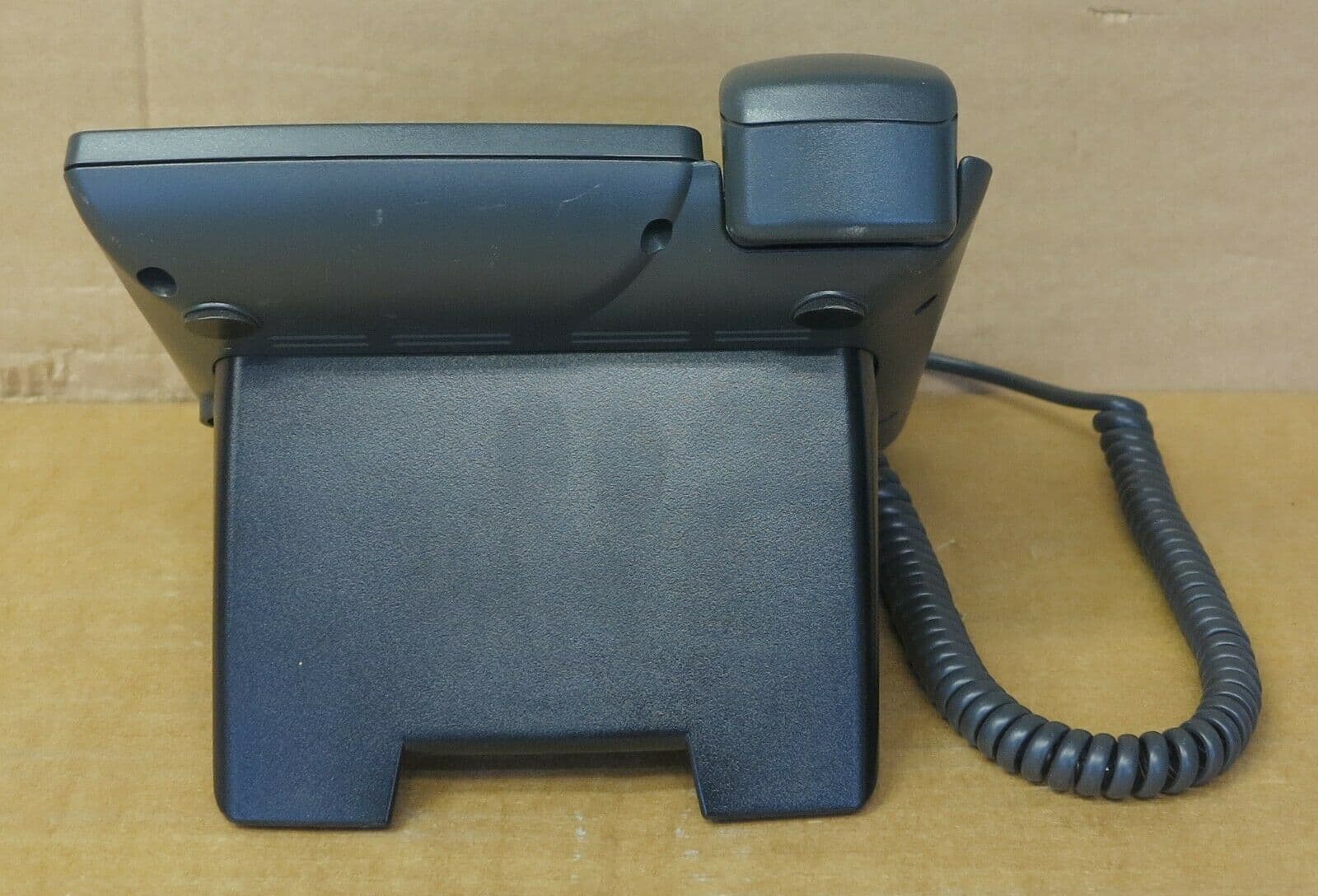

Has A Few Marks On Phone (please refer to pictures)
Not Supplied With AC Adapter - powers from PoE network switch (not included)
Included
- 1 x Linksys SPA941 IP 2-Line VoIP Business Desktop Display Telephone + Stand
Overview
Stylish and functional in design, the Linksys SPA941 2-Line IP Phone with 2-Port Switch is ideal for a residence or business using a hosted IP telephony service, an IP private branch exchange (PBX), or a large-scale IP Centrex deployment. The Linksys SPA941 uses industry leading voice over IP (VoIP) technology from Linksys to deliver an upgradeable high-quality IP phone that is unparalleled in features, value, and support.
Based on the Session Initiation Protocol (SIP), the Linksys SPA941 has been tested to ensure comprehensive interoperability with equipment from VoIP infrastructure leaders, enabling service providers to quickly roll out competitive, feature-rich services to their customers.
With hundreds of features and configurable service parameters, the Linksys SPA941 addresses the requirements of traditional business users while taking advantage of the benefits of IP telephony.
Features
- Two or four independently configurable line appearances / extensions.
- With firmware 5.1.8 for the SPA-941/921, and firmware 5.1.15a for the SPA-942/922, four line appearances / extensions are enabled by default; an upgrade license is no longer required.
- 4 green/red/orange line keys (cannot be used as BLF)
- Speakerphone
- 2.5mm headset jack on all models
- Styled to look like and feel like a Cisco phone
- Wireless networking option WBP54G
Specifications
Hardware
- Pixel-based display - 128 x 64 monochrome graphical liquid crystal display (LCD)
- Four illuminated call appearance line buttons with tricolor LEDs
- LED indicates line state - active, idle, on hold, unregistered
- Line LED configurable to 13 different states (on/off, color, flash)
- Dedicated illuminated on/off buttons for audio mute, headset, and speakerphone
- 4 soft-key buttons
- 4-way rocking directional button for menu navigation
- Voicemail message waiting indicator light
- Voicemail message retrieval button
- Dedicated hold button
- Settings button for access to feature, setup, and configuration menus
- Volume control rocking up/down button controls handset, headset, speaker, ringer
- Standard 12-button dialing pad
- High-quality handset (RJ-7 connector) and cradle
- Built-in high-quality microphone and full-duplex speakerphone
- Headset jack - 2.5-mm port
- LED test function
- Two Ethernet LAN ports with integrated Ethernet Switch - 100BASE-T, RJ-45
- 802.3af compliant PoE
- Optional 5V DC universal (100-240V) switching (power supply is ordered separately)
Data Networking
- MAC address IEEE 802.3
- IPv4 IPv4 (RFC 791)
- ARP Address Resolution Protocol
- DNS A record (RFC 1706), SRV record (RFC 2782)
- DHCP Dynamic Host Configuration Protocol (RFC 2131)
- ICMP Internet Control Message Protocol (RFC 792)
- TCP Transmission Control Protocol (RFC 793)
- UDP User Datagram Protocol (RFC 768)
- RTP Real Time Protocol (RFC 1889) (RFC 1890)
- RTCP Real Time Control Protocol (RFC 1889)
- DiffServ Differentiated Services (RFC 2475)
- Type of service (ToS) RFC 791/1349
- VLAN tagging 802.1p/Q Layer 2 QoS
- SNTP Simple Network Time Protocol (RFC 2030)
Environmental
- Dimensions W x H x D: 7.68 x 6.3 x 7.09 in. (195 x 160 x 180 mm)
- Weight 2.15 lb (0.9752 kg)
- Power
- DC input voltage: +5V DC at 2.0A maximum
- Power consumption: 5W
- Switching type (100-240V) automatic
- Optional power adapter (Cisco PA100 Power Supply for Small Business VOIP): 100-
- 240V 50-60 Hz (26-34VA) AC input
- Certification FCC (Part 15, Class B), CE, A-Tick, ICES-003
- Operating temperature 32° to 113°F (0° to 45°C)
- Storage temperature -13° to 185°F (-25° to 85°C)
- Operating humidity 10% to 90%, noncondensing
- Storage humidity 10% to 90%, noncondensing
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
TH 254536 - 1
specifications
-
MPN:SPA941
