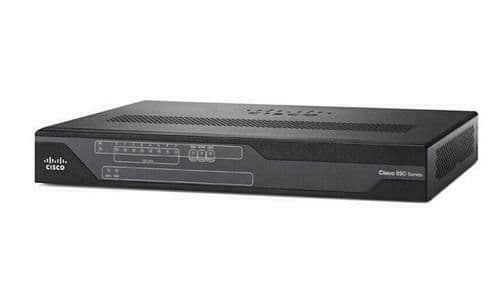

NEW Cisco C897VA-K9 8x 1Gb RJ-45 + 1x SFP Port Integrated IP Services Router

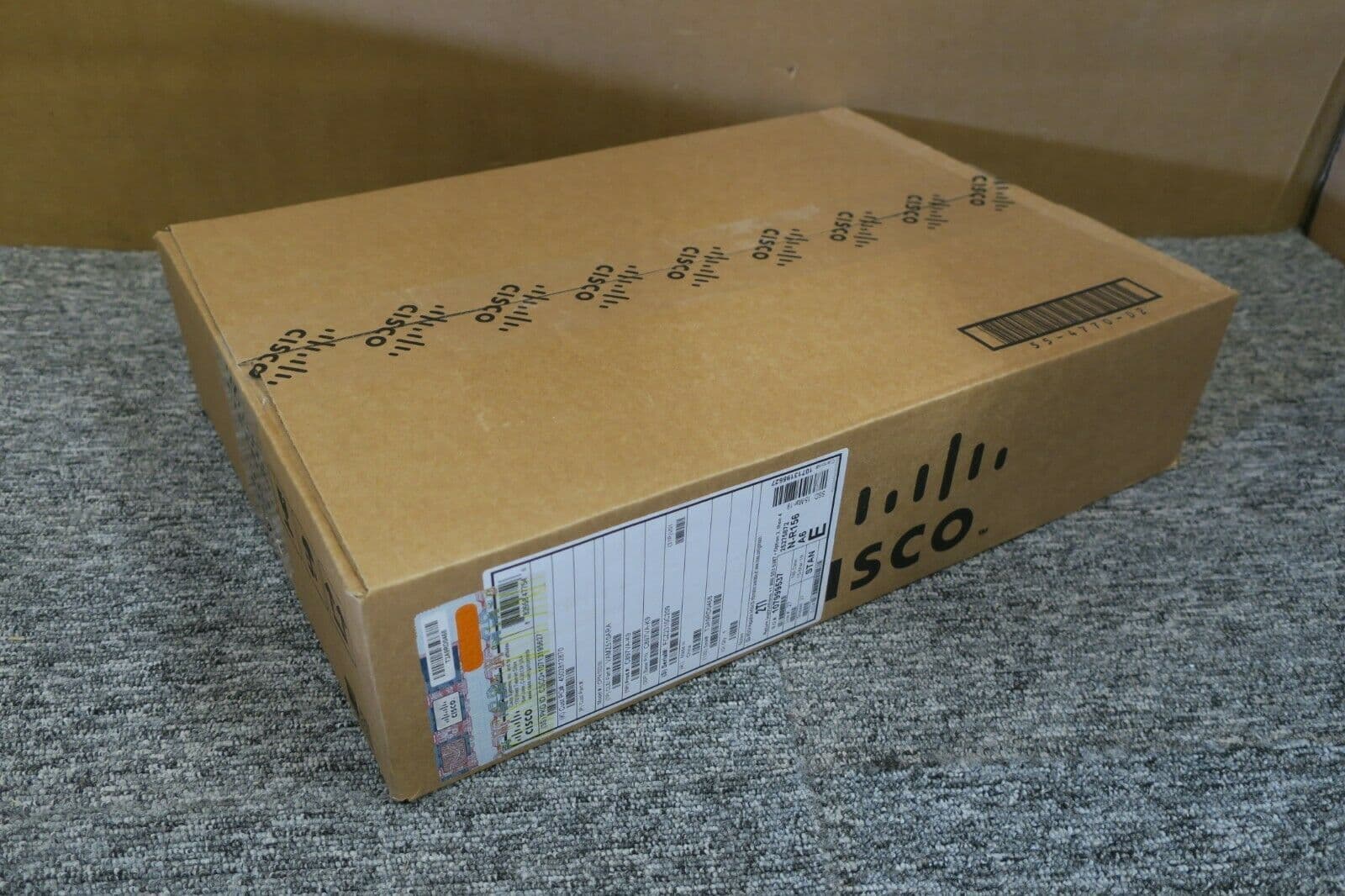

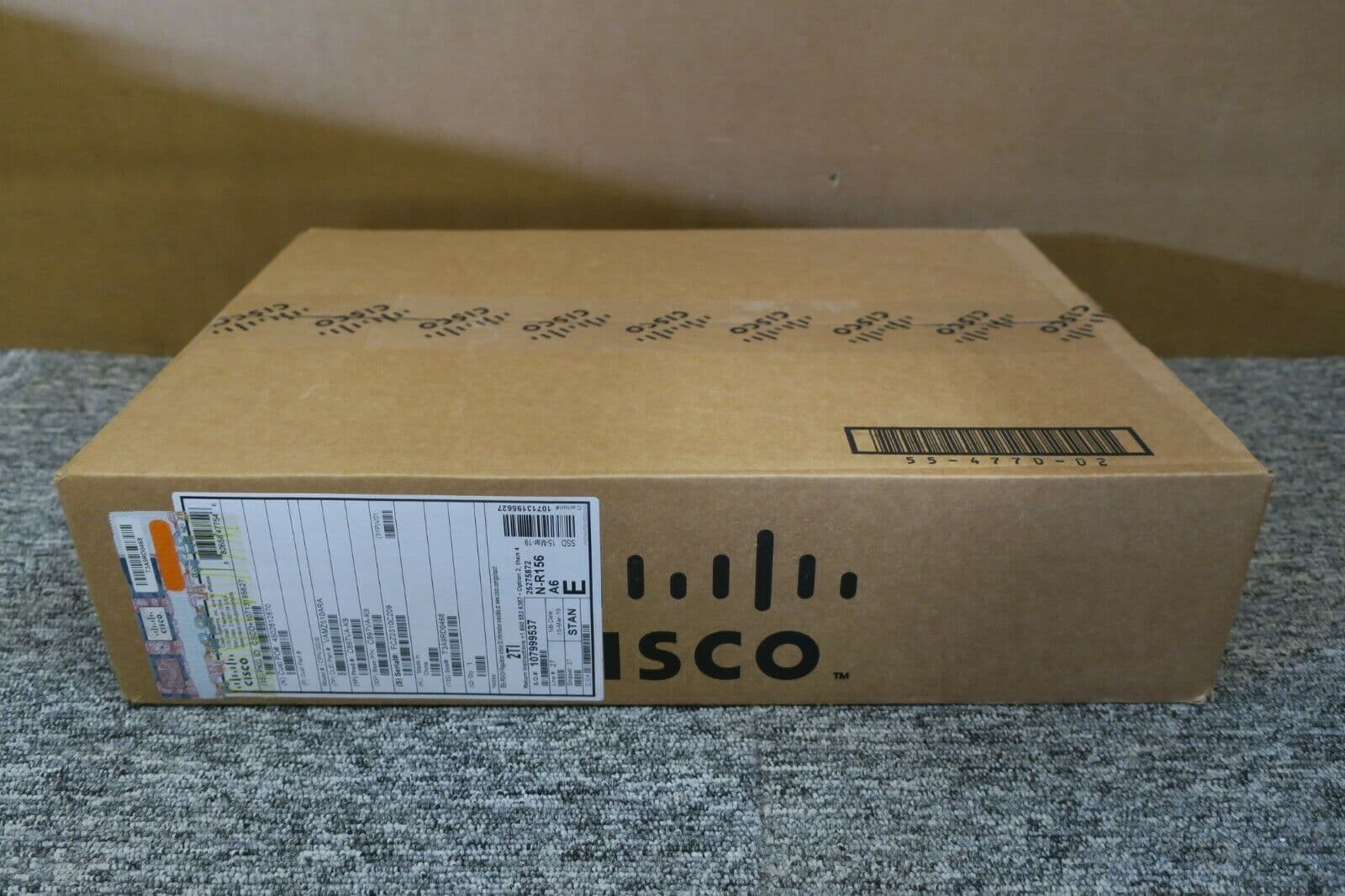

NEW SEALED
EU supplied, the serial numbers are clean and not covered on Smartnet
The serial numbers can be provided on request
Included
- 1 x NEW Cisco C897VA-K9 8x 1Gb RJ-45 + 1x SFP Port Integrated IP Services Router
- 1 x Cisco PWR-66W-AC-V2 Power Supply
Cisco Systems C897VA-K9
Cisco 890 Series Integrated Services Routers combine Internet access, comprehensive security, and wireless services in a single, secure device that is easy to deploy and manage. The best-in-class Cisco 890 series architecture has been specifically designed to deliver high performance with concurrent services, business continuity, and investment protection for enterprise small branch offices and service provider managed services applications.
Cisco 890 Series Integrated Services Routers are fixed-configuration routers that provide collaborative business solutions for secure voice and data communications to enterprise small branch offices. They are designed to deliver secure broadband, Metro Ethernet, wireless LAN (WLAN) connectivity, and business continuity. The routers also come with powerful management tools, such as the web-based Cisco Configuration Professional configuration management tool, which simplifies setup and deployment. Centralized management capabilities give network managers visibility and control of the network configurations at the remote site.
Increased performance for concurrent services
Integrated Gigabit and Fast Ethernet WAN ports
Integrated 8-port 10/100 BASE-T managed switch
Integrated WAN backup
Real-time clock
Enhanced security
Separate console, auxiliary, and USB ports
Unified wireless management
| General | |
| Device Type | Router - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | IPSec VPN tunnels: 50 |
| Network / Transport Protocol | L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3 |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Encryption Algorithm | Triple DES, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method | RADIUS, TACACS+ |
| Features | Firewall protection, NAT support, power over Ethernet (PoE), VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, IPv6 support, Stateful Failover, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), RADIUS support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, Bidirectional Forwarding Detection (BFD), DHCP relay, DHCP client, Virtual Routing and Forwarding (VRF), Class of Service (CoS) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AES, FCC CFR47 Part 15, VCCI V-3 |
| RAM | 512 MB (installed) / 1 GB (max) |
| Flash Memory | 256 MB (installed) / 256 MB (max) |
| Status Indicators | Port status, power, PoE |
| Line Properties | |
| Framing Format | ANSI T1.413 |
| Communications | |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL2, ADSL2+, VDSL2 |
| Protocols & Specifications | ITU G.994.1 (G.hs), ITU G.992.1 (G.DMT) Annex A, ITU G.992.3 Annex A, ITU G.993.2, ITU G.992.5 Annex A |
| Expansion / Connectivity | |
| Interfaces | LAN: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x SFP (mini-GBIC) ¦ WAN: 1 x VDSL / ADSL2+ ¦ Management: 1 x console - RJ-45 ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x 1000Base-T - RJ-45 ¦ WAN: 1 x BRI |
| Expansion Slots | 1 (total) / 1 (free) x memory |
| Power | |
| Power Device | External power adapter - 60 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Provided | Cisco IOS Advanced IP services |
| Dimensions & Weight | |
| Width | 32.3 cm |
| Depth | 24.8 cm |
| Height | 4.4 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
SL 246534
SL 246535
SL 246536
SL 246537
SL 246538
SL 246539
SL 246540
specifications
-
MPN:C897VA-K9
