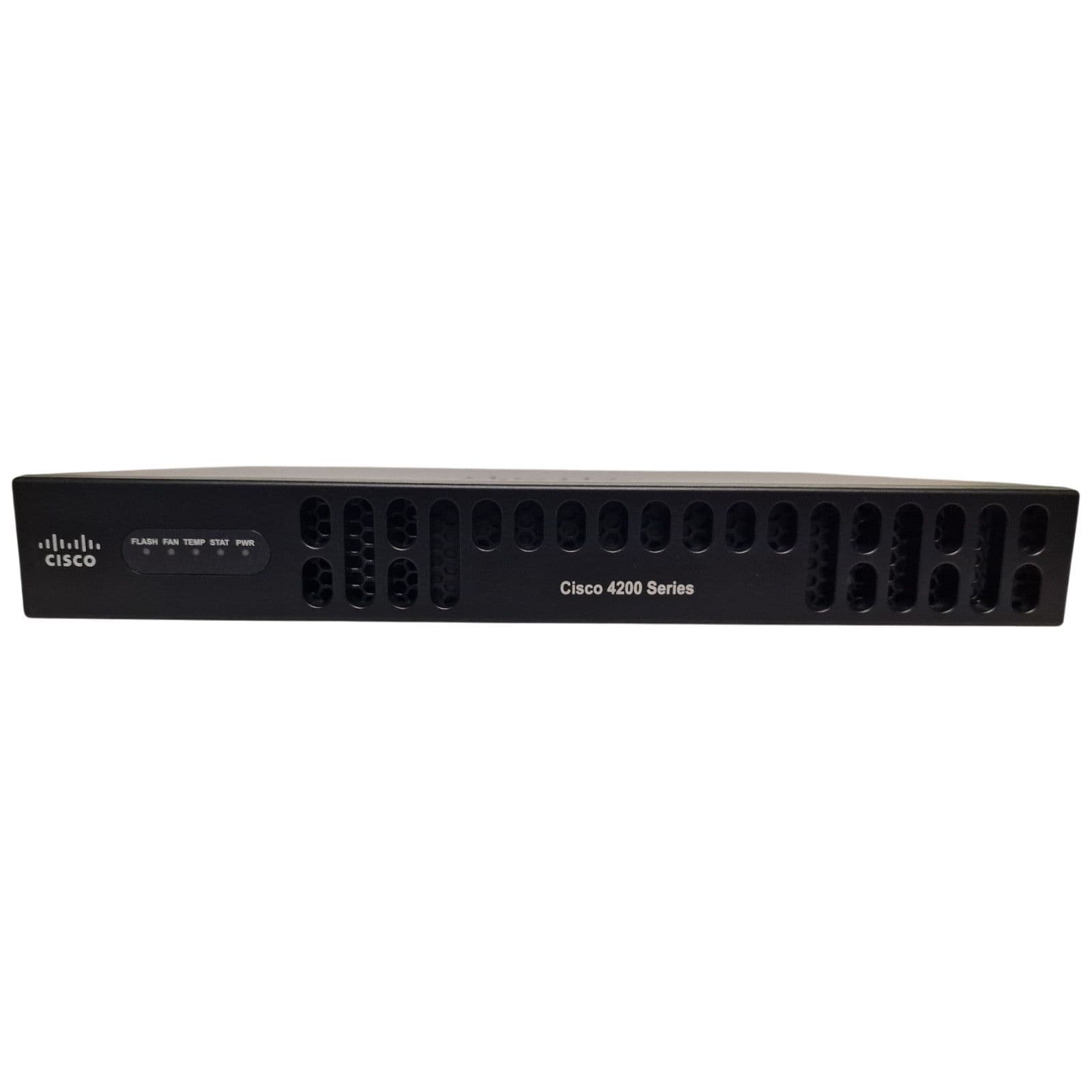

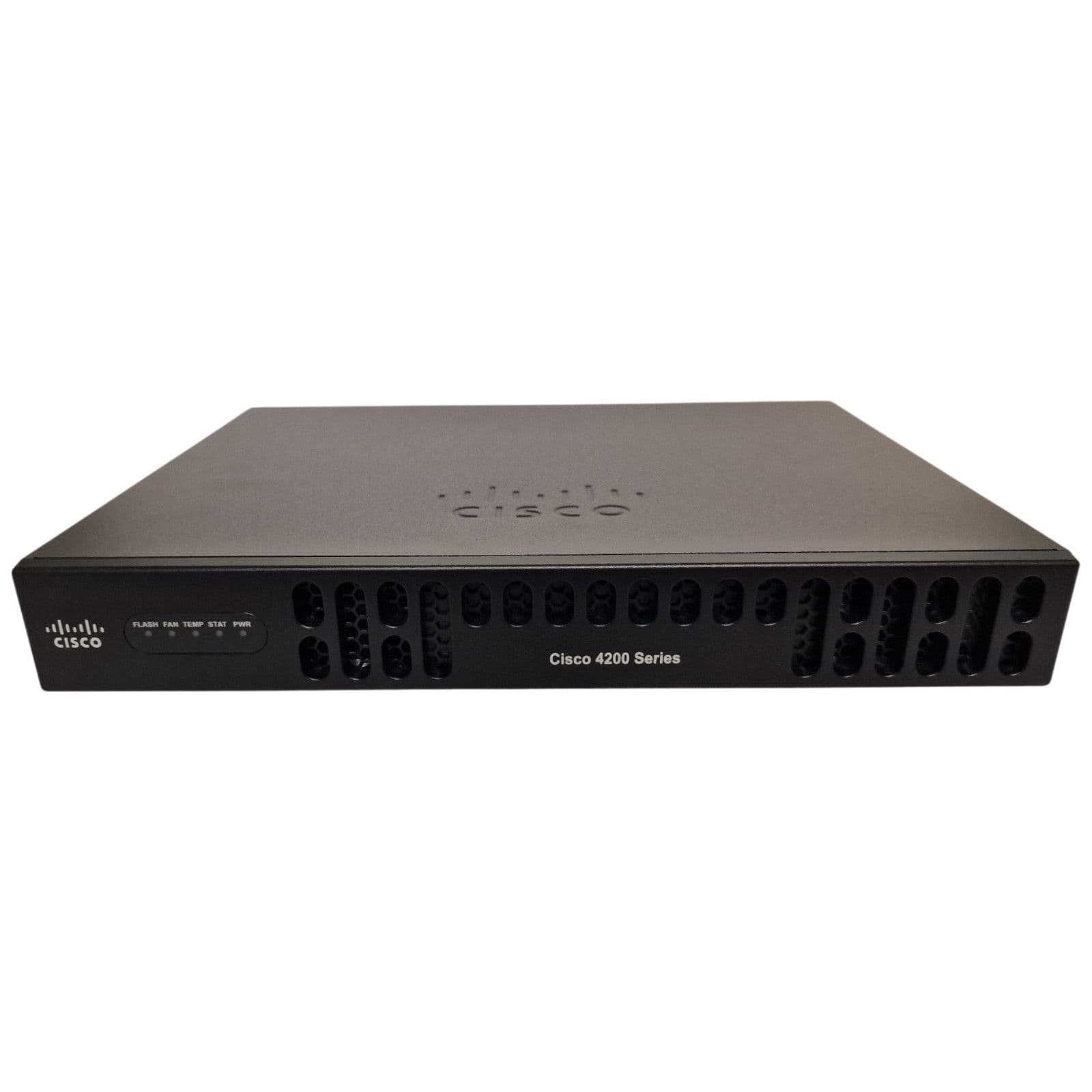

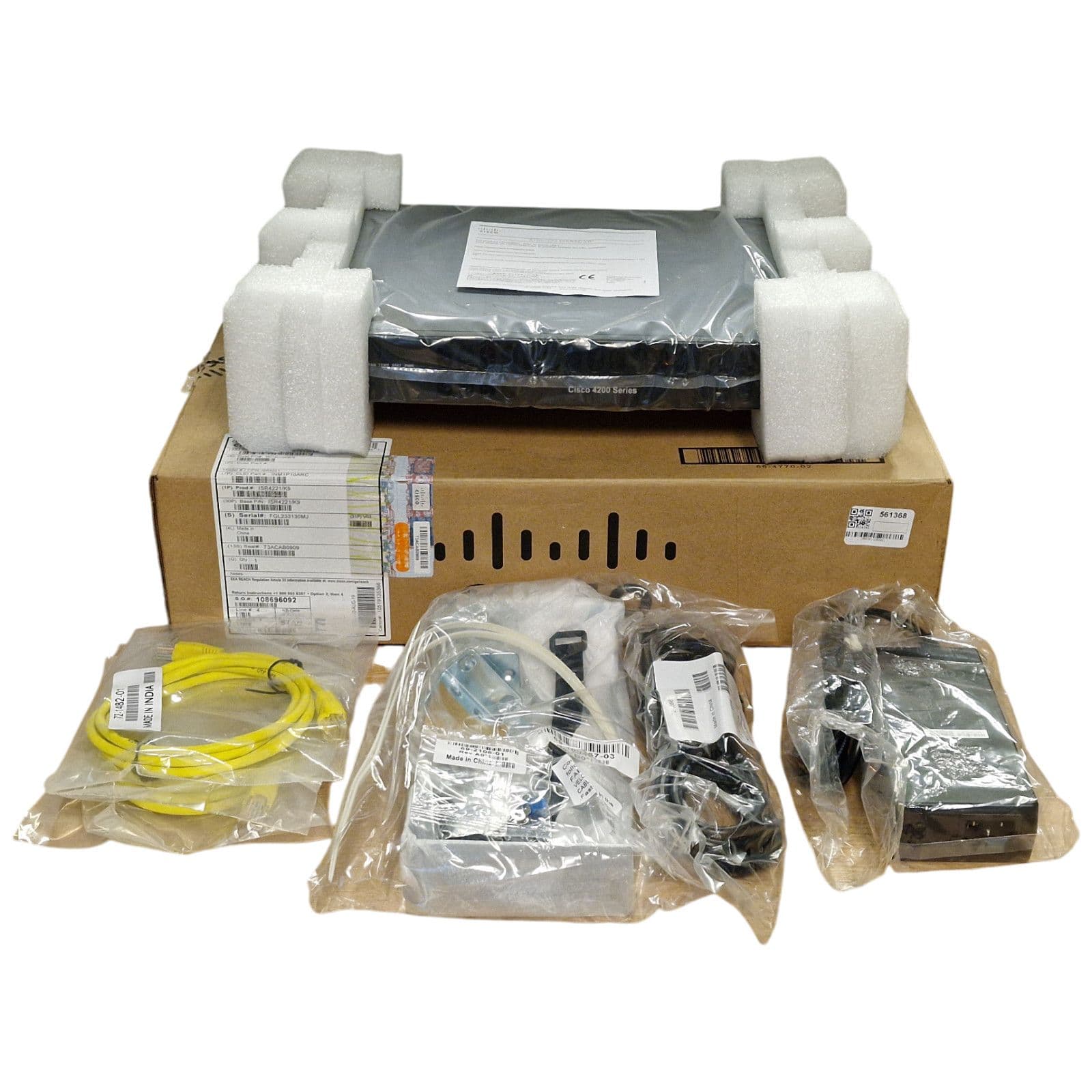

- 1 x New Cisco ISR 4221 2x 1GE RJ45 2x NIM Slot Integrated Services Router ISR4221/K9
- 1 x Cisco 90W Power Adapter 341-100547-01
- 1 x Cisco Power Cable
- 1 x Cisco 4221 Rack-mount kit 69-100467-03
- 2 x Patch Cables 72-1482-01
- 1 x Printed documentation
-
Form Factor: 1U rack-mountable or desktop
-
Rack Mounting: Optional 19in (48.3 cm) EIA
-
Airflow: I/O side to bezel side
-
Dimensions (H × W × D): 1.72 × 12.7 × 10 in (43.7 × 322.6 × 254 mm)
-
Weight (AC PSU, no modules): 7.1 lb (3.22 kg)
-
Typical Weight (fully loaded): 8.11 lb (3.68 kg)
-
Packaging Weight: 1.28 lb (0.58 kg)
Performance & Hardware
-
Aggregate Throughput: 35-75 Mbps
-
CPU Architecture: x86-based
-
Default Memory: 4 GB DDR3 ECC DRAM
-
Maximum Memory: 4 GB DDR3 ECC DRAM
-
Default Flash Memory: 8 GB
-
Maximum Flash Memory: 8 GB
Interfaces & Expansion
-
RJ-45 Gigabit Ethernet Ports: 2
-
SFP-based Ports: 1
-
Total Onboard WAN/LAN Ports: 2 × 10/100/1000
-
NIM Slots: 2
-
Onboard ISC Slot: No
-
OIR Support: No (all I/O modules)
-
PoE Support: None
-
USB Ports: 1 × USB 2.0 Type-A
-
Serial Console Port: 1 × RJ-45 (combo CON/AUX, up to 115.2 kbps)
-
Serial Auxiliary Port: 1 × RJ-45 (combo CON/AUX, up to 115.2 kbps)
Power
-
Power Supply Type: External AC only
-
Maximum Power Consumption: 90 W
-
Typical Power (no modules): 24 W
-
AC Input Voltage: 100-240 VAC (autoranging)
-
AC Input Frequency: 47-63 Hz
-
AC Input Current (max): 1.5-0.6 A
-
AC Input Surge Current: 90 A peak, <3 Arms per half cycle
-
External PSU Dimensions:
-
37 × 73 × 152 mm (Phihong AA90U-120A-R)
-
36.5 × 67 × 155 mm (Delta ADP90GR BA)
-
Environmental
-
Operating Temperature: 32 to 104°F (0 to 40°C)
-
Storage Temperature: -40 to 158°F (-40 to 70°C)
-
Operating Humidity: 5% to 85%
-
Storage Humidity: 5% to 95%
-
Operating Altitude (RoW): 0 to 10,000 ft (0 to 3,050 m)
-
Operating Altitude (China): 0 to 6,560 ft (0 to 2,000 m)
-
Storage Altitude: Up to 15,584 ft (4,750 m)
Acoustics & Reliability
-
Sound Pressure (Typical/Max): 28.5 / 53 dBA
-
Sound Power (Typical/Max): 41 / 68 dBA
-
MTBF: 593,270 hours
Router#sh ver
Cisco IOS XESoftware, Version 16.06.04
Cisco IOSSoftware [Everest], ISR Software (X86_64_LINUX_IOSD-UNIVERSALK9_IAS-M), Version16.6.4, RELEASE SOFTWARE (fc3)
TechnicalSupport:
Copyright (c)1986-2018 by Cisco Systems, Inc.
Compiled Sun08-Jul-18 04:33 by mcpre
Cisco IOS-XEsoftware, Copyright (c) 2005-2018 by cisco Systems, Inc.
All rightsreserved. Certain components of CiscoIOS-XE software are
licensed underthe GNU General Public License ("GPL") Version 2.0. The
software codelicensed under GPL Version 2.0 is free software that comes
with ABSOLUTELYNO WARRANTY. You can redistribute and/ormodify such
GPL code underthe terms of GPL Version 2.0. For moredetails, see the
documentation or"License Notice" file accompanying the IOS-XE software,
or the applicableURL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XEROMMON
Router uptime is2 minutes
Uptime for thiscontrol processor is 5 minutes
System returnedto ROM by Reload Command
System image fileis "bootflash:isr4200-universalk9_ias.16.06.04.SPA.bin"
Last reloadreason: Reload Command
This productcontains cryptographic features and is subject to United
States and localcountry laws governing import, export, transfer and
use. Delivery ofCisco cryptographic products does not imply
third-partyauthority to import, export, distribute or use encryption.
Importers,exporters, distributors and users are responsible for
compliance withU.S. and local country laws. By using this product you
agree to complywith applicable laws and regulations. If you are unable
to comply withU.S. and local laws, return this product immediately.
A summary of U.S.laws governing Cisco cryptographic products may be found at:
If you requirefurther assistance please contact us by sending email to
Suite LicenseInformation for Module:'esg'
--------------------------------------------------------------------------------
Suite Suite Current Type Suite Next reboot
--------------------------------------------------------------------------------
FoundationSuiteK9 None None None
securityk9
appxk9
TechnologyPackage License Information:
-----------------------------------------------------------------
Technology Technology-package Technology-package
Current Type Next reboot
------------------------------------------------------------------
appxk9 None None None
securityk9 None None None
ipbase ipbasek9 Permanent ipbasek9
cisco ISR4221/K9(1RU) processor with 1796118K/6147K bytes of memory.
Processor boardID FGL233130MJ
2 GigabitEthernet interfaces
32768K bytes ofnon-volatile configuration memory.
4194304K bytes ofphysical memory.
6598655K bytes offlash memory at bootflash:.
0K bytes of WebUIODM Files at webui:.
Configurationregister is 0x2102
Router#sh inv
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
INFO: Please use"show license UDI" to get serial number for licensing.
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
NAME:"Chassis", DESCR: "Cisco ISR4221 Chassis"
PID:ISR4221/K9 , VID: V03 , SN: FGL233130MJ
NAME: "PowerSupply Module 0", DESCR: "90W AC Power Supply for Cisco ISR4220"
PID:PWR-4220-AC , VID: , SN:
NAME: "FanTray", DESCR: "Cisco ISR4220 Fan Assembly"
PID:ACS-4220-FANASSY , VID: , SN:
NAME:"module 0", DESCR: "Cisco ISR4221 Built-In NIM controller"
PID:ISR4221/K9 , VID: , SN:
NAME: "NIMsubslot 0/0", DESCR: "Front Panel 2 ports GigabitethernetModule"
PID:ISR4221-2x1GE , VID: V01 , SN:
NAME:"module R0", DESCR: "Cisco ISR4221 Route Processor"
PID:ISR4221/K9 , VID: V03 , SN: FOC23293EHE
NAME:"module F0", DESCR: "Cisco ISR4221 Forwarding Processor"
PID:ISR4221/K9 , VID: , SN:
Router#
-
MPN:ISR4221/K9
