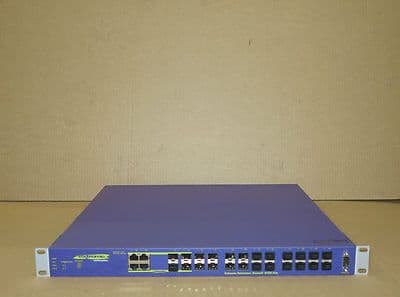

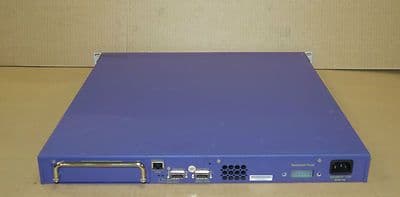

NEW Extreme Networks Summit X450-24x 24-Port SFP + 4 Gigabit Port Switch 16121

Specifications:

General

• Enclosure Type: Desktop
• Ports: 24.0 x SFP (mini-GBIC) + 4.0 x 10/100/1000
• MAC Address Table Size: 16K entries
• Routing Protocol: RIP-1, PIM-SM, PIM-DM, RIP-2, OSPFv2, IGMPv3, IGMPv2, IGMP
• Remote Management Protocol: SNMP 2, SNMP 1, RMON 2, SNMP 3, RMON, SNMP 2c, Telnet
• Encryption Algorithm: MD5, SSL, TLS
• Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS+
• Features: BOOTP support, Dynamic DNS server, DHCP support, IPv6 support, DiffServ support, VLAN support
• Compliant Standards: IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.3, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1x
• Status Indicators: Port status, Power
• Interfaces: 4.0 x Ethernet 10Base-T/100Base-TX - 9 pin D-Sub (DB-9) - Management, 1.0 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 - Management,24.0 x SFP (mini-GBIC),1.0 x RJ-45
• Expansion Slot(s): 1.0 (total) / 1.0 (free) x Expansion slot

Power

• Power supply: Internal
• Voltage Required: AC 120/230 V ( 50/60 Hz )

Miscellaneous

• Width: 17.4 in
• Depth: 16.4 in
• Height: 1.7 in
• Weight: 13.9 lbs
• Compliant Standards: GOST, VCCI Class A ITE, EN 60950, BSMI CNS 13438 Class A, CISPR 24, TUV GS, AS/NZS 3260, EN 61000-4-3, EN 61000-4-11, IEC 60950, EN 61000-4-6, AS/NZS 3548, CISPR 22 Class A, EN 61000-3-3, CSA C22.2 No. 60950-00, MIC, UL 60950 Third Edition, NOM, EN 61000-4-2, EN 61000-4-5, EN 61000-3-2, EN55022 Class A, EN 61000-4-4, EN55024

Environmental Parameters

• Min Operating Temperature: 32.0 °F
• Max Operating Temperature: 104.0 °F
• Humidity Range Operating: 10 - 95%
