NEW Supermicro SuperServer 2029TP-HC0R 24x 2.5" Bay 4x X11DPT-PS CTO Server Node - 204356145236

mpn: Super X11DPT-PS
product brand: Supermicro
product condition: New
excluding vat: £3,895.01
including vat: £4,674.01
information

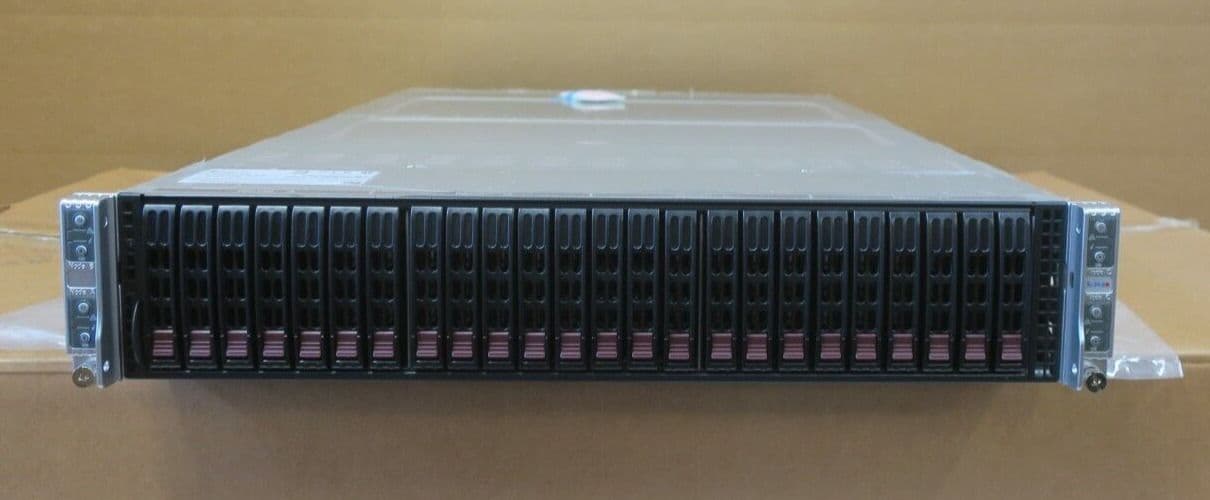

NEW Supermicro SuperServer 2029TP-HC0R 24x 2.5" Bay 4x X11DPT-PS CTO Server Node
Model: SuperServer 2029TP-HC0R
P/N: CSE-217
Node P/N: Super X11DPT-PS
New
2 Years Warranty
Rails & Accessories Included
Included:
  • 1 x Supermicro SuperServer 2029TP-HC0R 4-Node Server
  • 24 x 2.5" SAS/SATA Bays with 24 x 2.5" Drive Caddies
  • 1 x 24-Port 4-Node Backplane 6x 2.5" Drive Bays Per Node BPN-SAS3-217HQ2
  • 2 x 2200W Power Supplies PWS-2K20A-1R
  • 4 x Server Nodes each with:
    • 2 x Heatsinks (1x SNK-P0067PS, 1x SNK-P0067PSM)
    • 16 x DDR4 Memory Slots
    • Motherboard - Super X11DPT-PS
    • Backplane Adapter - BPN-ADP-S3008L-L6IP
    • 1 x Supermicro Quad Port Gigabit Ethernet RJ45 Super I/O Module (SIOM) AOC-MTG-i4M
    • 1 x Right Side Riser Card With 1x PCIe x16 Slot RSC-R1UTP-E16R
    • 1 x Left Side Riser Card With 1x PCIe x16 Slot RSC-P-6
Manufacturer Specification:
Product SKUs
SYS-2029TP-HC0R
  • SuperServer 2029TP-HC0R (Black)
Motherboard (Four per System)

Super X11DPT-PS
Processor (per Node)
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-165W*
Cores
  • Up to 28 Cores
Note *Processors ending N or S are optimized for networking and storage applications. Customer need POC their application and observe any thermal throttling before large deployment.
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
System Memory (per Node)
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices (per Node)
Chipset
  • Intel® C621 chipset
SAS
  • Broadcom 3008 SAS3 (12Gbps) controller;
    RAID 0, 1, 1E/10 support
Network Controllers
  • Barebones and Complete System must have at least one SIOM or network card installed per node
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output (per Node)
SAS
  • 6 SAS3 (12Gbps) ports
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
VGA
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header (internal)
Others
  • 2 SuperDOM support on the motherboard
  • 1 NVMe or 2 SATA M.2 (22x80/60/42 mm) support with option part: AOC-SMG3-2H8M2
  • M.2 and SuperDOM are for OS boot and they cannot coexist
System BIOS
BIOS Type
  • AMI 32MB SPI Flash ROM
Management
Software
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 5+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Omni-Path Fabric CPUs
  • Do not support
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217HQ+-R2K20BP3
Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 28.5" (724mm)
Weight
  • Gross Weight: 90 lbs (40.9kg)
  • Net Weight: 72 lbs (32.7 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 3.0 x16 Low-profile slots
  • 1 SIOM card support

    Note: Barebones and Complete System must bundle with Network Card



    •
  • (With only one CPU installed, SXB2 M.2 and SXB4 riser card slots not function)
Drive Bays (per Node)
Hot-swap
  • 6 Hot-swap 2.5" SAS/SATA HDD trays
System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans with optimal fan speed control
Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
  • 50-60Hz
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 183.3A / Min: 0A (220-240Vac)
5VSB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Titanium Level

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
