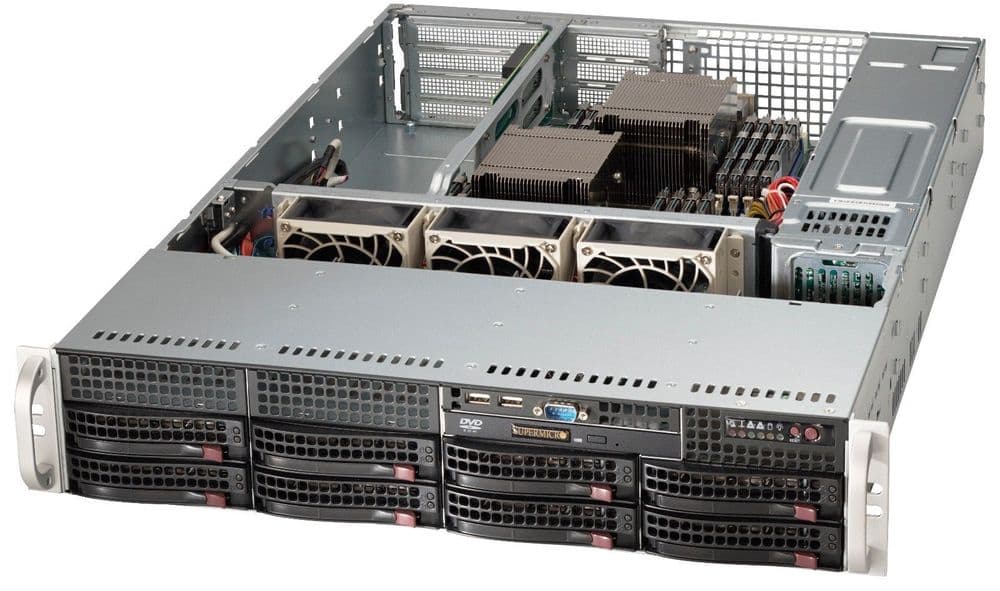

New Supermicro SuperServer SYS-6027AX-TRF-HFT3 2U 2x E5-2687Wv2 64GB Rack Server

New Supermicro SuperServer SYS-6027AX-TRF-HFT3 2U 2x E5-2687Wv2 64GB Rack Server

NO HDD INCLUDED - CLICK ASK A QUESTION IF YOU WOULD LIKE A QUOTE, WE CAN SUPPLY ANY CONFIGURATION REQUIRED

This server includes:

• 2 x Intel Xeon E5-2687W v2
• 8 x 8GB DDR3-1600 2Rx8 ECC Un-buffered DIMM
• 2 x Heatsinks (SNK-P2048P)
• 2 x Power Supplies 1280W (PWS-1K28P-SQ)

NEW 2U Supermicro SuperServer, Model SuperServer 6027AX-TRF-HFT3, part number SYS-6027AX-TRF-HFT3

• 10x Hot-swap 3.5 HDD Bays
• Dual Intel Xeon processor E5-2687W v2 (Ivy Bridge)
• 1280W Redundant Power Supplies Platinum Level (95%)
• Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets
• 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8, 1x UIO PCI-E 3.0 x8 (for SMC UIO) or 1x PCI-E 2.0 x4 (in x8)

Product SKUs SYS-6027AX-TRF-HFT3 SuperServer 6027AX-TRF-HFT3 (Black) Motherboard Super X9DAX-iF-HFT Processor/Cache CPU Dual Intel® Xeon® processor E5-2687W v2 (Ivy Bridge) (up to 150W TDP) Dual Socket R (LGA 2011) Note † BIOS version 3.0 or above is required Cache Up to 20MB System Bus QPI up to 8 GT/s System Memory Memory Capacity 8x 8GB DDR3 ECC 1866MHz RDIMM (Default) 16x 240-pin DDR3 DIMM slots Supports up to 512 GB DDR3 ECC Registered memory (RDIMM) Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C602 Chipset SATA SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC Network Controllers Intel® i350 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) Audio RealTek ALC889 7.1 High Definition Audio with S/PDIF header Graphics Matrox G200eW Input / Output Serial ATA 2x SATA 3.0 ports (6Gbps) 8x SATA 2.0 ports (3Gbps) LAN 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB 4x USB 3.0 (2 front, 2 rear) and 4x USB 2.0 ports Audio Line-in / Line-out / Microphone Ports Video 1x VGA port Serial Port / Header 2x Fast UART 16550 ports

Chassis Form Factor 2U Rackmount Model CSE-829BTQ-R1K28LPB Dimensions Width 17.2" (437mm) Height 3.5" (89mm) Depth 27.7" (704mm) Gross Weight 52 lbs (23.6kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power status LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power fail LED Expansion Slots PCI-Express 2 PCI-E 3.0 x16 slots 3 PCI-E 3.0 x8 slots 1 UIO PCI-E 3.0 x8 (for SMCI UIO) or 1 PCI-E 2.0 x4 (in x8) slot Drive Bays Hot-swap 10x 3.5" Hot-swap SATA HDD trays Display LCD Screen Front panel LCD display Backplane 1x SAS2 / SATA backplane System Cooling Fans 4x PWM fans w/ optimal fan speed control Heatsink 2x Passive CPU Heat Sink Power Supply 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 AC Input 1000W Output @ 100-140V, 8-12A, 50-60Hz 1280W Output @ 180-240V, 6-8A, 50-60Hz DC Output 1000W: +12V/83A; +5Vsb/4A 1280W: +12V/106.7A, +5Vsb/4A Certification Platinum Certified [ Test Report ] System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List - (Items Included)
	Part Number	Qty	Description
Motherboard / Chassis	MBD-X9DAX-iF-HFT   CSE-829BTQ-R1K28LPB	1   1	Super X9DAX-iF-HFT Motherboard   2U Chassis
Cooling Fan	FAN-0118L4	4	80 x 80 x 38 mm, 9.5K RPM, 4-pin PWM Fan, Hot Swap
CPU	P4X-DPE52687WV2-SR19V	2	IVY B. R 8C E5-2687WV2 3.4G 25M 8GT 150W 2011 M1,HF,RoHS/REACH,PBF
Heat Sink	SNK-P2048P	2	2U Passive CPU Heat Sink for X9 Hyper-speed Series Servers
Memory	MEM-DR380L-HL02-ER18 (Hynix) or MEM-DR380L-SL03-ER18 (Samsung)	8	8GB DDR3-1866 2R*8 ECC REG DIMM,HF,RoHS/REACH,PBF or 8GB DDR3-1866 2Rx8 LP ECC REG DIMM,HF,RoHS/REACH,PBF
Power Supply	PWS-1K28P-SQ	2	1U 1280W, redundant single output power supply
