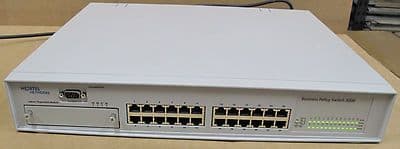

Nortel Networks Business Policy Switch 2000, 24-Port 10/100Mbps,P/n 205904-A

• Enclosure Type Desktop
• Compatible Slots None
• Ports 24.0 x 10/100
• MAC Address Table Size 16K entries
• Max Units In A Stack 8
• Remote Management Protocol HTTP,
  RMON,
  SNMP 3,
  SNMP
• Authentication Method RADIUS,
  Extensible Authentication Protocol (EAP)
• Features DiffServ support,
  Layer 3 switching,
  IGMP snooping,
  Layer 4 switching,
  VLAN support,
  Layer 2 switching
• Compliant Standards IEEE 802.3,
  IEEE 802.1Q,
  IEEE 802.3u,
  IEEE 802.1p,
  IEEE 802.1x
• Status Indicators Power,
  Port status,
  Link activity

Expansion / Connectivity

• Interfaces 24.0 x Ethernet 10Base-T/100Base-TX - RJ-45 - Management,
  1.0 x Console - 9 pin D-Sub (DB-9)
• Expansion Slot(s) 1.0 (total) / 1.0 (free) x Expansion slot,
  1.0 (total) / 1.0 (free) x MDA
• Installed Modules Qty (Max) 0.0 (installed) / 2.0 (max)

Power

• Power Device Power supply - Internal
• Voltage Required DC -48 V
• Power Consumption Operational 130.0 Watt

Miscellaneous

• Compliant Standards FCC CFR47 Part 15,
  ICES-003 Class A,
  UL 1950,
  IEC950,
  EN55022 Class A,
  CSA 22.2 No. 950,
  UL,
  EN 61000-3-2,
  AS/NZS 3548,
  EN 61000-3-3,
  RoHS 5/6,
  NOM,
  EN 60950,
  BSMI CNS 13438 Class A

Dimensions & Weight

• Width 17.2 in
• Depth 15.1 in
• Height 2.8 in
• Weight 10.6 lbs
