QCT QuantaPlex T41S-2U 24x 2.5" SFF Bay 4x Node Servers 8x E5-2660V3 1024GB Ram |
|
In Good Condition, Full Working Order Includes: |

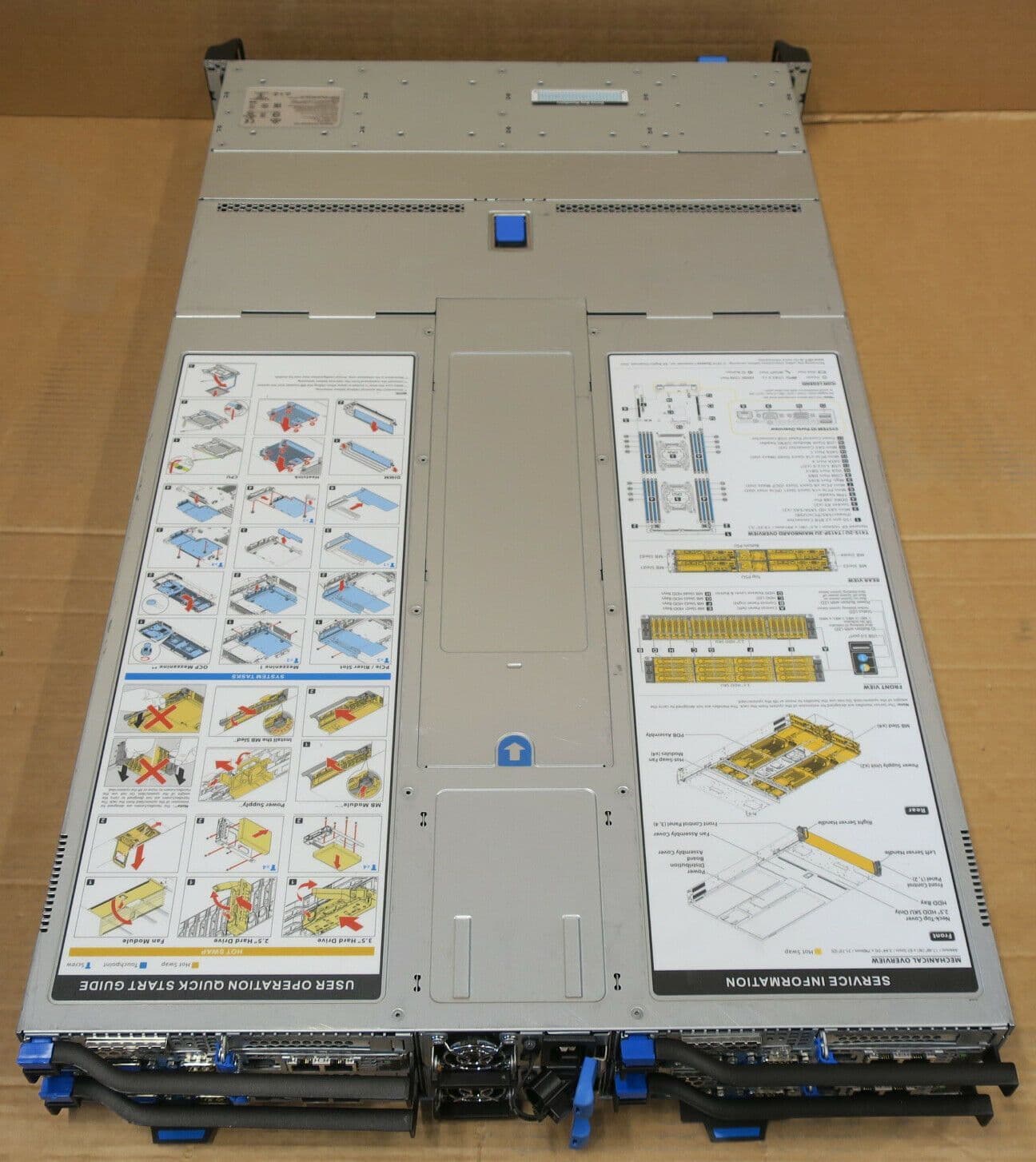

- 1 x Quanta T41S-2U 4-Node Chassis
- 24 x 2.5'' Drive Trays (No drive screws included)
- 2 x 1600W Power Supplies
- 4 x Nodes Each With:
- 2 x Intel Xeon Ten Core 2.60GHz E5-2660V3 Processor
- 16 x 16GB DDR4 PC4-2133P Memory
- 6 x SATA Ports for 2.5'' SATA Drives
- Quanta Dual port 10Gbe Intel X540 1HY9ZZZ029 Mezzanine card DAS2SPC18B0 D51B D51
- 1 x Low Profile PCI-e x16 Slot
- 1 x Dedicated IPMI Remote Management Port
- 2 x Rear USB 3.0 Ports
- 1 x Front USB 2.0 Port
- 1 x 34S55TB0030 QuantaPlex T41S-2U Blade Server TPM Module
Manufacturers Specification:
| Processor | |
|---|---|
| Processor Type |
Intel Xeon processor E5-2600 v3 product family
Intel Xeon processor E5-2600 v4 product family
|
| Max. TDP Support |
145W*
|
| Number of Processors |
2 Processors
|
| Internal Interconnect |
6.4 / 8.0/ 9.6 GT/s
|
| L3 Cache |
Up to 45MB
|
| Form Factor | |
|---|---|
| Form Factor |
2U
4 Nodes
|
| Dimensions | |
|---|---|
| W x H x D (inch) |
17.48 x 3.44 x 31.1
|
| W x H x D (mm) |
444 x 87.5 x 790
|
| Chipset | |
|---|---|
| Chipset |
Intel® C610
|

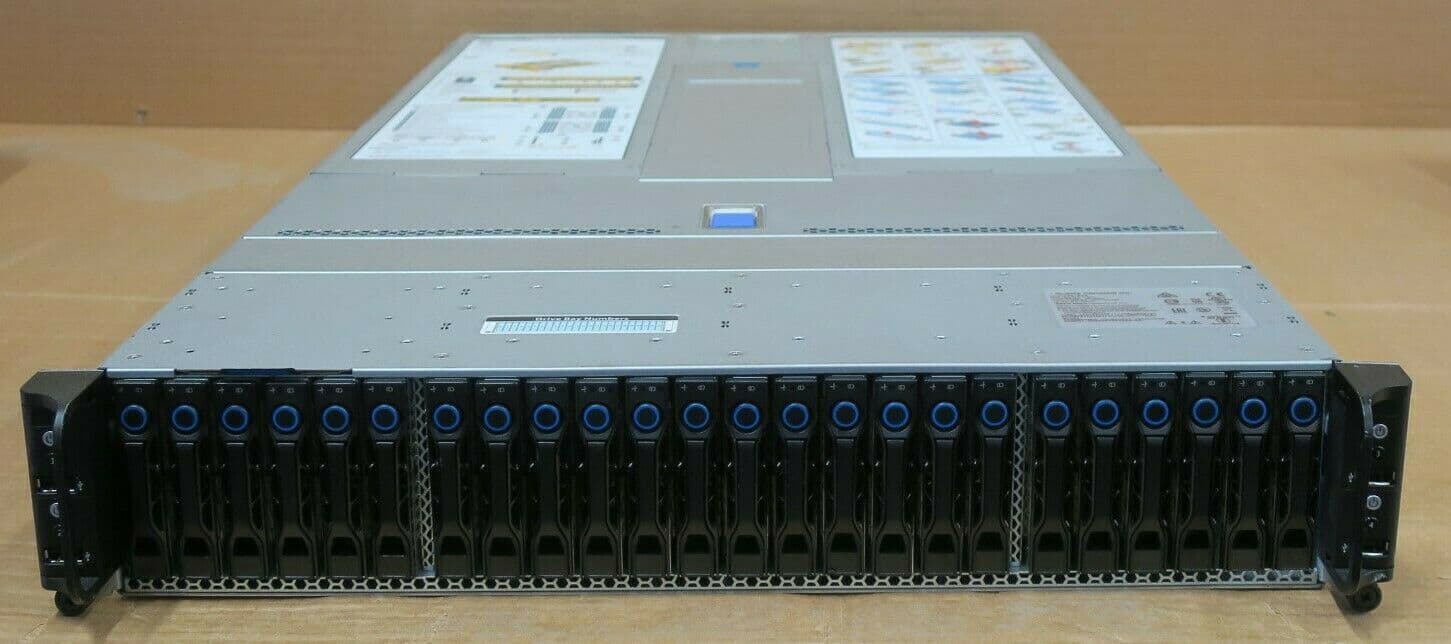

| Storage | |
|---|---|
| Default Configuration |
2.5" Hot-plug
|
| Options |
(24) 2.5" hot-plug
|
| Memory | |
|---|---|
| Total Slots |
16
|
| Capacity |
Up to 512GB RDIMM
Up to 1024GB LRDIMM
|
| Memory Type |
2133/2400 MHz DDR4 RDIMM
2133/2400 MHz DDR4 LRDIMM
|
| Memory Size |
32GB, 16GB, 8GB RDIMM
64GB, 32GB LRDIMM
|
| Expansion Slot | |
|---|---|
| Default Configuration |
(1) PCIe Gen3 x16 Low profile MD-2
(1) PCIe Gen3 x8 mezzanine slot (1) PCIe Gen3 x8 OCP LAN mezzanine slot |
| Network Controller | |
|---|---|
| LOM |
Option 1:
Intel® I350 dual-port 1 GbE per node Dedicated 10/100 management port per node Option 2: Intel® X540 dual-port 10GbE BASE-T per node* Dedicated 10/100 management port per node Option 3: Intel® 82599ES dual-port 10G SFP+ per node |
| Optional NIC |
Please refer to our Compatible Component List for more information
|
| Front I/O | |
|---|---|
| Front I/O |
(1) USB 2.0
|
| Storage Controller | |
|---|---|
| Onboard |
Intel® C610:
(6) SATA 6Gb/s ports SATA RAID 0, 1 |
| Optional Controller |
Please refer to our Compatible Component List for more information
|
| Power Supply | |
|---|---|
| Power Supply |
Option 1: (2) high efficiency hot-plug 1600W PSU, 80 Plus Platinum (200V-240V)*
Option 2: (2) high efficiency hot-plug 1200W PSU, 80 Plus Platinum (100V-240V)*
|
| Onboard Storage | |
|---|---|
| Onboard Storage |
Support UFM
|
| Fan | |
|---|---|
| Fan |
(4) hot-plug system fans*
|
| Video | |
|---|---|
| Video |
Integrated AST2400 with 8MB DDR3 video memory
|
| System Management | |
|---|---|
| System Management |
IPMI v2.0 Compliant, on board "KVM over IP" support
Quanta Datacenter Manager 2.0/QDCM 2.0 (Optional) |

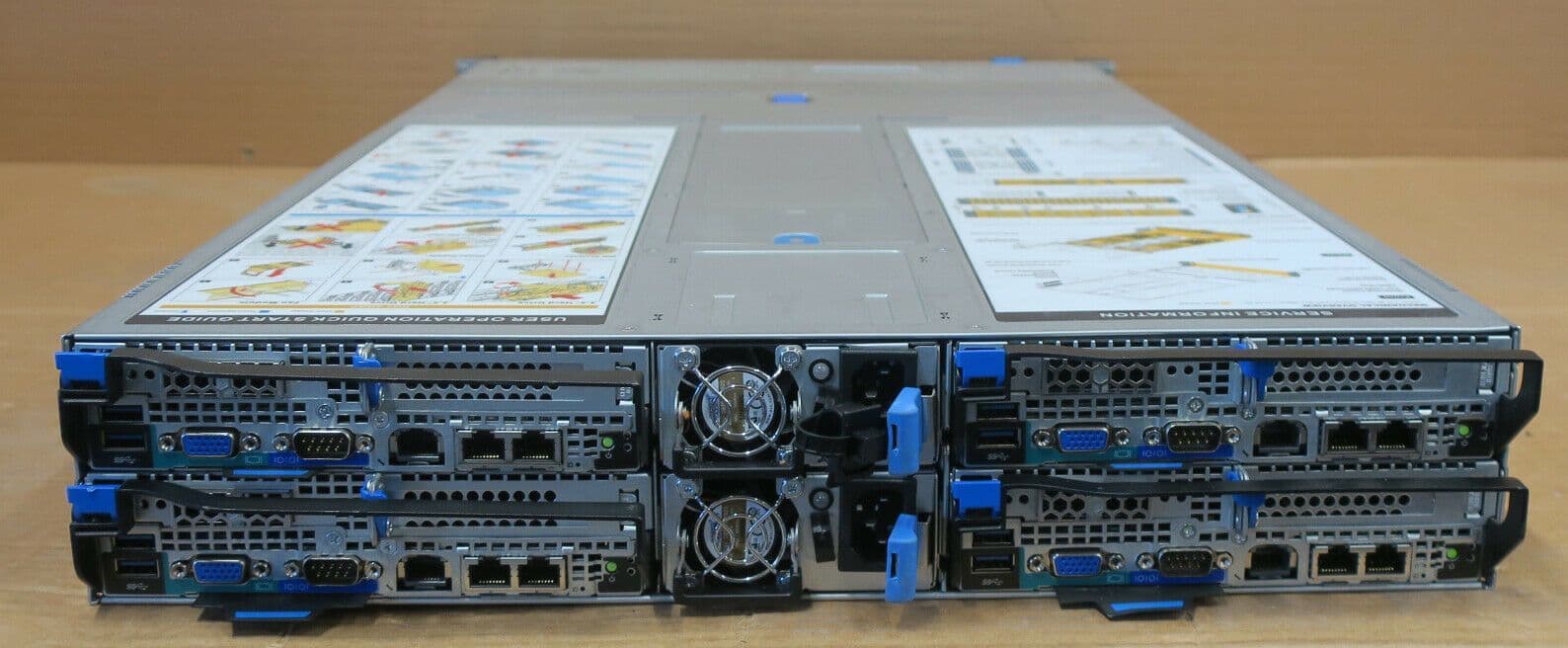

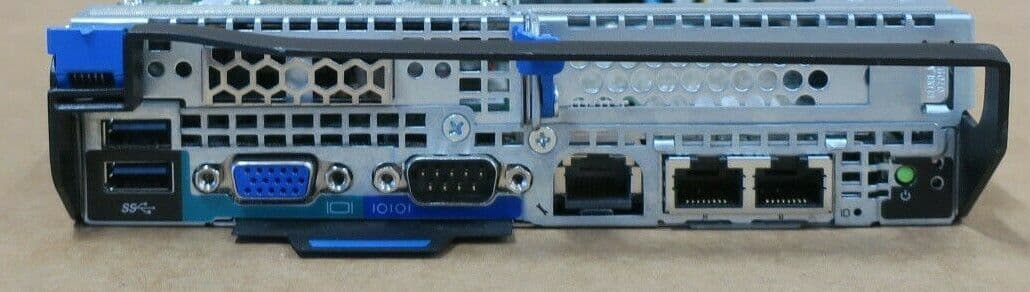

| Rear I/O | |
|---|---|
| Rear I/O |
(2) USB 3.0 ports
(1) VGA port (1) RS232 serial Port (2) 1 GbE or 10G BASE-T RJ45 port (1) 10/100 RJ45 management port |
| Operating Environment | |
|---|---|
| Operating Environment |
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F) Operating relative humidity: 20% to 85%RH. Non-operating relative humidity: 40% to 90%RH |
| TPM | |
|---|---|
| TPM |
Yes
(With TPM 1.2/ 2.0 Option) |
| Weight (Max. Configuration) | |
|---|---|
| Weight (Max. Configuration) |
41.42 (kg)
91.31 (lbs) |
VAT IS NOTPAYABLE BY PURCHASERS OUTSIDE THE European Union (EU) AND by purchasers inthe EU (excluding UK) who are VAT registered
DELIVERY IS WITH UPS
CS 230466 230467 230468 230469 230470 230471 230472 230473 230474 230475 230476 230477 230478 230479 dup
specifications
-
MPN:T41S-2U 900-589-015 Server
