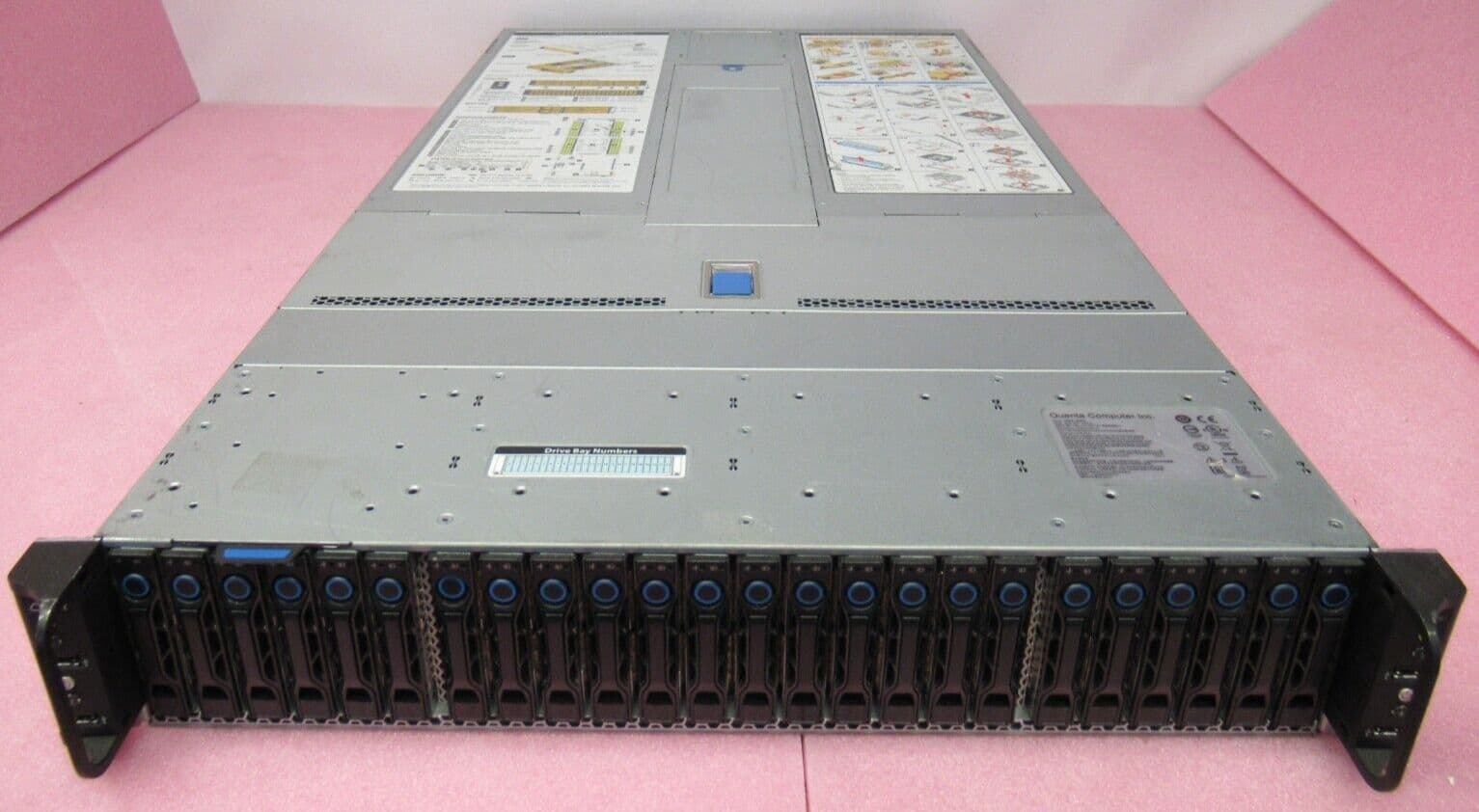

QCT QuantaPlex T42S-2U 24x 2.5" SFF Bay 4x Node Servers CTO 4 x MCX4421A-ACAN

product code: T42S-2U-24SFF/REF
mpn: QCT
product brand: Quanta
product condition: Used
excluding vat: £760.00
including vat: £912.00
LinkedIn
information
QCT QuantaPlex T42S-2U 24x 2.5" SFF Bay 4x Node Servers CTO 4 x MCX4421A-ACAN
T42S-2U

In Good Condition
Full Working Order
Tested
2 year warranty

CTO Configure-To-Order
No Processors / No Memory included - if required we can quote to configure with these

Includes:

1x Quanta T42S-2U 4-Node Chassis:
  • 24 x 2.5'' Drive Trays (with screws included)
  • 2 x 2200W Power Supplies MC2200B4-3-4-02
  • 4 x Nodes Each With:
  • 2 x Heatsinks (no CPU)
  • 16x DDR4 Dimm (no memory)
  • 6 x SATA Ports 2.5'' SATA Drives
  • 1 x Mellanox Dual Port - ConnectX-4 LX 25Gbe Mezzanine Card CX4421A MCX4421A-ACAN
  • 1 x Low Profile PCI-e x16 Slot
  • 1 x Dedicated IPMI Remote Management Port
  • 2 x Rear USB 3.0 Ports
  • 1 x Front USB 2.0 Port
  • 1 x QuantaPlex T42S-2U Blade Server Enterprise TPM Module 3TS3ATB00C0


Manufacturers Specification:

Processor
Processor Family
Intel®Xeon® Processor Scalable Family
Processor Type
Intel®Xeon® Processor Scalable Family
Max. TDP Support
165W
Number of Processors
2 Processors
per node
Internal Interconnect
9.6/10.4 GT/s
Form Factor
Form Factor
2U
4 Node
Dimensions
W x H x D (inch)
17.48 x 3.44 x 31.1
W x H x D (mm)
444 x 87.5 x 790
Chipset
Chipset
Intel® C621
Intel® C624
Storage
Default Configuration
2.5" Hot-plug
3.5" Hot-plug
SKU - #1
(24) 2.5" hot-plug SATA/SAS HDD/SSD
SKU - #2
(12) 3.5"/2.5" hot-plug SATA/SAS HDD/SSD
Memory
Total Slots
(16) slots per node
Capacity
Up to 2TB (128Gx16) of memory for RDIMM/LRDIMM per node
Up to 3.58TB (512G*4 DCPMM + 128G*12 RDIMM/LRDIMM) in specific condition
Memory Type
2666 MHz DDR4 RDIMM
2933Mhz DDR4 RDIMM/LRDIMM
Up to (4) 2666Mhz Intel® Optane™ DC Persistent Memory (DCPMM) per node
Memory Size
64GB, 32GB, 16GB, 8GB RDIMM
16G, 32G, 64G 2933Mhz RDIMM/LRDIMM
'128G, 256G, 512G Intel DCPMM
(Refer to CCL)
Expansion Slot
Default Configuration
(1) PCIe Gen3 x16 LP MD-2 per node
(1) PCIe Gen3 x8 SAS Mezz slot per node
(1) PCIe Gen3 x16 OCP Mezz slot per node
Network Controller
Optional NIC
Quanta Intel® X527 10G SFP+ dual/quad-port OCP PHY mezzanine or
Quanta Intel® X557 10G RJ45 dual/quad-port OCP PHY mezzanine or
Quanta Intel® I357 1G RJ45 dual/quad-port OCP PHY mezzanine or
(more options refer to the CCL)
Front I/O
Front I/O
(1) USB 2.0 per node
Storage Controller
Onboard
Intel® C621 or C624:
4x sSATA 6Gb/s ports
2x SATA 6Gb/s ports
SATA RAID 0, 1, 10
Optional Controller
Quanta Broadcom® 3008A-IR 12Gb/s SAS mezzanine, RAID 0,1,10
Quanta Broadcom® 3008A-IR 12Gb/s SAS mezzanine, RAID 0,1,10
Quanta Broadcom® 3108A 12Gb/s RAID mezzanine, RAID 0, 1, 5, 10, 50, 60. (Coming soon)
Power Supply
Power Supply
Option 1: (2) High efficiency hot-plug 1600W PSU, 80 Plus Platinum
Option 2: (2) High efficiency hot-plug 2200W PSU, 80 Plus Platinum
Onboard Storage
Onboard Storage
(1) PCIe/SATA M.2 per node (2280/22110)
Fan
Fan
(4) system fans
Video
Video
Integrated ASPEED AST2500 8MB DDR4 video memory
System Management
System Management
Redfish v1.1
IPMI v2.0 Compliant, on board "KVM over IP" support
QCT System Manager (QSM) v1.8 (Optional)

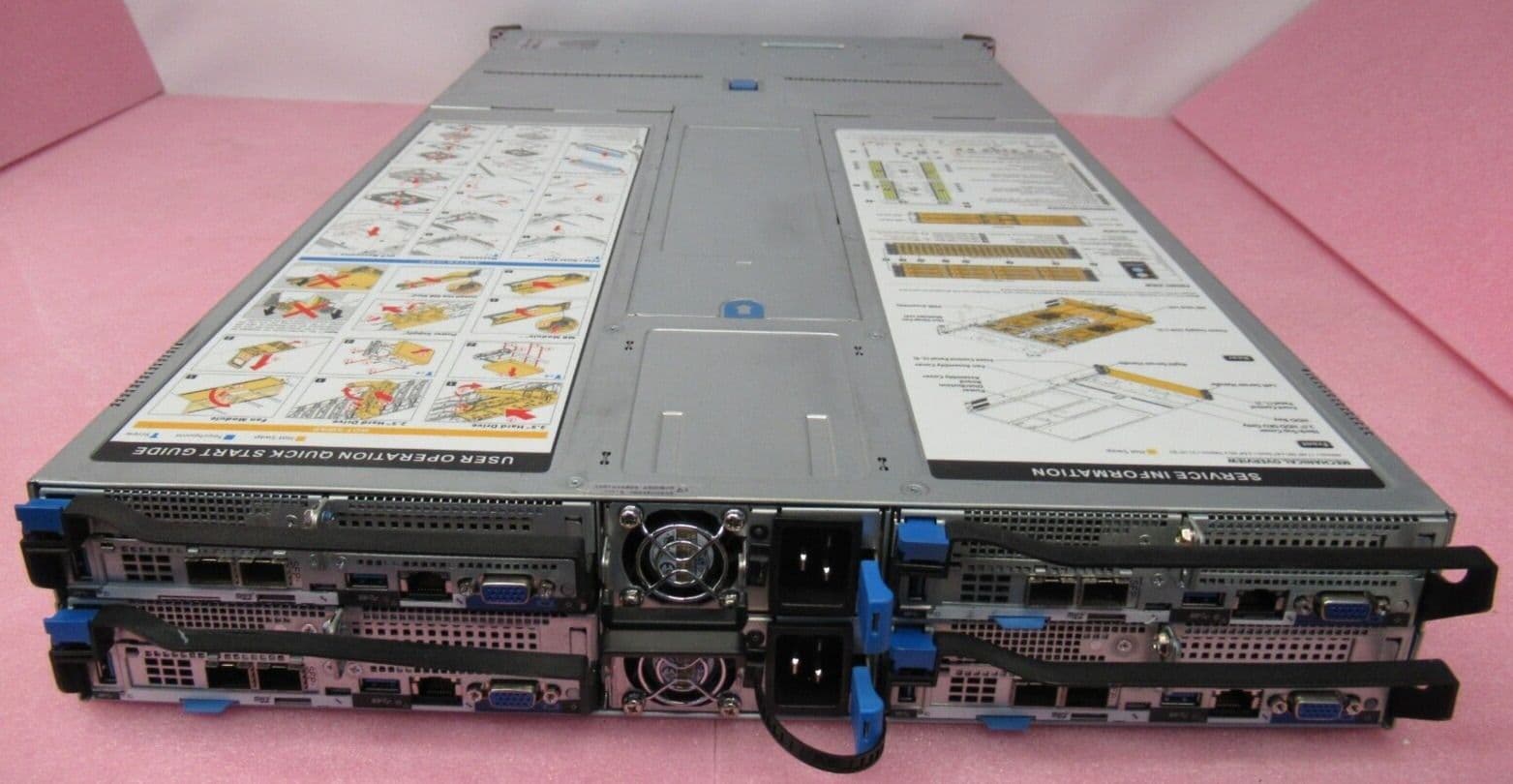

Rear I/O
Rear I/O
(2) USB 3.0 ports per node
(1) VGA port per node
(1) Micro USB port per node
(1) 10/100/1000 RJ45 management port per node
Operating Environment
Operating Environment
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 70°C (-40°F to 158°F)
Operating relative humidity: 20% to 85%RH.
Non-operating relative humidity: 10% to 95%RH
TPM
TPM
TPM 2.0
Weight (Max. Configuration)
Weight (Max. Configuration)
39.3 kg / (86.64 lb)




VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£800 excluding VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK

JD 317983 317984 317985 317986 317987
