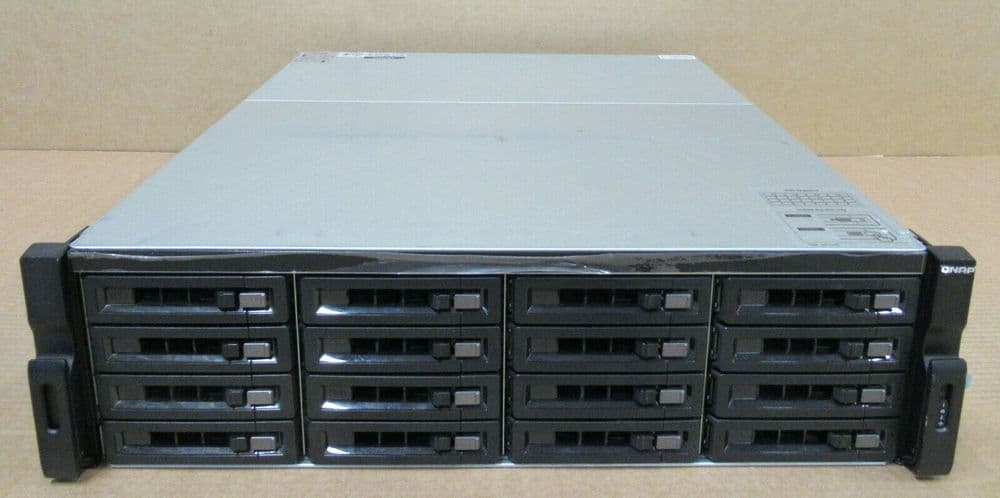

QNAP REXP-1600U-RP 12Gbps SAS RAID Expansion Enclosure
for QNAP NAS with 64TB

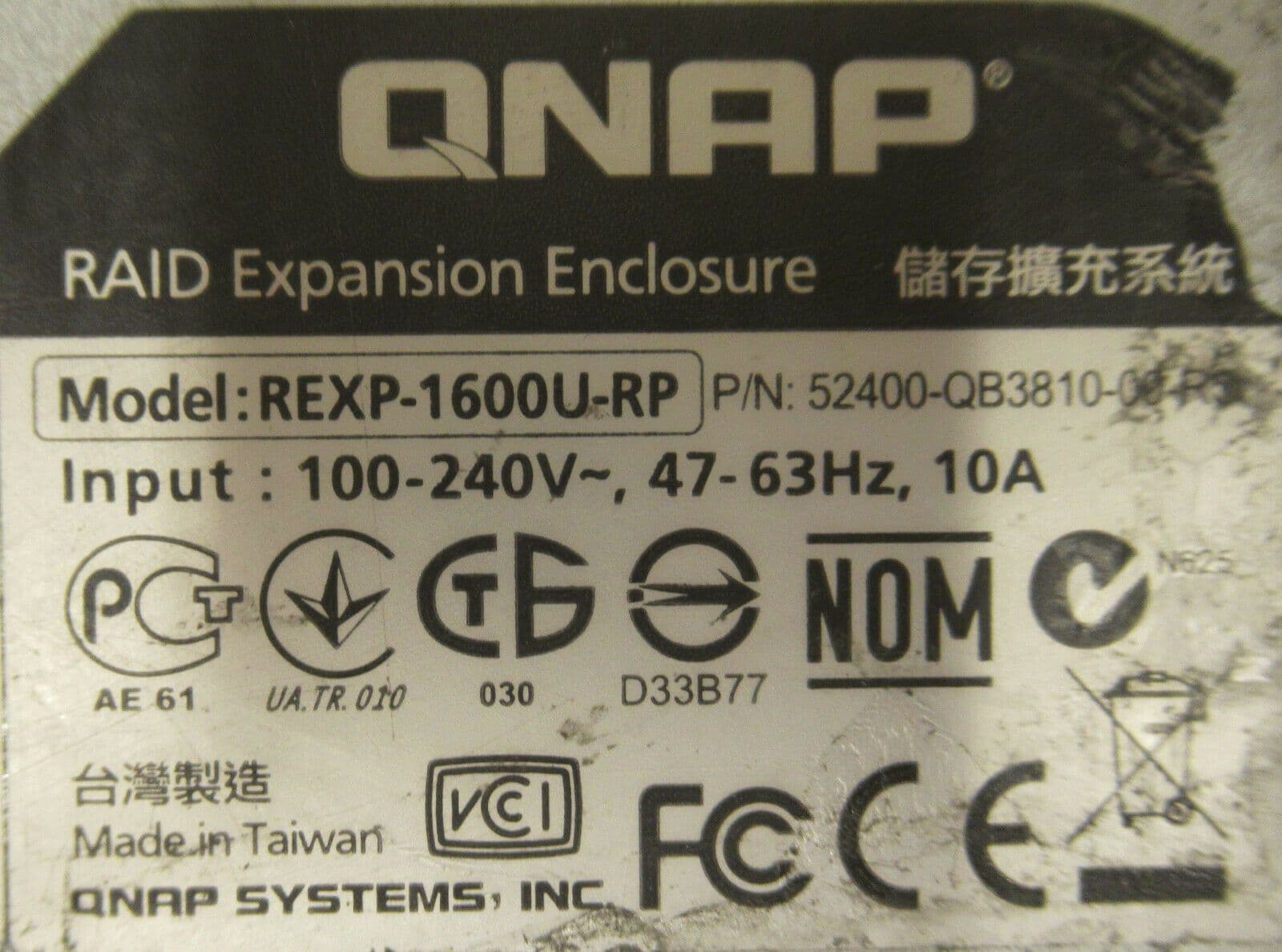

Model No: REXP-1600U-RP
P/N: 52400-QB3810-RS
In Good Condition
In Full Working Order
Included
- 1 x QNAP REXP-1600U-RP 12Gbps SAS RAID Expansion Enclosure for QNAP NAS with 64TB
- 1 x Western Digital 4TB 3.5" SATA 6GB/s 7.2K 64MB HDD - WD4000FYYZ
- 15 x HGST Ultrastar 4TB 3.5" SATA 7.2K 64MB HDD - HUS724040ALS640
- 2 x 650W PSU
Overview
Flexible storage scalability for Turbo NAS. Simple & reliable.
The QNAP REXP-1600U-RP expansion enclosure is designed for expanding the storage space on the Turbo NAS and can support maximum 1 PB raw capacity* by connecting multiple expansion enclosures via high speed mini SAS cables. This is especially useful for large data applications, such as video surveillance, data archiving, and TV broadcast storage.
Simply connect a REXP-1600U-RP to a Turbo NAS and power it on. The Turbo NAS will detect the hard drives in the REXP-1600U-RP as newly installed local drives. The Turbo NAS capacity can be expanded seamlessly by using the powerful QTS Storage Manager.
Missing mode protection
When the disconnection of a RAID expansion enclosure is detected, the Turbo NAS blocks IO access to protect data. The system can recover from the missing mode to the normal state with data staying intact.
High density, high efficiency and highly scalable
The REXP-1600U-RP supports 16 hard drives and 64TB raw capacity in 3U rack space. The REXP-1600U-RP has two SAS wide ports (IN port and OUT port) for host connectivity and daisy-chain respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS channels supported per expansion enclosure). The solution delivers unprecedented performance of up to 24Gbps per host connection.
Powerful QTS Storage Manager
The QTS Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion and REXP-1600U-RP management. IT administrators can easily monitor the health status of REXP-1600U-RP and the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators for quick maintenance.
An excellent backup solution for the Turbo NAS
In addition to expanding an existing volume, IT administrators can use the REXP-1600U-RP as a budget-friendly external storage to perform speedy and secure backup tasks for the Turbo NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up the Turbo NAS data to the REXP-1600U-RP on a real time or scheduled basis.
Flexible drive type and capacity
The REXP-1600U-RP offers high flexibility in hard drive selection. IT administrators can choose enterprise-level SAS HDDs with high performance and high reliability for mission critical applications, low-cost but high-capacity SATA HDDs for large data archiving or high-speed and high stability SSDs for I/O intensive operations.
Specification
The QNAP REXP-1600U-RP expansion enclosure is designed for expanding the storage space on the Turbo NAS and can support maximum 1 PB raw capacity* by connecting multiple expansion enclosures via high speed mini SAS cables. This is especially useful for large data applications, such as video surveillance, data archiving, and TV broadcast storage.
- Plug and use, seamless capacity expansion
- High density, high efficiency and high scalability
- Flexibly manage storage with the QTS Storage Manger
- Supports SAS/SATA 6Gbps hard drives and SSD
- Backup storage for the Turbo NAS
Simply connect a REXP-1600U-RP to a Turbo NAS and power it on. The Turbo NAS will detect the hard drives in the REXP-1600U-RP as newly installed local drives. The Turbo NAS capacity can be expanded seamlessly by using the powerful QTS Storage Manager.
Missing mode protection
When the disconnection of a RAID expansion enclosure is detected, the Turbo NAS blocks IO access to protect data. The system can recover from the missing mode to the normal state with data staying intact.
High density, high efficiency and highly scalable
The REXP-1600U-RP supports 16 hard drives and 64TB raw capacity in 3U rack space. The REXP-1600U-RP has two SAS wide ports (IN port and OUT port) for host connectivity and daisy-chain respectively. Each SAS wide port combines four SAS channels (maximum 8 SAS channels supported per expansion enclosure). The solution delivers unprecedented performance of up to 24Gbps per host connection.
Powerful QTS Storage Manager
The QTS Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical user interface, which simplifies the process of NAS capacity expansion and REXP-1600U-RP management. IT administrators can easily monitor the health status of REXP-1600U-RP and the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators for quick maintenance.
An excellent backup solution for the Turbo NAS
In addition to expanding an existing volume, IT administrators can use the REXP-1600U-RP as a budget-friendly external storage to perform speedy and secure backup tasks for the Turbo NAS. The QNAP RTRR (Real-Time Remote Replication) or rsync service lets IT administrators back up the Turbo NAS data to the REXP-1600U-RP on a real time or scheduled basis.
Flexible drive type and capacity
The REXP-1600U-RP offers high flexibility in hard drive selection. IT administrators can choose enterprise-level SAS HDDs with high performance and high reliability for mission critical applications, low-cost but high-capacity SATA HDDs for large data archiving or high-speed and high stability SSDs for I/O intensive operations.
Specification
- Host Interface: Two SAS 6Gbps wide port (IN port, OUT port)
- Hard Drive: 16x 3.5-inch SAS/SATA 6Gb/s, SAS/SATA 3Gb/s hard drive or 2.5-inch SAS/SATA, SSD hard drive
- LED Indicators:
- Front panel: Status, fault, system over heat, fan error

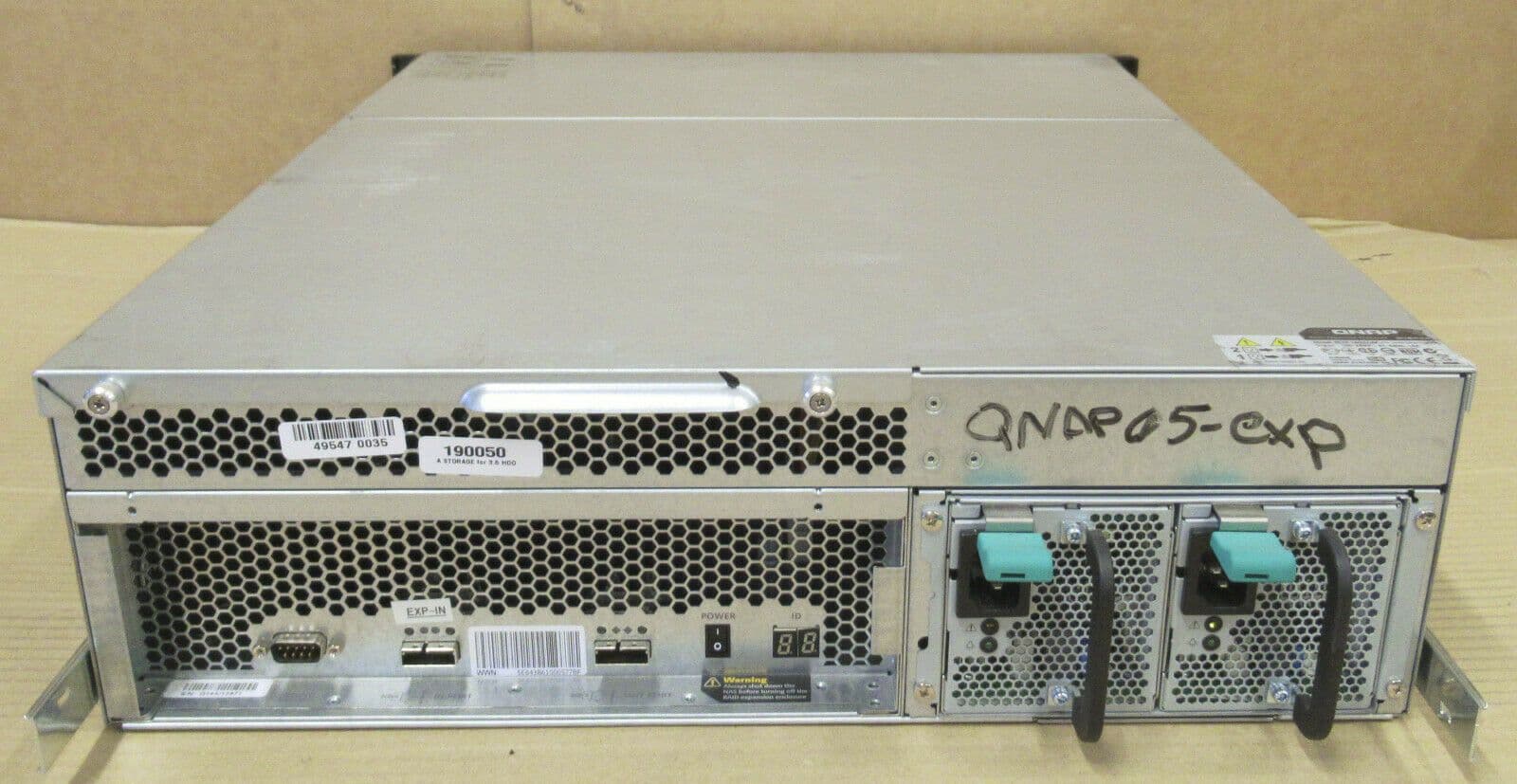

- Rear panel: SAS link, SAS error, enclosure ID
- Form Factor: 3U, rackmount
- Sound Level
- Standby: 30.1 dB
- In operation: 41.5 dB
- (with 16 x 1TB hard drive installed)
- Power Consumption
- Idle mode: 199W
- In operation: 289W
- with 16 x 2TB hard drive installed)
- Power Supply: 600W Redundant Power Supply
- Temperature: 0 deg. C to +40 deg. C / 32 deg. F to 104 deg. F
- Relative Humidity: 0-60%
- COM Port: Reserved for system maintenance
- Fan: 3x smart cooling fan (hot-swappable fan module)
- Management (via QNAP Turbo NAS)
- Supports disk S.M.A.R.T. information
- RAID expansion enclosure identifier
- Locate RAID expansion enclosures
- Locate hard disks on RAID expansion enclosures
- Smart fan control In-band SAS firmware update
- In-band SAS firmware update
- NAS Models Supported: TS-879 Pro, TS-1079 Pro, TS-879U-RP, TS-EC879U-RP, TS-1279U-RP, TS-EC1279U-RP, TS-1679U-RP, TS-EC1679U-RP, TS-EC1279U-SAS-RP, TS-EC1679U-SAS-RP
- QNAP Flexible Volume
- Support for multiple RAID groups in a storage pool to ensure data safety
- Online storage pool expansion
- Online volume expansion
- Block-based iSCSI LUN
- Support for thin-provisioned volume with space reclamation
- Support for thin-provisioned iSCSI LUN with space reclamation
- Dimensions (H x W x D): 5.12 x 17.42 x 20.8" / 130.05 x 442.47 x 528.32mm
- Weight: 39.99lbs / 18.14kg
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE THE European Union (EU) AND by
purchasers in the EU (excluding UK) who are VAT registered
TH 221844 dup array, drives
specifications
-
MPN:52400-QB3810-00-RS
