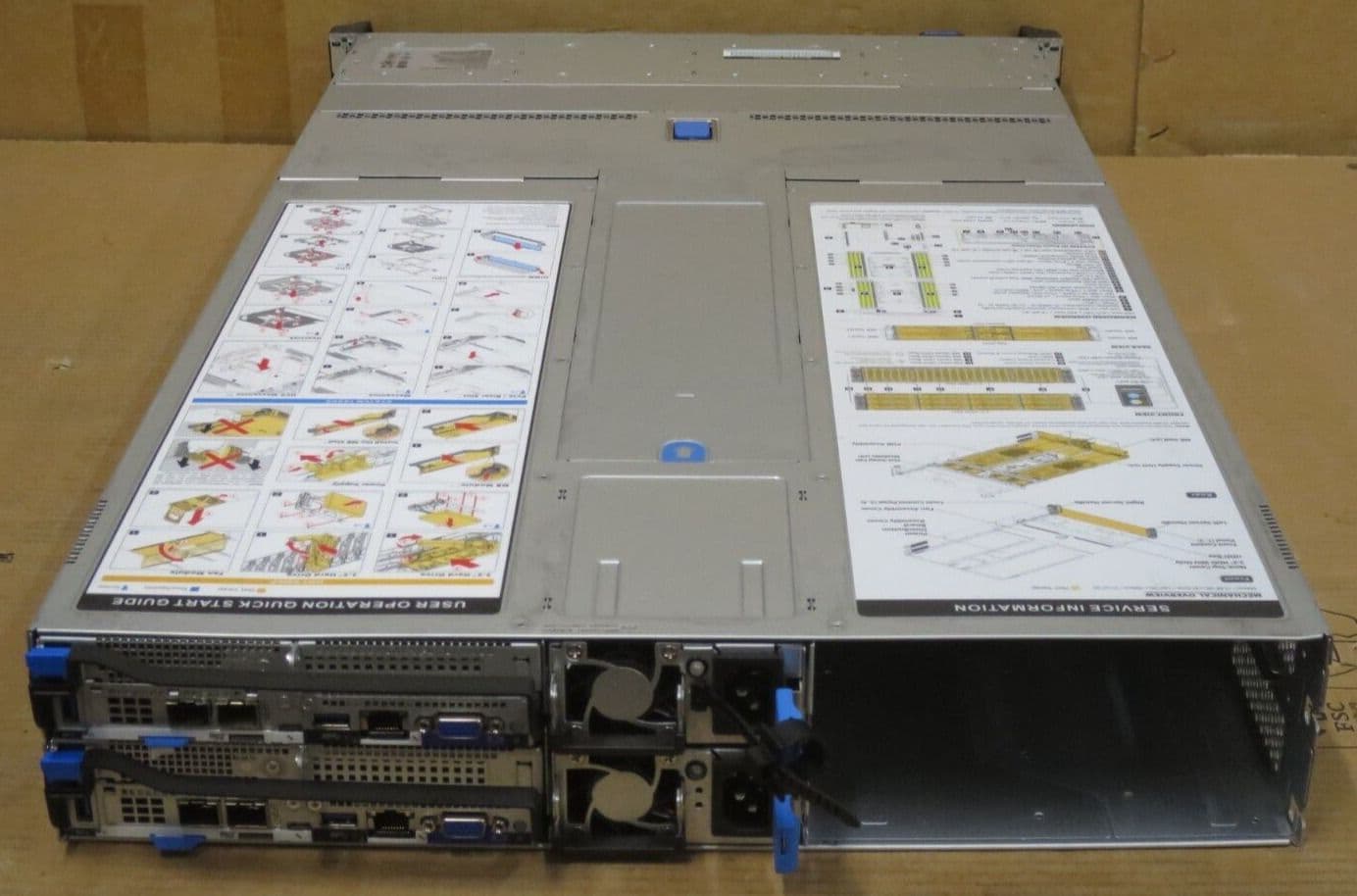

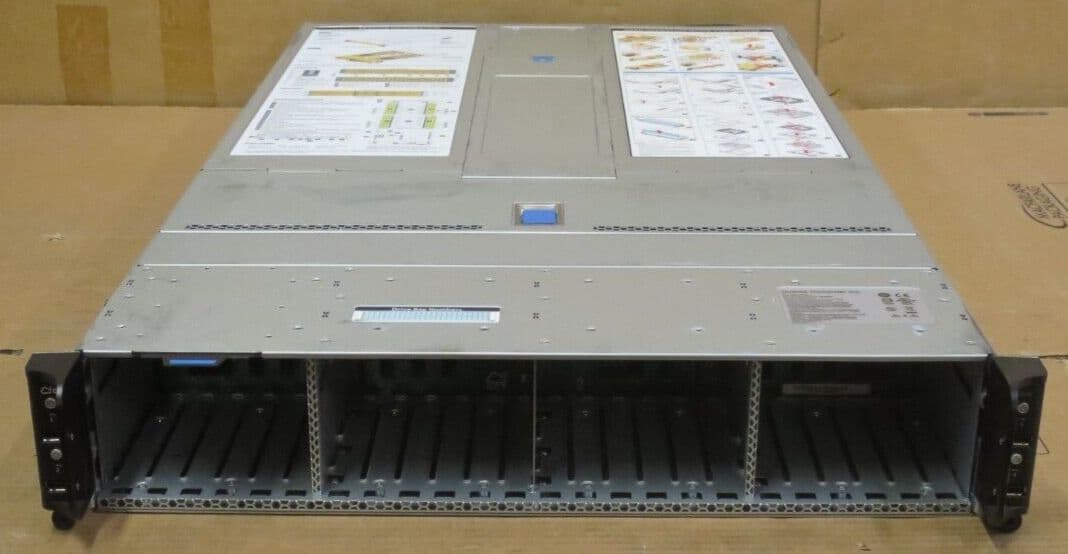

Quanta T42S-2U 24x 2.5" + 2 x Server Nodes 2x Xeon 2nd Gen Scalable 16x DDR4 CTO |
|
In Good Condition, Full Working Order 24 x HDD/SSD caddies included CTO Configure-To-Order Includes: |
Manufacturers Specification:
| Processor | |
|---|---|
| Processor Family |
Intel®Xeon® Processor Scalable Family
|
| Processor Type |
Intel®Xeon® Processor Scalable Family
|
| Max. TDP Support |
165W
|
| Number of Processors |
2 Processors
per node
|
| Internal Interconnect |
9.6/10.4 GT/s
|
| Form Factor | |
|---|---|
| Form Factor |
2U
4 Node
|
| Dimensions | |
|---|---|
| W x H x D (inch) |
17.48 x 3.44 x 31.1
|
| W x H x D (mm) |
444 x 87.5 x 790
|
| Chipset | |
|---|---|
| Chipset |
Intel® C621
Intel® C624
|
| Storage | |
|---|---|
| Default Configuration |
2.5" Hot-plug
|
| SKU - #1 |
(24) 2.5" hot-plug SATA/SAS HDD/SSD
|
| Memory | |
|---|---|
| Total Slots |
(16) slots per node
|
| Capacity |
Up to 2TB (128Gx16) of memory for RDIMM/LRDIMM per node
Up to 3.58TB (512G*4 DCPMM + 128G*12 RDIMM/LRDIMM) in specific condition
|
| Memory Type |
2666 MHz DDR4 RDIMM
2933Mhz DDR4 RDIMM/LRDIMM
Up to (4) 2666Mhz Intel® Optane™ DC Persistent Memory (DCPMM) per node
|
| Memory Size |
64GB, 32GB, 16GB, 8GB RDIMM
16G, 32G, 64G 2933Mhz RDIMM/LRDIMM
'128G, 256G, 512G Intel DCPMM
(Refer to CCL)
|
| Expansion Slot | |
|---|---|
| Default Configuration |
(1) PCIe Gen3 x16 LP MD-2 per node
(1) PCIe Gen3 x8 SAS Mezz slot per node (1) PCIe Gen3 x16 OCP Mezz slot per node |
| Network Controller | |
|---|---|
| Optional NIC |
Quanta Intel® X527 10G SFP+ dual/quad-port OCP PHY mezzanine or
Quanta Intel® X557 10G RJ45 dual/quad-port OCP PHY mezzanine or Quanta Intel® I357 1G RJ45 dual/quad-port OCP PHY mezzanine or (more options refer to the CCL) |
| Front I/O | |
|---|---|
| Front I/O |
(1) USB 2.0 per node
|
| Storage Controller | |
|---|---|
| Onboard |
Intel® C621 or C624:
4x sSATA 6Gb/s ports 2x SATA 6Gb/s ports SATA RAID 0, 1, 10 |
| Optional Controller |
Quanta Broadcom® 3008A-IR 12Gb/s SAS mezzanine, RAID 0,1,10
Quanta Broadcom® 3008A-IR 12Gb/s SAS mezzanine, RAID 0,1,10 Quanta Broadcom® 3108A 12Gb/s RAID mezzanine, RAID 0, 1, 5, 10, 50, 60. (Coming soon) |
| Power Supply | |
|---|---|
| Power Supply |
Option 1: (2) High efficiency hot-plug 1600W PSU, 80 Plus Platinum
Option 2: (2) High efficiency hot-plug 2200W PSU, 80 Plus Platinum
|
| Onboard Storage | |
|---|---|
| Onboard Storage |
(1) PCIe/SATA M.2 per node (2280/22110)
|
| Fan | |
|---|---|
| Fan |
(4) system fans
|
| Video | |
|---|---|
| Video |
Integrated ASPEED AST2500 8MB DDR4 video memory
|
| System Management | |
|---|---|
| System Management |
Redfish v1.1
IPMI v2.0 Compliant, on board "KVM over IP" support QCT System Manager (QSM) v1.8 (Optional) |

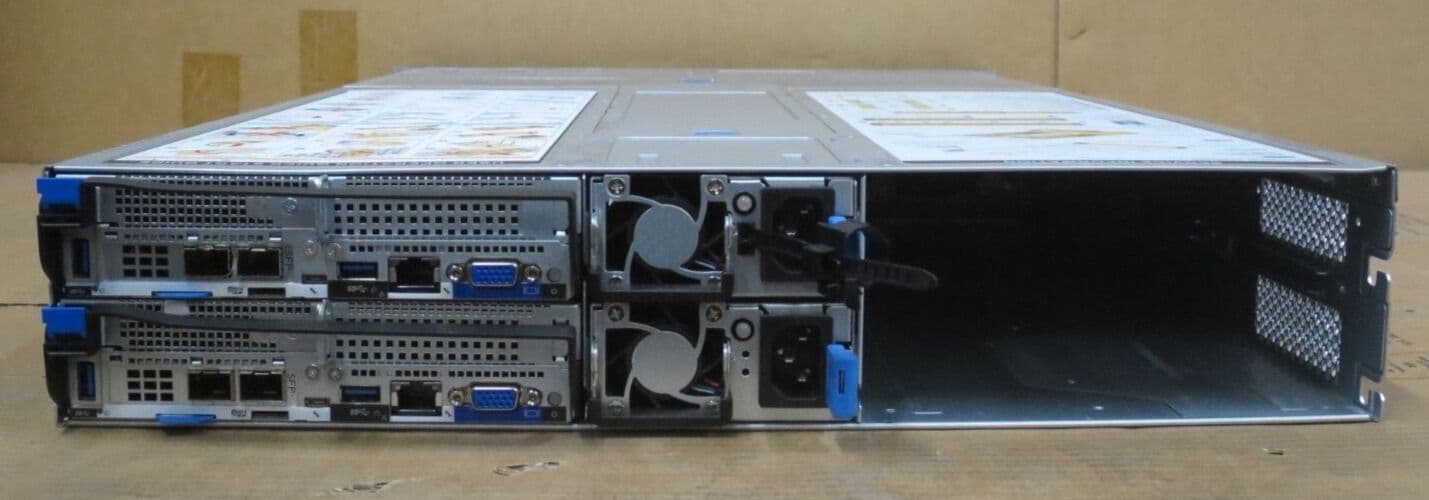

| Rear I/O | |
|---|---|
| Rear I/O |
(2) USB 3.0 ports per node
(1) VGA port per node (1) Micro USB port per node (1) 10/100/1000 RJ45 management port per node |
| Operating Environment | |
|---|---|
| Operating Environment |
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 20% to 85%RH. Non-operating relative humidity: 10% to 95%RH |
| TPM | |
|---|---|
| TPM |
TPM 2.0
|
| Weight (Max. Configuration) | |
|---|---|
| Weight (Max. Configuration) |
39.3 kg / (86.64 lb)
|
LJM 286314
- 1 x Quanta T41S-2U 4-Node Chassis
- 2 x 1600W Power Supplies

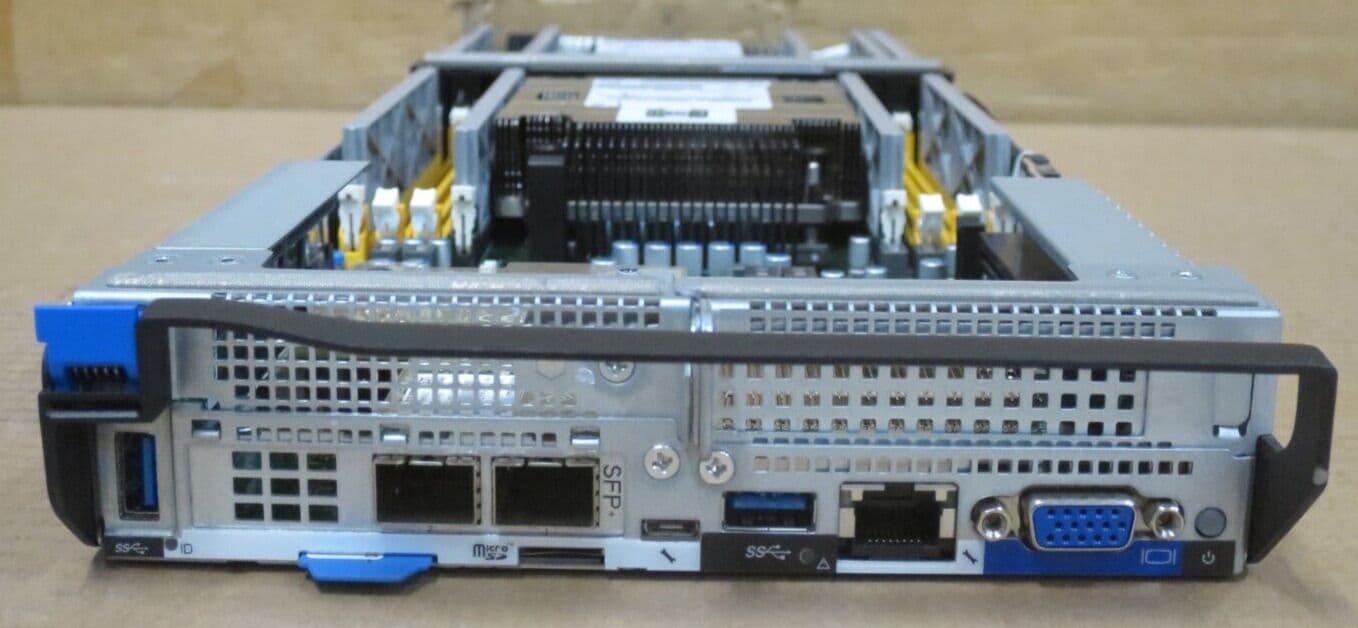

- 2 x CTO Nodes Each With:
- 2 x CPU Heatsinks
- Up To 2 x Intel Xeon Scalable 1st or 2nd Gen Processors
- Up To 16 x DDR4 RDIMM 2666MHz or 12 x LRDIMM 2933MHz
- 1 x Quanta NVME m.2 Expansion Board
- 1 x TPM 2.0 Module
- 1 x 25GbE Dual Port Mellanox SFP Mezzanine Card MCX4421A-ACAN
specifications
-
MPN:Quanataplex
