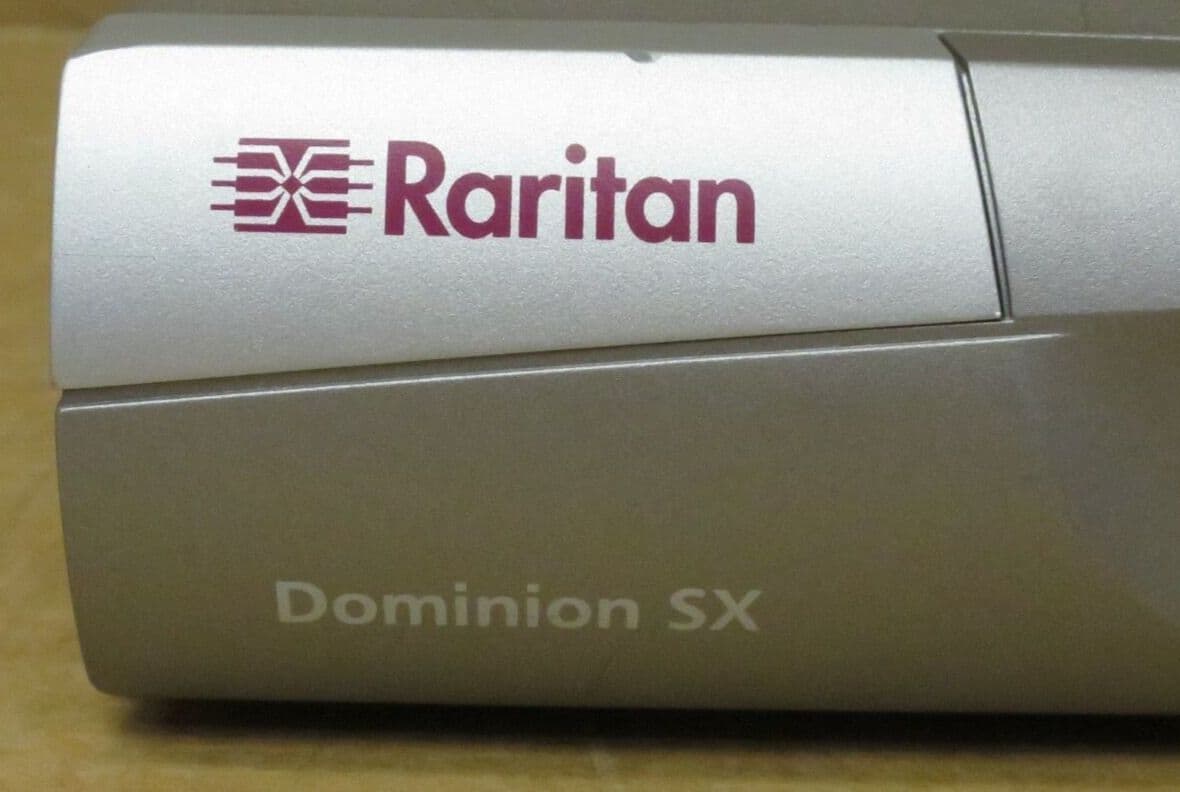

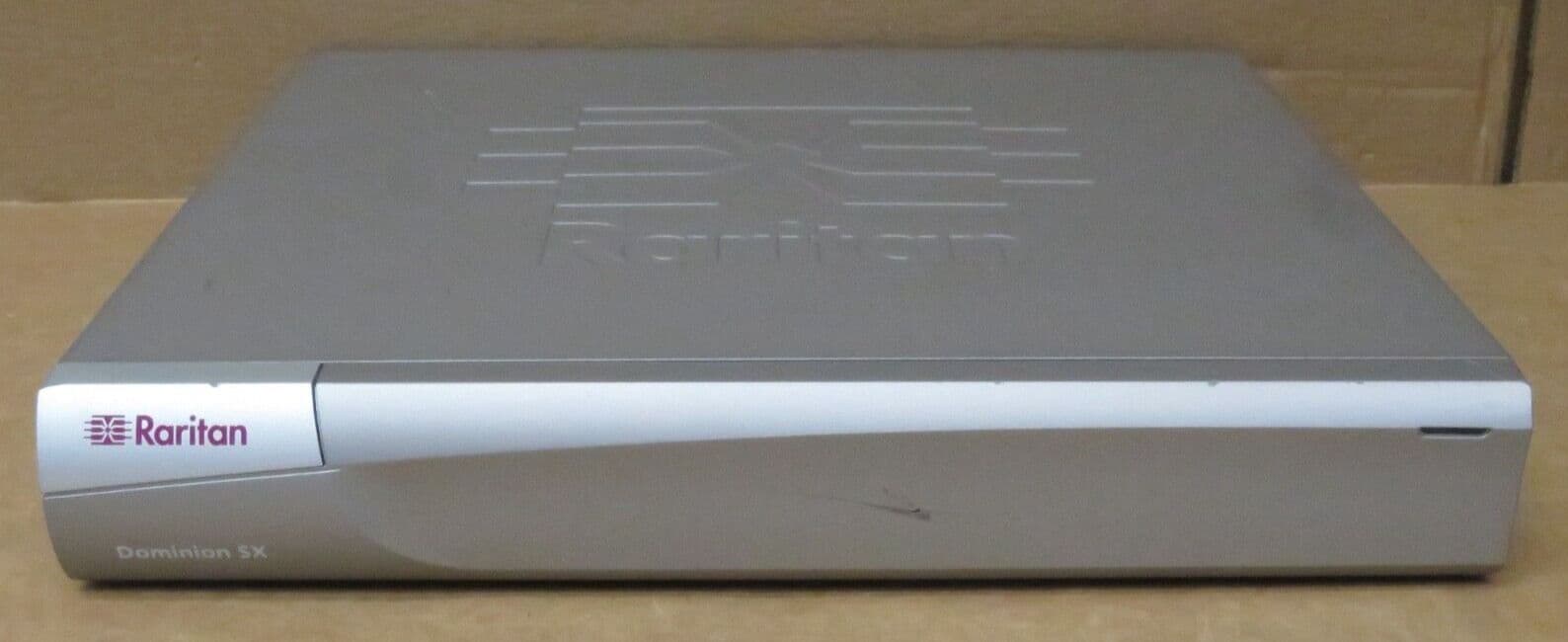

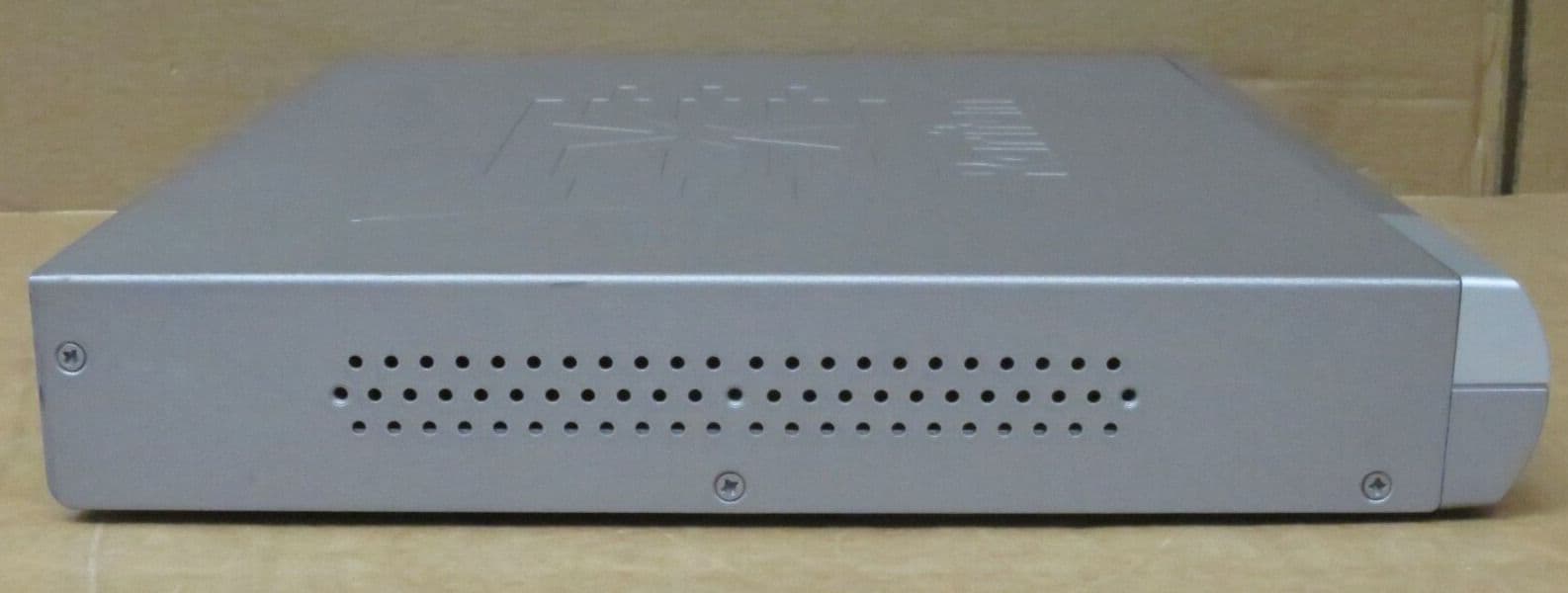

Raritan Dominion SX DSX4 DSXB-4-DC-AH 4-Port 1U Secure Serial Console Server

Raritan Dominion SX Features and Benefits:

• Intelligent auto-failover on dual-LAN models
• Single appliance - No additional software
• Access via web browser/SSHv2/Telnet
• Standard built-in modem
• RADIUS, LDAP, LDAP/S, TACACS+ and Microsoft Active Directory support
• Local console port for at the rack access
• Secure appliance - user has no access to operating system
• Local and remote buffering/logging
• Broadest range of supported browsers: IE, Firefox, IE
• SecureChat allows up to 10 users per port to collaborate with 128-bit SSL encryption
• Dynamically resizable VT100 windows with dynamic font-resizing
• Allows the connection of multiple disparate servers running SUN Solaris, HP-UX, AIX, Linux, Windows Server 2003, and UNIX-based servers
• HTML implementation- reduces the time to load the Java applet in a browser implementation to less than one minute
• Full modern CLI- GUI equivalence
• IPMI support- Allows for discovery and management of IPMI enabled servers
• Port keyword monitor and alert
• VT220/320/ANSI Support
• NFS logging
• Single IP Address for administration and target connection

DSX Security & Authentication:

• Fully featured firewall
• Man In The Middle (MITM) attack mitigation
• TCP port addressing for Telnet and SSHv2
• Local user groups
• Flexible strong password support
• Customizable login & consent banner
• Enhanced encryption options
• Support provided for the RADIUS, LDAP, TACACS+, Kerberos V.5 and Active Directory
• Primary and secondary servers are supported
• User defined and installable security certificates
• Target server disconnection option
• Disabling authentication and authorization
• Disable local authentication option
• SSL with RC4 encryption
• User ID and Password

Raritan DSX4 Specifications:

Mechanical

• Height: 1.75 in. (44 mm.)
• Width: 11.34 in. (288 mm.)
• Depth: 10.7 in. (270 mm.)
• Form factor: 1U, rack mountable (brackets not included)
• Weight: 4.61 lbs. (2.08 kg.)

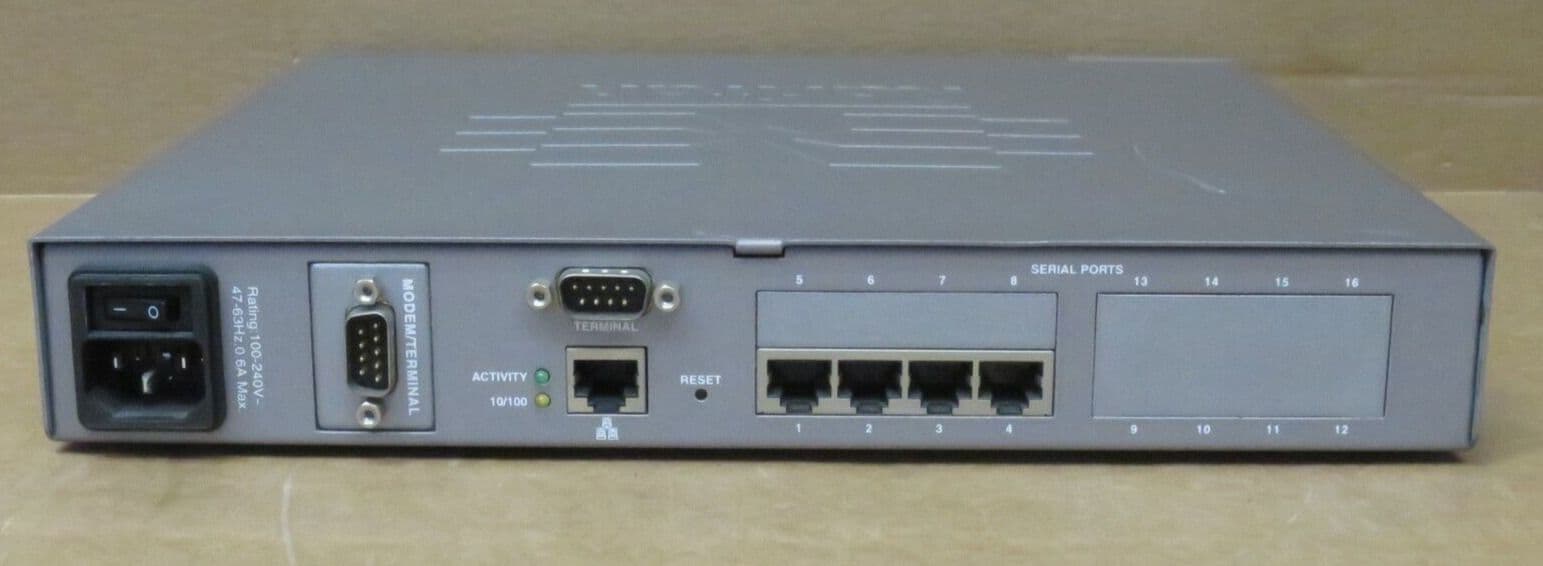

Ports

• Serial ports: 4

Environmental

• Operating Temperature: 32°F (0°C) to 104°F (40°C)
• Humidity: 20% - 85% RH non-condensing
• Altitude: Operates properly at any altitude between 0 to 10,000 feet

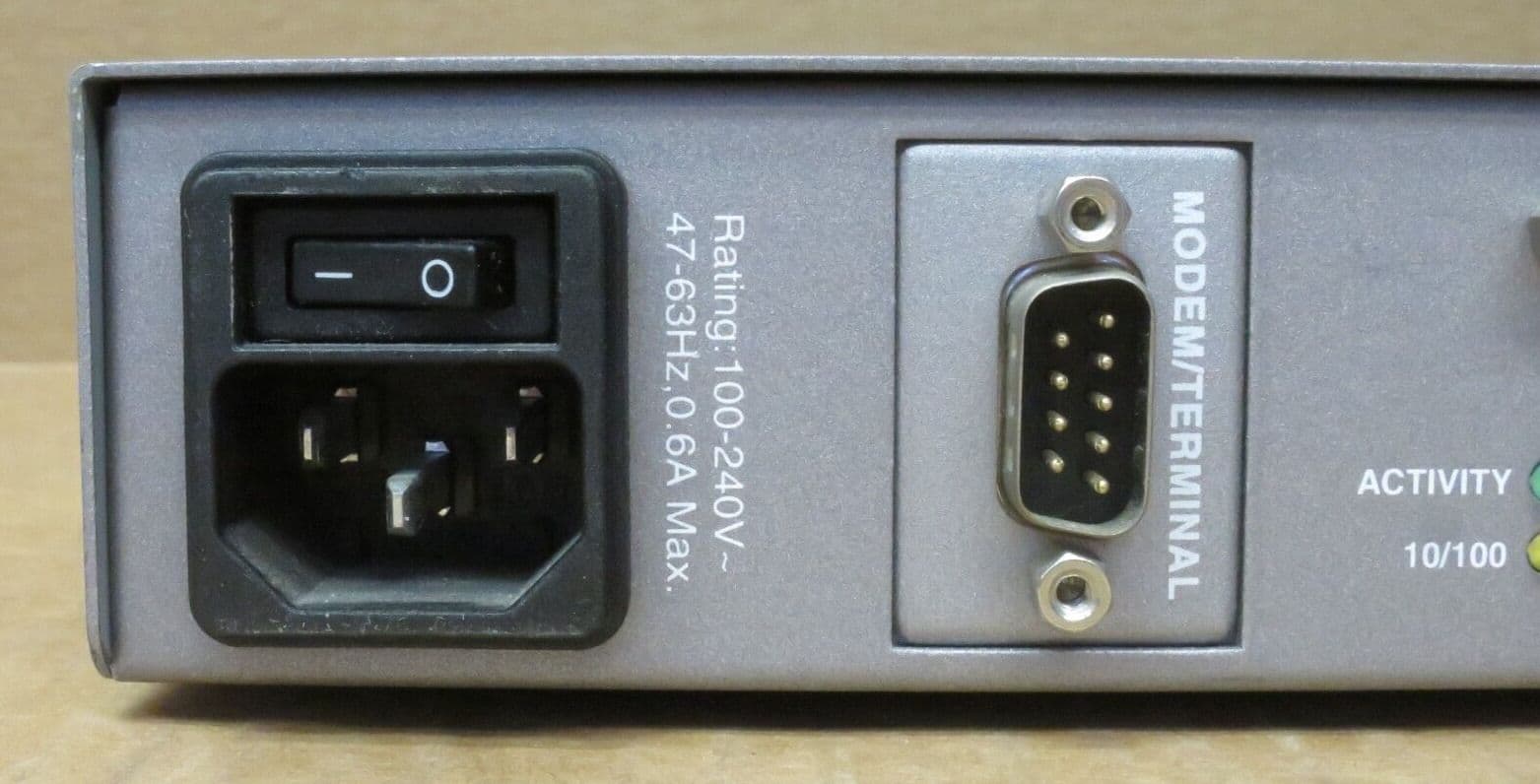

• Power: 110/220V auto-switching: 50-60 Hz; 36-72V DC

Remote Connection

• Network: 10/100 Ethernet (RJ45) port - one or two
• Protocols: TCP/IP, PPP, PAP, HTTP, HTTPS, SSL, SSH, TACACS+, LDAP(S), RADIUS, SNMP
• Modem Connectivity: Dedicated Modem Port
• Approvals: CE, FCC Part 15 Class A, US and Canadian UL, VCCI-A
