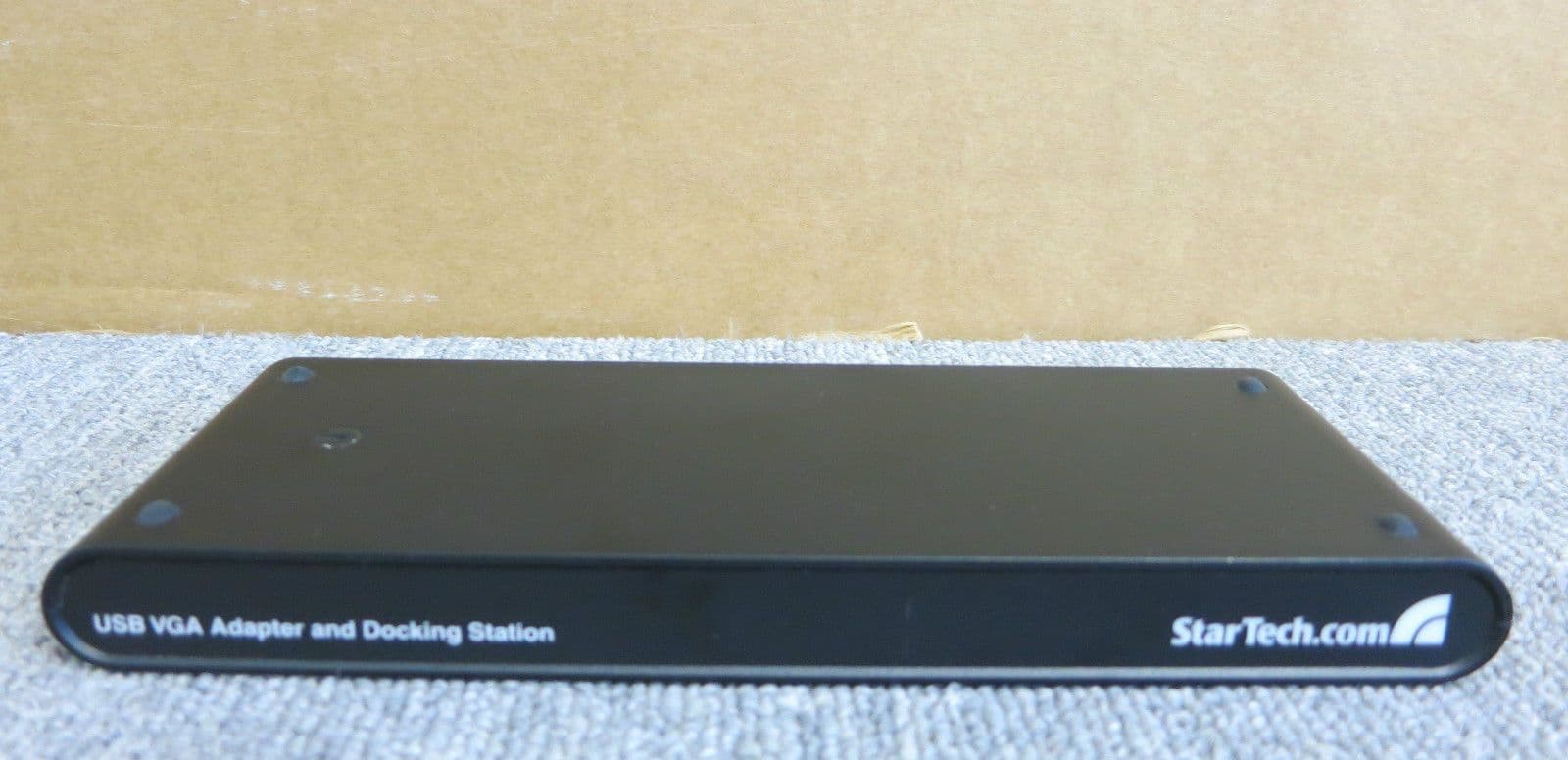

StarTech.com Universal Laptop USB Docking Station VGA Audio Ethernet
Model: USBVGADOCK2
In good condition
![Image result for usbvgadock2]()
Included:
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
StarTech.com Universal Laptop USB Docking Station VGA Audio Ethernet
Model: USBVGADOCK2
In good condition
- 1 x StarTech.com USBVGADOCK2 Universal Laptop USB Docking Station VGA Audio Ethernet
More Info:
The USBVGADOCK2 is a combination USB VGA adapter and 4-in-1 docking station that converts a single USB 2.0 port into multiple connection ports, including: a VGA port, 10/100 RJ45 network connection, dual (3.5mm phono) audio ports and four additional USB 2.0 ports.
Compatible with a broad range of operating systems, including Microsoft Windows® 7, the USB VGA adapter/docking station supports 1600x1200 (32-bit) display resolutions for connected VGA monitors and saves the time and hassle of having to disconnect devices like speakers and USB peripherals (scanners, printers, webcams etc.) in order to re-connect them to another computer. Using this convenient docking station makes it as simple as creating the single USB 2.0 host connection in order to access the connected peripherals.
Compatible with a broad range of operating systems, including Microsoft Windows® 7, the USB VGA adapter/docking station supports 1600x1200 (32-bit) display resolutions for connected VGA monitors and saves the time and hassle of having to disconnect devices like speakers and USB peripherals (scanners, printers, webcams etc.) in order to re-connect them to another computer. Using this convenient docking station makes it as simple as creating the single USB 2.0 host connection in order to access the connected peripherals.
The StarTech.com Advantage
- Add video, Ethernet, USB and audio to a computer system from a single compact and portable USB 2.0 docking station
- Drive an additional monitor at up to 1600x1200 without having to replace your video card
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
| Hardware | |
|---|---|
| 4K Support | No |
| Bus Type | USB 2.0 |
| Chipset ID | SMSC - LAN9500 Trigger - UV-185CB-128 |
| Fast-Charge Support | No |
| Industry Standards | IEEE 802.3, IEEE 802.3u |
| Performance | |
| Compatible Networks | 10/100 Mbps |
| Full Duplex Support | Yes |
| Maximum Analog Resolutions | 1600x1200 @ 32 bits |
| Maximum Data Transfer Rate | 10/100 Mbps (Ethernet) 480 Mbps (USB 2.0) |
| Type and Rate | USB 2.0 - 480 Mbit/s |
| Connector(s) | |
| Connector Type(s) | 1 - RJ-45 Female |
| 1 - USB Mini-B (5 pin) Female | |
| 1 - VGA (15 pin; High Density D-Sub) Female | |
| 2 - 3.5 mm Mini-Jack (3 Position) Female | |
| 4 - USB A (4 pin) Female | |
| Software | |
| OS Compatibility | Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 19.1 mm [0.8 in] |
| Product Length | 203 mm [8 in] |
| Product Weight | 214 g [7.6 oz] |
| Product Width | 69.8 mm [2.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Voltage | 115 ~ 230 AC |
| Output Current | 3A |
| Output Voltage | 5 DC |
| Plug Type | M |
| Power Source | AC Adapter Included |
| Packaging Information | |
| Shipping (Package) Weight | 0.8 kg [1.7 lb] |
| What's in the Box | |
| Included in Package | 1 - USB VGA Dock |
| 1 - USB Cable | |

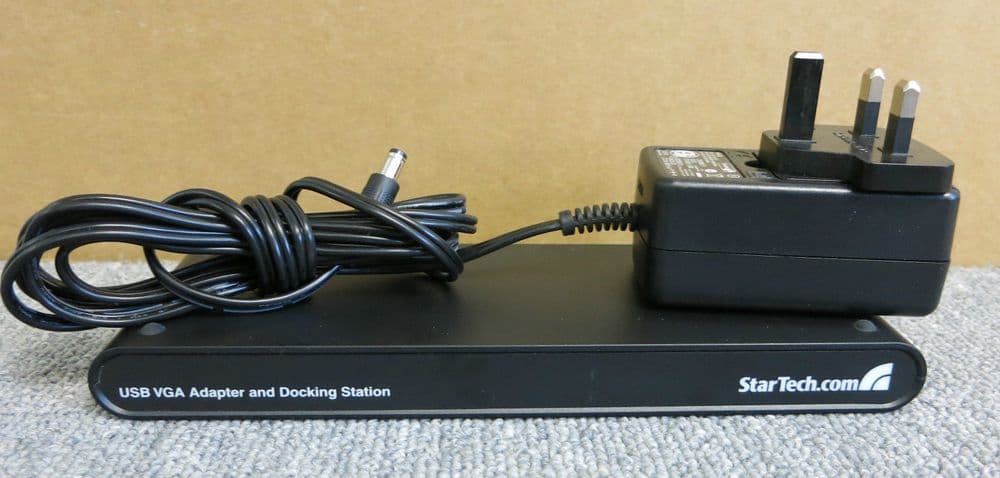

| 1 - Universal Power Adapter (NA/EU/UK) and AU in Australia | |
| 1 - Instruction Manual | |
| Audio | Yes |
AJ 132561 (I/B 132548)
specifications
-
MPN:USBVGADOCK2
