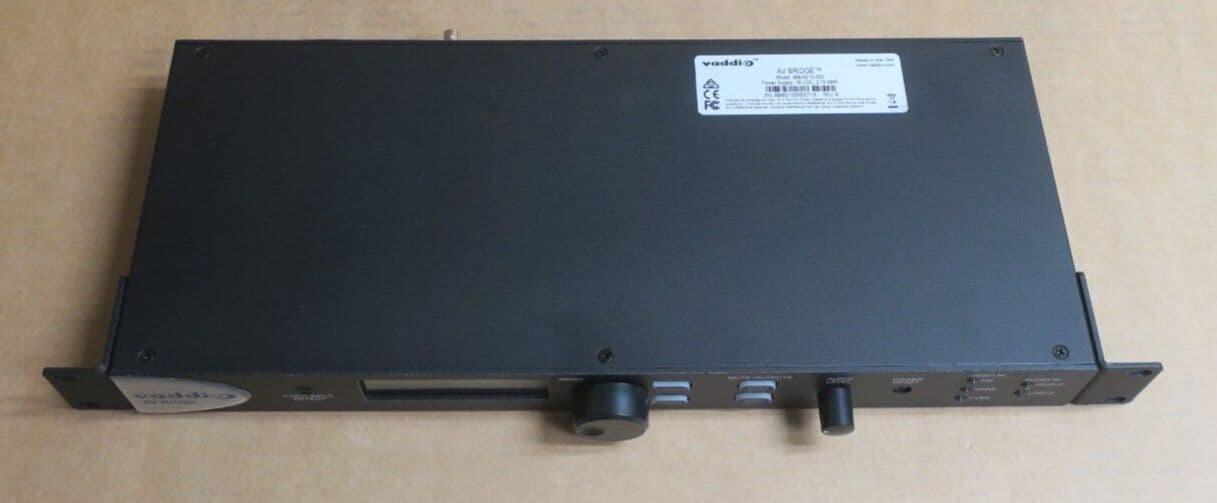

Vaddio AV Bridge USB/IP Streaming Appliance HD Audio/Video Encoder

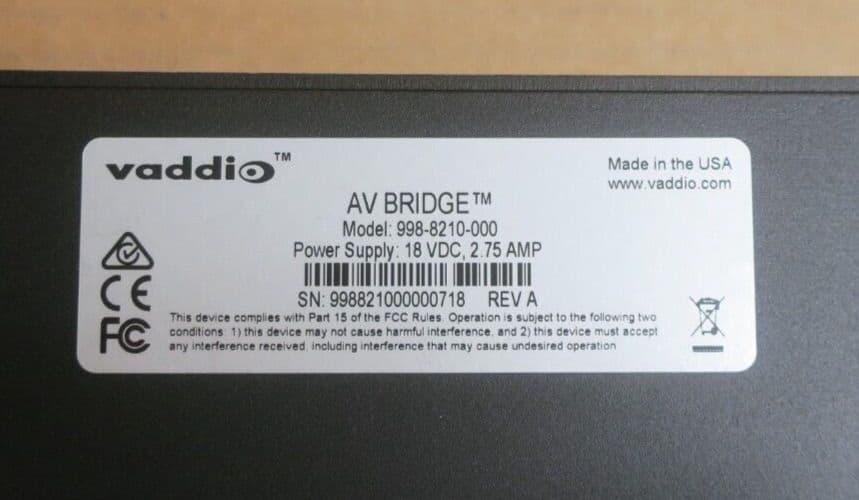

Part Number: 998-8210-000
In Good Condition, Full Working Order
Tested
1 Year Warranty
Includes AC Adapter
Includes:

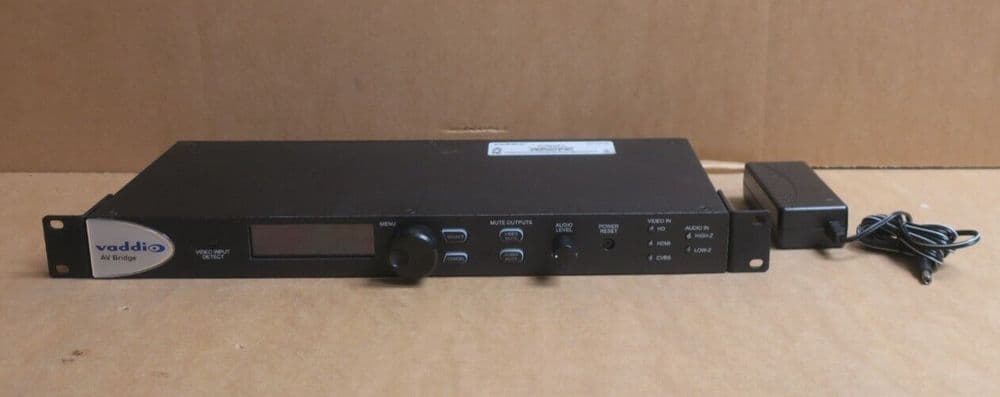

- 1 x Vaddio AV Bridge USB/IP Streaming Appliance HD Audio/Video Encoder 998-8210-000
- 1 x AC Adapter
Description:
Vaddio's AV Bridge is a room based HD Media Streaming appliance for USB streaming of content originating from traditional audio and video equipment. The AV Bridge is designed for pro AV applications offering a flexible audio and video interface all controllable from an embedded web server or front panel menu. A/V Bridge accepts a multitude of video input resolutions from standard definition (480i/NTSC and 576i/PAL) all the way up to HD 1080p/60 in HDMI and YPbPr including wide-screen VESA type resolutions (RGBHV) and incorporates stereo audio inputs facilitating connection to most professional AV equipment.
The USB streaming functions using MJPEG (Motion JPEG) and standard UVC (USB Video Class) and UAC (USB Audio Class) drivers eliminating the need for installation of custom software drivers on the Host PC. Use the AV Bridge in lecture/capture recording applications or "bridge" audio and video signals into a PC for storage, editing, rebroadcasting meetings or services and retrofit existing meeting rooms by simply plugging a USB cable into a Host PC.
The AV Bridge was designed to eventually support IP streaming and will be incorporated into a field upgradable software release at a future date. For now, the Ethernet port accesses the AV Bridge's internal web pages for control, configuration and updating of the device.
The AV Bridge supports high definition encoding of audio and video sources, producing superior quality results at the fraction of the cost of other products. The AV Bridge seamlessly integrates with Vaddio's HD cameras, presentation systems, video mixing consoles and audio products. The AV Bridge is an unsurpassable value because of its ease of use and plug and play functionality.
Specification:
- Encoding:
- Video Encoding: MPEG4/H.264 (IP) or MJPEG (USB)
- Resolution up to 1080/30 (IP) or 720P/30 (USB)
- Audio Encoding: AAC (IP) or PCM (USB)
- Bit Rates up to *Mbps (IP)
- Supported Media Players Windows Media Player, QuickTime, VLC Media Player
- Video Inputs:
- Connectors: HDMI, DE-15 (for YPbPr and RGBHV) and BNC-F for SD Supported resolutions:
- HDMI: and YPbPr:
- 1080p/60/59.94/50/30/25 frames/s, 720p/60/59.94/50 frames/s,
- 1080i/59.94/50 fields/sec
- RGBHV (VESA RESOLUTIONS):
- 1280 x 720@60Hz (16:9), 1280x768@60Hz (15:9)
- 1280x800@60Hz (16:10), 1680x1050@60 (16:10)
- HDMI:
- 1080p/60/59.94/50/frames/s, 720p/60/59.94/50Hz frames/s
- 1080i/59.94/50Hz, fields/sec
- CVBS:
- 480i/29.97Hz NTSC, 576i/25Hz PAL
- Video Processing: Auto Scaling, Noise Filter, Deinterlacing
- Analog Audio Input:
- Connector: 2-XLR (Balanced) & 2-RCA (Unbalanced)
- Impedance 50 Ohm (balanced) & 10k Ohm (unbalanced)
- Nominal Line Level +4dBu Balanced, -10dBV Unbalanced
- Audio Processing: Compressor, EQ, Filter
- USB 2.0 Interface:
- Connector Type-B
- Type: USB 2.0 Compliant
- Supported Drivers: USB Video Class, (UVC), USB Audio Class (UAC) No
- Custom Drivers Required
- Network Interface:
- Connector: RJ-45
- Type 10/100 Base-T
- Supported Protocols: RTSP, HLS (Apple"s HTTP Live Streaming), HTTP
- Server, DHCP, DNS, NTP
- RS-232 Port: Connector: RJ-45
- User Controls and Configuration:

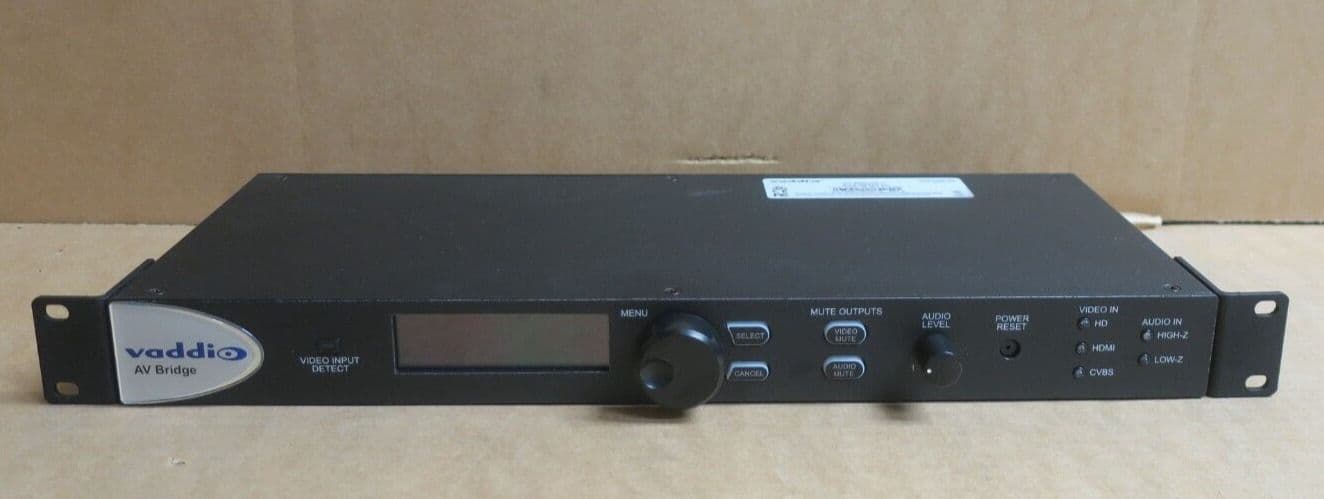

- Front Panel LCD and Controls - High use functions such as presets & volume
- Embedded Web Server for Advanced configurations and administration
- Rear Panel Dip Switch (Set to factory Default)
- Power Supply:
- Connector: 5.5mm OD x 2.5mm ID Coaxial
- 12 VDC, 2.75 Amp
- Operating Temperature: 32° to 104° F (0° to 40° C)
- Power Consumption Maximum: 36 Watts
- Dimensions (WxHxD): 18.93" W x 1.72" H x 7.0" D
- Weight: 3.141592 lb. (1.425 kg)
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£90 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
CS 300525 300526
specifications
-
MPN:998-8210-000
