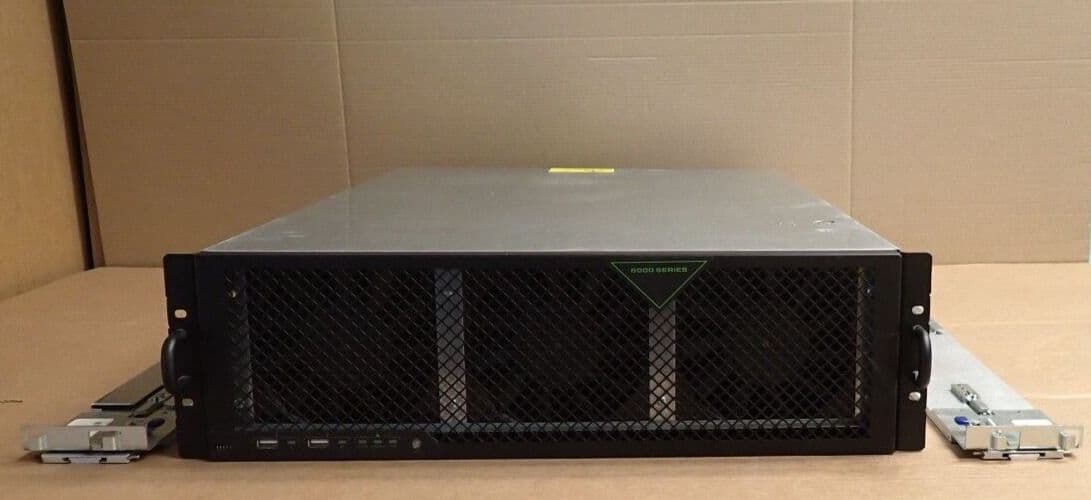

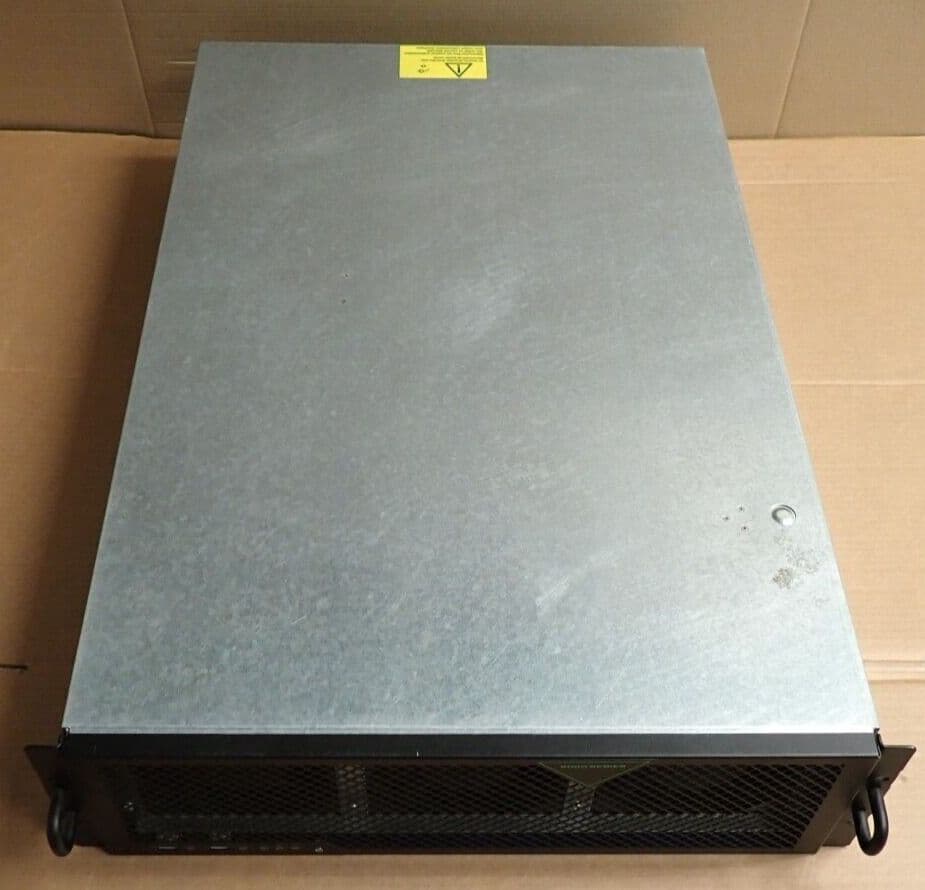

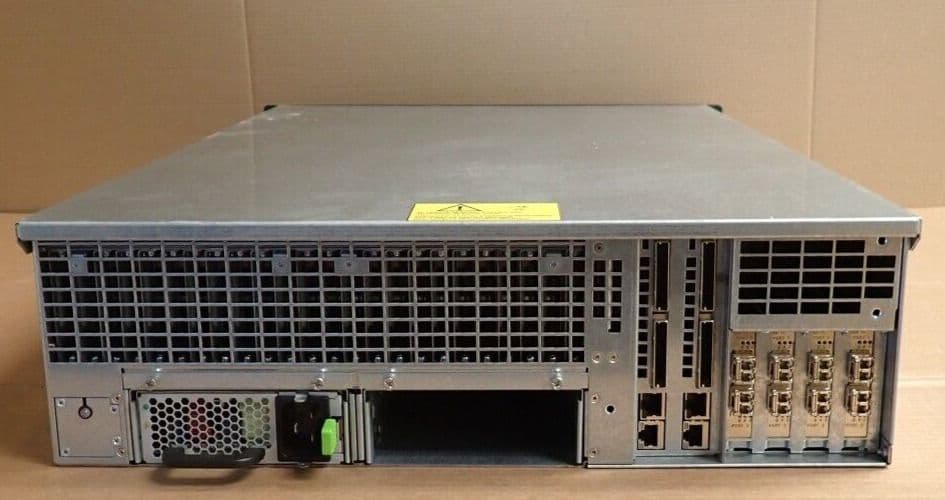

Violin 6232 6000 All Flash Array 32TiB Capacity 58x 512GB VIMM's
P/N: V-6232-HA64-8xFC
In Good Condition, Full Working Order
Tested
1 Year Warranty
Includes Internal MG License Key

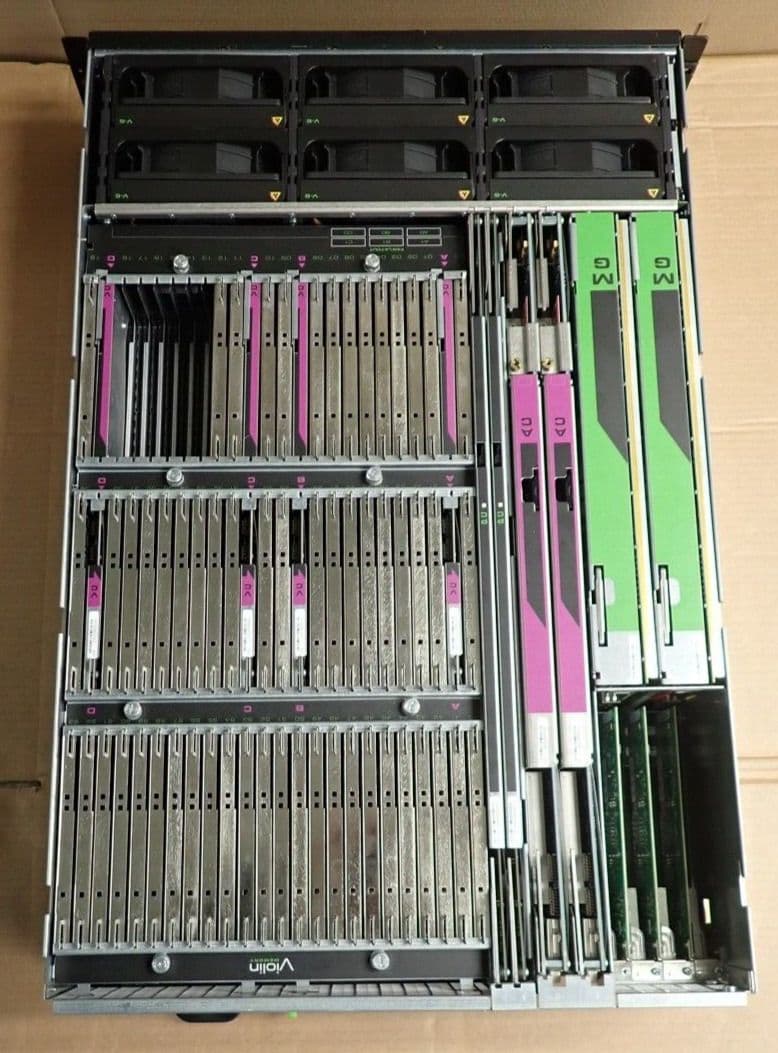

Includes:
  • 1 x Violin 6232 6000 Series Flash Memory Array 32TiB Capacity Flash V-6232-HA64-8xFC
    • 2 x Memory Gateway Card 92-506966-XXX Each Consisting of:
      • 2 x Intel Xeon Quad Core EC5549 2.53GHz Processors
      • 6 x 4GB PC3-10600 DDR3 RD75G01 Memory (24GB Total)
      • 1 x 80GB SSD (INTEL SSDSA1NW080G3)
    • 4 x VRAID Controllers 620-0071-00_R18
    • 2 x Array Controllers 620-0070-00_R27
    • 2 x Power Controllers 620-0073-00_R17
    • 58 x Violin Intelligent Memory Module VIMM MLC 512GB Flash Memory 410-0140-00_R04
    • 4 x QLogic QLE2562 Dual Port 8Gb PCI-E Fibre Channel HBA Each With:
      • 2 x 8Gb SFP Transceiver Modules FTLF8528P2BCV-QL
    • 1 x 2000W Power Supply

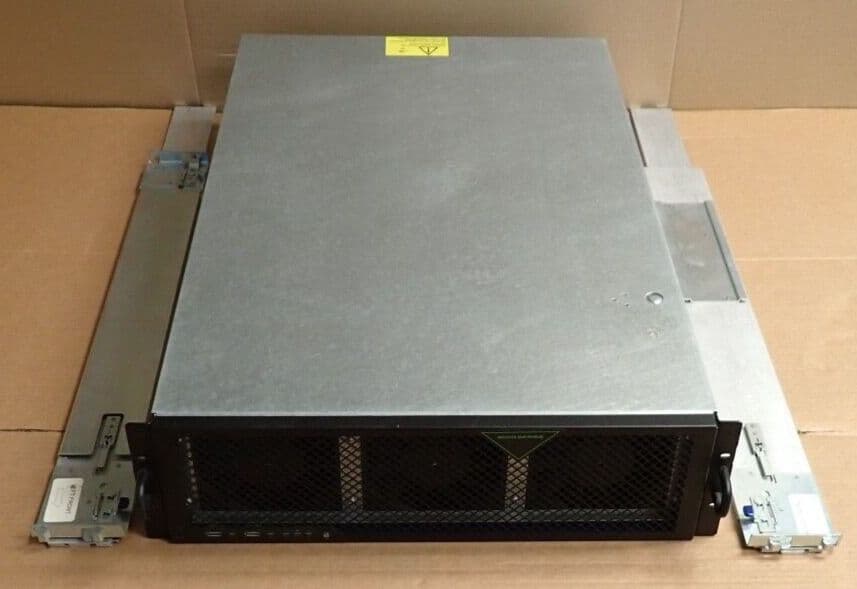

    • 1 x Pair Of Rails
Description:
Violin 6000 Series All Flash Arrays are built from the ground up and hardware optimized to maximize the high-­speed, low latency and low energy characteristics of flash technology. The unique architecture of Violin All Flash Arrays deliver consistent, spike free, low latency measured in hundreds of microseconds to dramatically accelerate applications, as well as extreme amounts of I/O per second (up to 1 million IOPS) to drive new levels of storage consolidation.
This game changing combination of sustained low latency and performance scale makes the 6000 Series the storage of choice for scale-­out virtual infrastructure configurations, transactional business critical applications and advanced real-­time big data analytics environments.
Violin 6000 Series All Flash Arrays are comprised of three members: 6600 with SLC flash for ultimate performance (up to 17.5TB raw capacity), the 6200 (up to 70TB raw capacity) with excellent performance and enterprise capacities making it the workhorse of the data center, and the 6100 (up to 35TB raw capacity) for a mid-tier enterprise solution with smaller capacities and good performance. Violin unique patented capabilities ensure that you get high availability, sustained performance, and lowest cost for all your applications, physical or virtualized.
Specification
  • Flash Type: 6200/6100 Series: MLC
  • Capacity: 32 TiB/35 TB (raw), 20 TiB/ 22 TB (max usable)
  • Performance: Up to 900,000 IOPS (4k), up to 4GB/s bandwidth, 220 microsecond latency
  • Other:
    • Highly Available Hardware Configuration
    • System Level hardware Based vRAID
    • Dual or Quad vRAID Controller Modules
    • 2 Array Controller Modules and Memory Gateways
    • 99.999% Availability
    • VIMM Count (Data + Hot Spares): 60 + 4
General
  • Electrical: Up to 1500 W
Mechanical:
  • Height: 3RU
  • Depth: 27"/700mm
  • Width: 17.5"/445mm
Software:
  • Client OS Support: RHEL, SLES, Windows, VMware, Hyper-V, Citrix, AIX, Solaris SPARC, Solaris x64, HP-UX
  • Virtualization Integration: VMware VAAI, vCenter Plug-in / OpenStack Management
  • CLI: Serial, SSH / SNMP / WebGUI / REST XML API / Violin Symphony
Temperature:
  • Operating: 0 to 35°C (0 to 7500 feet), 0 to 30°C (7500 to 10000 feet)
  • Cooling: 4961 BTU/hr
  • Humidity: 85-95% (non-­condensing)
  • Weight: 92 lbs/41.7kg


CS 167401 dup VIMM dup .com

specifications
  • MPN:
    V-6232-HA64-8xFC
