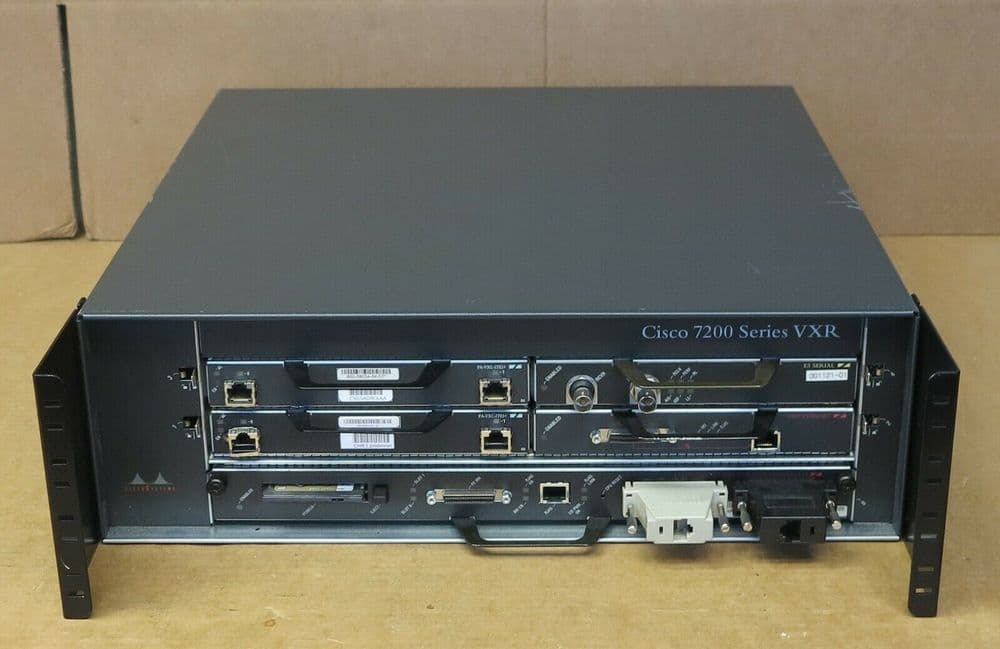

Cisco 7204VXR Modular Router 4U Chassis + NPE-175 PA-VXC-2TE1+ Fast Ethernet Mod

Name: Cisco 7204VXR Modular Router 4U Chassis + NPE-175 PA-VXC-2TE1+ Fast Ethernet Mod
Brand: Cisco
Price: 342.00 GBP
Availability: InStock

mpn: Cisco 7204VXR

product brand: Cisco

product condition: Used

excluding vat: £285.00

including vat: £342.00

information

Cisco 7204VXR Modular Router 4U Chassis + NPE-175 PA-VXC-2TE1+

Fast Ethernet Mod

Model No: Cisco 7204VXR

In Full Working Order

Tested

Supplied With Rack Mount Ears

Included

1 x Cisco 7204VXR Modular Router 4U Chassis + NPE-175 PA-VXC-2TE1+ Fast Ethernet Mod
- 2 x Enhanced Digital Voice Port Adapter - PA-VXC-2TE1+
- 1 x Cisco PA-E3 2-Port Serial Port Adapter Module - E3 Serial / 47-5456-01
- 1 x Cisco Fast Ethernet Module - 73-1688-03
- 1 x Fast Ethernet Input / Output Controller - 800-03347-06
- 1 x Network Processing Engine-175 - 73-3453-04
- 2 x 280W PSU - 34-0687-01

Overview

With processing speeds up to 2 million packets per second, port- and service adapters ranging from NxDS0 to Gigabit Ethernet, and OC-3 as well as an unparalleled number of high-touch IP services, the Cisco 7200 VXR series is the ideal Services Aggregation WAN/MAN edge device for enterprises and service providers deploying any of the following solutions:

WAN edge-Award-winning quality-of-service (QoS) feature performance
Broadband aggregation-Up to 16,000 Point-to-Point Protocol (PPP) sessions per chassis
Multiprotocol Label Switching provider edge (MPLS PE)-Number one choice for provider edge deployment today
Voice/video/data integration-Time-division multiplexer (TDM)-enabled VXR chassis and voice port adapters
IP-to-IP Gateway Support-Direct IP-interconnections
IP Security virtual private networking (IPSec VPN)-Scalable to 5,000 tunnels per chassis
High-End Customer Premises Equipment (CPE)-For managed WAN services saving equipment, transport and administrative cost

The Cisco 7200 VXR addresses these solution requirements by integrating functions previously performed by separate devices into a single platform. Through this integration, the Cisco 7200 VXR provides a single, cost-effective platform that supports:

High-density LAN and WAN interfaces
Broadband subscriber services aggregation, including PPP, RFC 1483 termination, and Layer 2 Tunneling Protocol (L2TP) tunneling
Digital T1/E1 TDM trunk termination for voice, video, and data
High-density multichannel T3/E3 and T1/E1 with integrated channel service unit/data service unit (CSU/DSU)
ATM and Packet over SONET (POS) connectivity
ATM IMA (Inverse Multiplexing over ATM) for voice, video, and data
Light-density Layer 2 Ethernet switching

Specification

Product Number CISCO7204VXR
Description Cisco 7204 VXR, 4-slot chassis, 1 AC supply with IP software
Configurable Slots without Port Adapter Jacket Card 4
Configurable Slots with Port Adapter Jacket Card 5
Ethernet (10BASE-T) Ports 32
Ethernet (10BASE-FL) Ports 20
Fast Ethernet (TX) Ports 4
Fast Ethernet (FX) Ports 4
EtherSwitch Port Adapters 2
100VG-AnyLAN Ports 4
FDDI (FDX, HDX) Ports 0
ATM Ports (T3, OC-3) 4, 4
Packet over SONET 4
Token Ring (FDX, HDX) Ports 16
Synchronous Serial Ports 32
ISDN BRI Ports (S/T) 16, 32
ISDN PRI, Multichannel T1/E1 Ports 32
Multichannel T3 Ports Up to 4
HSSI Ports Up to 8
Packet over T3/E3 Ports (Integrated DSU) Up to 10
VPN Acceleration Module 1
Chassis/Rack
- 16 with side-to-side air flow
- 9 with RDS mounting system for front-to-back airflow
I/O Card Slots 1
Port Adapter Slots 4
Midplane
2 independent 32-bit, 50-MHz PCI buses with an aggregate bandwidth
of 1.2 Gbps when used with NPE-400. 3 independent 32-bit, 50-MHz
PCI buses with an aggregate bandwidth of 1.8 Gbps when used with
NPE-G1 or NPE-G2
Online Insertion and Removal (OIR) Yes
Field-Replaceable Components Processor, memory, power supply, I/O card, and port adapters
Additional Standard Components AC power supply, AC power cord
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 149°F (-20 to 65°C)
Operating Humidity 10 to 90% (noncondensing)
Processor Memory
- 256 MB (default for NPE-400 and NPE-G1)
- 512 MB (max for NPE-400)
- 1 GB (max for NPE-G1 and default for NPE-G2)
- 2 GB option for NPE-G2
PCMCIA Flash Disk Memory Card (optional, up to 2 slots
available)
- 48 MB, expandable to 128 MB for I/O controllers
- 64 MB, expandable to 256 MB for NPE-G1 and NPE-G2
Compact Flash Disk Memory Card (optional for NPE-G1 and
NPE-G2)
- 64 MB, expandable to 256 MB for NPE-G1
- 256 MB for NPE-G2
Height 5.25 in. (13.34 cm)
Width 16.8 in. (42.67 cm)
Depth 17 in. (43.18 cm)
Weight Chassis is fully configured with a network processing engine, I/O
controller, four port adapters, two power supplies, and a fan tray: ~50
lb (22.7 kg)

Bootlog

Router#show veraion

Cisco Internetwork OperatingSystem Software

IOS (tm) 7200 Software (C7200-IK8S-M),Version 12.2(3d), RELEASE SOFTWARE (fc1)

Compiled Sun 10-Feb-02 09:20 bycmong

Image text-base: 0x600089C0,data-base: 0x6148E000

ROM: System Bootstrap, Version12.0(19991120:010612) [nlaw-conn_4xe_ECC 112], DEVELOPMENT SOFTWARE

BOOTLDR: 7200 Software(C7200-BOOT-M), Version 12.0(19)S1, EARLY DEPLOYMENT RELEASE SOFTWARE (fc1)

Router uptime is 11 minutes

System returned to ROM by power-on

System image file is"slot0:c7200-ik8s-mz.122-3d.bin"

cisco 7204VXR (NPE175) processor(revision A) with 114688K/16384K bytes of memory.

Processor board ID 21276587

R527x CPU at 200Mhz,Implementation 40, Rev 1.0, 2048KB L2 Cache

4 slot VXR midplane, Version 2.1

Last reset from power-on

Bridging software.

X.25 software, Version 3.0.0.

2 FastEthernet/IEEE 802.3interface(s)

1 Serial network interface(s)

2 Voice resource(s)

125K bytes of non-volatileconfiguration memory.

20480K bytes of Flash PCMCIA cardat slot 0 (Sector size 128K).

4096K bytes of Flash internal SIMM(Sector size 256K).

Configuration register is 0x102

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK

TH 259967
