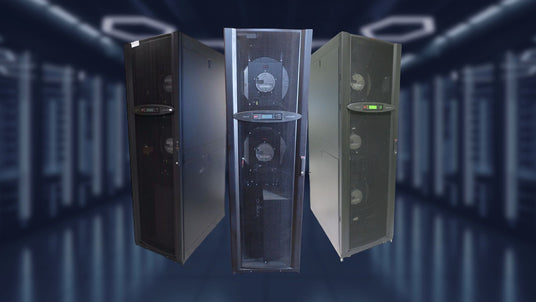

APC Server Racks

APC server racks host your IT enterprise business servers in one organised location. They help keep its enclosed servers cool, all whilst ensuring your team can access them easily for maintenance. When combined with our configure-to-order service, you can receive the ideal APC server rack and built to suit your needs.

At ITinStock, we provide an assortment of high-quality, refurbished APC server racks and enclosures. Browse from our full selection below, suited to your business needs.

View as

The Benefits of APC Server Racks

APC server racks and server enclosures are cooled efficiently by creating a controlled airflow through your equipment. This works by using perforated doors and blanking panels that prevent hot and cold air from mixing.

Not only that, but APC rack enclosures and rack cabinets keep cables tidy. Using a structured design both horizontally and vertically, these server racks keep cables away from fans to maintain unobstructed airflow, reducing hotspots and minimising downtime.

That also means these APC rack servers are space-efficient, as they house servers within their rack cabinets vertically, typically measured in rack units (1U, 2U, 4U). This makes them ideal for data centres, enterprise applications, virtualisation platforms, and business-critical workloads.

Why Choose Refurbished APC Server Racks from ITinStock?

At ITinStock, we are happy to discuss any bespoke configurations for your APC server racks, including areas for processors, memory expansion and more. Each server rack then undergoes rigorous testing to make sure they sufficiently hold and maintain your servers. We can then issue fast delivery to the UK and worldwide for server racks in stock. Our expert support team are happy to help with any requirements and post-service support you need.

Complete Your Setup

Maximise your rackmount server investment with these complementary products:

  • Solid State Drives Store your data on SAS, SATA and NVMe SSDs available in a range of storage sizes, certified for reliability in demanding storage environments.
  • UPS Systems Protect your server investment with uninterruptible power supplies ensuring clean power and graceful shutdown during electrical disruptions.
  • Networking Equipment Ethernet switches, fibre channel switches, and network connectivity to build complete infrastructure supporting your server deployment.

Frequently Asked Questions

What is a server rack and server enclosures?
A rackmount server is a specialised computer designed to be mounted horizontally in a standard 19-inch equipment rack. These servers are optimised for data centre deployment, featuring compact form factors measured in rack units, redundant components for reliability, and shared rack infrastructure for power and cooling. Unlike tower servers, rackmount servers stack efficiently in racks, maximising space utilisation in data centres and server rooms.

What is the difference between the APC NetShelter SX and NetShelter SV?

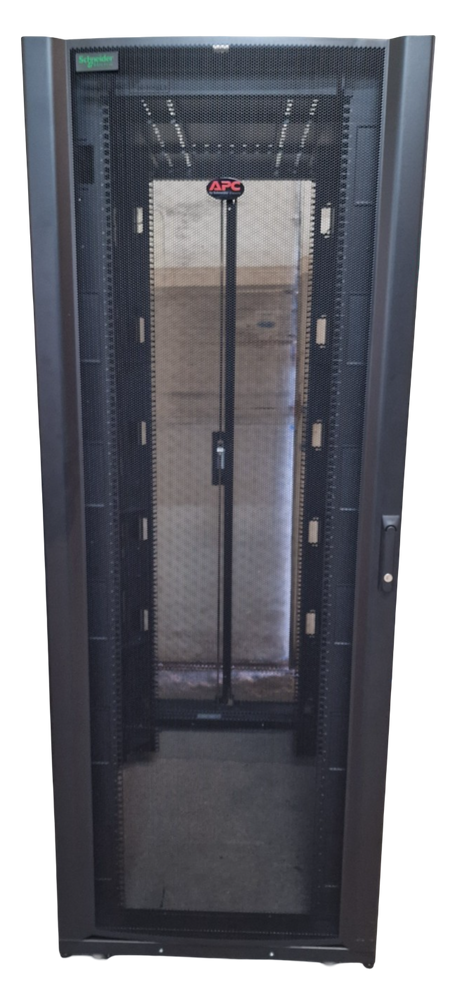

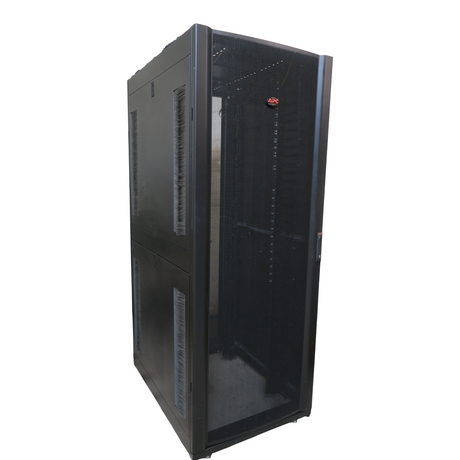

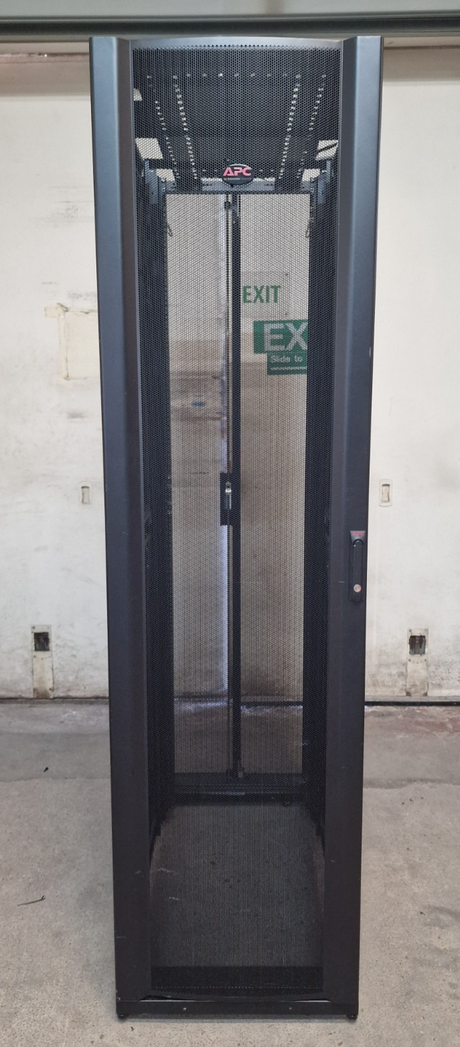

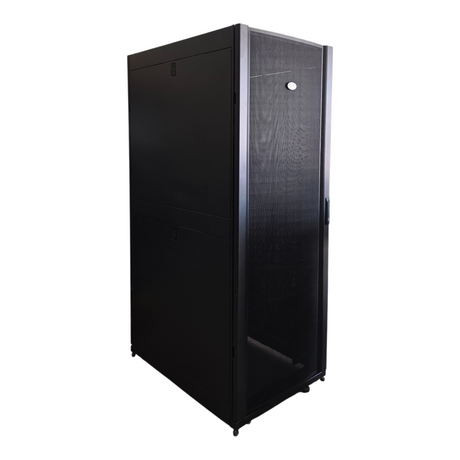

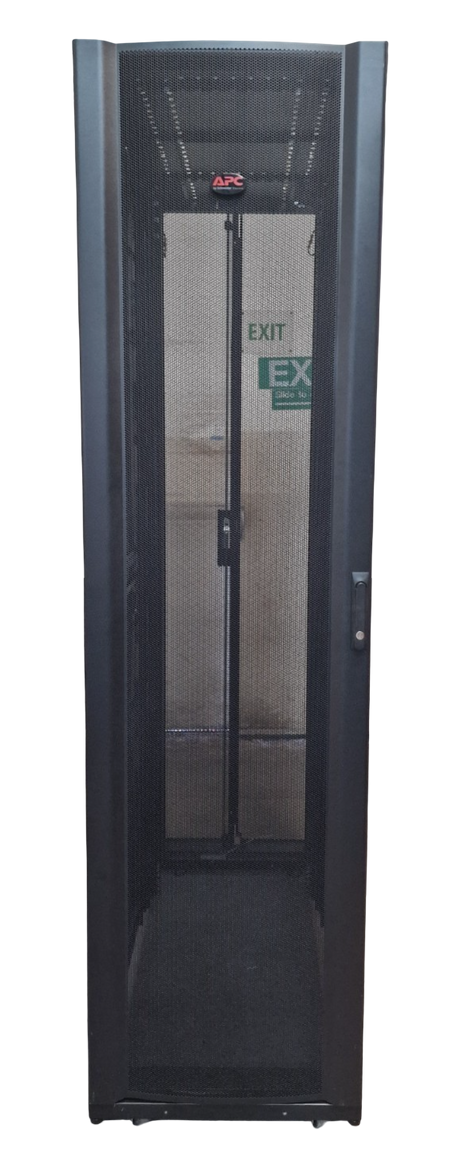

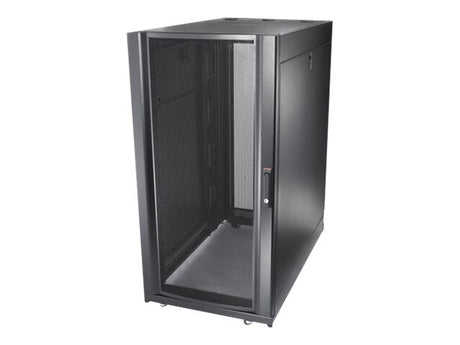

The NetShelter SX and SV are APC's two main enclosed rack lines, and the choice between them typically comes down to density requirements and budget. The SX is APC's premium, high-performance enclosure, as it features heavier-gauge steel construction, higher static load ratings (up to 3,000 lb), 80% perforated doors for superior airflow, and a wider ecosystem of compatible APC accessories including containment and environmental monitoring. It is the preferred choice for high-density data centres where thermal management and build quality are priorities. The SV is a more cost-effective alternative that shares the same 19-inch EIA-310 standard mounting rail system and broad APC accessory compatibility but uses lighter-gauge materials and is better suited to low-to-medium density server deployments, networking applications, and mixed IT environments. Both lines are available in 42U and 48U heights and a range of depths. If you are unsure which suits your setup, our team can advise based on your equipment list and load requirements.

What rack depth do I need for my APC NetShelter enclosure?

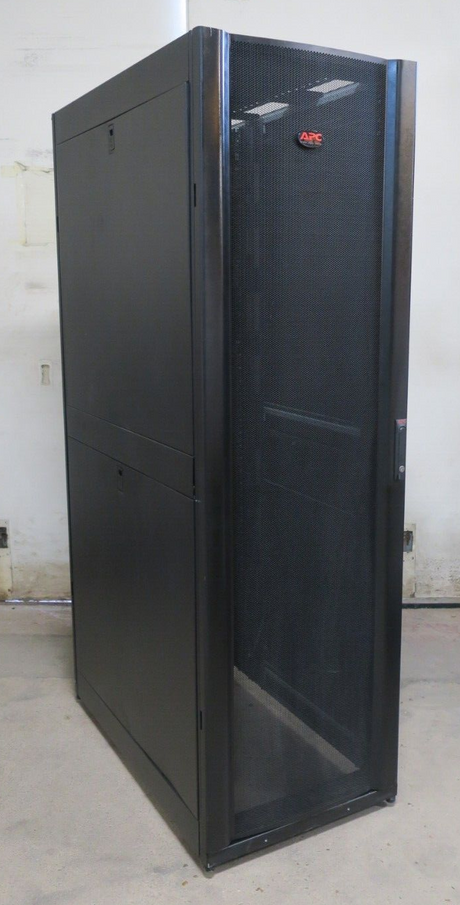

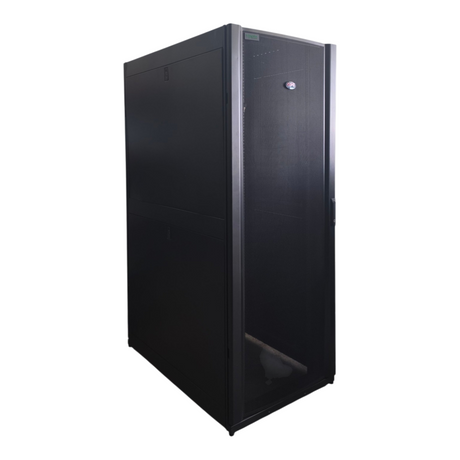

Rack depth is one of the most important and overlooked specifications when choosing an APC enclosure. APC NetShelter racks are available in three primary depths: 900mm, 1,070mm and 1,200mm. Modern 1U and 2U rackmount servers from Dell, HP and others typically have cable connectors and power supplies at the rear, meaning a usable internal mounting depth of around 800–900mm is needed. The 1,070mm depth (as found on the standard AR3100 NetShelter SX 42U) accommodates virtually all standard 1U–4U servers and leaves adequate clearance for rear cable management. The deeper 1,200mm variants are better suited to high-density blade enclosures and converged infrastructure chassis with extended rear connectivity. The 900mm depth is appropriate for networking equipment, patch panels and shallower appliances. Always check the maximum mounting depth specification of the enclosure against the depth of your deepest piece of equipment before purchasing.

What's the difference between 1U, 2U, and 4U Rack Servers?
A 1U server size is equal to 1.75 inches. 1U servers offer maximum rack density but limited internal expansion, ideal for web hosting and high-density computing. 2U servers provide additional space for more drives, better cooling, and enhanced expansion capabilities, suitable for general enterprise applications and virtualisation. 4U servers offer extensive internal expansion with room for large drive arrays and specialised hardware, perfect for storage servers and high-capacity systems. Choose based on your density requirements, internal expansion needs, and available rack space.

Are APC NetShelter racks compatible with servers from any brand?
Yes. APC NetShelter enclosures are built to the EIA-310 standard, which is the universal 19-inch rack mounting specification used by virtually all enterprise server and networking manufacturers including Dell, HP/HPE, Cisco, Lenovo, Supermicro and Fujitsu. This means any standard rackmount server or networking device can be mounted in an APC NetShelter enclosure, regardless of brand. The adjustable mounting rails in both the SX and SV lines can be repositioned in 10mm increments to accommodate equipment of varying depths. Square-hole mounting positions are standard on APC racks; if your equipment uses threaded (10-32) rails, cage nut kits are available as an accessory. If you are purchasing a refurbished APC rack to house specific equipment you already own, our team can confirm compatibility before you order.

Find Your Ideal APC Server Racks Today

Browse our complete range of refurbished server racks, server enclosures and server cabinets or contact our team for expert advice on selecting the right equipment for your needs from ITinStock.
