- 1 x Dell PowerConnect M8024-k + 4x ext SFP+ 16x Int Ports 1/10GbE Blade Switch 7WKF9

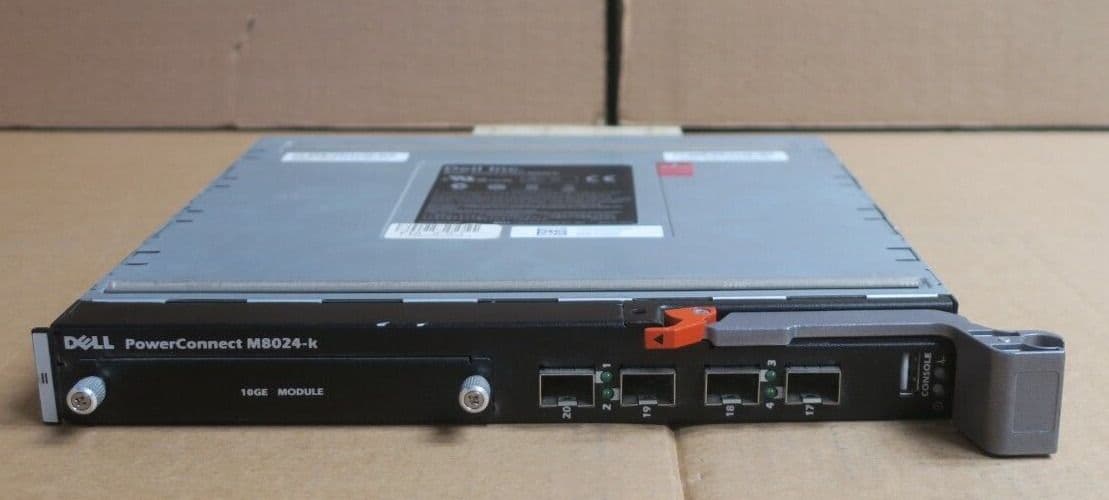

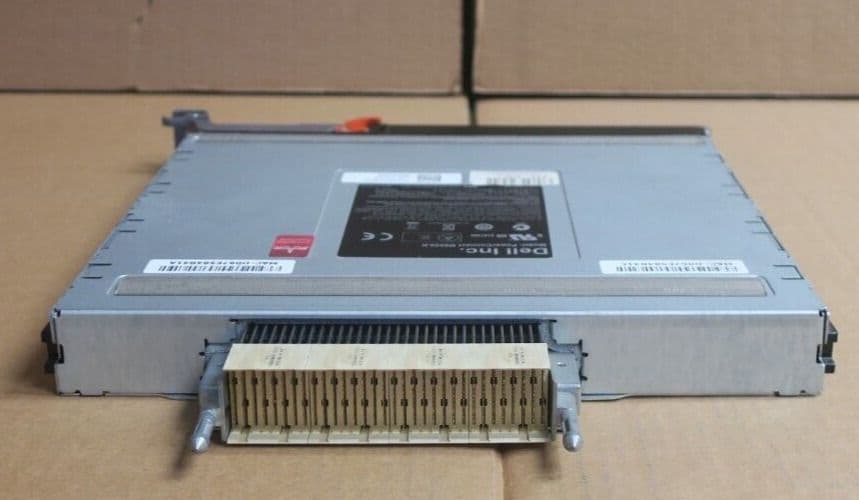

- Dell PowerConnect M8024-k 10 Gigabit Ethernet Switch
- Up to 24 x 10 Gigabit Ethernet Ports (16 x Internal + 4 x External SFP+)
- Auto-negotiation for speed, duplex mode and flow control
- Auto MDI/MDIX
- Port mirroring
- Flow-based port mirroring
- Broadcast storm control

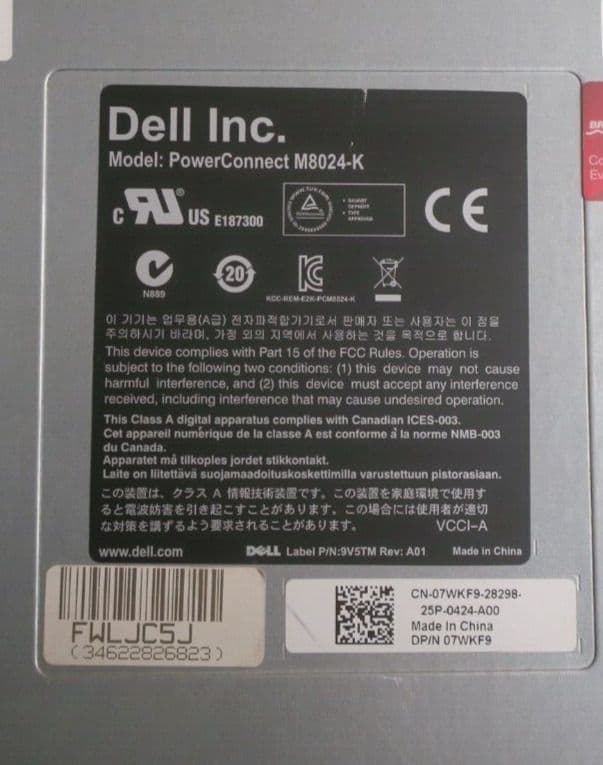

- Dell Part Number: 7WKF9
- 4-port SFP+ 10 Gigabit Ethernet module
- 3-port CX-4 10 Gigabit Ethernet copper module (supports 10 Gigabit connections only)
- 2-port 10 Gigabit Ethernet RJ45 copper module (supports 1/10 Gigabit connections)
console#show version
SystemDescription................ Dell Ethernet Switch
System UpTime.................... 0 days, 00h:00m:38s
SystemContact....................
SystemName.......................
SystemLocation...................
Burned In MACAddress............. D067.E584.B41A
System ObjectID.................. 1.3.6.1.4.1.674.10895.3041
System ModelID................... PCM8024-k
MachineType...................... PowerConnect M8024-k
unit image1 image2 current-active next-active
---- ---------------------- -------------- --------------
1 5.1.3.7 5.1.10.1 image2 image2
console#showsystem
System Description:Dell Ethernet Switch
System Up Time: 0days, 00h:00m:44s
System Contact:
System Name:
System Location:
Burned In MACAddress: D067.E584.B41A
System Object ID:1.3.6.1.4.1.674.10895.3041
System Model ID:PCM8024-k
Machine Type:PowerConnect M8024-k
TemperatureSensors:
Unit Description Temperature Status
(Celsius)
---- ----------- ----------- ------
1 System 23 Good
Power Supplies:
Unit Description Status
---- ----------- -----------
NA NA NA
--More-- or(q)uit
console#showswitch
Management Standby Preconfig Plugged-in Switch Code
SW Status Status Model ID Model ID Status Version
--- ------------------- ------------- ------------- ------------- -----------
1 Mgmt Sw PCM8024-k PCM8024-k OK 5.1.10.1
-
MPN:7WKF9
