Allied Telesyn AT-MCR12 12 x AT-MC102XL 100TX to 100FX 100Mb 2km Media Converter
Chassis P/N: AT-MCR12
Module P/N: AT-MC102XL
In Good Condition
In Full Working Order
Tested
2 Years Warranty Included
Included

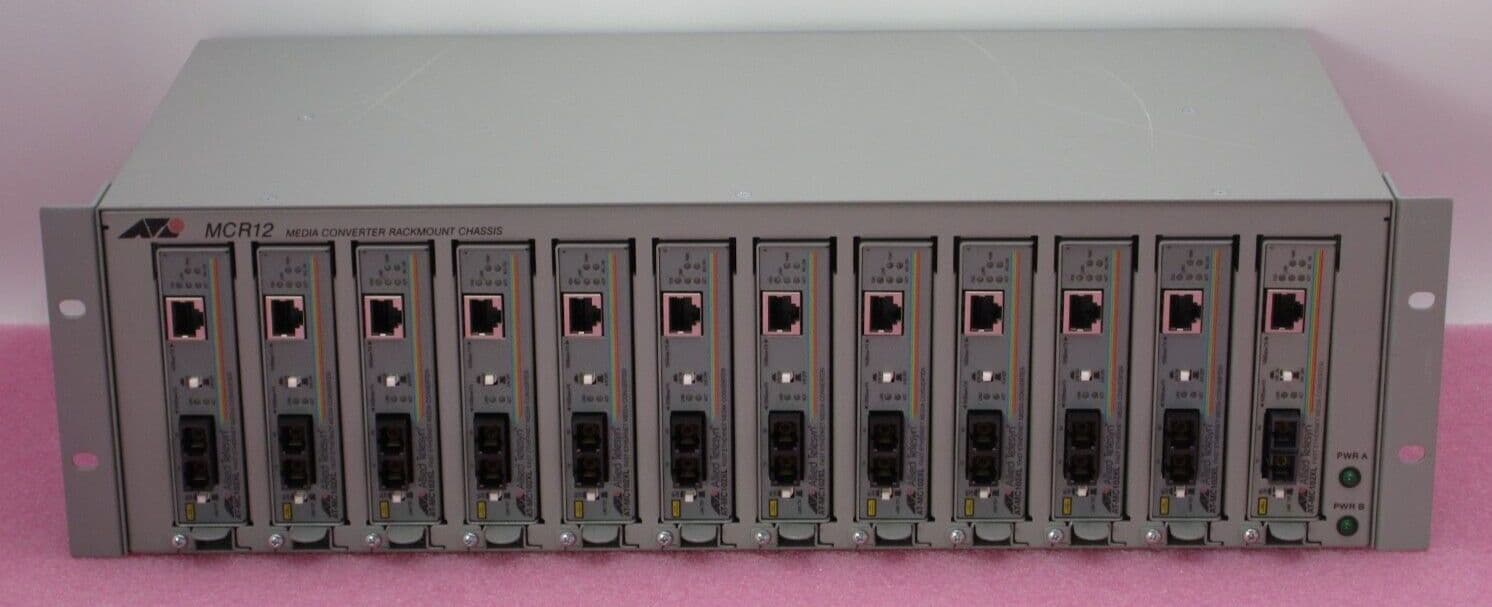

- 1 x Allied Telesyn AT-MCR12 3U 12-Slot Power Distribution Rack Chassis
- 2 x AT-PWR4 Power Supplies

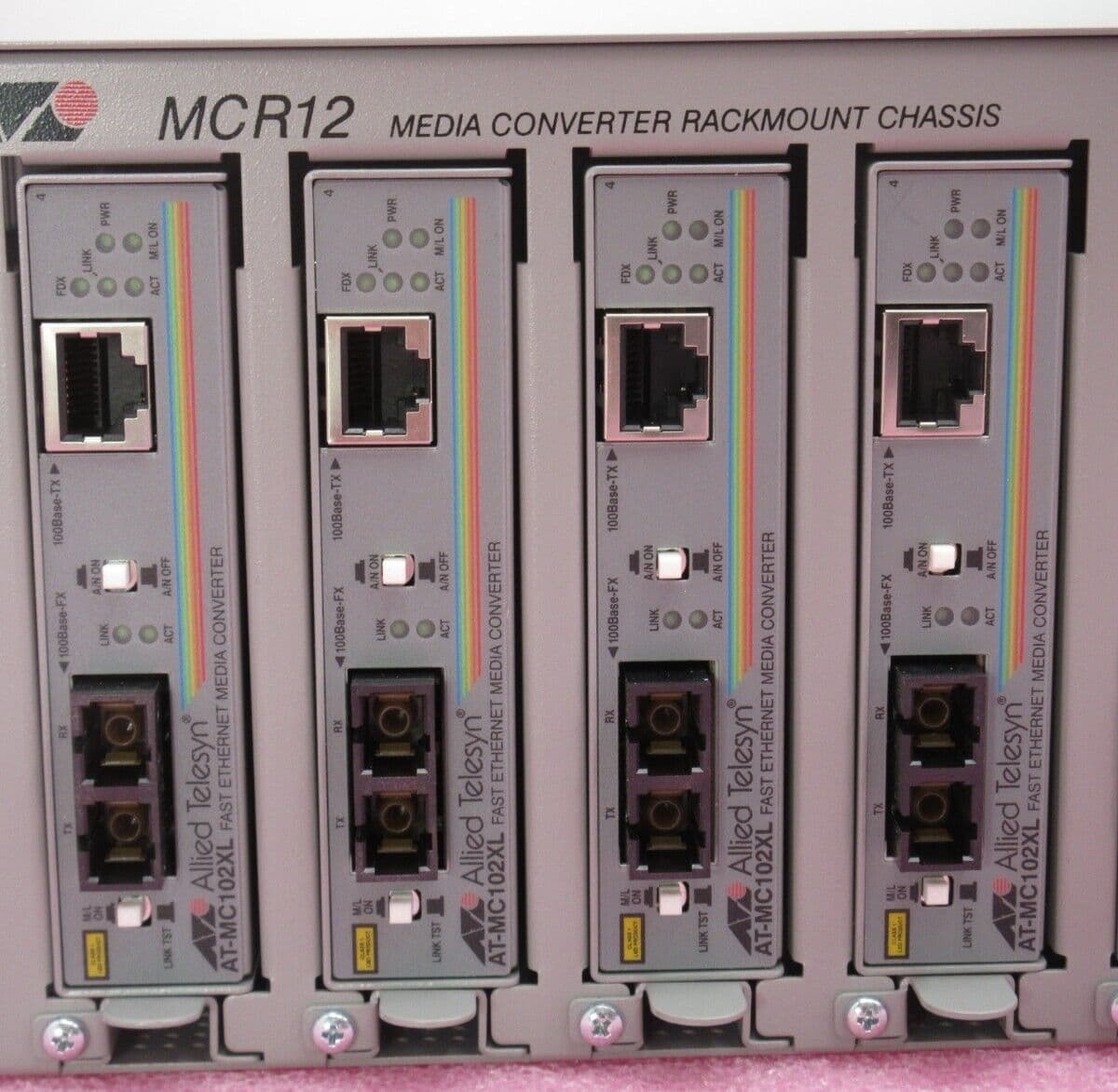

- 12 x AT-MC102XL Fast Ethernet 100TX to Fibre 100FX 100Mb 2km Media Converter
AT-MCR12 Overview
Power distribution chassis for up to 12 independently-operating, unmanaged, standalone media, or bridging media converters.
Media Converter Flexibility
- Supporting up to 12 Allied Telesis media converters, the AT-MCR12 enables network managers to use the MC1x family (10Mbps) or MC10x family (100Mbps) media converters in the same chassis.
Power Options
- A preinstalled AT-PWR4 power supply powers the AT-MCR12, eliminating the need for multiple power connections. Allied Telesis also offers an optional hot swappable power supply to eliminate downtime on the network.The unit saves space in the wiring closet and minimizes the number of power connections required. Single-unit media converters can be removed from the AT-MCR12 and deployed individually in order to accommodate network modifications.
- By incorporating a backplane with 12 different power entry modules integrated with the printed circuit board, power is equally distributed among all media converters whether using one or two power supplies
Rack-mount Design
- Designed with a simple mounting system, each individual media converter is plugged into the back plane and secured with the included mounting rail.

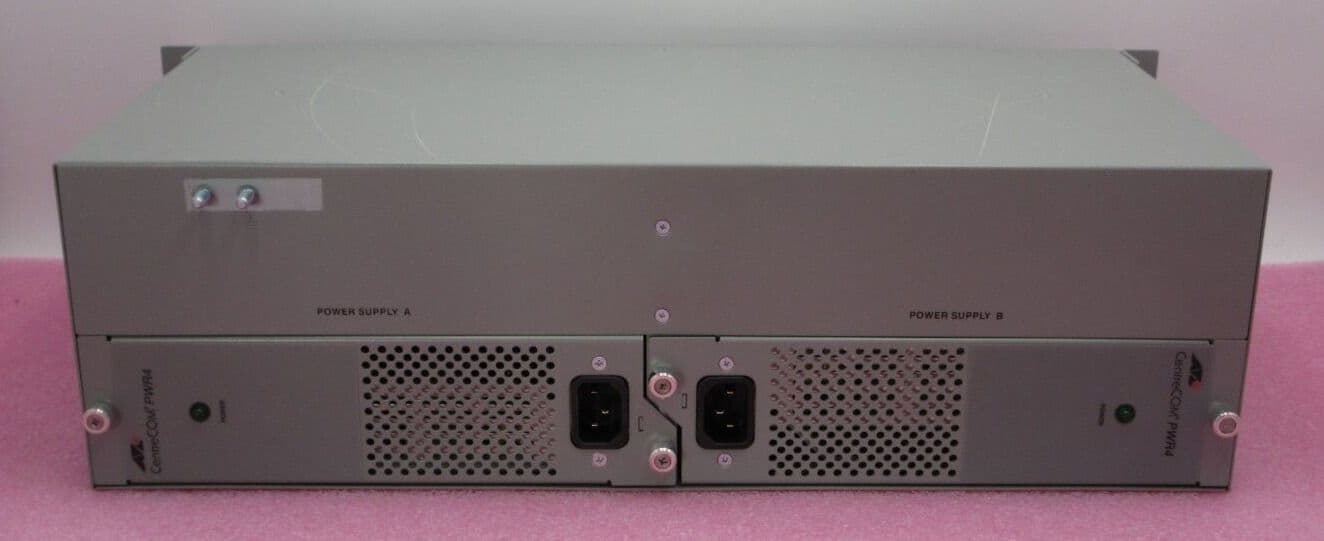

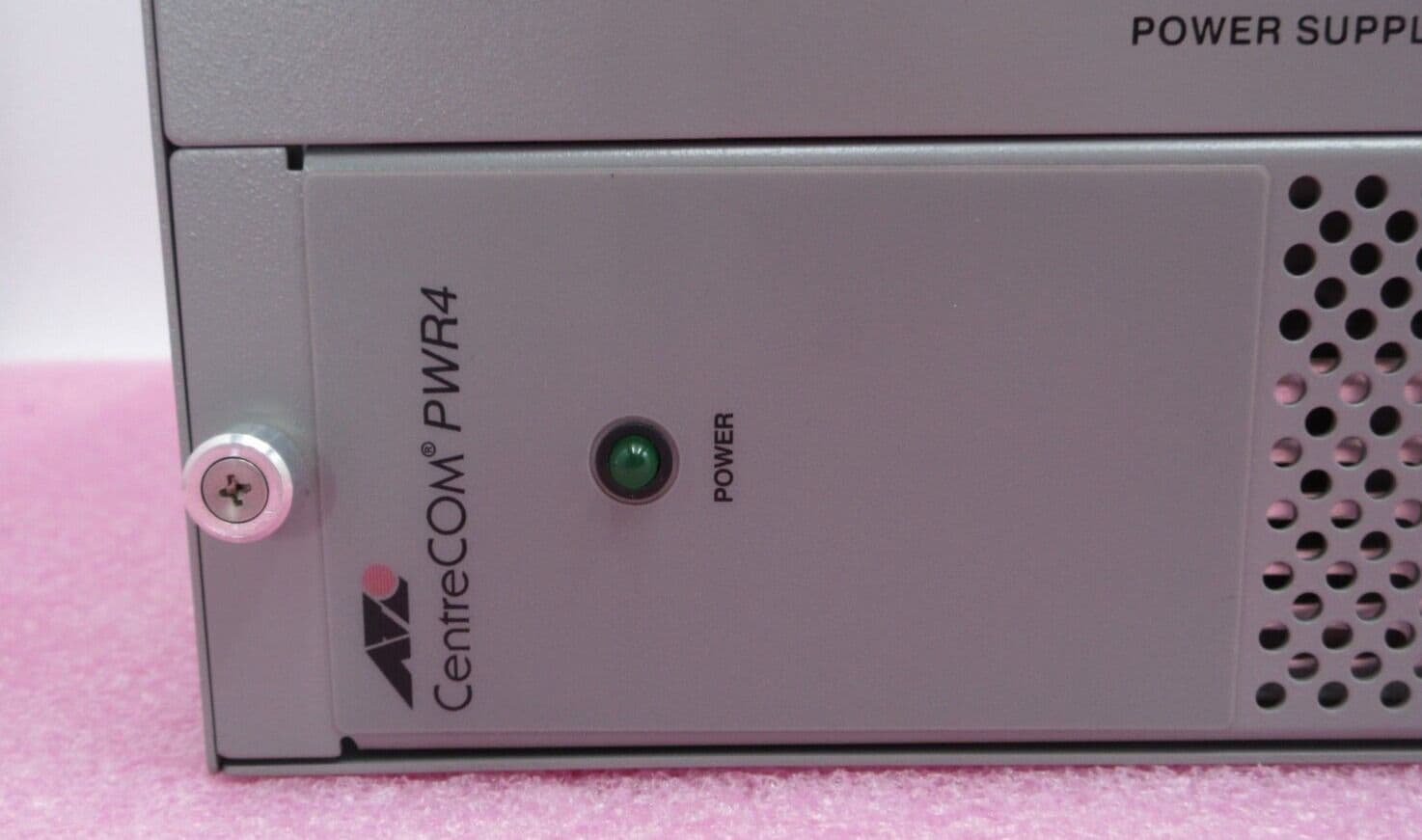

- The rack-mount chassis includes two status LEDs on the front panel indicating power status.The top LED is titled PWR A and the bottom PWR B.The AT-PWR4 power supply in the back panel has one LED for power.When a redundant power supply is installed, a second LED is visible.
- The AT-MCR12 is configured with one of the following power cords to meet regional requirements for North America, Continental Europe, or the United Kingdom.
AT-MCR12 Key Features
- Modular use with all standalone media and bridging media converters
- Simple installation
- 12 slot unit
- Redundant hot swappable power supplies
AT-MC102XL Overview
Extend a UTP network with fibre using this media converter. Media converters can be used to extend a network over long distances using different cable types. This media converter will enable a fibre link of up to 2km to be joined to the network.
This device includes the Allied Telesis MissingLink feature which enables it to pass on the link status of its connections and thereby allows the triggering corrective action, such SNMP traps, when a problem on a link is detected. Link testing is also supported with the Link Test button.
AT-MC102XL Key features:
- Ports: port 1: 100TX, port 2: 100FX (ST), fibre type: MMF
- IEEE standard: 100 FX
- Tx wavelength: 1310nm
- Rx wavelength: 1310nm
- Max fibre distance: 2 km
- Max frame size: 9KB
- Diagnostic LEDs: 7
- PSU type: external
- Dimensions: 105 x 95 x 25 mm
- Weight: 0.3 kg
LJM 316565
specifications
-
MPN:AT-MCR12, AT-MC102XL, AT-PWR4
