Dell PowerSwitch S5248F-ON 48x 25G SFP28 6x100G (2xQSFP28-DD 4x QSFP28) OS10 B2F

Condition : Refurbished – tested and working grade A refurbished part

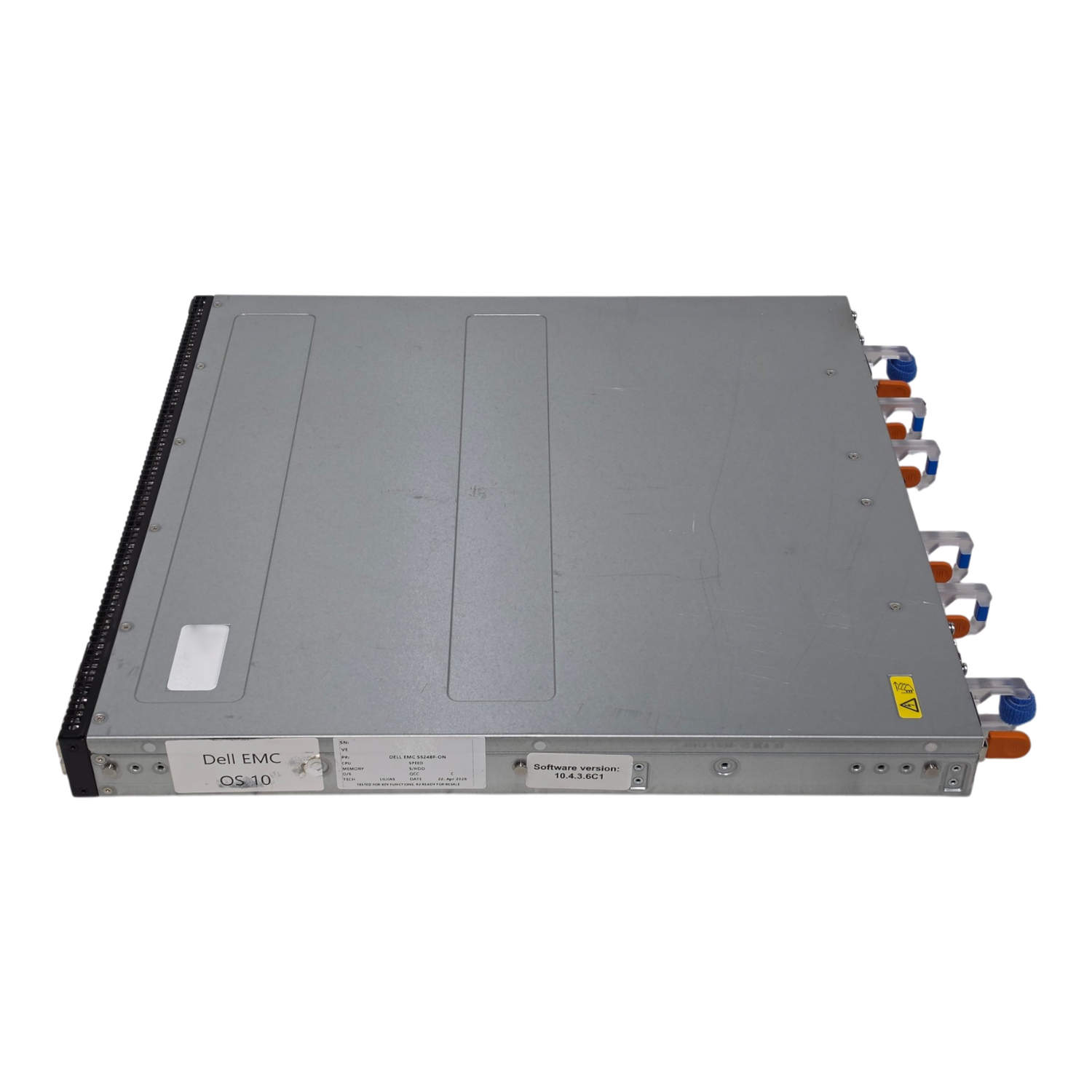

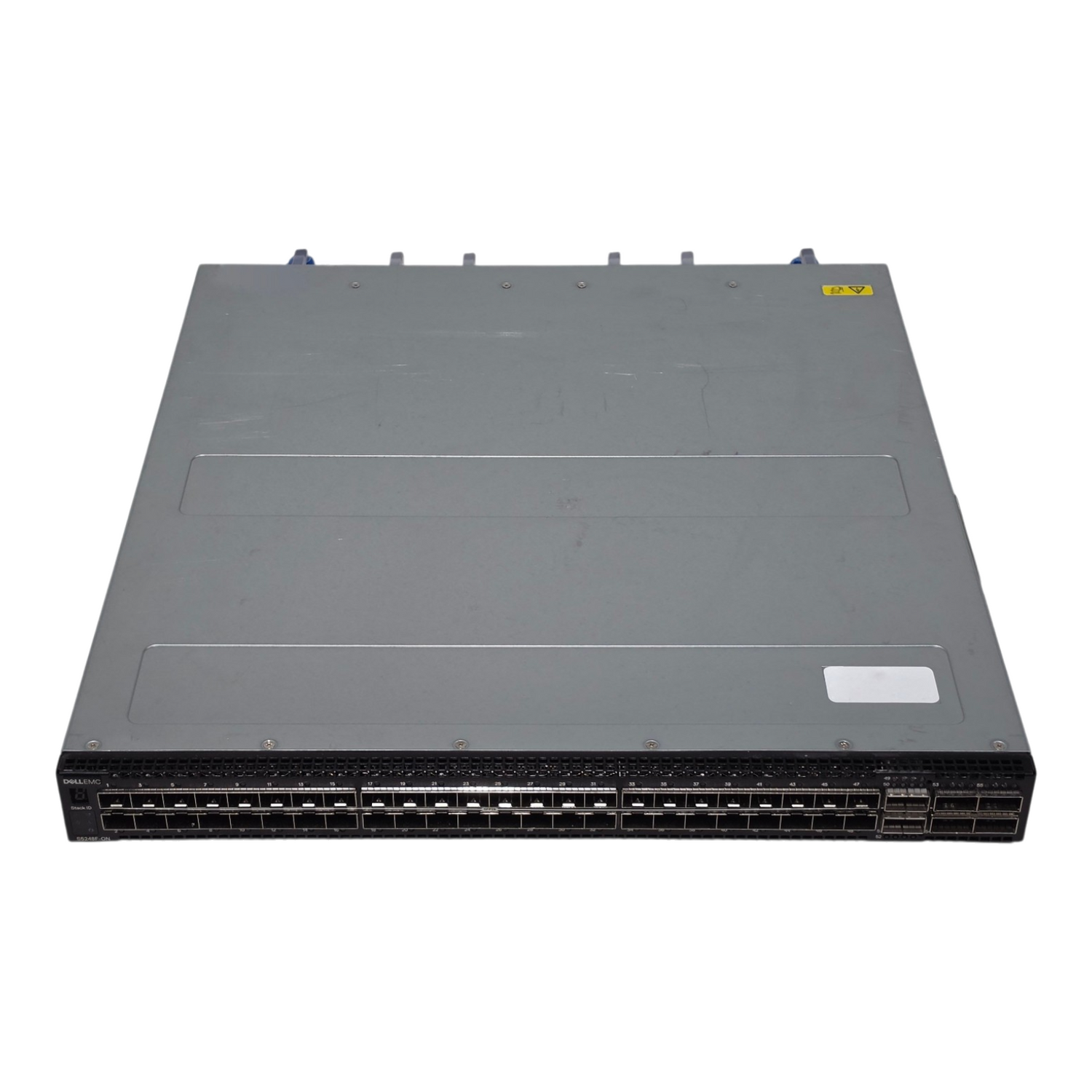

Dell PowerSwitch S5248F-ON Network Switch with OS10

Specifications:
- Switch Fabric Capacity: 4.0 Tbps Full-Duplex
- MAC Addresses Supported: Up to 160,000
- ARP Table Size: Up to 128,000
- Routing Table Size: Up to 128,000 IPv4 or 64,000 IPv6 entries
- Packet Buffer Memory: 32 MB Dynamic Shared Buffer

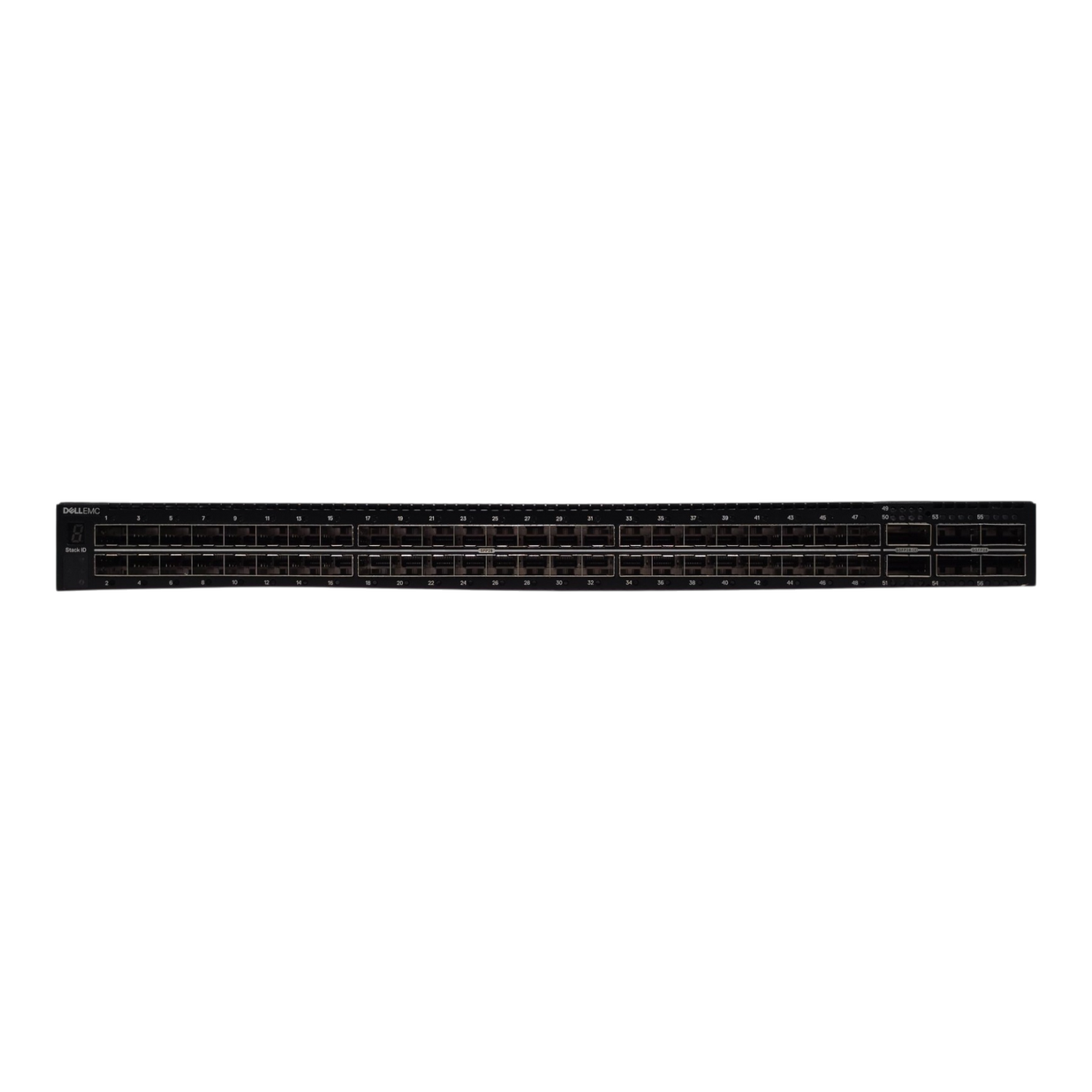

Ports:
- 48 x 1GbE/10GbE/25GbE SFP28 downlink ports
- 4 x 40GbE/100GbE QSFP28 uplink ports
- 2 x 100GbE QSFP28-DD uplink ports
- Console Ports: 1 x RJ-45, 1 x Micro-USB Type-B
- Management Port: 1 x 10/100/1000 Base-T RJ45
- Storage Port: 1 x USB Type-A

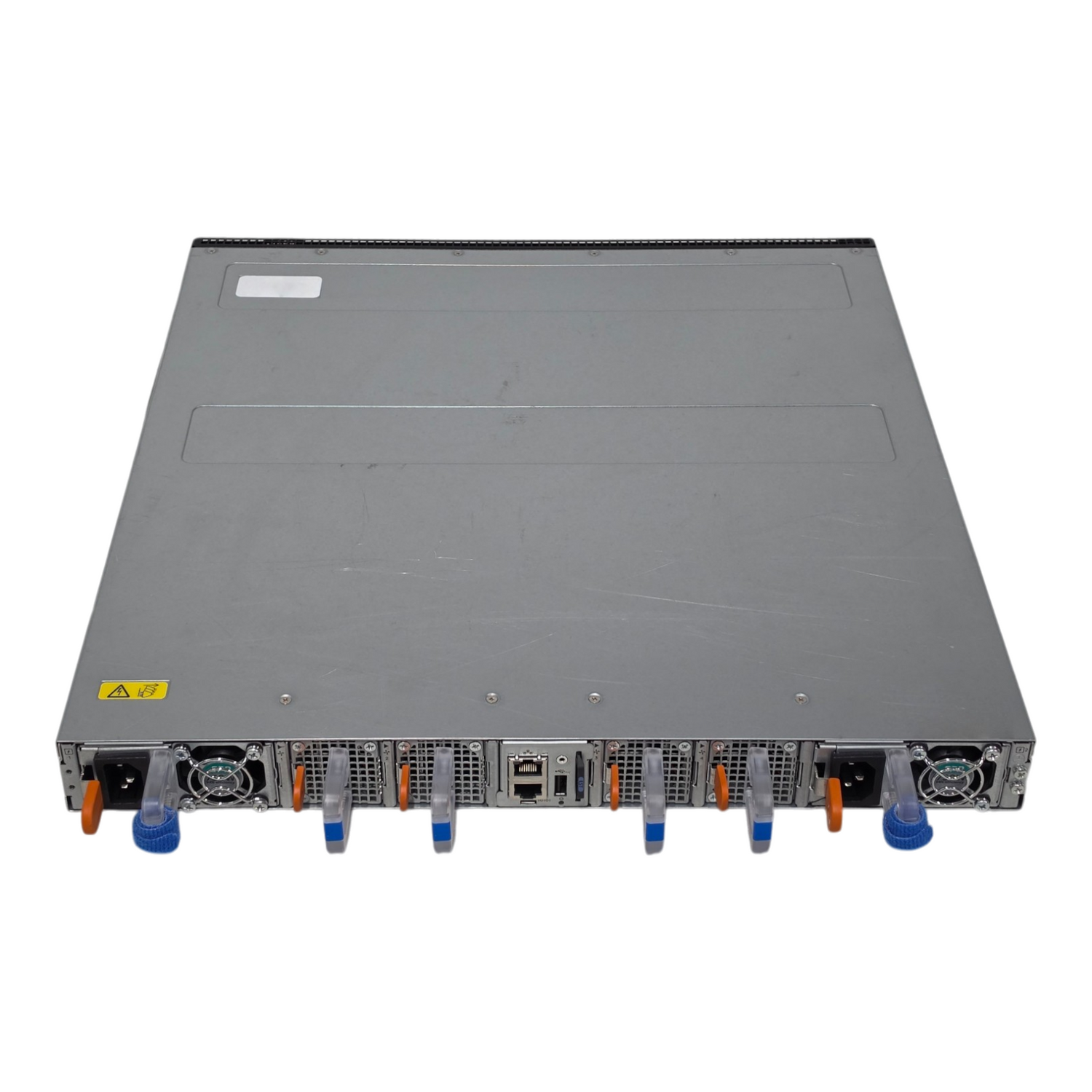

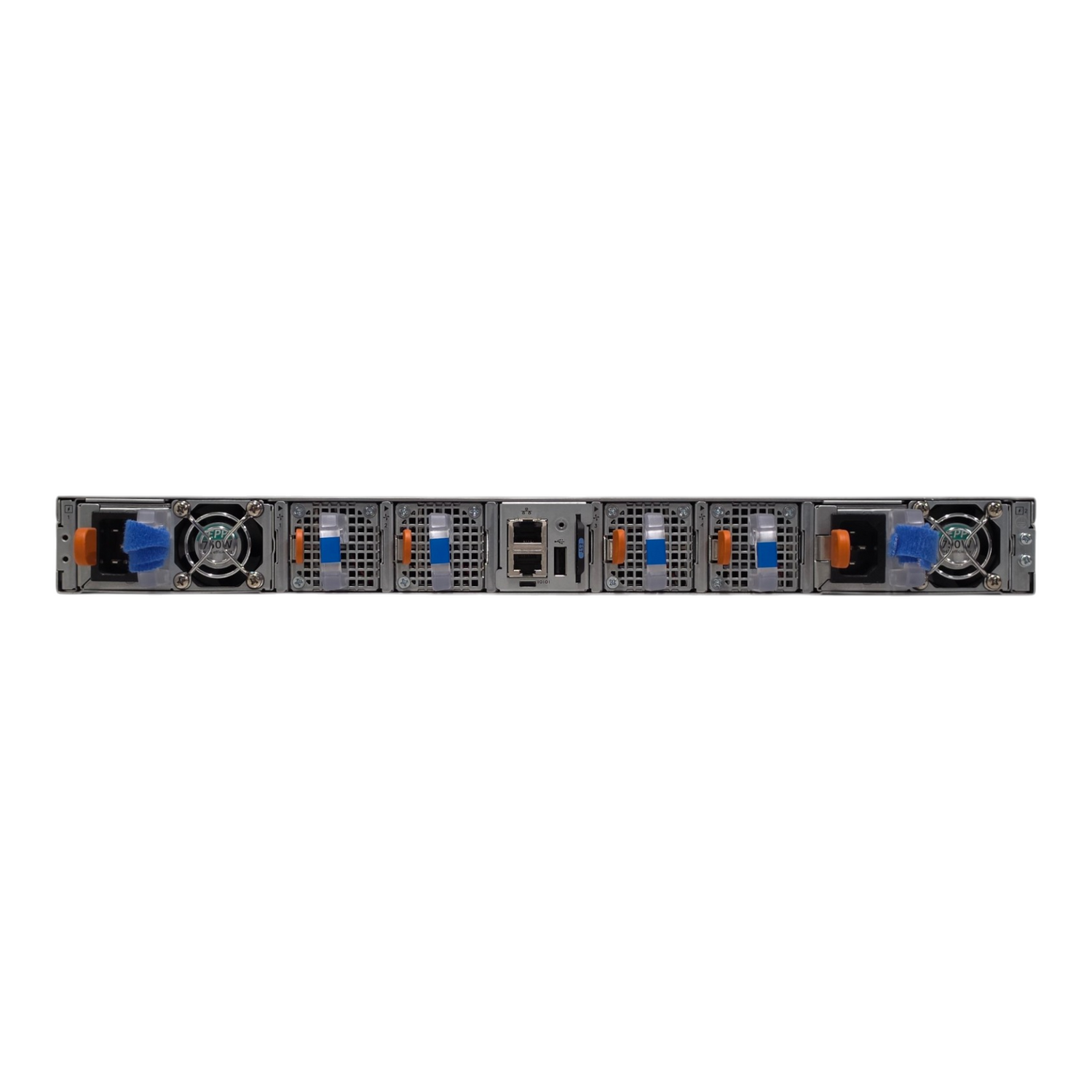

Power and Cooling:
- Dual hot-swappable redundant 750W power supplies
- Power Consumption: Typical 310W, Maximum 602W
- Four hot-swappable redundant fan modules
- Airflow Direction: Back to Front (Reverse Airflow)

Software:
- Operating System: Dell OS10 Enterprise (Version 10.5.5.5)
- License: Perpetual OS10 Enterprise License

This switch delivers high-performance networking with advanced OS10 features, suitable for enterprise data centre environments requiring scalable 25G and 100G connectivity.
