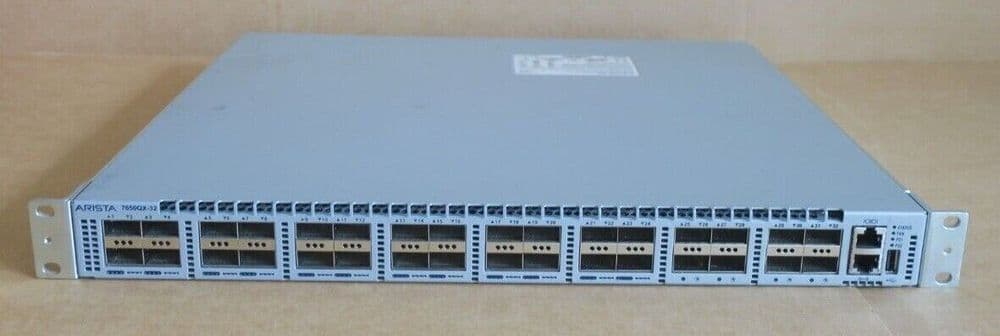

Arista 7050QX-32 DCS-7050QX-32 32x QSFP+ 40GbE Port L3 Ethernet Switch
Model: 7050QX-32
P/N: DCS-7050QX-32
In Good Condition
Unit Powers On
Unit Powers On
No Operating System / Flash File Is Installed
Boots To Aboot
Back to Front Airflow
Included:
- 1 x Arista 7050QX-32 DCS-7050QX-32 32x QSFP+ 40GbE Port L3 Ethernet Switch
- 2 x Arista 460W Power Supplies PWR-460AC-R Back to Front Airflow
- 4 x Arista Fan Modules ASY-00246-10 Back to Front Airflow
Overview:
The Arista 7050QX-32 is a member of the Arista 7050X Series and a key component of the Arista portfolio of data center switches. The Arista 7050QX Series are purpose built 10/40GbE data center switches in compact and energy efficient form factors with wire speed layer 2 and layer 3 features, combined with advanced features for software defined cloud networking.
Increased adoption of 10 Gigabit Ethernet servers coupled with applications using higher bandwidth is accelerating the need for dense 10 and 40 Gigabit Ethernet switching. The 7050QX-32 supports a flexible combination of 10G and 40G in a highly compact form factor that allows customers to design large leaf and spine networks to accommodate east-west traffic patterns found in modern data centers, high performance compute and big data environments.
Featuring 32 QSFP+ ports in a 1RU form factor the switches deliver feature rich layer 2 and layer 3 wire speed performance with an overall throughput of 2.56 Tbps. For configuration flexibility both support up to 32x 40GbE ports or 24 QSFP+ ports can be used as 4x10GbE for a 96x10GbE and 8x 40GbE system. he Arista 7050QX switches offer low latency from 550ns in cut-through mode, and a shared 12 MB packet buffer pool that is allocated dynamically to ports that are congested. With typical power consumption of less than 5 watts per 40GbE port the 7050QX Series provide industry leading power efficiency. An optional built-in SSD supports advanced logging, data captures and other services directly on the switch.
Combined with Arista EOS the 7050QX Series delivers advanced features for big data, cloud, virtualized and traditional designs.
Specifications:
- Ports: 32 x QSFP+
- Max 40GbE Ports: 32 x QSFP+
- Max 10GbE Ports: 96
- Max 1GbE Ports: -
- Throughput: 2.56 Tbps
- Packets/Second: 1440 Mpps
- Latency: 550 ns
- CPU: Dual-Core x86
- System Memory: 4 Gigabytes
- Flash Storage Memory: 2 Gigabytes
- Packet Buffer Memory: 12MB (Dynamic Buffer Allocation)
- SSD Storage (optional): 100 Gigabytes
- 10/100/1000 Mgmt Ports: 1
- RS-232 Serial Ports: 1 (RJ-45)
- USB Ports: 1
- Hot-swap Power Supplies: 2 (1+1 redundant)
- Hot-swappable Fans: 4 (N+1 redundant)
- Reversible Airflow Option: Yes
- Typical/Max Power Draw: 162 / 332W
- Size (WxHxD): 19 x 1.75 x 16" (48.3x 4.4x 40.64cm)
- Weight: 20lbs (9.1kg)
Boot Log:
Arista NetworksInc...
Aboot2.1.0-3037058
Timed out waitingfor /mnt/flash
Mount USB to/mnt/flash ...
Timed out waitingfor /mnt/flash
Press Control-Cnow to enter Aboot shell
No SWI specifiedin /mnt/flash/boot-config
Welcome to Aboot.
Aboot#
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£350 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
CS 281308
