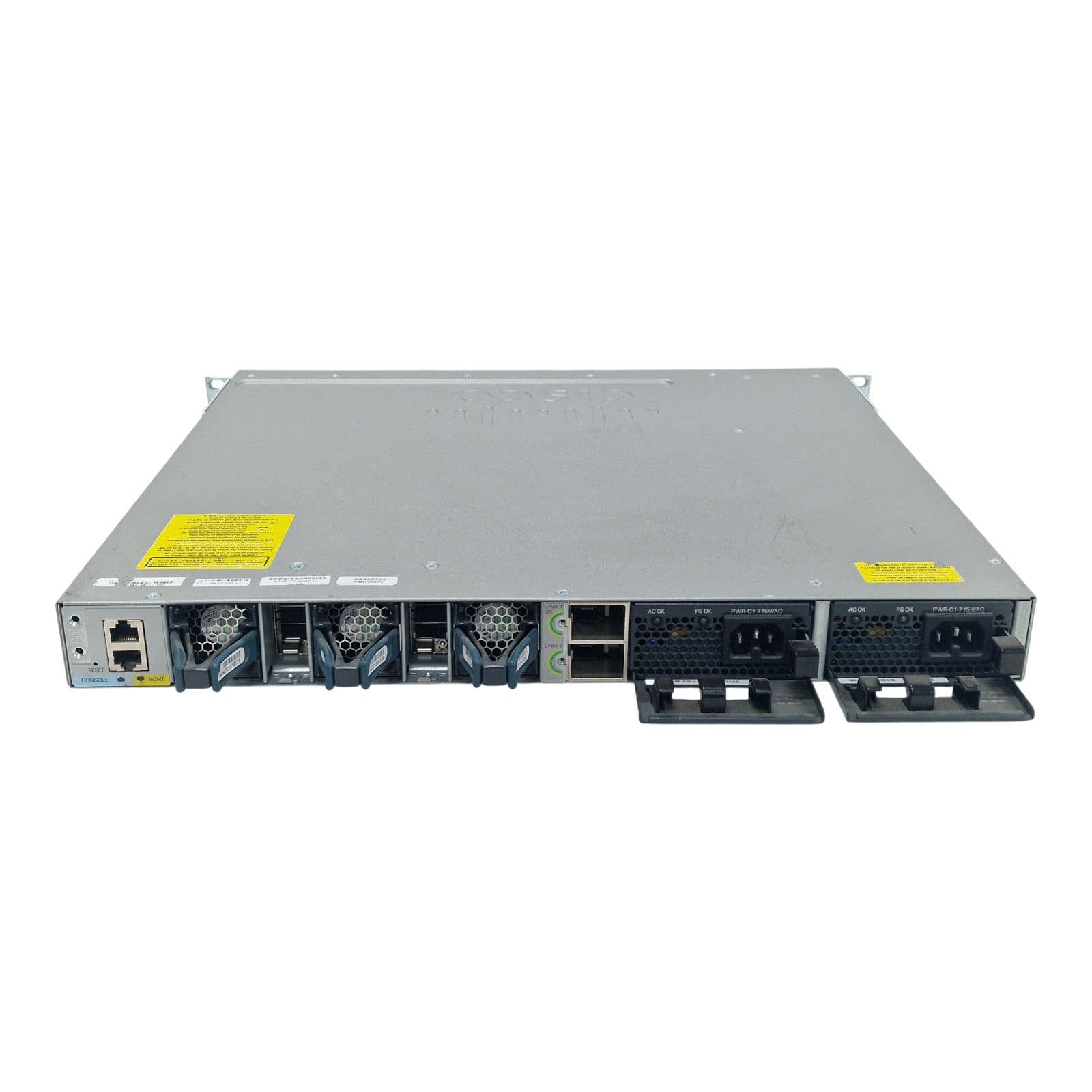

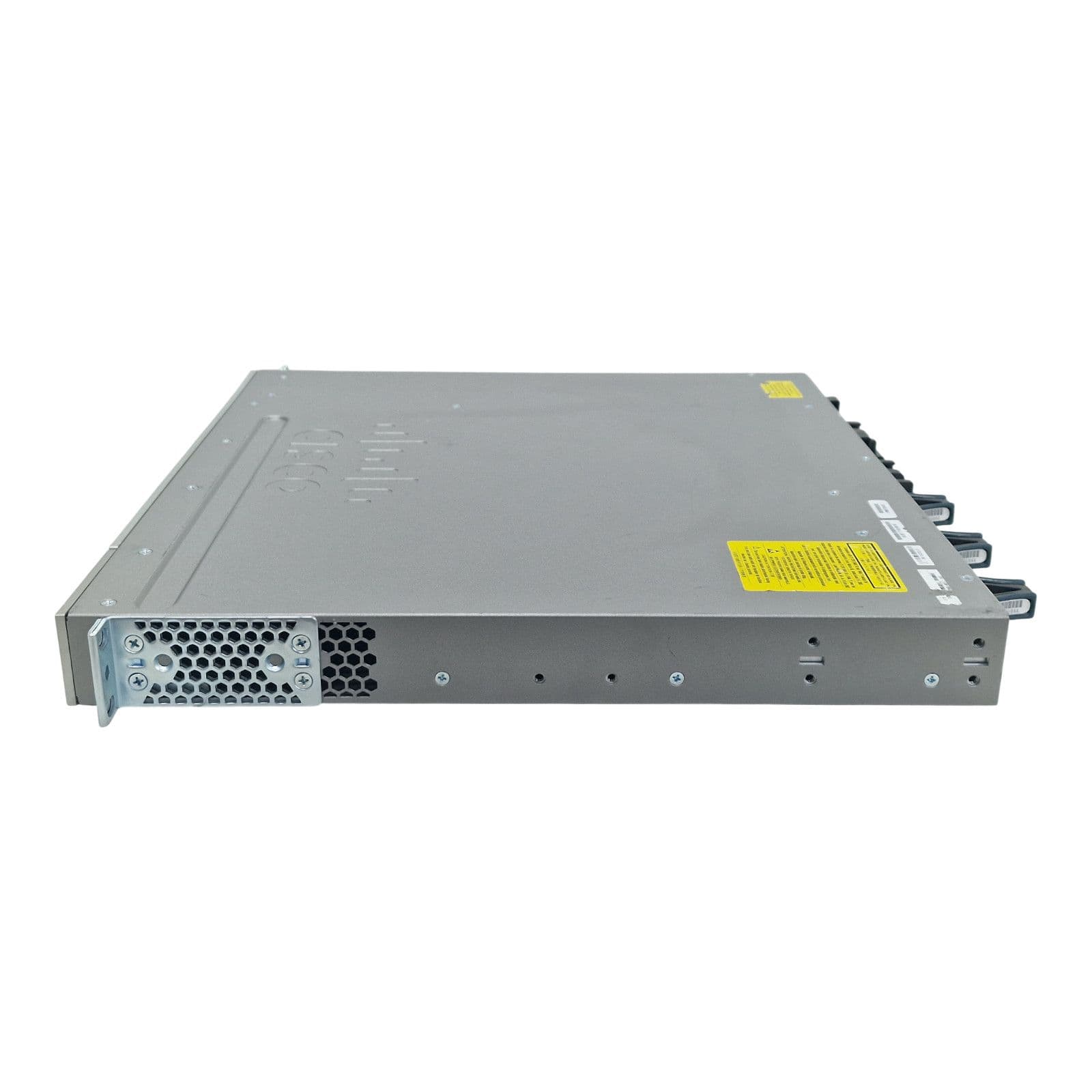

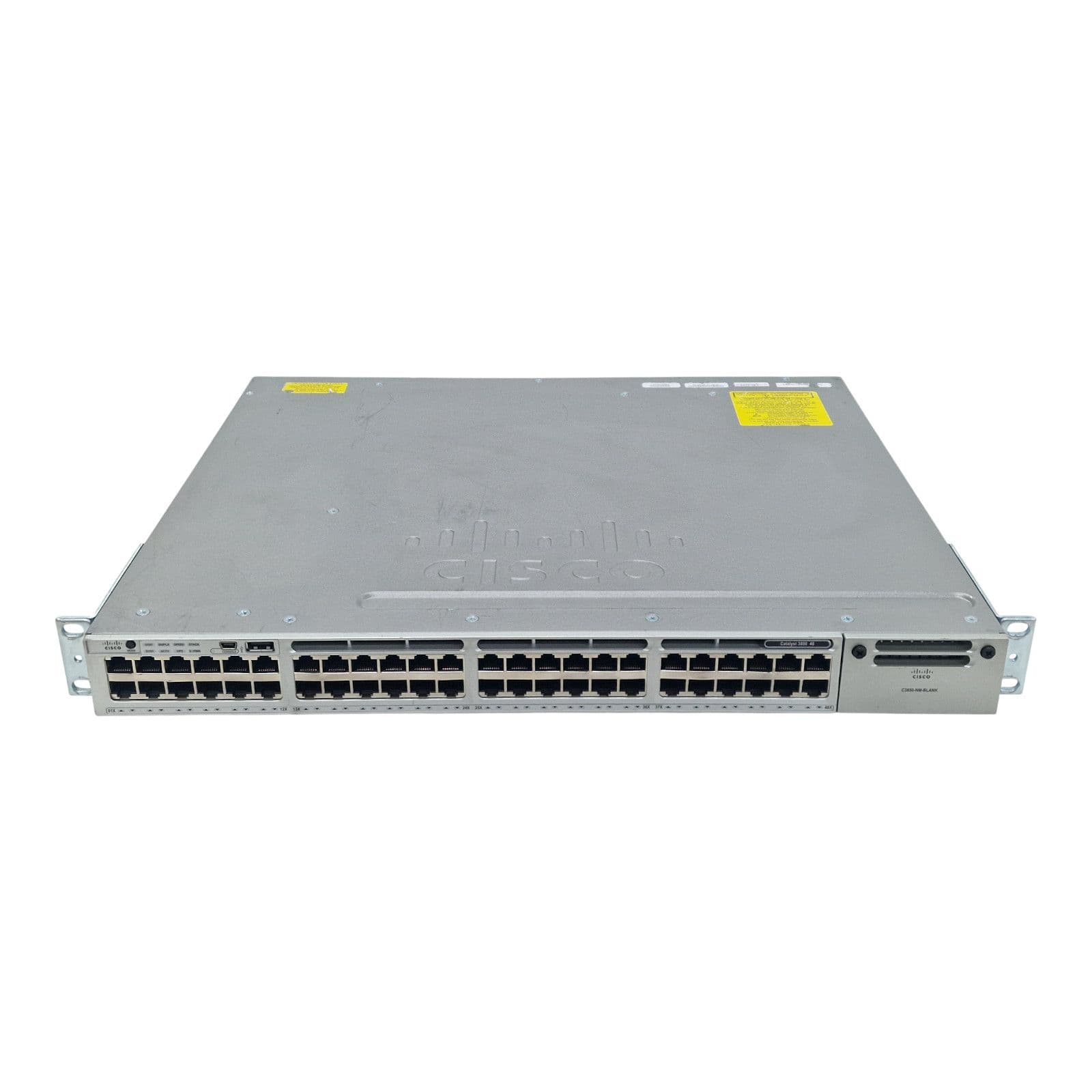

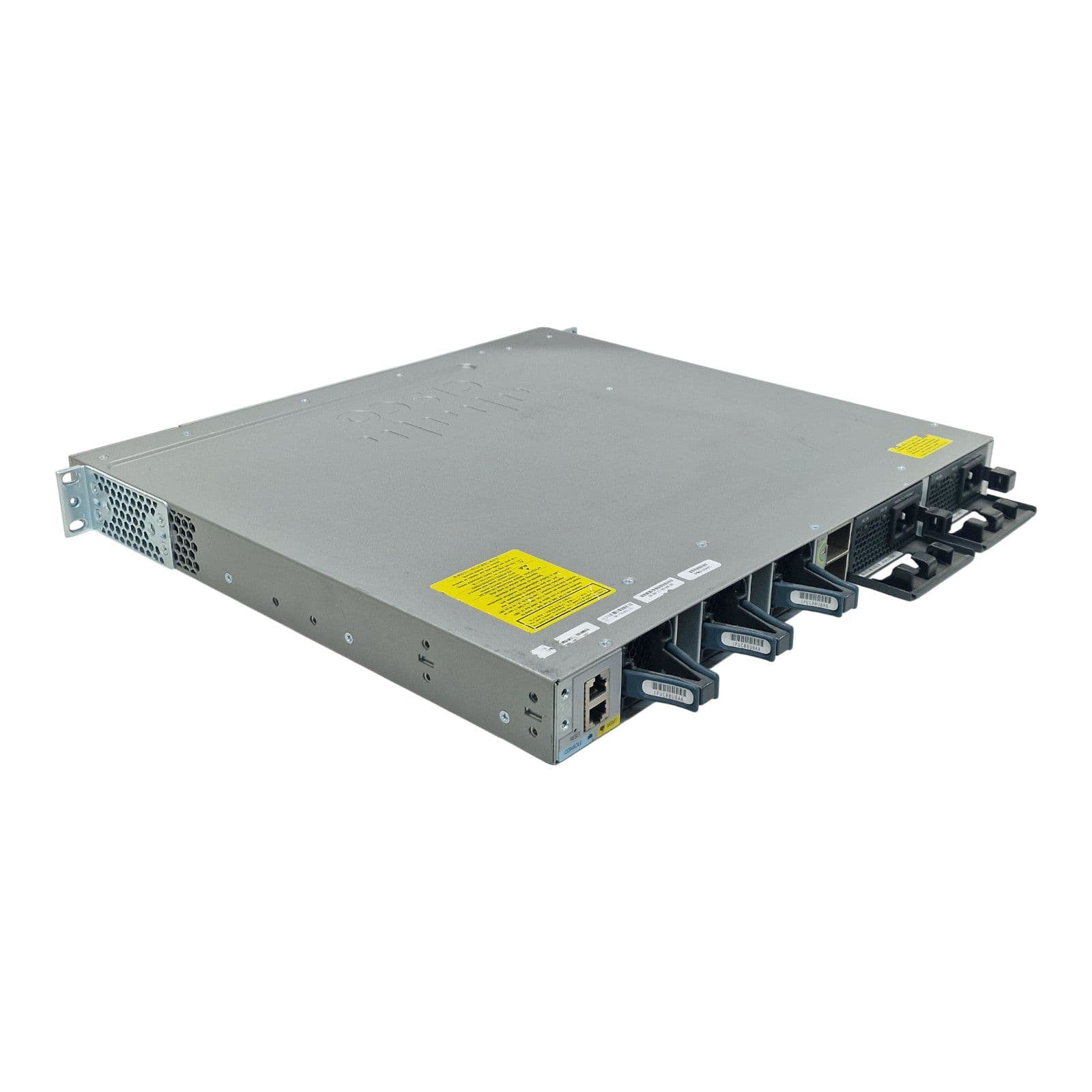

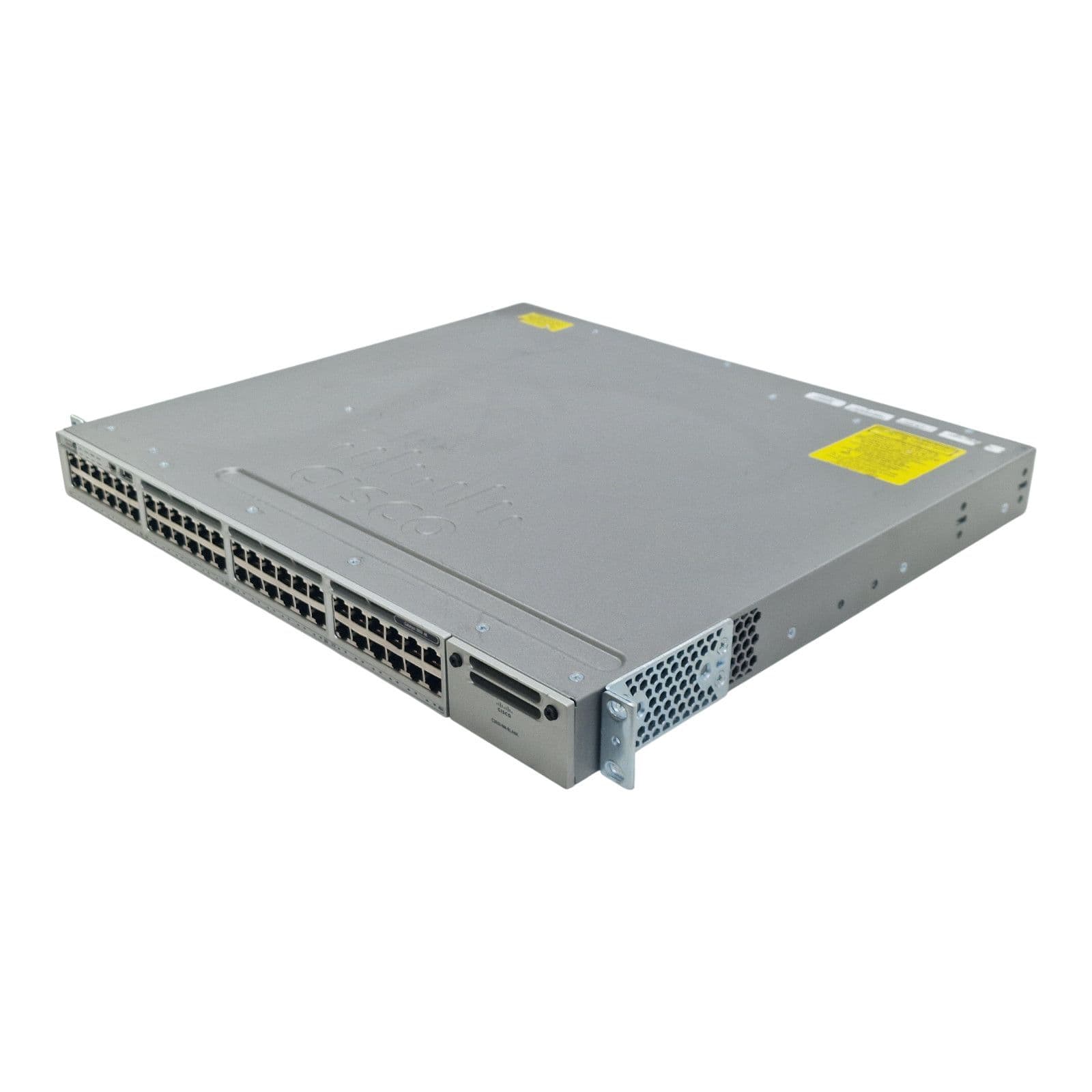

- 1x Cisco Catalyst WS-C3850-48T-S 48-Port 1Gb RJ-45 Ports Layer 3 Ethernet Switch
- Manufacturer: Cisco
- Model: WS-C3850-48T-S
- Series: Catalyst 3850
- Switch Type: Managed Layer 3 Ethernet Switch
- Form Factor: 1U Rack-Mountable
- 48 × 10/100/1000 Mbps RJ-45 Ethernet ports
- 1 × RJ-45 Ethernet management port
- 1 × RJ-45 console port
- 1 × USB Type-A storage port
- Modular uplink network module slot (supports 1G/10G modules)
- StackWise-480 stacking ports
- Switching Capacity: 176 Gbps
- Forwarding Rate: Up to 130.95 Mpps
- Stacking Bandwidth: 480 Gbps
- Maximum Stack Size: Up to 9 switches
- Feature Set: IP Base
- Layer 2 & Layer 3 switching and routing
- VLAN Support: Up to 1,000 VLANs
- Flexible NetFlow support
- VRF-Lite support
- Integrated wireless controller functionality
- Supports up to 100 access points per switch/stack
- Supports up to 2,000 wireless clients
- Power Supply: 2 × 715W AC power supplies
- PoE Support: No
- Height: 44.5 mm (1U)
- Width: 445 mm
- Depth: ~450 mm
- Weight: ~7.4 kg (varies with PSU/modules)
- Jumbo Frame Support: Up to ~9,000 bytes
- Standards: IEEE 802.3, 802.1Q, 802.1D, 802.1X, LACP
- Security: ACLs, SSH, RADIUS, TACACS+, QoS, SNMP
Switch#showversion
Cisco IOSSoftware [Denali], Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSALK9-M),Version 16.3.5b, RELEASE SOFTWARE (fc1)
TechnicalSupport:
Copyright (c)1986-2017 by Cisco Systems, Inc.
Compiled Thu02-Nov-17 11:07 by mcpre
Cisco IOS-XEsoftware, Copyright (c) 2005-2017 by cisco Systems, Inc.
All rightsreserved. Certain components of CiscoIOS-XE software are
licensed underthe GNU General Public License ("GPL") Version 2.0. The
software codelicensed under GPL Version 2.0 is free software that comes
with ABSOLUTELYNO WARRANTY. You can redistribute and/ormodify such
GPL code underthe terms of GPL Version 2.0. For moredetails, see the
documentation or"License Notice" file accompanying the IOS-XE software,
or the applicableURL provided on the flyer accompanying the IOS-XE
software.
ROM: IOS-XEROMMON
BOOTLDR:CAT3K_CAA Boot Loader (CAT3K_CAA-HBOOT-M) Version 3.58, RELEASE SOFTWARE (P)
Switch uptime is2 minutes
Uptime for thiscontrol processor is 5 minutes
System returnedto ROM by Power Failure
System image fileis "flash:packages.conf"
Last reloadreason: Power Failure
This productcontains cryptographic features and is subject to United
States and localcountry laws governing import, export, transfer and
use. Delivery ofCisco cryptographic products does not imply
third-partyauthority to import, export, distribute or use encryption.
Importers,exporters, distributors and users are responsible for
compliance withU.S. and local country laws. By using this product you
agree to complywith applicable laws and regulations. If you are unable
to comply withU.S. and local laws, return this product immediately.
A summary of U.S.laws governing Cisco cryptographic products may be found at:
If you requirefurther assistance please contact us by sending email to
TechnologyPackage License Information:
-----------------------------------------------------------------
Technology-package Technology-package
Current Type Next reboot
------------------------------------------------------------------
ipbasek9 Permanent ipbasek9
ciscoWS-C3850-48T (MIPS) processor (revision AB0) with 865070K/6147K bytes ofmemory.
Processor boardID FOC2203L15J
1 VirtualEthernet interface
52 GigabitEthernet interfaces
4 Ten GigabitEthernet interfaces
2048K bytes ofnon-volatile configuration memory.
4194304K bytes ofphysical memory.
252000K bytes ofCrash Files at crashinfo:.
1611414K bytes ofFlash at flash:.
0K bytes of at webui:.
Base Ethernet MACAddress : 00:bf:77:69:b8:80
MotherboardAssembly Number : 73-16296-08
MotherboardSerial Number : FOC22025Q15
Model RevisionNumber : AB0
MotherboardRevision Number : B0
Model Number : WS-C3850-48T
System SerialNumber : FOC2203L15J
Switch PortsModel SW Version SW Image Mode
------ ---------- ---------- ---------- ----
* 3 56 WS-C3850-48T 16.3.5b CAT3K_CAA-UNIVERSALK9 INSTALL
Configurationregister is 0x142 (will be 0x102 at next reload)
Switch#showinventory
NAME: "c38xxStack", DESCR: "c38xx Stack"
PID:WS-C3850-48T-S , VID: V07 , SN: FOC2203L15J
NAME:"Switch 3", DESCR: "WS-C3850-48T-S"
PID:WS-C3850-48T-S , VID: V07 , SN: FOC2203L15J
NAME:"Switch 3 - Power Supply A", DESCR: "Switch 3 - Power SupplyA"
PID:PWR-C1-715WAC , VID: V02 , SN: LIT22014FHN
NAME:"Switch 3 - Power Supply B", DESCR: "Switch 3 - Power SupplyB"
PID:PWR-C1-715WAC , VID: V02 , SN: LIT22014FV2
Switch#showlicense
Switch#showlicense right-to-use
Slot# License Name Type Count Period left
-------------------------------------------------------
3 ipbase permanent N/A Lifetime
License Level onReboot: ipbase
Switch#show envall
Switch 3 FAN 1 isOK
Switch 3 FAN 2 isOK
Switch 3 FAN 3 isOK
FAN PS-1 is OK
FAN PS-2 is OK
Switch 3: SYSTEMTEMPERATURE is OK
Inlet TemperatureValue: 17 Degree Celsius
TemperatureState: GREEN
Yellow Threshold: 46 Degree Celsius
RedThreshold : 56 Degree Celsius
HotspotTemperature Value: 29 Degree Celsius
TemperatureState: GREEN
Yellow Threshold: 105 Degree Celsius
RedThreshold : 125 Degree Celsius
SW PID Serial# Status Sys Pwr PoE Pwr Watts
-- ------------------ ---------- --------------- ------- ------- -----
3A PWR-C1-715WAC LIT22014FHN OK Good Good 715
3B PWR-C1-715WAC LIT22014FV2 OK Good Good 715
-
MPN:Catalyst 3850
