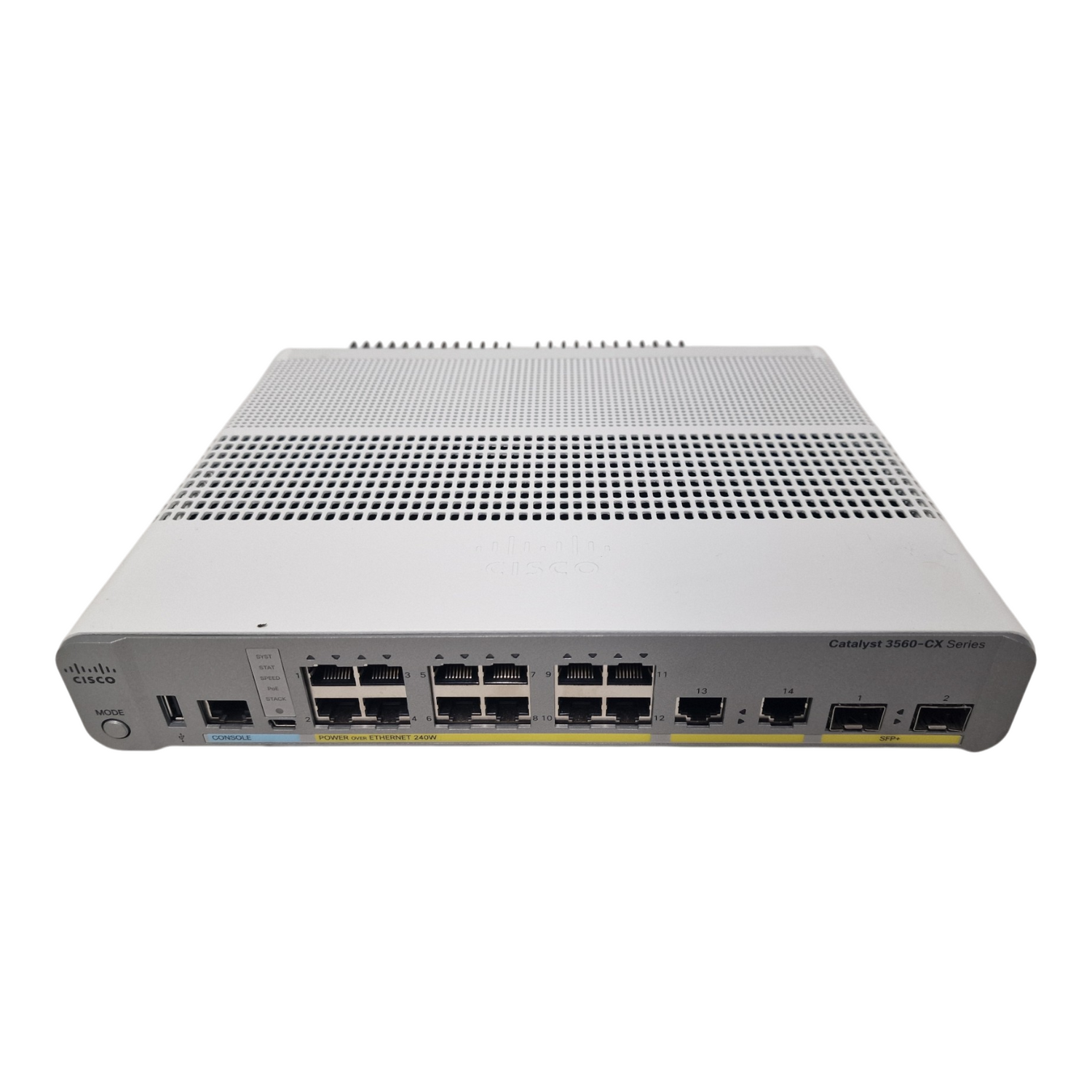

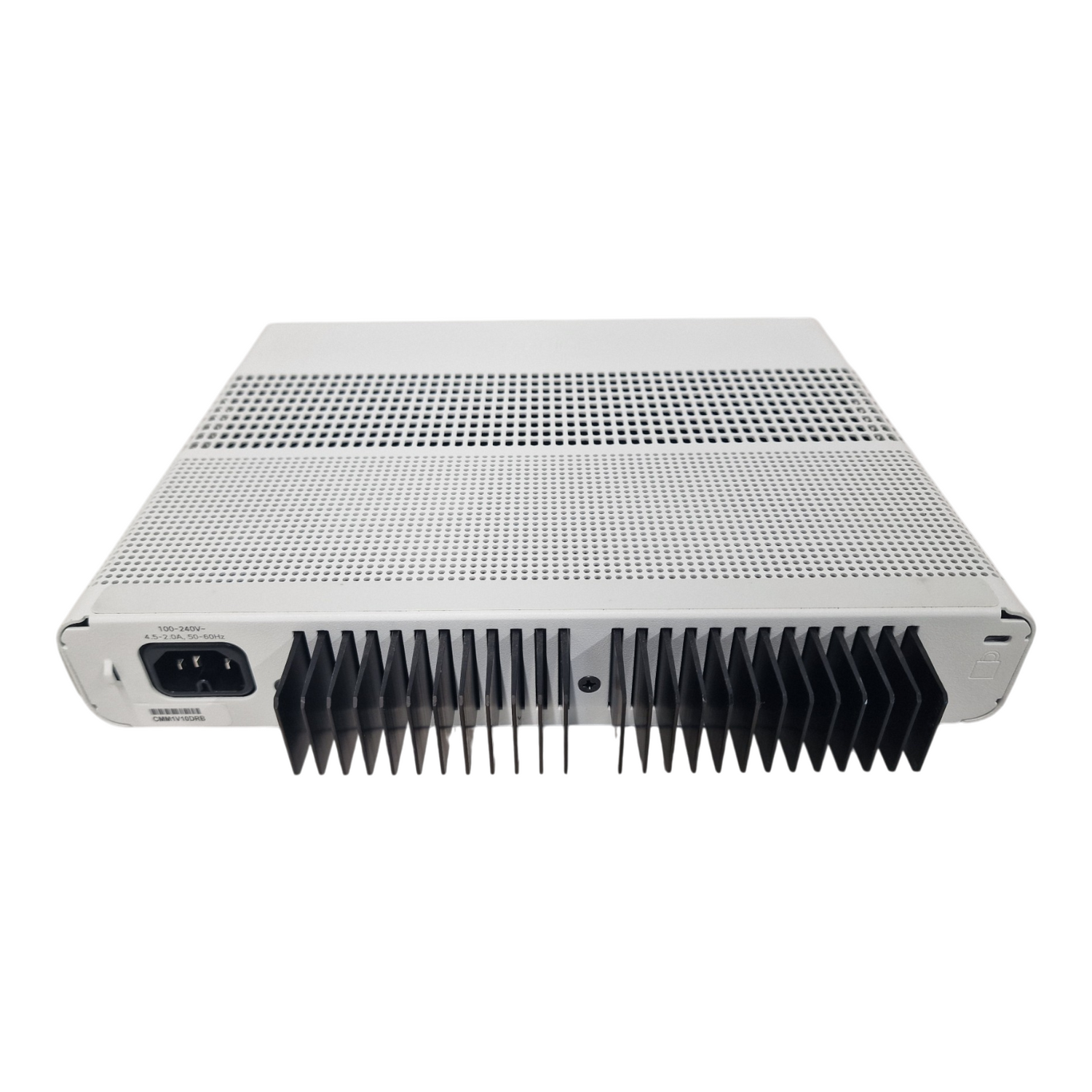

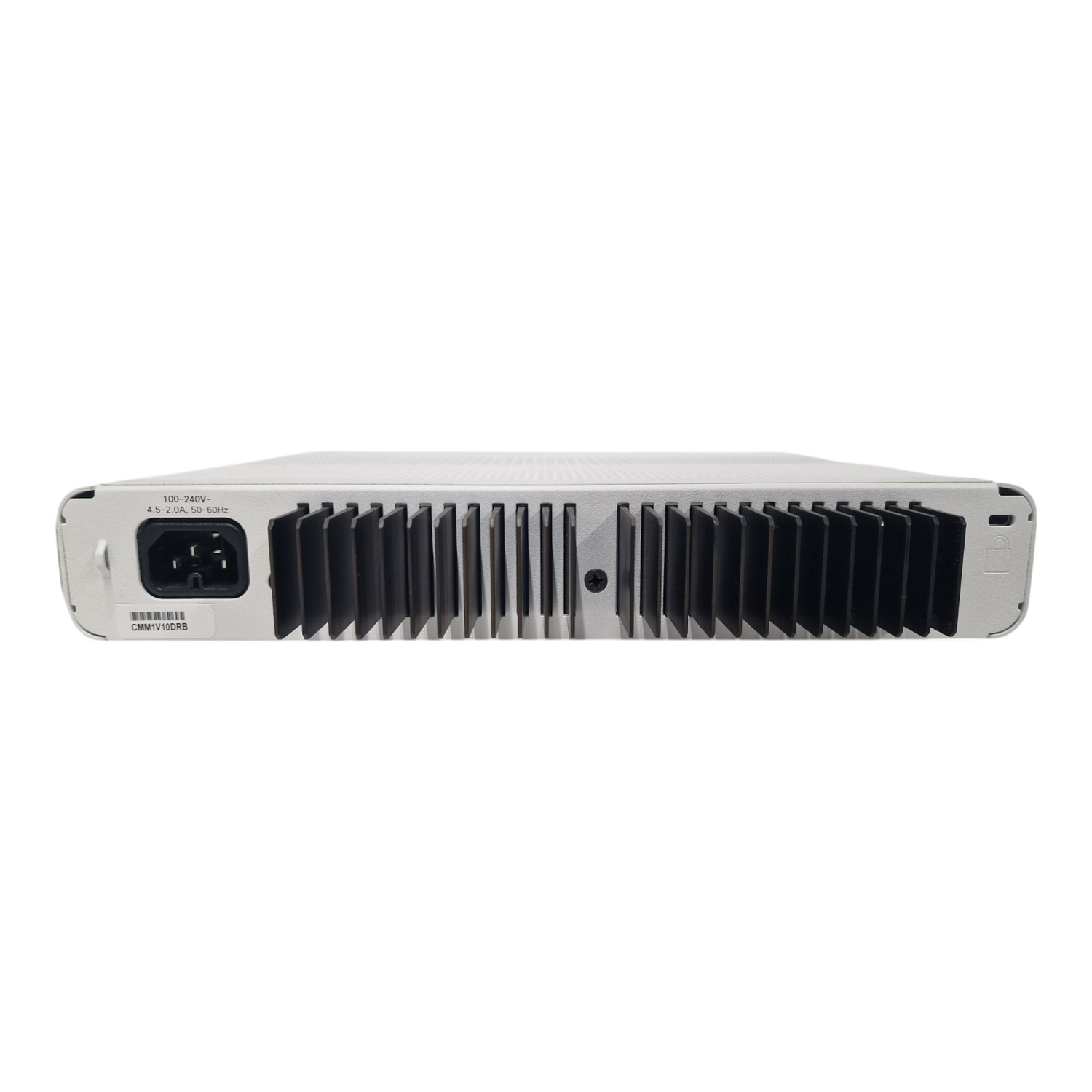

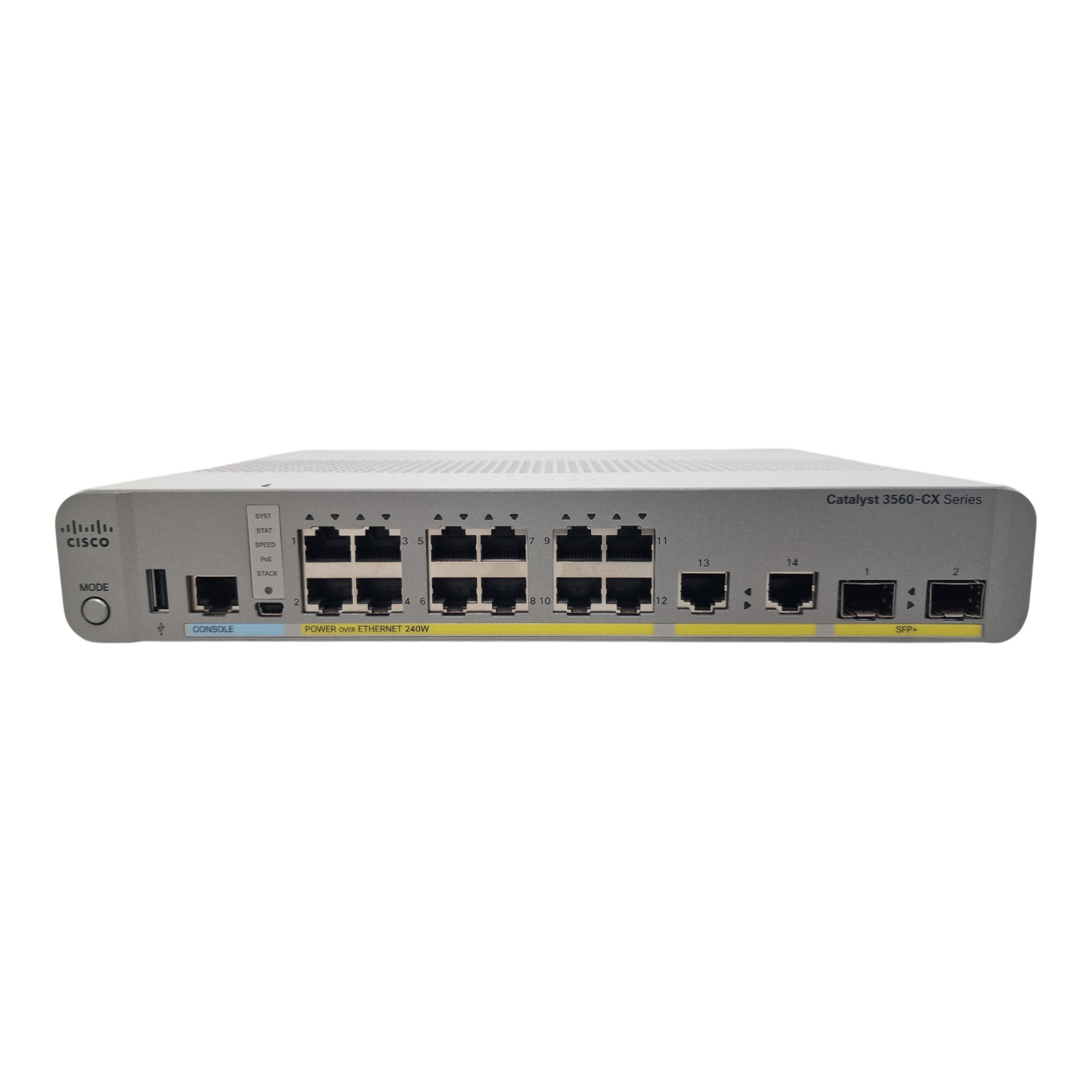

Cisco Catalyst WS-C3560CX-12PD-S 12-Port PoE+ 2x 10G SFP+ Compact Switch

Condition : Refurbished – tested and working grade A refurbished part

Cisco Catalyst WS-C3560CX-12PD-S 12-Port PoE+ 2x 10G SFP+ Compact Switch

Overview:
The Cisco Catalyst WS-C3560CX-12PD-S is a compact, fanless Layer 3 managed Ethernet switch designed for flexible deployment. It supports Power over Ethernet Plus (PoE+) on all 12 ports, ideal for powering devices like IP phones, cameras, and wireless access points.

Key Features:
- 12x 10/100/1000 Gigabit Ethernet RJ45 PoE+ ports
- 2x 1GbE RJ45 uplink ports
- 2x 10GbE SFP+ uplink ports
- Fanless design for silent operation
- Internal power supply with 240W total PoE budget
- Supports IEEE 802.3af and 802.3at PoE standards
- Layer 3 static routing, RIP v1/v2, and Inter-VLAN routing
- Security features including ACLs, IEEE 802.1X authentication, RADIUS, TACACS+, and SSH

Performance:
- Switching capacity: 68 Gbps
- Forwarding bandwidth: 34 Gbps
- Forwarding rate: 50.6 Mpps
- Jumbo frame support up to 9,198 bytes
- Maximum VLANs: 1,023

Management:
- Cisco IOS Software with CLI and web-based management
- SNMP v1/v2c/v3, RMON, HTTP, Telnet, and Syslog support

Physical:
- Colour: White
- Dimensions: 44.4 mm height x 269 mm width x 238 mm depth
- Weight: Approx. 4.65 kg

Ideal for small to medium-sized business networks requiring reliable, high-performance switching with PoE capabilities.
