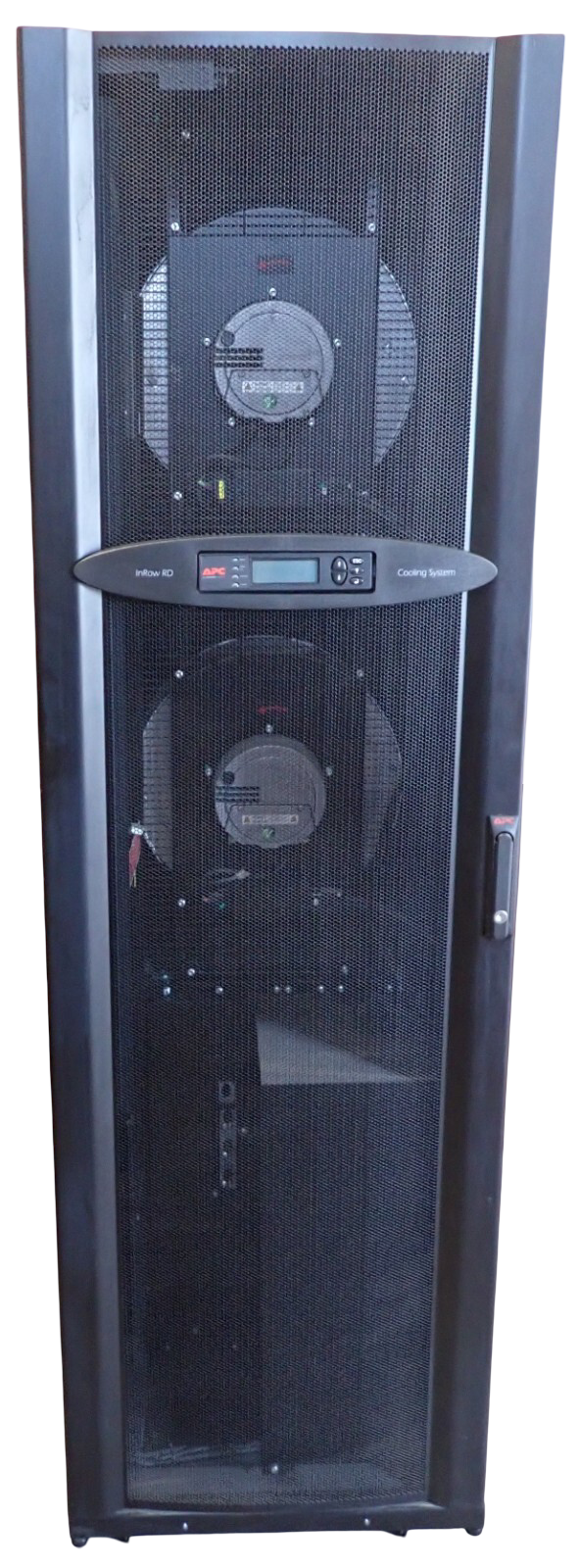

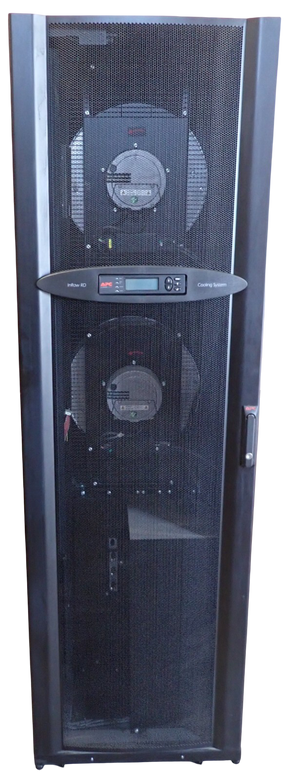

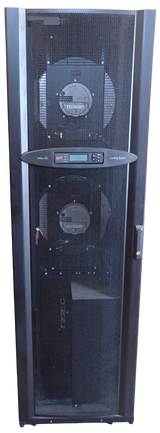

APC ACRD502 InRow RD 600mm 42U Direct Expansion Air Cooled Cooling Unit 380-415V
Condition : Refurbished – tested and working grade A refurbished part
APC ACRD502 InRow RD 600mm 42U Direct Expansion Air Cooled Cooling Unit 380-415V
The APC ACRD502 InRow RD is a row-based direct expansion cooling unit designed for data centres, wiring closets, and server rooms. Featuring a 600mm width and 42U rack height, this air-cooled unit operates at 380-415V and 50Hz. It provides a cooling capacity of 29 kW with horizontal air discharge and uses R407C refrigerant. Equipped with a reciprocating compressor and a condensate pump capacity of 8.45 gallons per hour, it ensures efficient temperature control. The unit includes a multi-function LCD status and control console with audible and visible alarms prioritised by severity. It is UL Listed, CE certified, and suitable for freestanding installation.
Specification:
- Cooling Capacity: 29 kW
- Cooling Type: Air
- Compressor Type: Reciprocating
- Air Discharge Pattern: Horizontal
- Refrigerant: R407C
- Air Flow: 4600 CFM
- Condensate Pump Capacity: 8.45 gal/hour
- Input Voltage: 400V 3-phase
- Input Frequency: 50 Hz
- Rack Height: 42U

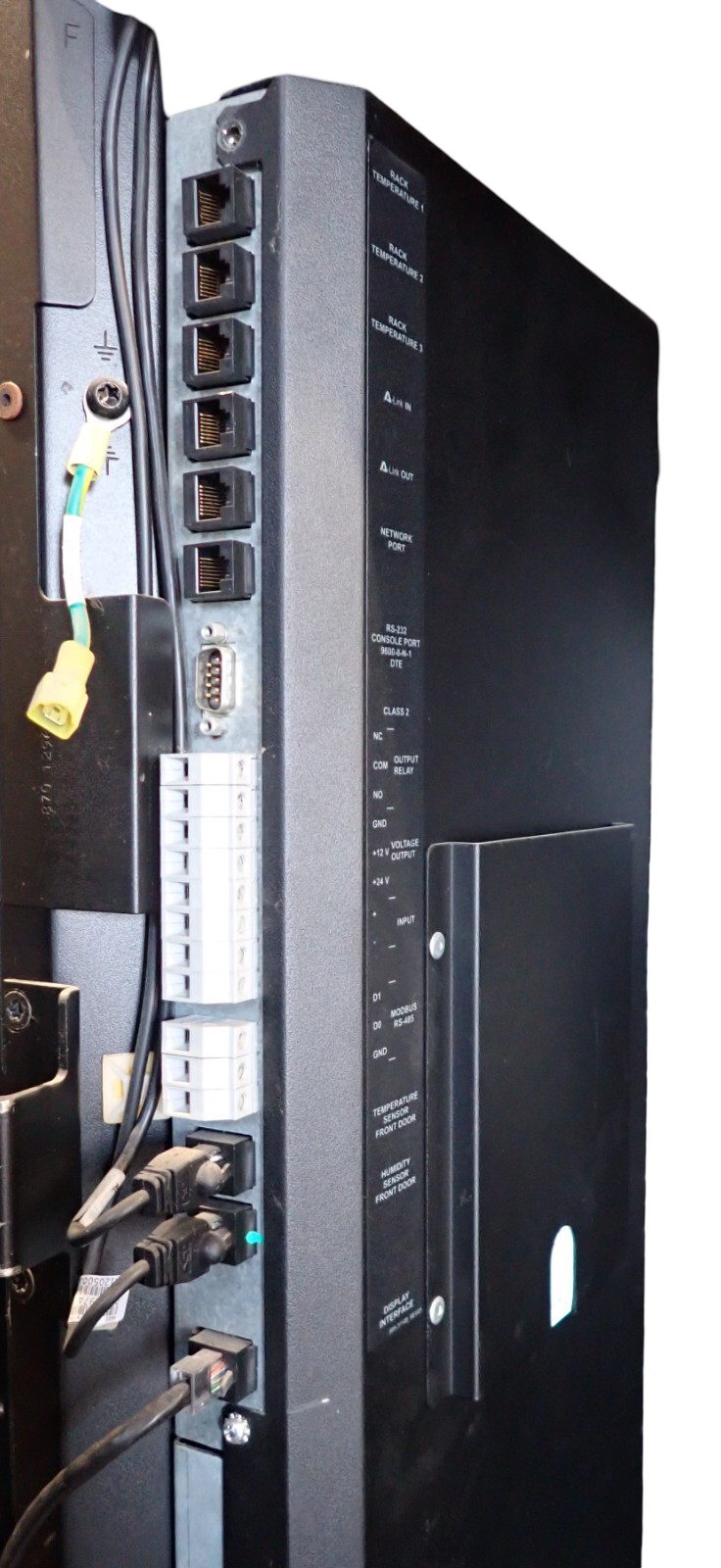

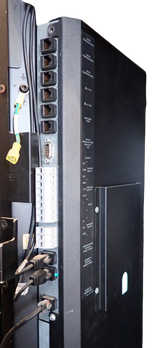

- Input Connections: Hard Wire 4-wire (3PH + Ground)

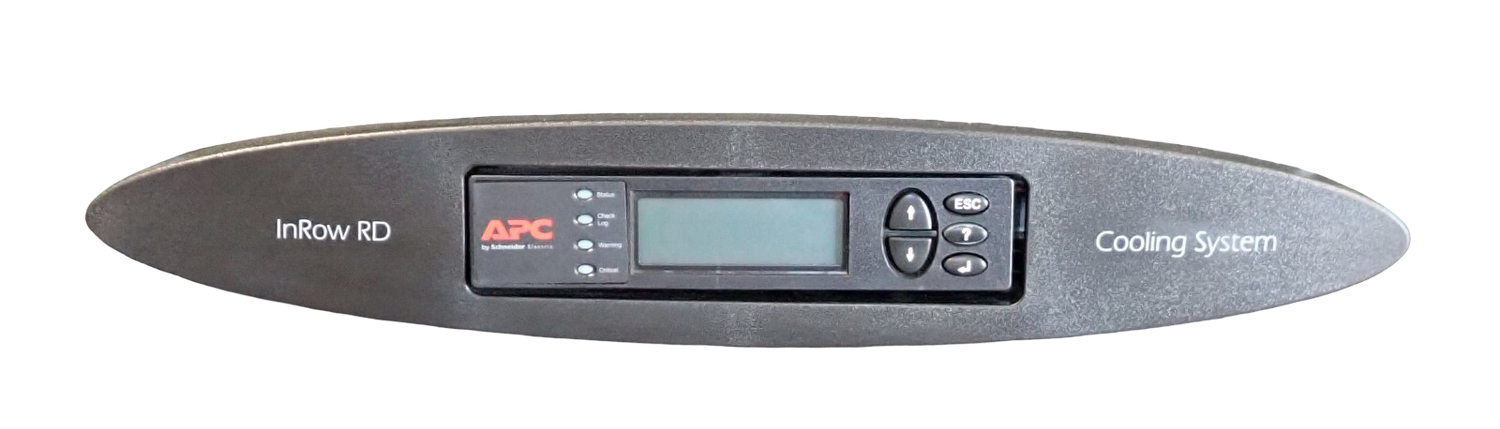

- Control Panel: Multi-function LCD console
- Audible Alarm: Yes
- Dimensions (H x W x D): 1991 mm x 600 mm x 1070 mm
- Net Weight: 367.27 kg
- Colour: Black
- Certification: UL Listed, CE, Industry Canada
Product Attributes
Product Attributes
-
Brand
-
Depth
-
Height (U)
-
Part Number
-
Weight
-
Width
