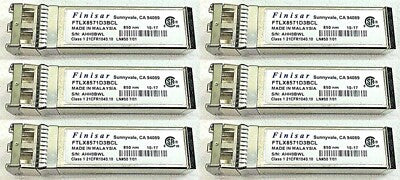

6x Finisar 10G Fibre SFP+ 850nm MMF 300m Transceiver Module FTLX8571D3BCL

Condition : Refurbished – tested and working grade A refurbished part

6x Finisar 10G Fibre SFP+ 850nm MMF 300m Transceiver Module FTLX8571D3BCL

Overview:
Finisar’s FTLX8571D3BCL 10Gb/s SFP+ transceivers are designed for 10-Gigabit Ethernet links over multimode fibre. They comply with SFF-8431, SFF-8432, IEEE 802.3ae 10GBASE-SR/SW and 10G Fibre Channel 1200-Mx-SN-I4 standards. Digital diagnostic functions are available via a 2-wire serial interface as specified in SFF-8472.

Features:
- Hot-pluggable SFP+ footprint
- Supports 9.95 to 10.5 Gb/s bit rates
- Power dissipation under 1W
- RoHS-6 compliant (lead-free)
- Commercial temperature range: 0°C to 70°C
- Single 3.3V power supply
- Maximum link length up to 300m on 2000 MHz-km MMF
- Uncooled 850nm VCSEL laser
- Receiver limiting electrical interface
- Duplex LC connector
- Built-in digital diagnostic functions

Specifications:
- Form Factor: SFP+
- Data Rate: 10 Gb/s
- Wavelength: 850 nm
- Fibre Type: Multimode Fibre (MMF)
- Maximum Distance: 300 m
- Optical Components: VCSEL/PIN
- Transmitter Power: -6 to -1 dBm
- Extinction Ratio: > 3.5 dB
- Receiver Sensitivity: < -10 dBm
- Receiver Overload: > 0.5 dBm
- Connector: Duplex LC

Operating Environment:
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
