AIC RSC-4BT 36x 3.5" + 2x 2.5" Bay Storage Server Chassis Only XE1-4BT00-01

Condition : Refurbished – tested and working grade A refurbished part

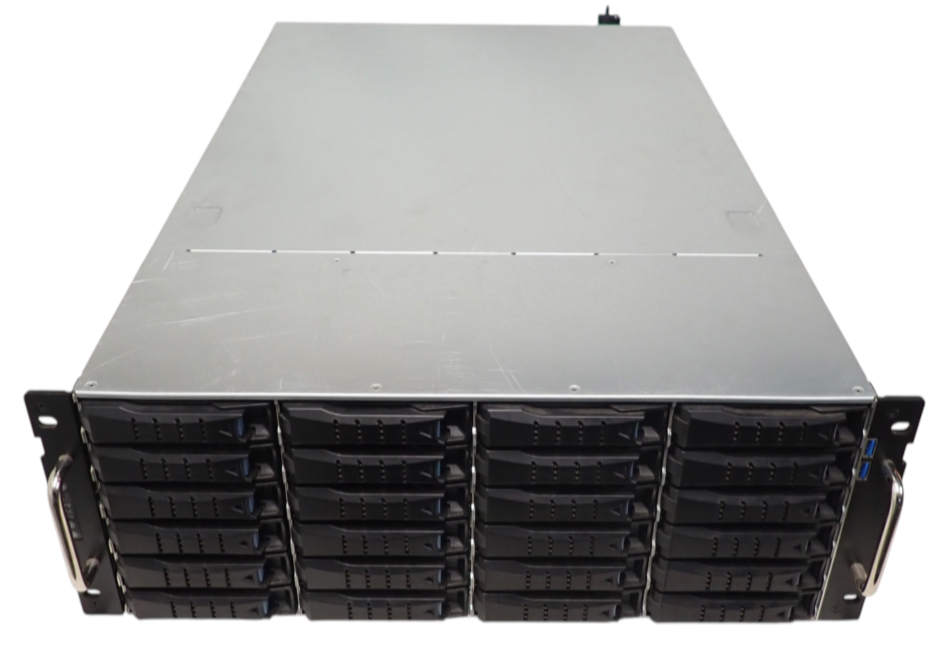

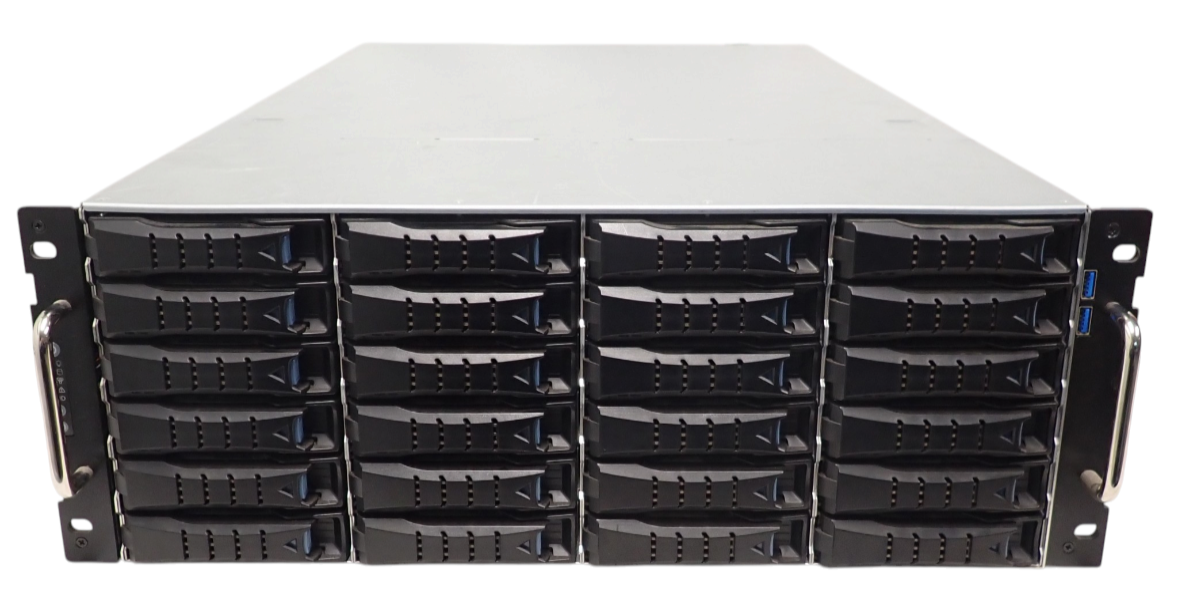

AIC RSC-4BT Storage Server Chassis with 36x 3.5" and 2x 2.5" Drive Bays (Model XE1-4BT00-01)

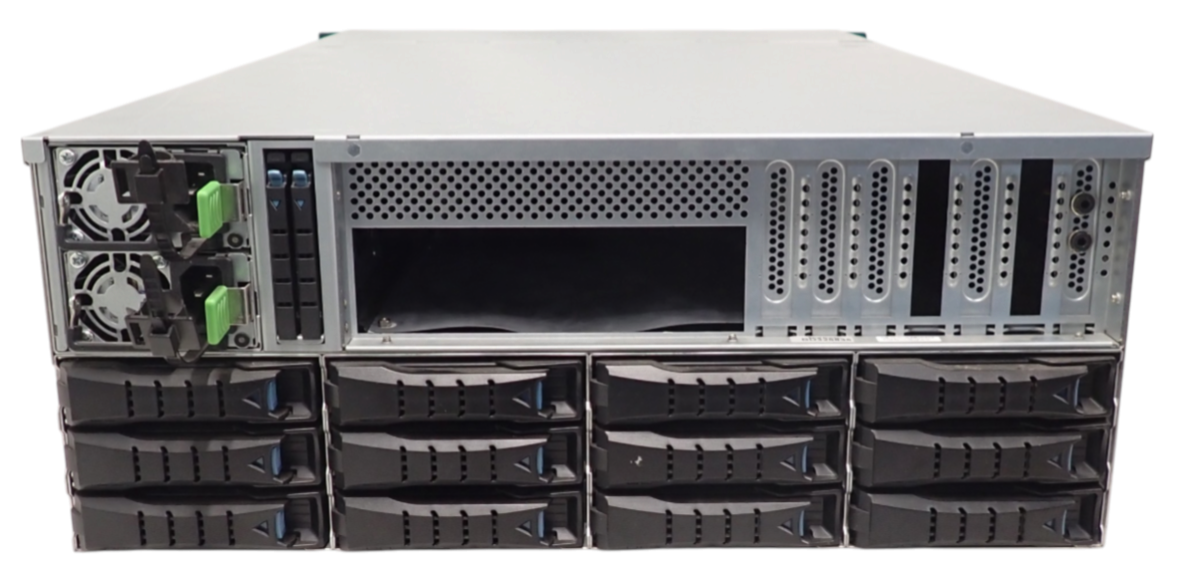

This robust 4U storage server chassis offers high-density drive capacity with 36 hot-swappable 3.5" bays (24 front, 12 rear) and 2 hot-swappable 2.5" bays. Designed for enterprise storage applications, it features tool-less installation for drives, backplanes, and rails, simplifying maintenance and upgrades.

Key Features:
- Supports 36 x 3.5" and 2 x 2.5" hot-swap drive bays
- Tool-less design for quick installation and maintenance

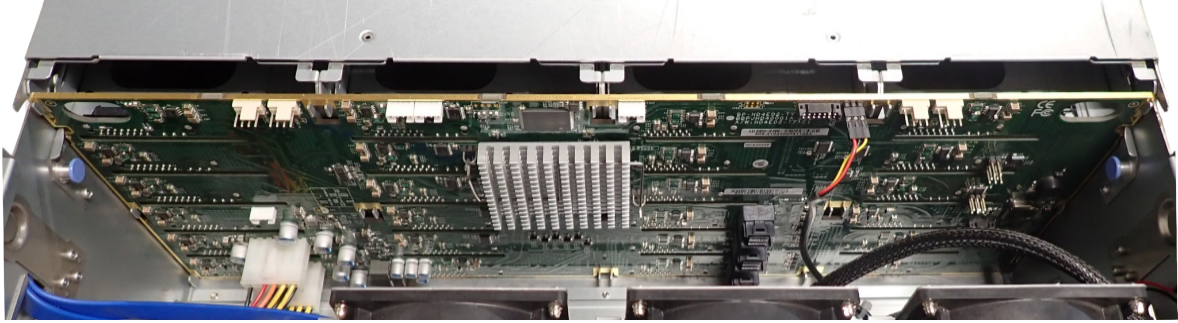

- Includes 24-bay and 12-bay 12Gb/s SAS backplanes with expander chips
- Redundant 1200W 80Plus Platinum power supplies (1+1)

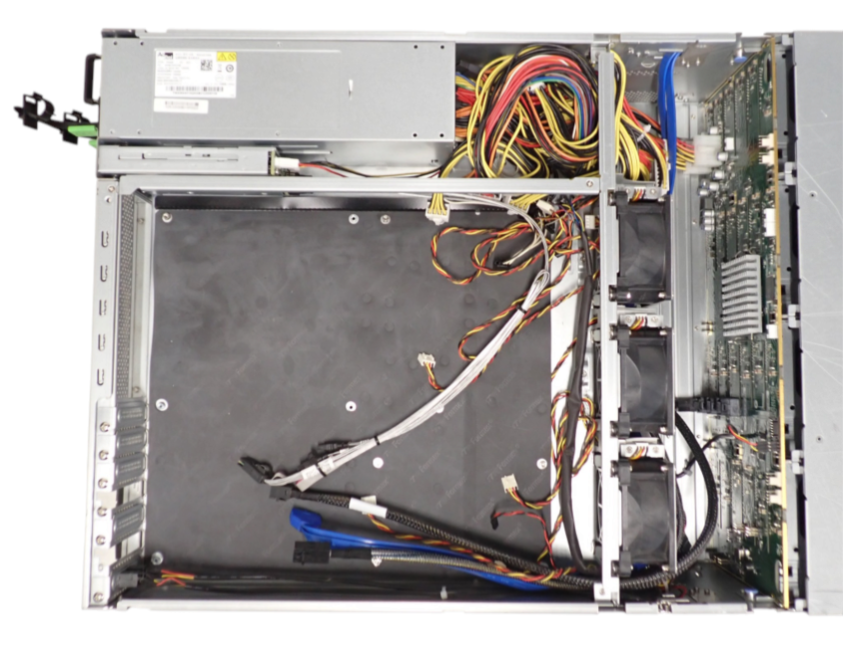

- Six hot-swap, low power consumption fans for efficient cooling
- Heavy-duty pre-plated cold-rolled steel construction
- Front panel with power, reset, system ID, and two USB 3.2 Gen1 ports

Dimensions:
- 430mm (W) x 680mm (D) x 174.3mm (H)

Includes:
- 1 x AIC RSC-4BT Chassis
- 1 x 24-Bay 3.5" SAS Backplane with 24 drive caddies
- 1 x 12-Bay 3.5" SAS Backplane with 12 drive caddies
- 1 x 2-Bay 2.5" SATA Backplane with 2 drive caddies
- 2 x 1200W 80Plus Platinum Power Supplies

Optimised for high capacity storage needs in data centres and server farms.
