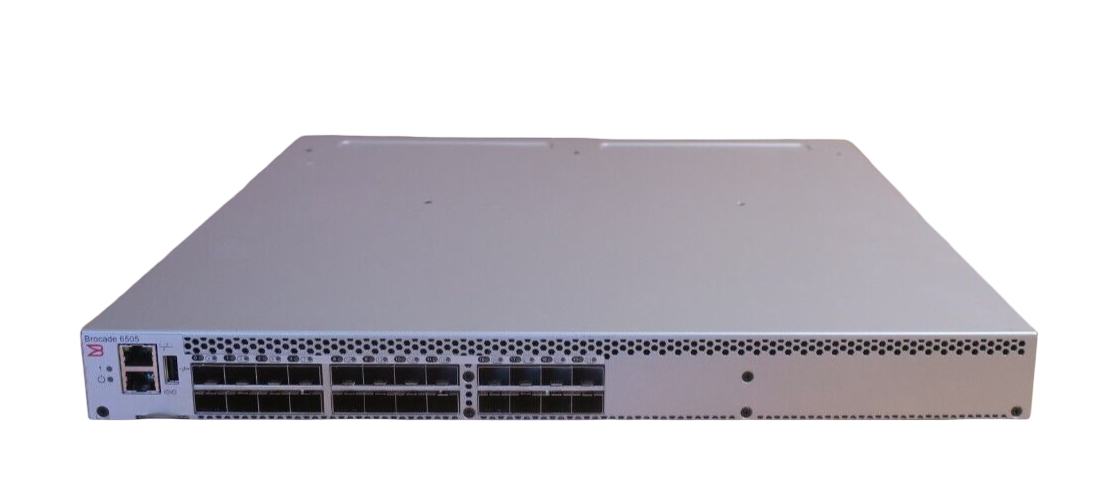

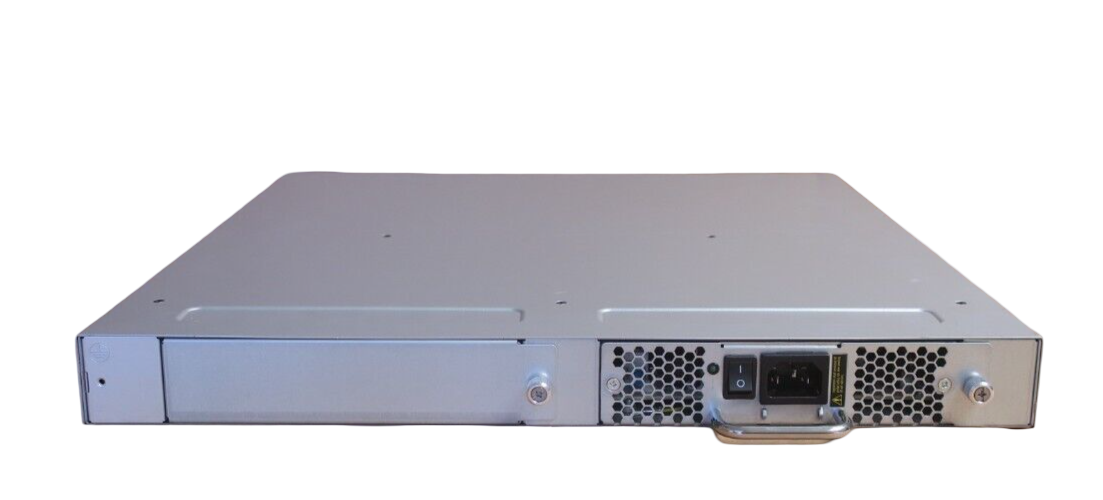

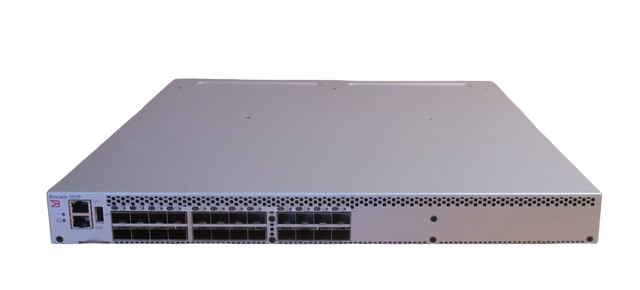

Brocade 6505 24x 16Gb SFP Port FC SAN Switch NA-6505-12-16G-MC-1R 12-Active +Lic

Condition : Refurbished – tested and working grade A refurbished part

Brocade 6505 24x 16Gb SFP Port Fibre Channel SAN Switch (Model NA-6505-12-16G-MC-1R) with Back-to-Front Airflow and 12 Active Ports.

This entry-level SAN switch offers flexible and reliable Gen 5 Fibre Channel technology, ideal for private cloud storage environments. It supports easy scaling from 12 to 24 ports with Ports on Demand licensing and delivers aggregate throughput of 384 Gbps full duplex.

Features include:
- Extended Fabric, Fabric Watch, Performance Monitor, Trunking, and Fabric Vision licenses included
- Exchange-based Dynamic Path Selection (DPS) for optimised load balancing
- Low power consumption (0.22 watts per Gbps, 3.3 watts per port)
- Simplified management with Brocade EZSwitchSetup wizard and ClearLink Diagnostic Ports
- Supports up to 239 switches in full-fabric architecture

Technical specifications:
- Fibre Channel speeds: auto-sensing 2, 4, 8, and 16 Gbps
- Frame-based ISL trunking up to 128 Gbps
- Multiple port types including D_Port, E_Port, F_Port, M_Port
- Management via HTTP, SNMP, SSH, CLI, and Brocade Network Advisor
- Dimensions: 437.64 mm (W) x 443.23 mm (D) x 43.18 mm (H); Weight: 7.82 kg (single power supply)
- Operating temperature: 0°C to 40°C

Includes:
- Brocade 6505 SAN Switch
- 150W Power Supply
