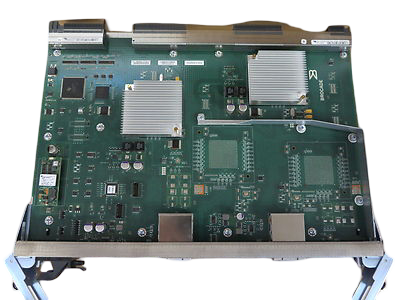

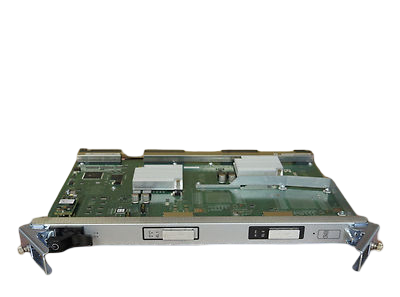

Brocade CR4S8 SAN Switch Director Processor Core Blade 60-1000818-08 DCX-4S DCX

Condition : Refurbished – tested and working grade A refurbished part

Brocade CR4S8 SAN Switch Director Processor Core Blade 40-1000256-02 DCX-4S DCX

This high-performance core blade is designed for the Brocade DCX-4S and DCX director chassis. It provides the processing power required to manage and route data traffic efficiently across storage area networks. Engineered for scalability and redundancy, it ensures high availability and robust performance in enterprise data centre environments.

Specifications:
- Product Type: Core Processor Blade
- Model: CR4S8

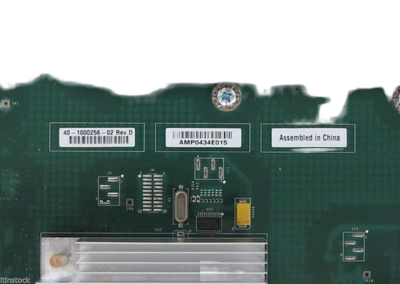

- Part Number: 40-1000256-02
- Compatibility: Brocade DCX-4S and DCX director chassis
- Form Factor: Plug-in module
- Processor Configuration: Dual redundant (active/standby) control processors
- Supports up to 4 horizontal blade slots in DCX-4S chassis
- Maximum Ports per Chassis: Up to 256 Fibre Channel ports
- Chassis Bandwidth: 2.3 Tbps total; 256 Gbps per slot
- Inter-Chassis Link Bandwidth: 256 Gbps
- Redundancy Features: Hot-pluggable components including power supplies, fans, and blades
- Energy Efficiency: Consumes less than half a watt per Gbps, offering superior efficiency
