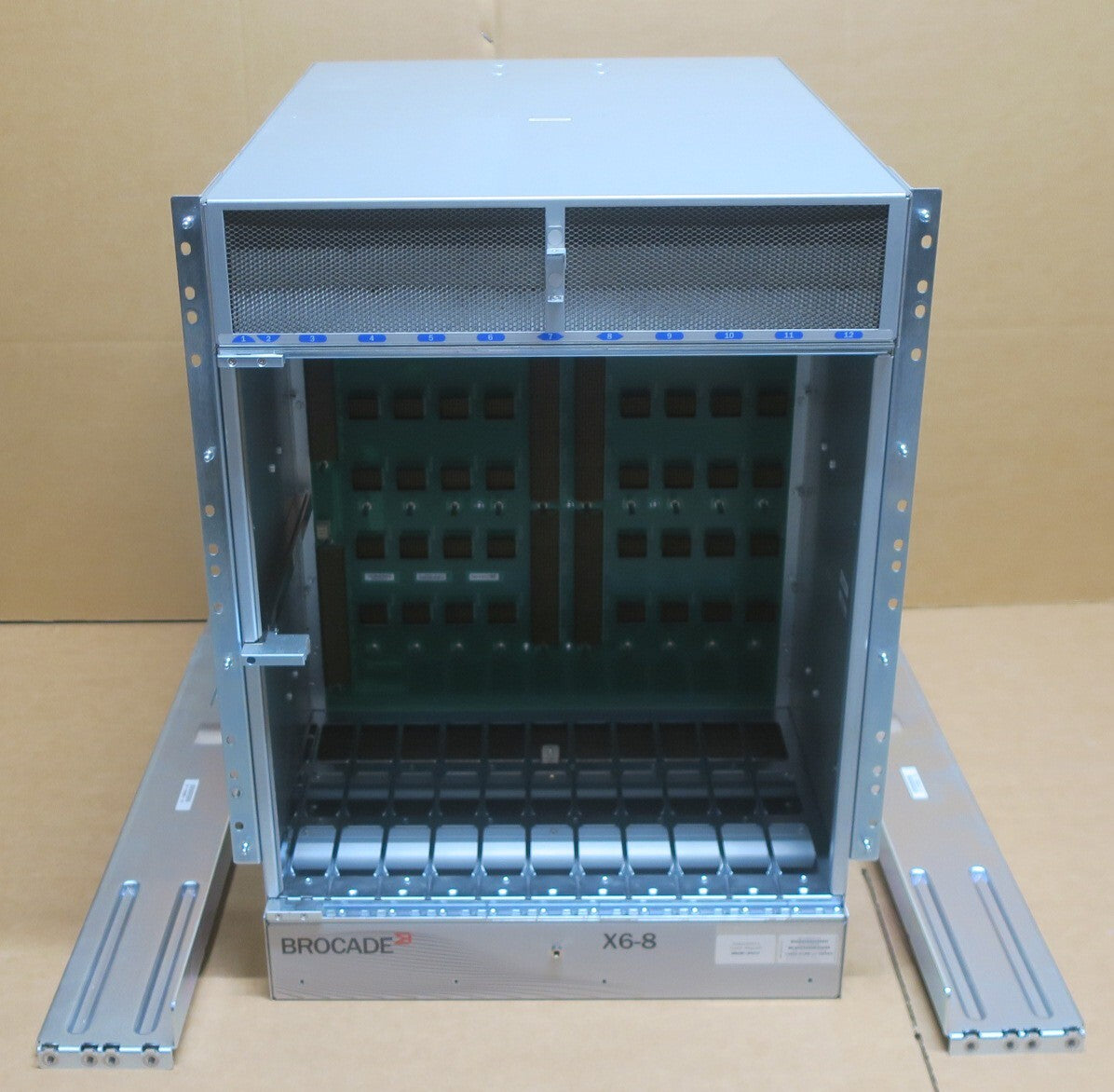

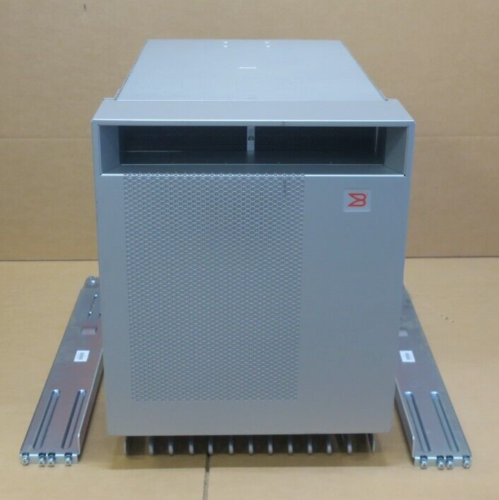

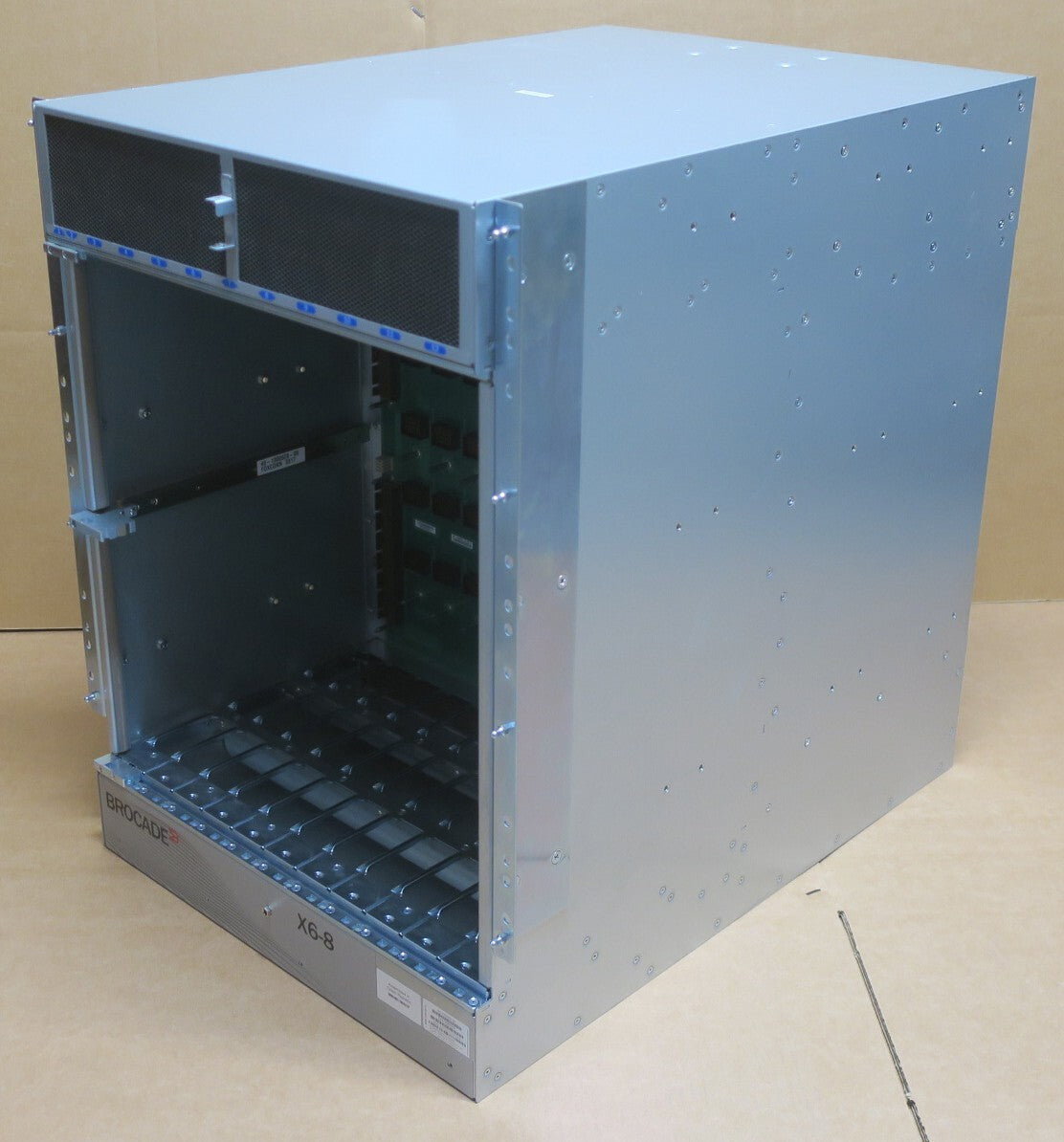

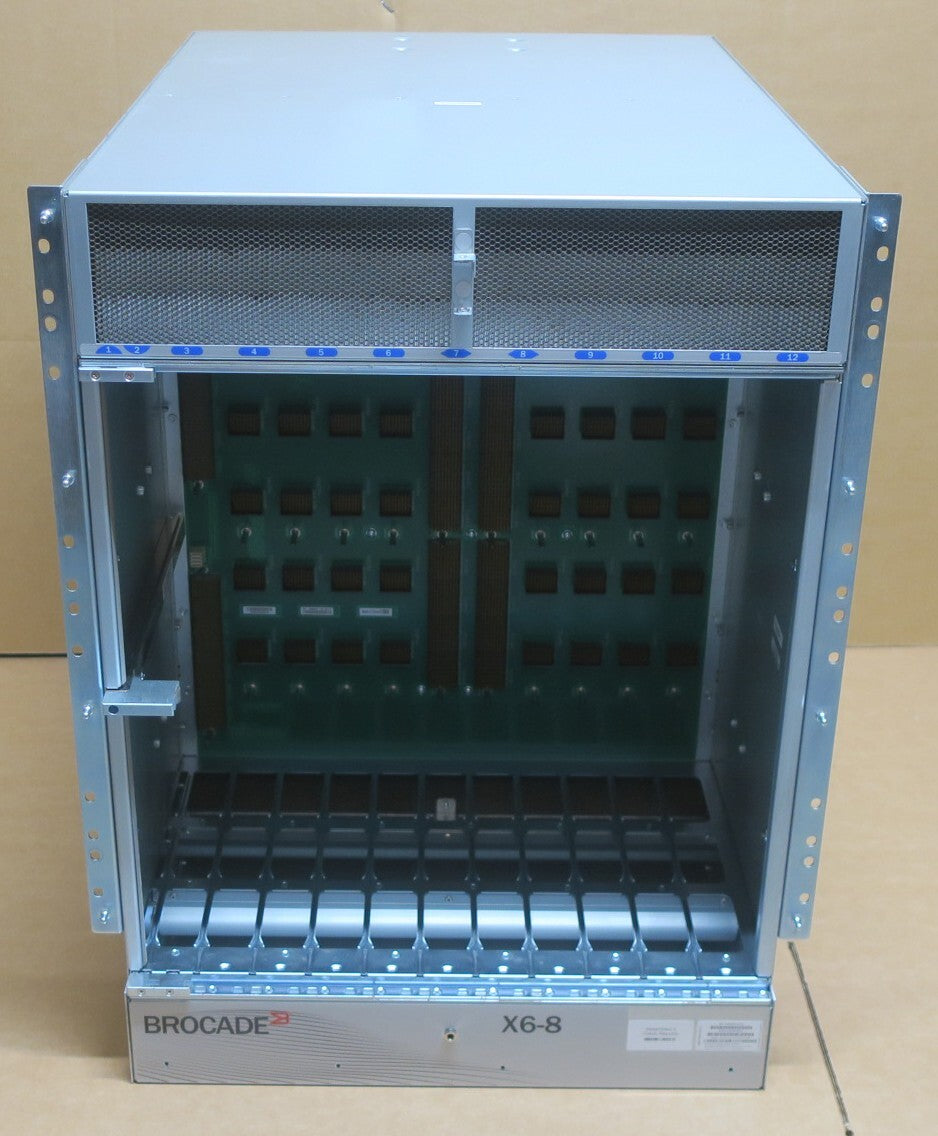

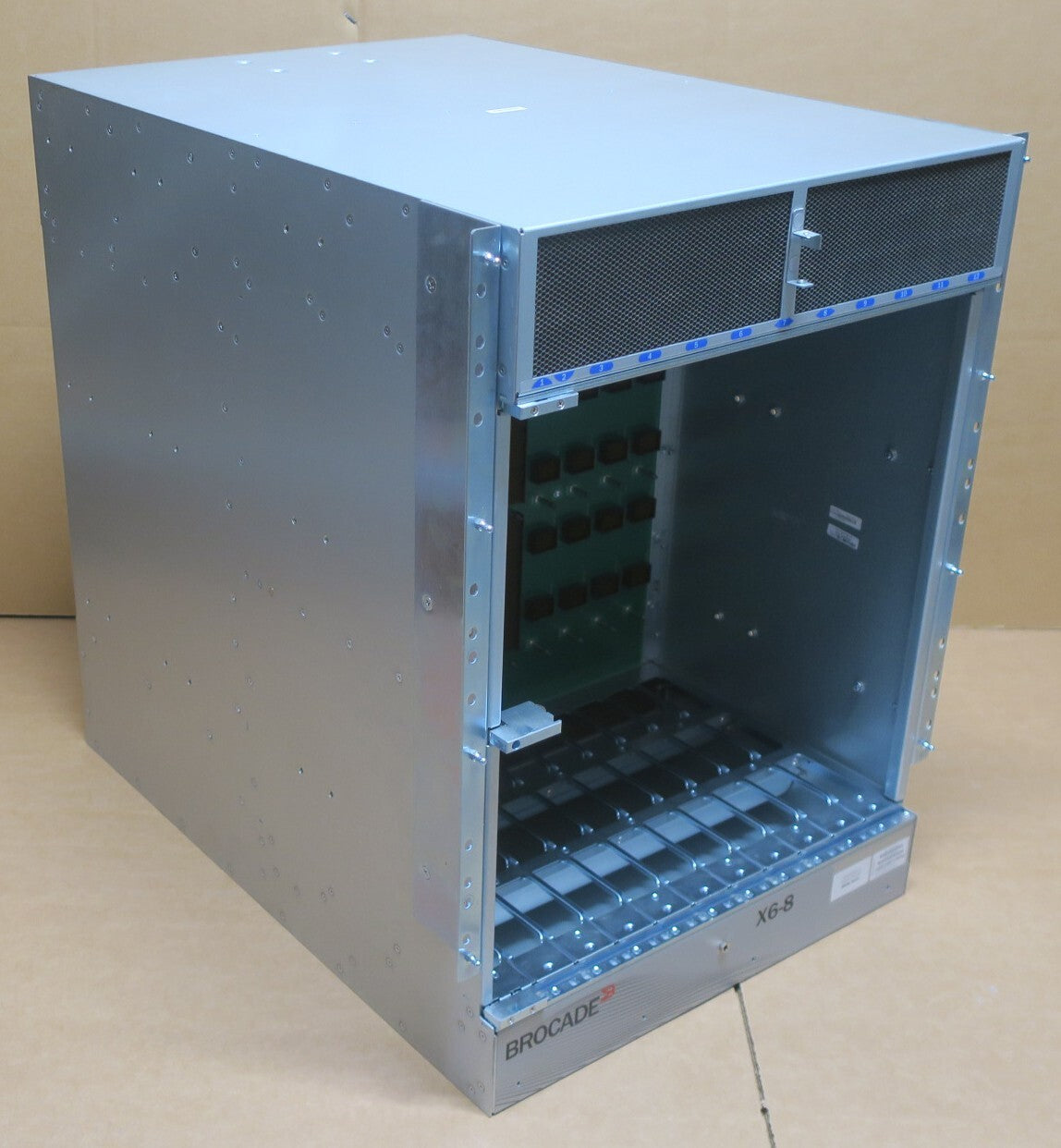

Brocade X6-8 8-Slot Gen6 Director 14U Rack Switch Blade Chassis +4x PSU +3x Fans

Condition : Refurbished – tested and working grade A refurbished part

Brocade X6-8 8-Slot Gen6 Director 14U Rack Switch Blade Chassis with 4x PSUs and 3x Fans

Includes:
- Brocade X6-8 8-Slot Fibre Channel Gen6 Director chassis

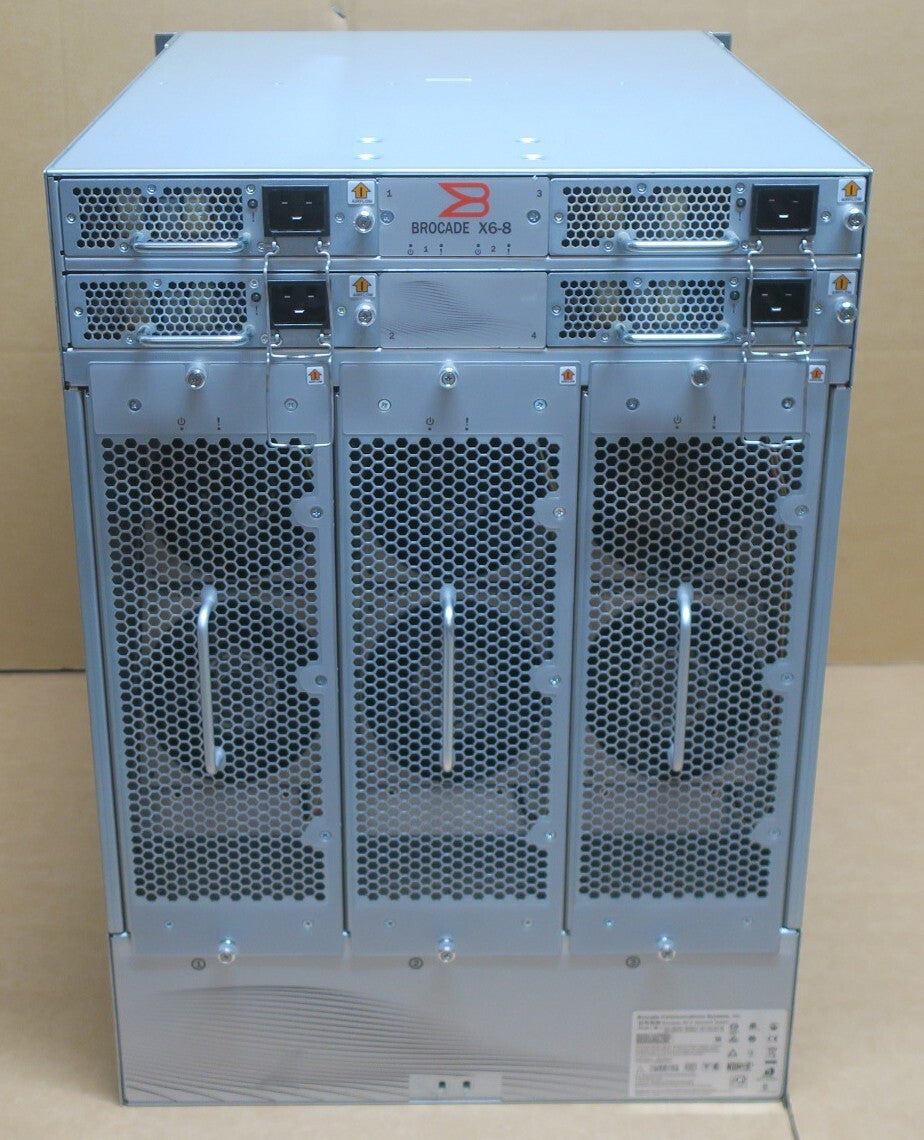

- 4 x 3000W Power Supplies
- 3 x Fan Modules
- Mounting Bracket
- Set of Rails

Overview:
The Brocade X6 Director features Brocade Fabric Vision technology for enhanced visibility and operational stability in storage environments. It supports up to 384 32 Gbps Fibre Channel ports or a 512-port equivalent with 128 Gbps UltraScale ICL ports. Fabric Vision enables proactive monitoring and diagnostics, ensuring maximised application performance and business agility.

Key Highlights:
- Up to 32 Gbps Gen6 Fibre Channel links
- 128 Gbps UltraScale ICL connectivity for scalable, low-latency fabrics
- Integrated network sensors for automatic detection of performance issues
- Supports NVMe over Fabrics integration
- Simplified management with REST APIs
- Backward compatible and Gen 7-ready for future-proofing

Technical Specifications:
- Architecture: Non-blocking shared memory with redundant control processors and switching blades
- Scalability: Supports full fabric with up to 239 switches and 6,000 active devices per switch
- Fibre Channel Port Types: E_Port, F_Port, EX_Port, M_Port, SIM, AE, D_Port
- Power: Supports multiple AC input voltages with redundant power supplies
- Cooling: Multiple fan modules with hot-swap capability
- Management: HTTP, SNMP, SSH, CLI, RESTful API

Suitable for large-scale enterprise storage infrastructures demanding high throughput and low latency.
