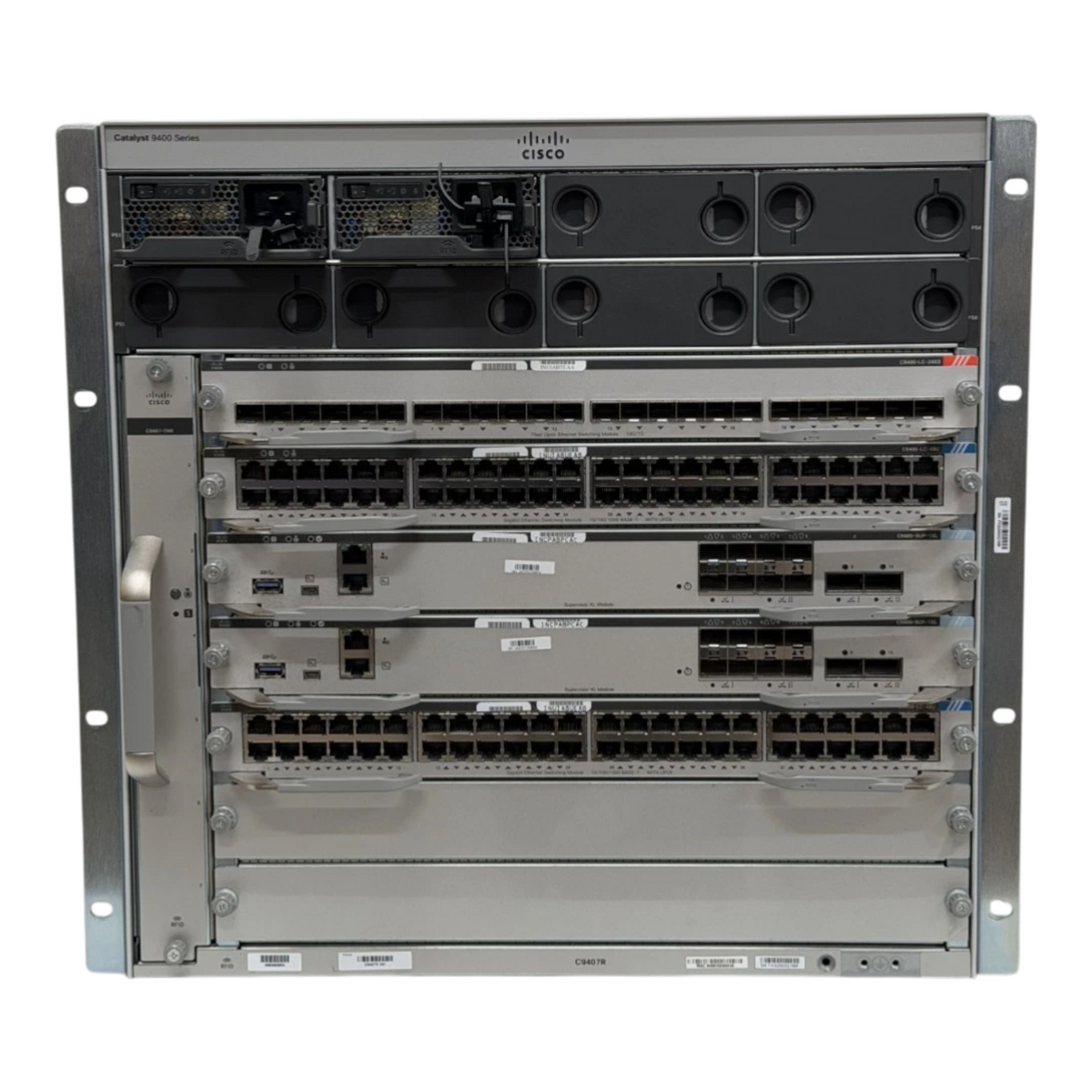

Cisco Catalyst C9407R 7-Slot 10U Switch Chassis 2x SUP-1XL 1x LC-24XS 2x LC-48U

Condition : Refurbished – tested and working grade A refurbished part

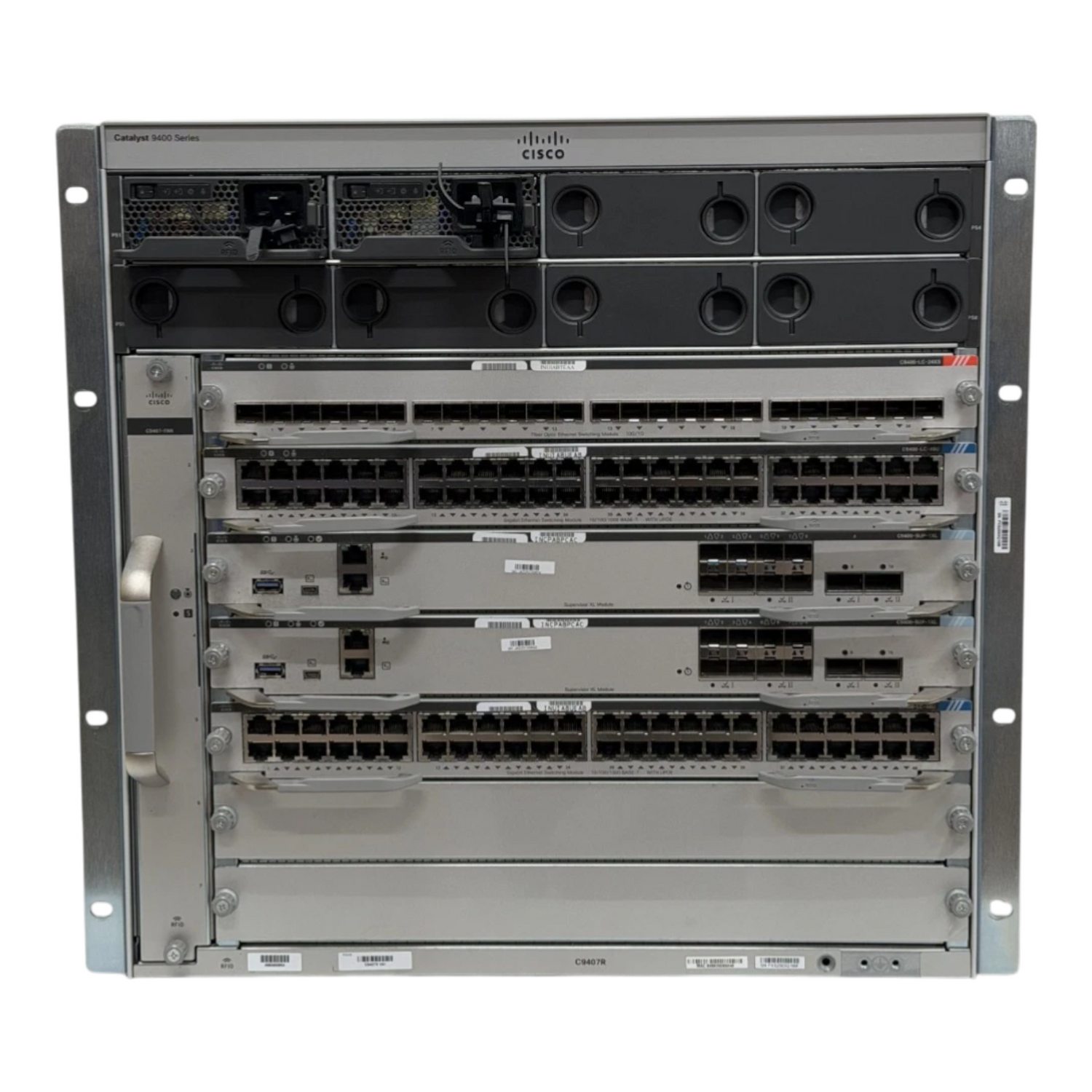

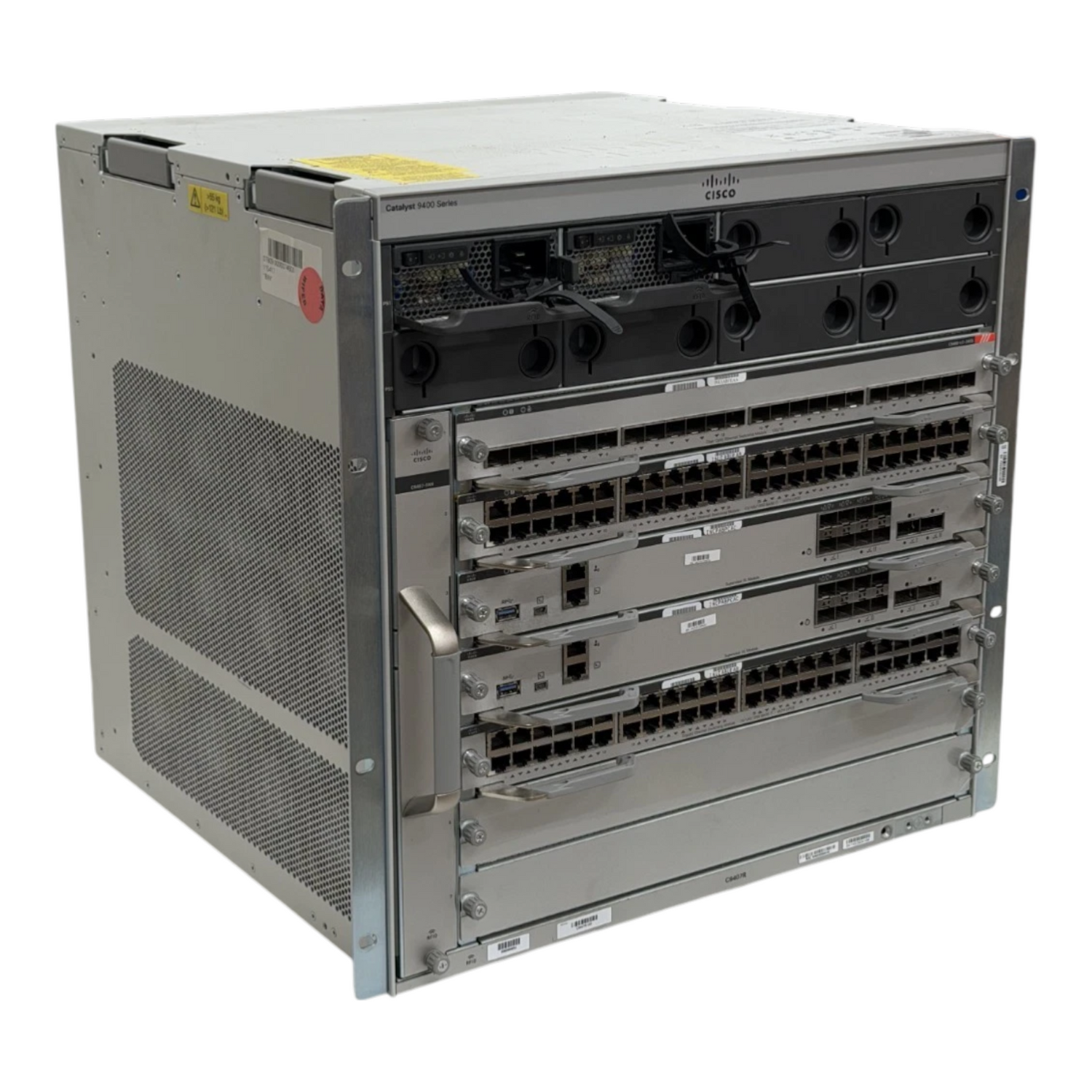

Cisco Catalyst C9407R 7-Slot 10U Switch Chassis with 2x SUP-1XL, 1x LC-24XS, and 2x LC-48U Line Cards

Includes:
- Cisco Catalyst 9400 Series 7-Slot 10U Chassis (C9407R)

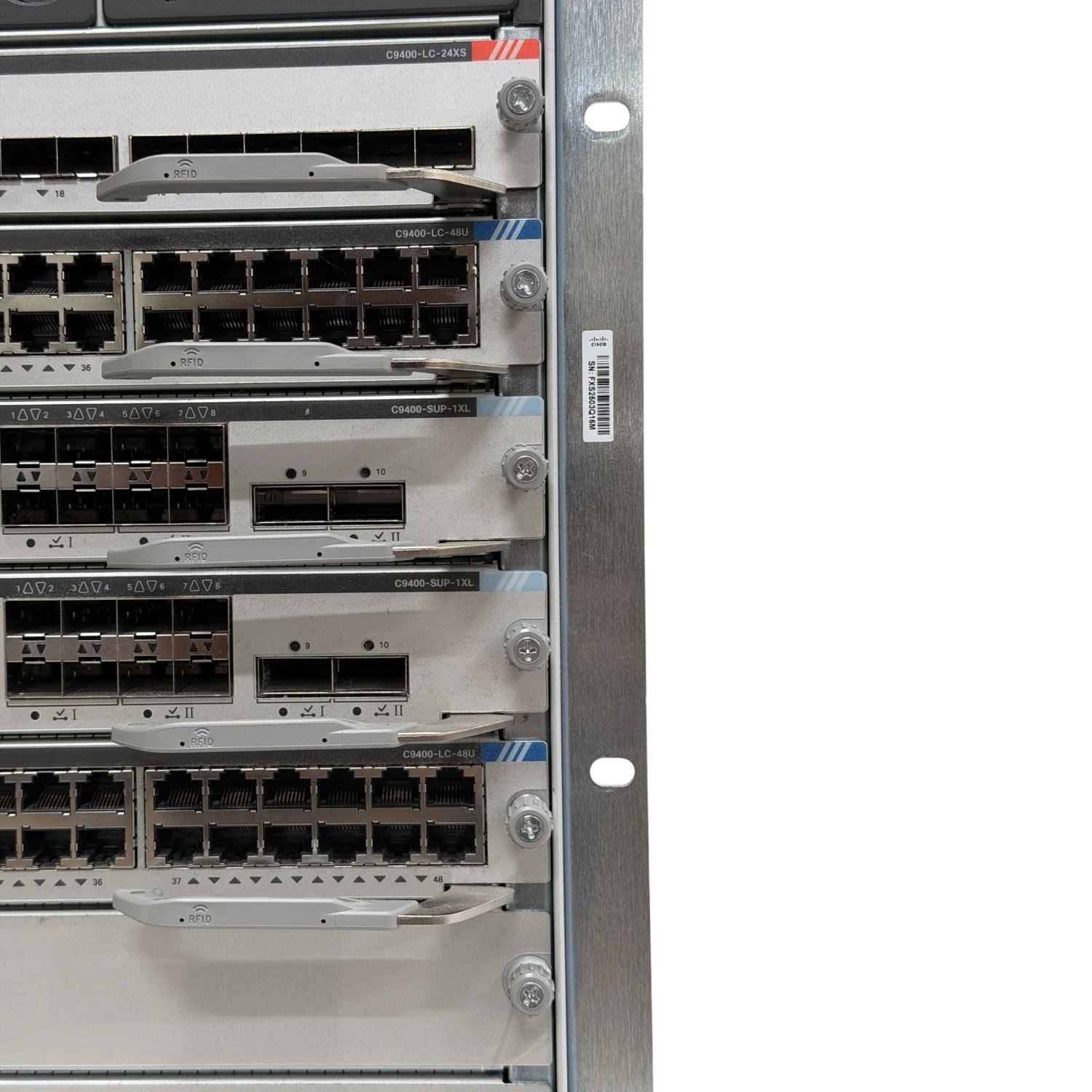

- 1 x 24-Port 10 Gigabit Ethernet SFP+ Line Card (C9400-LC-24XS)
- 2 x 48-Port UPOE 10/100/1000 RJ-45 Line Cards (C9400-LC-48U)
- 2 x Supervisor 1XL Modules (C9400-SUP-1XL)
- 1 x 7-Slot Chassis Fan Tray (C9407-FAN)
- 2 x 2100W AC Power Supplies (C9400-PWR-2100AC)

Overview:
The Cisco Catalyst C9407R is a high-performance enterprise chassis switch designed for core, aggregation, and distribution roles in demanding enterprise and campus networks. It features a flexible 7-slot chassis supporting high bandwidth scalability with up to 480 Gbps per line-card slot and integrated Power over Ethernet (PoE) delivering up to 2880W per slot. The switch supports supervisor redundancy and is designed for power efficiency, with support for high-capacity AC power supplies. Its modular design enables secure and resilient infrastructure build-outs suitable for diverse enterprise deployments and digital transformation initiatives.

Specifications:
- Model: C9407R
- Slots: 7 total (5 line-card slots, 2 supervisor slots)
- Supervisor Engines Supported: C9400-SUP-1, SUP-1XL, SUP-1XL-Y
- Maximum PoE per Slot: 2880W
- Maximum Bandwidth per Line Card Slot: 480 Gbps
- Power Supplies Supported: 3200W AC, 2100W AC
- Fan Tray Bays: 1
- Rack Units: 10U
- Dimensions: 44.22 x 43.94 x 41.40 cm

Software:
Runs Cisco IOS XE Software, Version 17.03.03, providing advanced Layer 3 switching capabilities.

Compliant with international safety and environmental standards, the C9407R supports integrated cryptographic features subject to applicable export regulations.
