Cisco MDS 9396S 96x 16G FC (96-Active) Multilayer Fabric Switch DS-C9396S-K9

Condition : Refurbished – tested and working grade A refurbished part

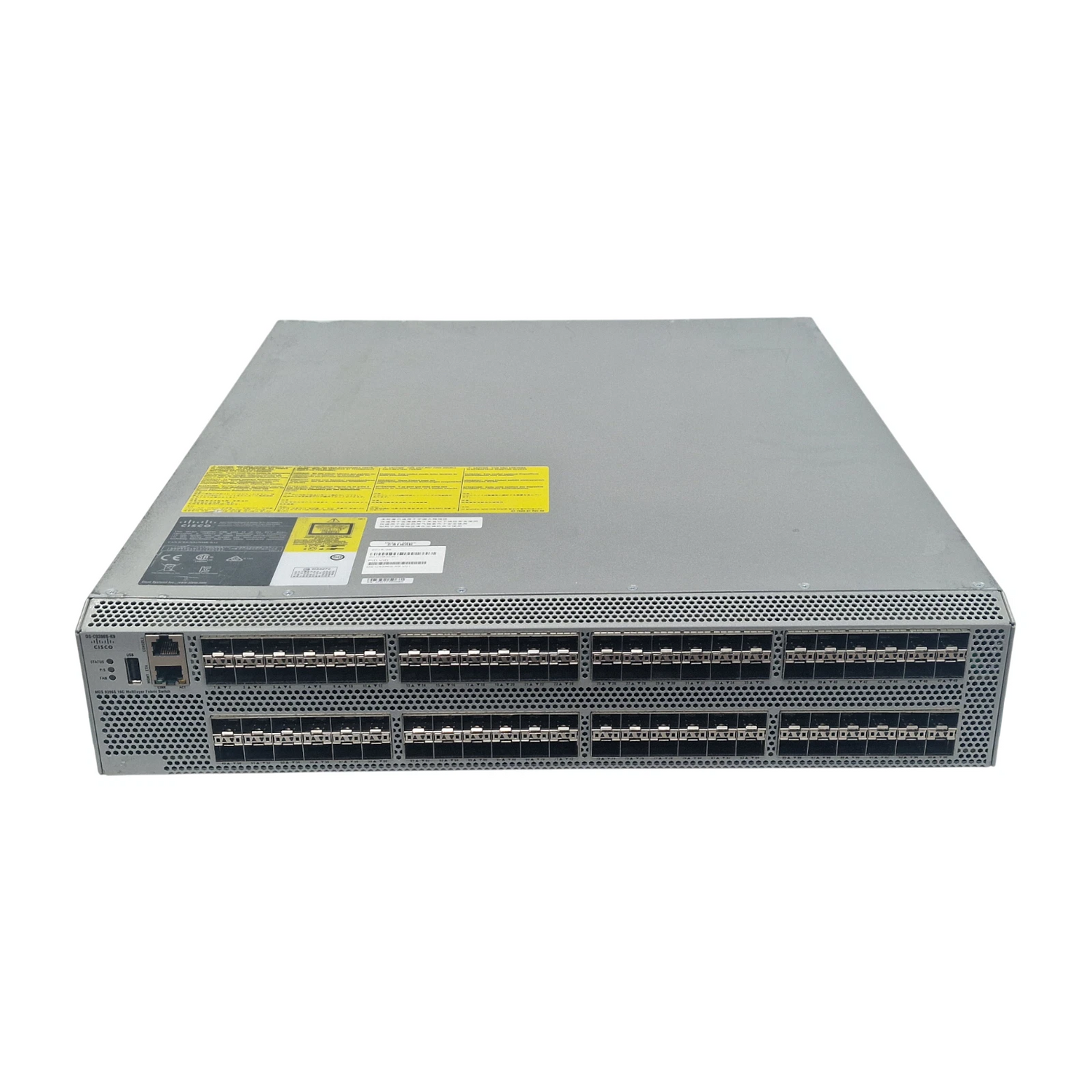

Cisco MDS 9396S Multilayer Fabric Switch with 96 active 16G Fibre Channel ports (Model: DS-C9396S-K9).

Includes:
- Cisco MDS 9396S 96x 16G Fibre Channel switch

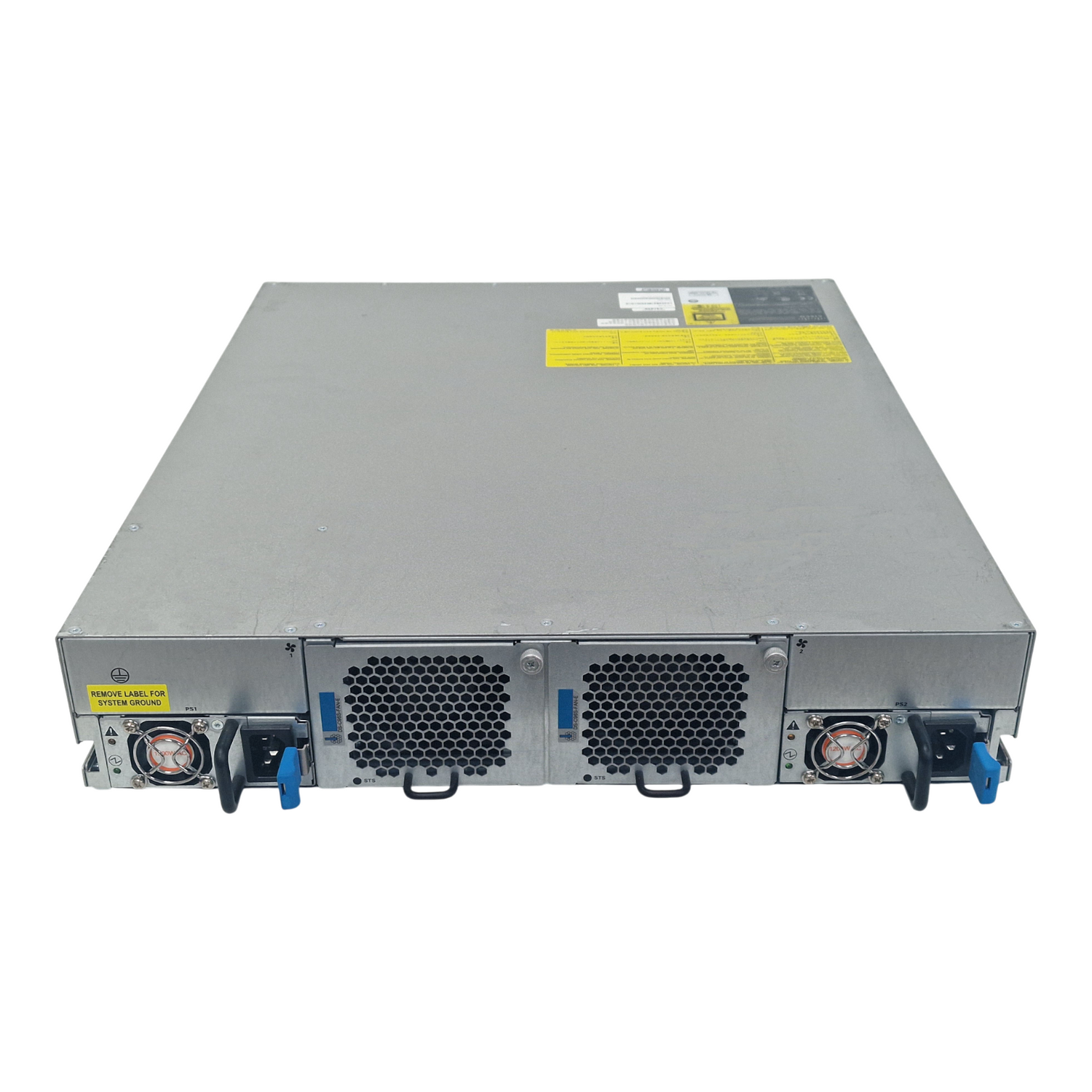

- 2 x Cisco DS-C96S-FAN-E fan modules

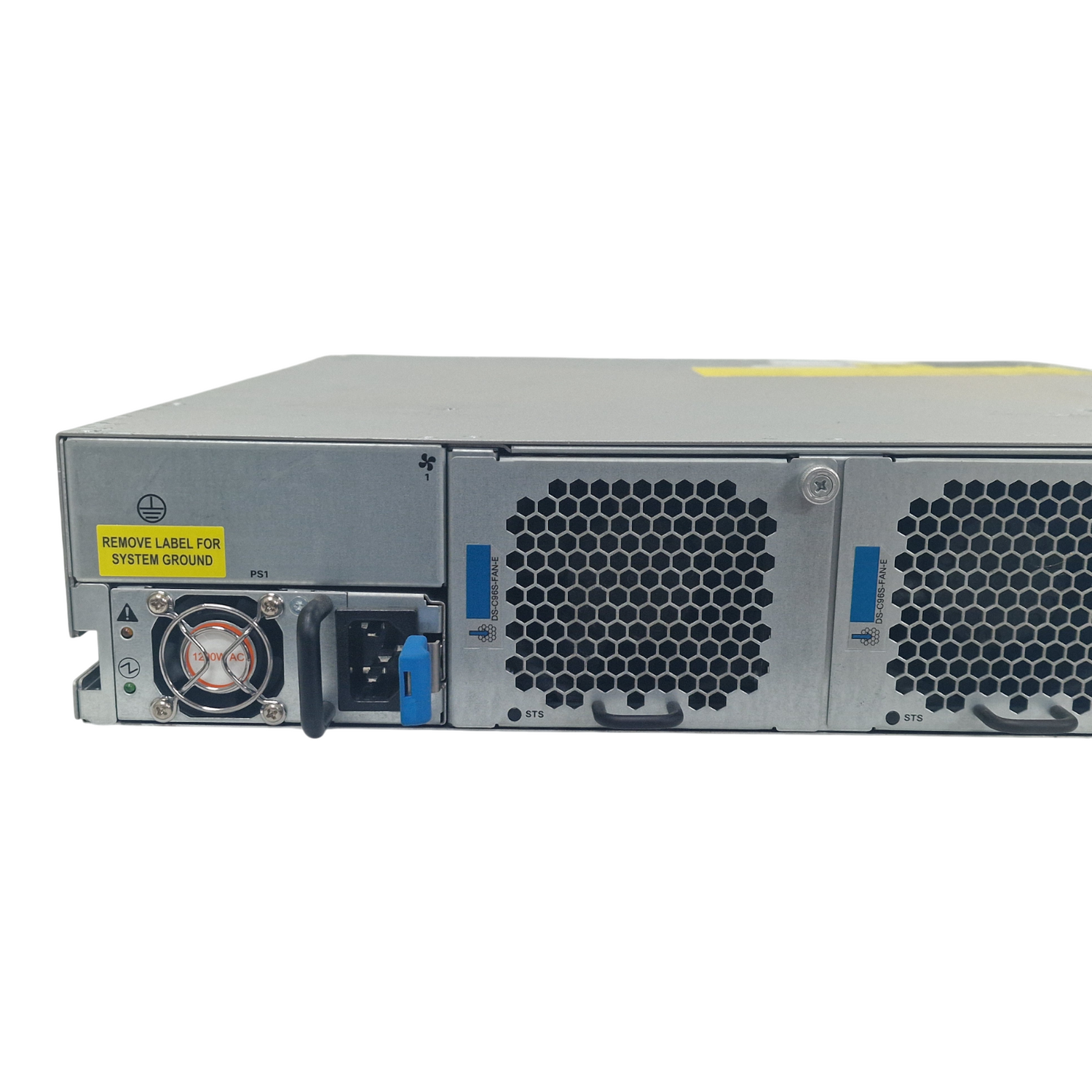

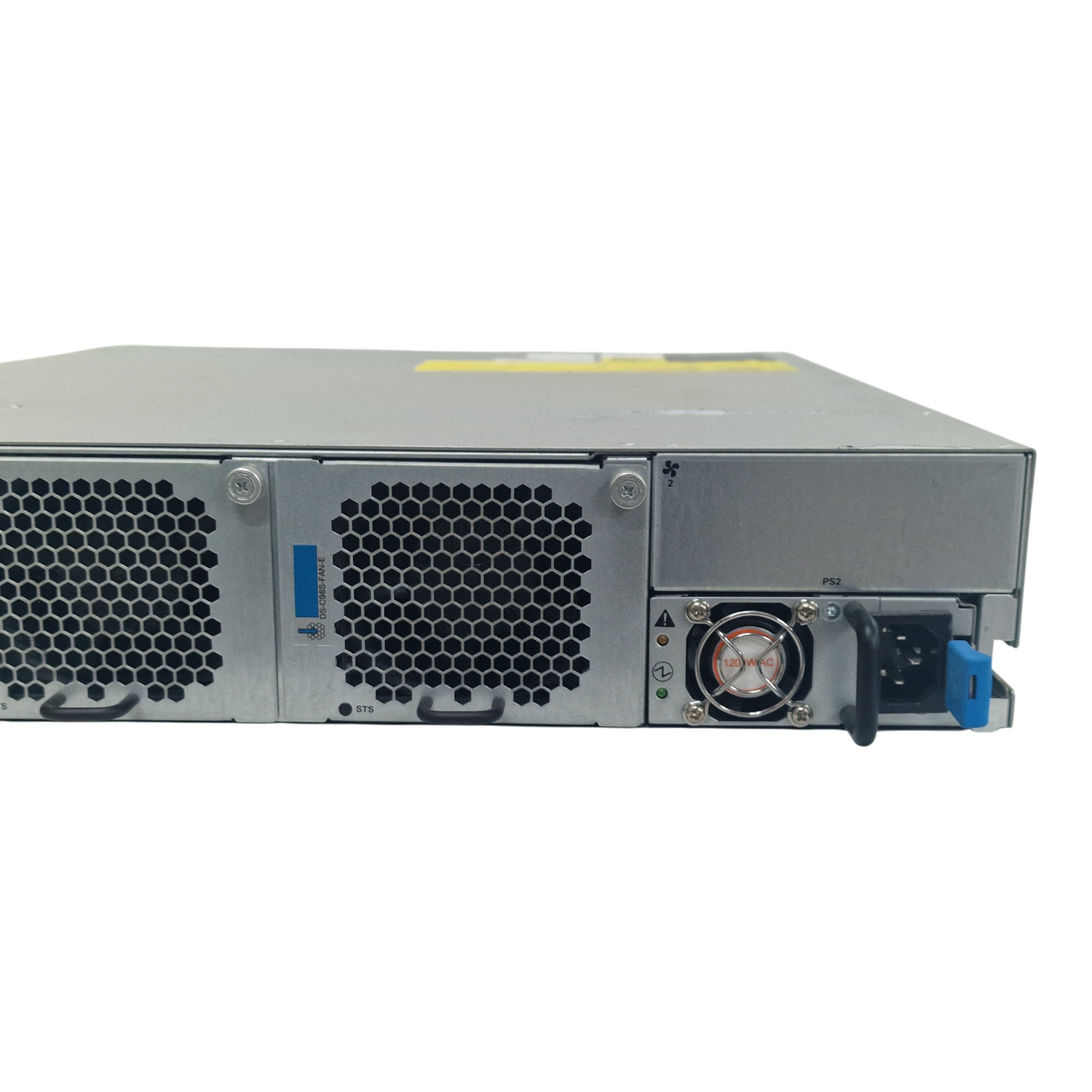

- 2 x Cisco DS-CAC-1200W-E power supplies

Overview:
The Cisco MDS 9396S is a high-performance, high-density, and reliable multilayer fabric switch suitable for enterprise storage networks. This 2U rack-mountable switch supports up to 96 line-rate 16 Gbps Fibre Channel ports, delivering exceptional flexibility and cost-effectiveness.

Specifications:
- Device Type: Managed switch with 96 Fibre Channel ports
- Enclosure Type: 2U rack-mount
- Fibre Channel Protocols supported: Extensive FC standards including FC-DA, FC-FLA, FC-FS, and more
- Remote management protocols: RMON, SNMPv3, SMI-S, SSH-2, CLI
- Features: Ports on Demand, ACL support, QoS, RSPAN, RSCN

Connectivity:

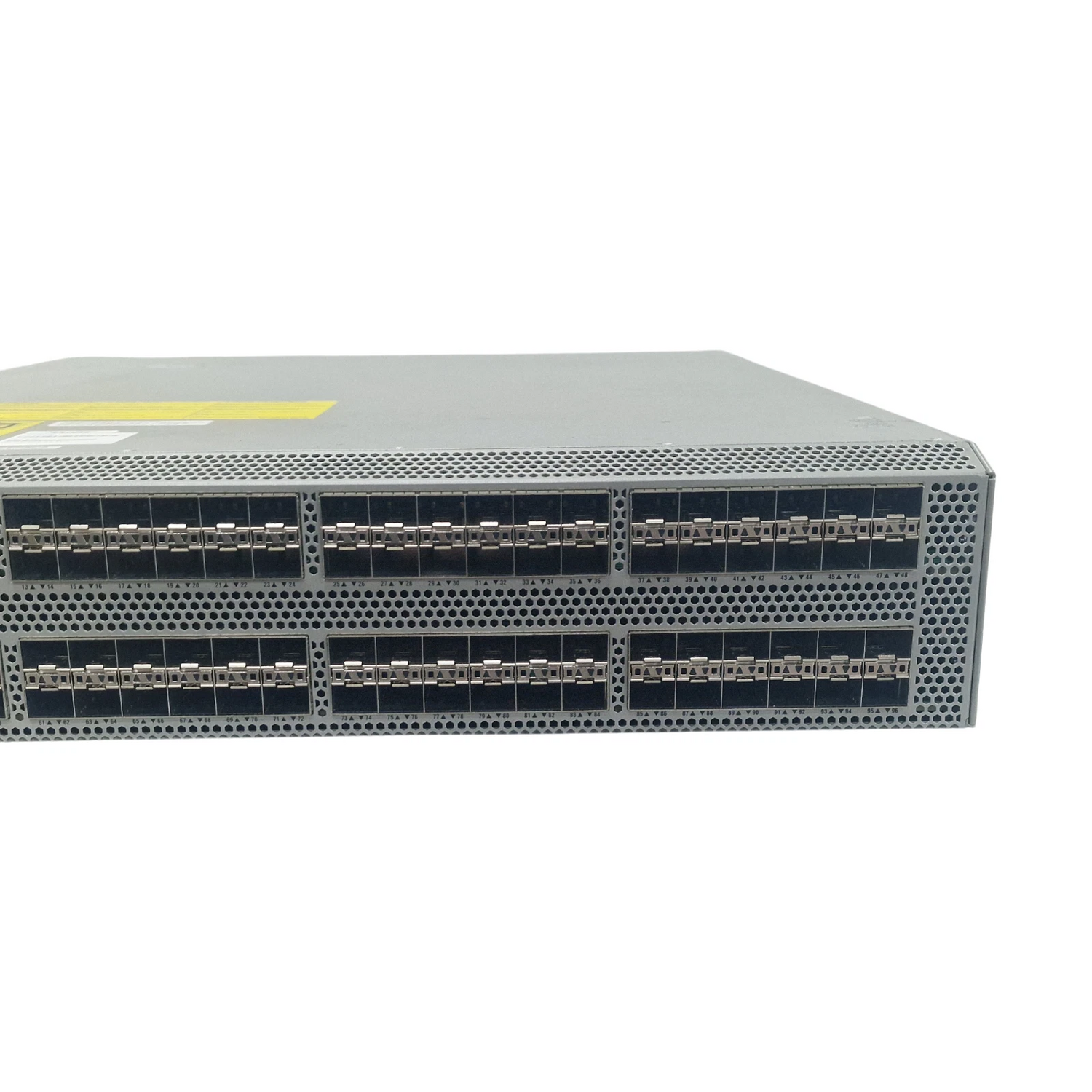

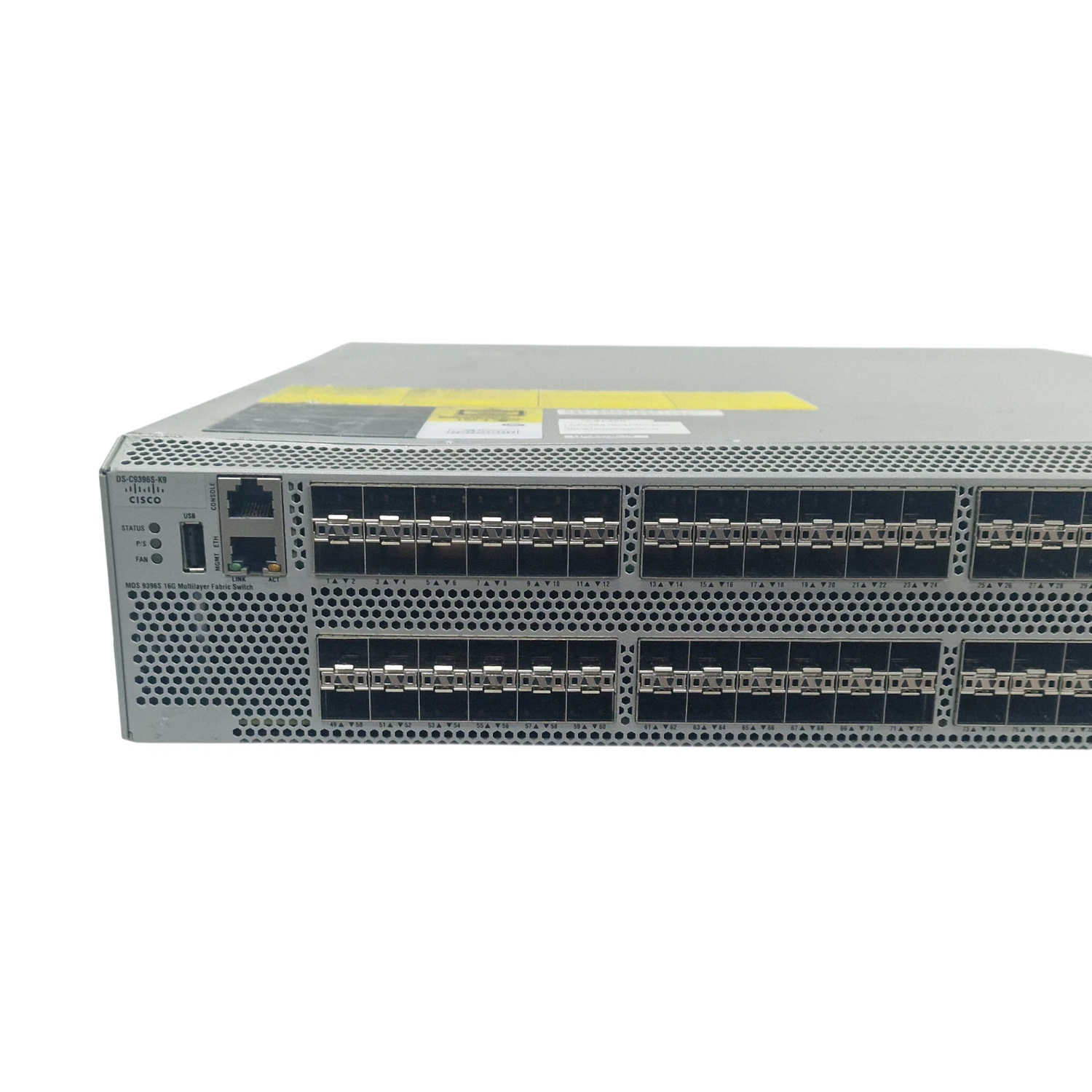

- 96 x 16Gb Fibre Channel SFP+ ports
- 1 x 1000Base-T RJ-45 management port
- 1 x RS-232 management port
- 1 x USB port

Power:
- Internal hot-plug power supplies with 1+1 redundancy
- Max power consumption 700W

The Cisco MDS 9396S combines high port density with advanced fabric features, ideal for demanding storage area networks.
