Cisco N540X-16Z4G8Q2C-A NCS 540 16x 10G SFP+ 8x 25G SFP28 2x 100G QSFP28 Router

Condition : Factory sealed – brand new in sealed original box

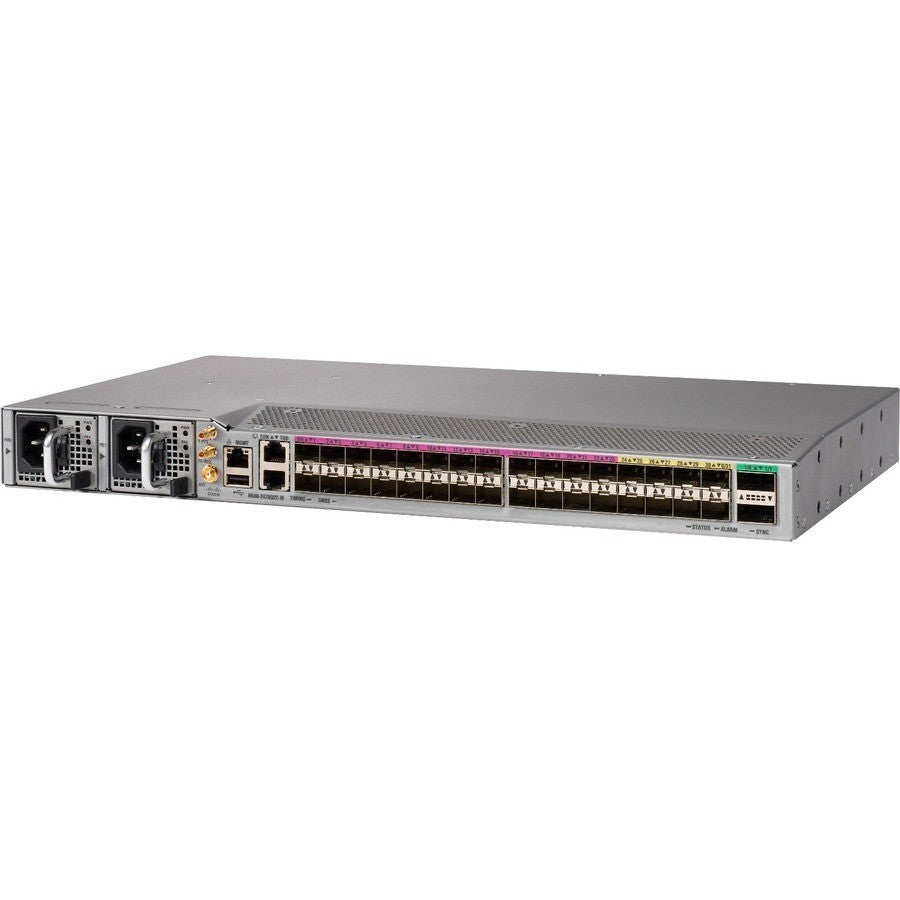

The Cisco NCS 540 Router model N540X-16Z4G8Q2C-A is a high-performance network device designed for versatile connectivity and scalability. It features 16x 10G SFP+, 8x 25G SFP28, and 2x 100G QSFP28 ports, along with 4x 1G RJ-45 ports, supporting a total throughput of up to 1.2 Tbps and forwarding capacity up to 600 Mpps. The router is rack-mountable in a 1U form factor and supports multiple routing protocols including OSPF, BGP, ISIS, and EIGRP. It offers QoS support, jumbo frame capability up to 9K, and redundancy features for reliable network performance.

Key Features:
- 16x 10G SFP+, 8x 25G SFP28, 2x 100G QSFP28, 4x 1G RJ-45 ports
- Maximum throughput: 1.2 Tbps
- Forwarding capacity: 600 Mpps
- Supports OSPF, BGP, ISIS, EIGRP routing protocols
- QoS and jumbo frame support (up to 9K)
- Redundancy capability
- Management interfaces: RJ-45 console and USB
- 1U rack-mountable form factor

Ideal for enterprise and service provider networks requiring high throughput and flexible connectivity options.
