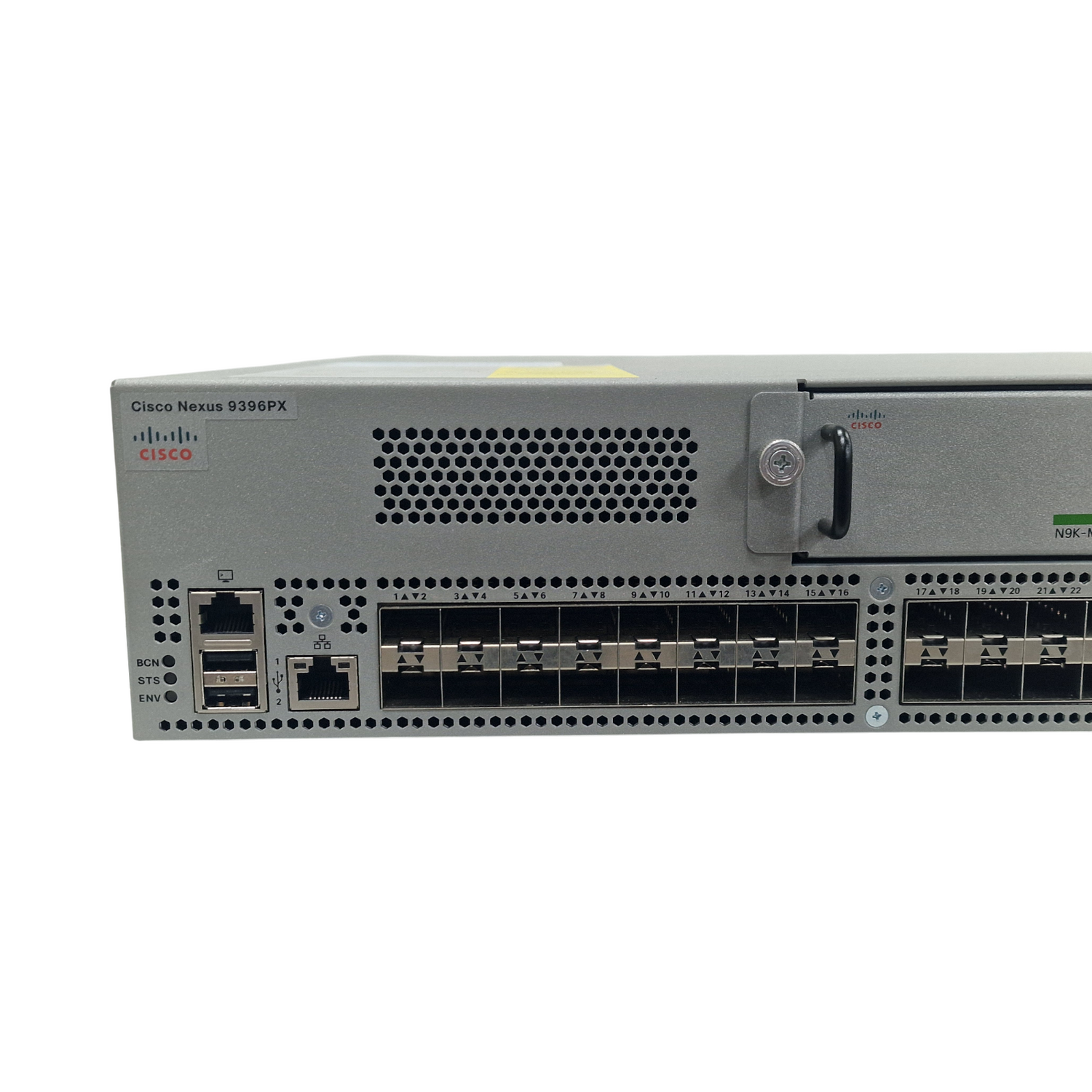

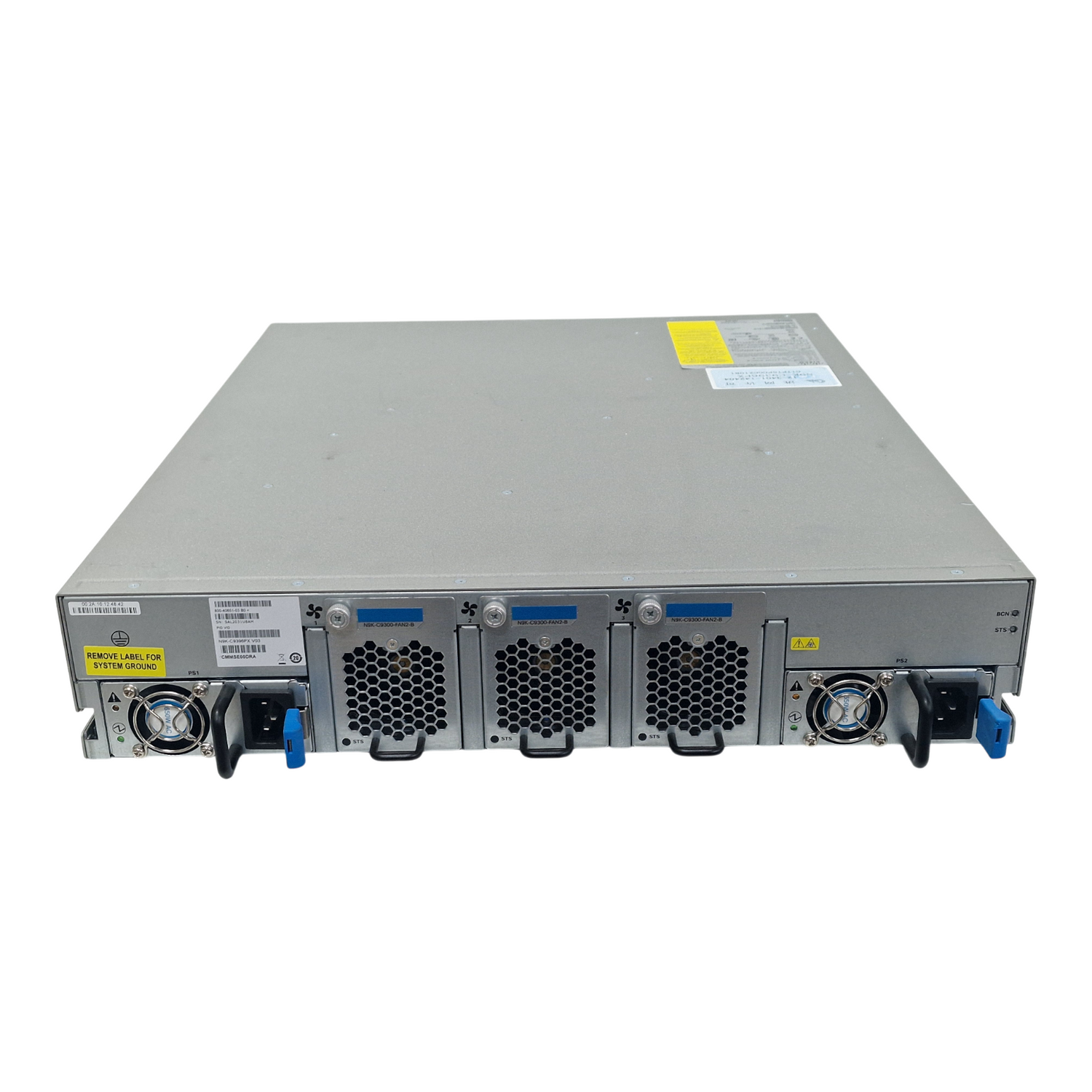

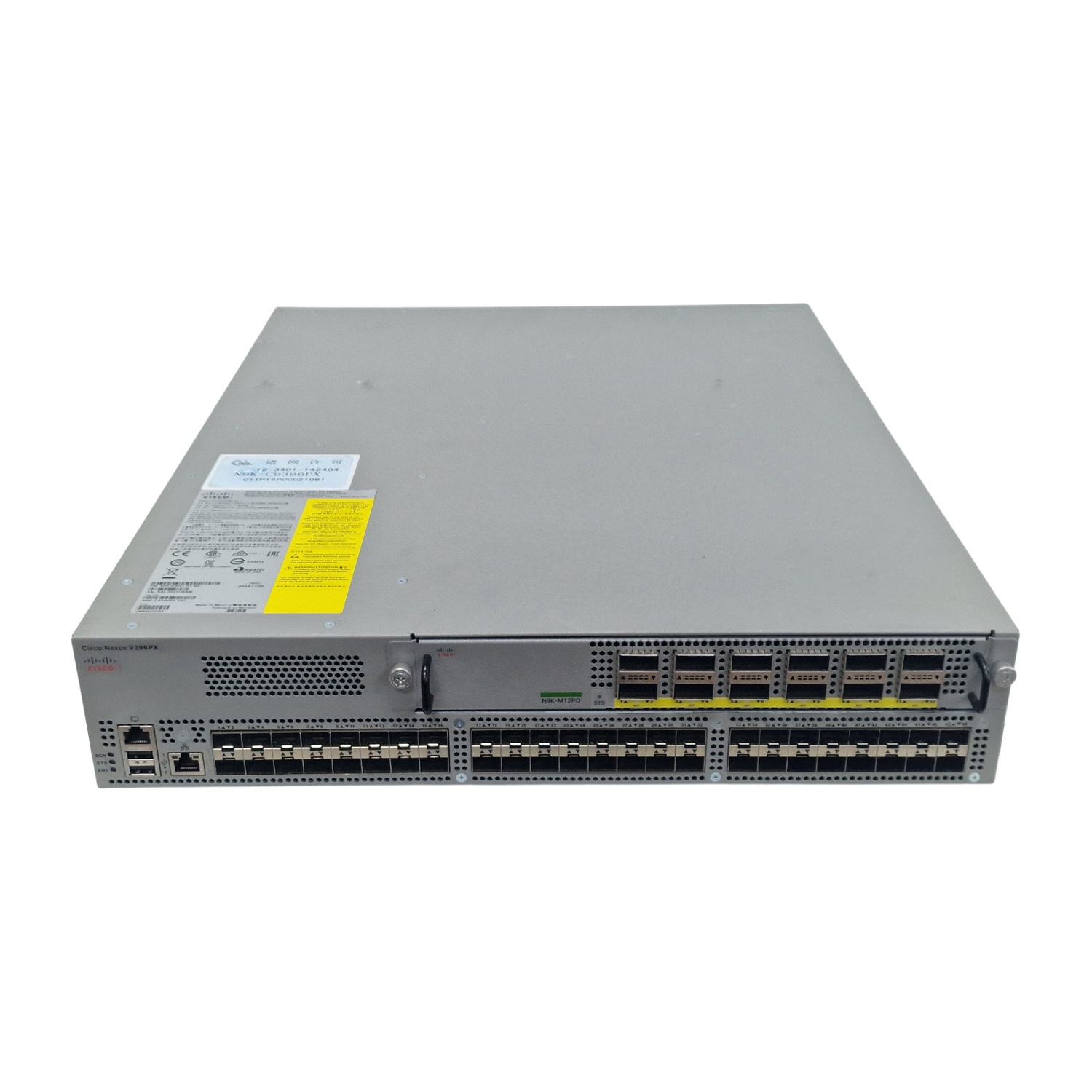

Cisco Nexus 9396PX N9K-C9396PX 48x 1/10GE SFP+ + N9K-M12PQ 12x 40GE QSFP Switch

Condition : Refurbished – tested and working grade A refurbished part

Cisco Nexus 9396PX N9K-C9396PX 48x 1/10GE SFP+ + N9K-M12PQ 12x 40GE QSFP Switch (Refurbished)

Overview:
The Cisco Nexus 9396PX (Model: N9K-C9396PX) is a high-performance data centre switch offering 48 fixed 1/10 Gigabit Ethernet SFP+ ports and 12x 40 Gigabit Ethernet QSFP uplink ports via the N9K-M12PQ expansion module. Designed for top-of-rack and middle-of-row deployments, it supports enterprise, cloud, and service provider environments with non-blocking Layer 2 and Layer 3 switching and up to 2.56 Tbps internal bandwidth.

Key Features:
- 48 fixed 1/10GE SFP+ ports for versatile connectivity

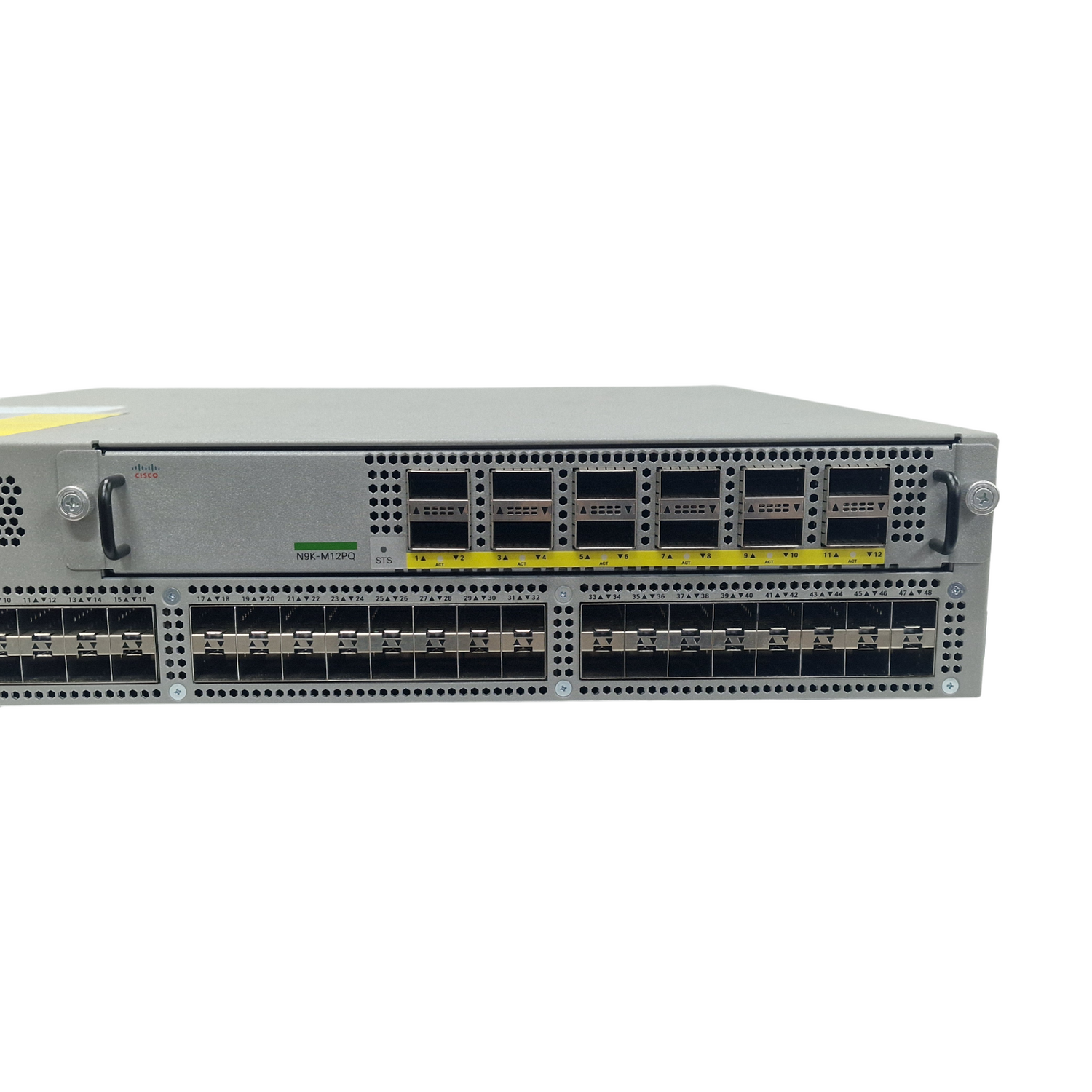

- 12x 40GE QSFP uplink ports via N9K-M12PQ module
- Back-to-front airflow for optimal thermal management
- Includes LAN-ENTERPRISE-SERVICES license
- Supports NX-OS 9.3 operating system

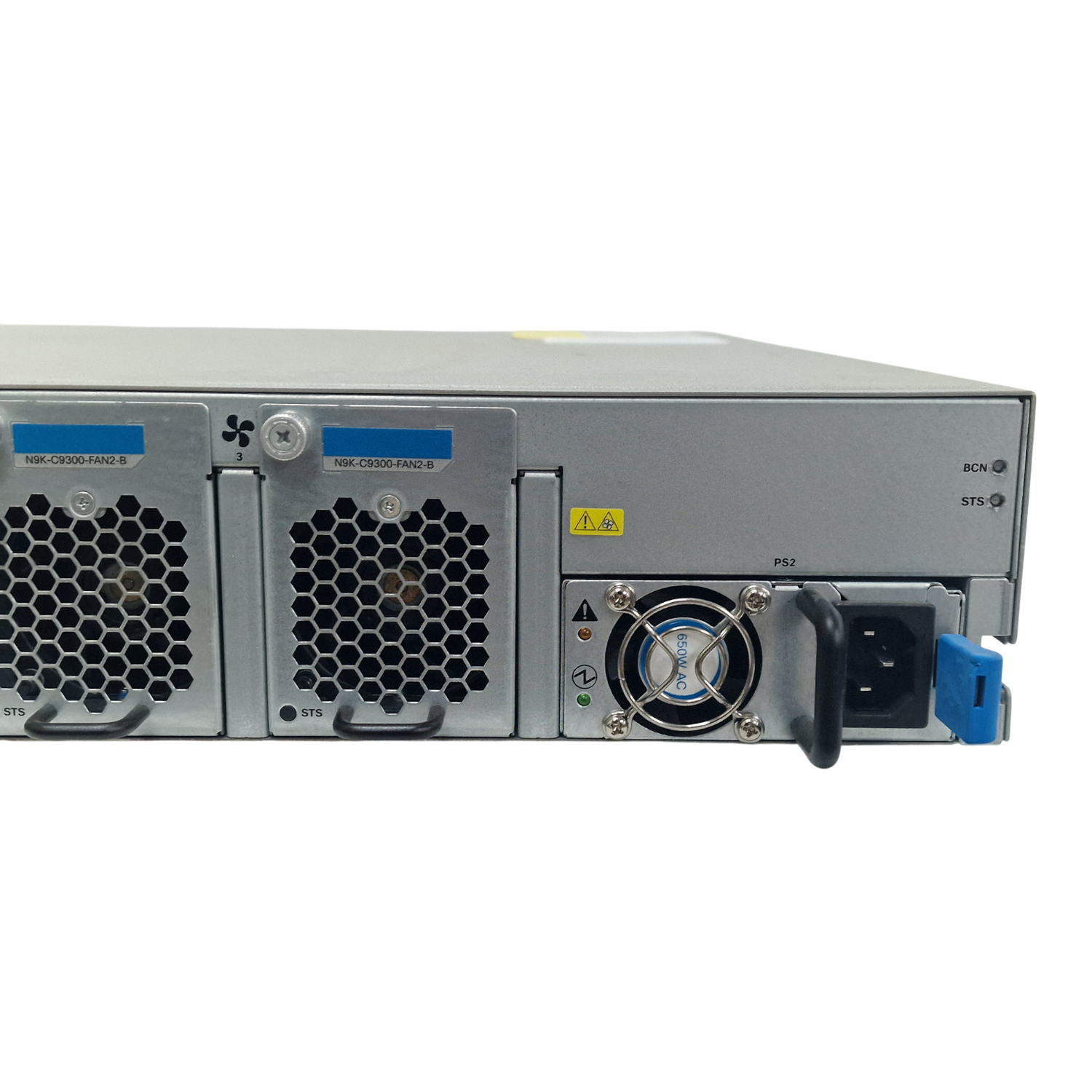

- Equipped with 3 Cisco fan modules (N9K-C9300-FAN2-B)

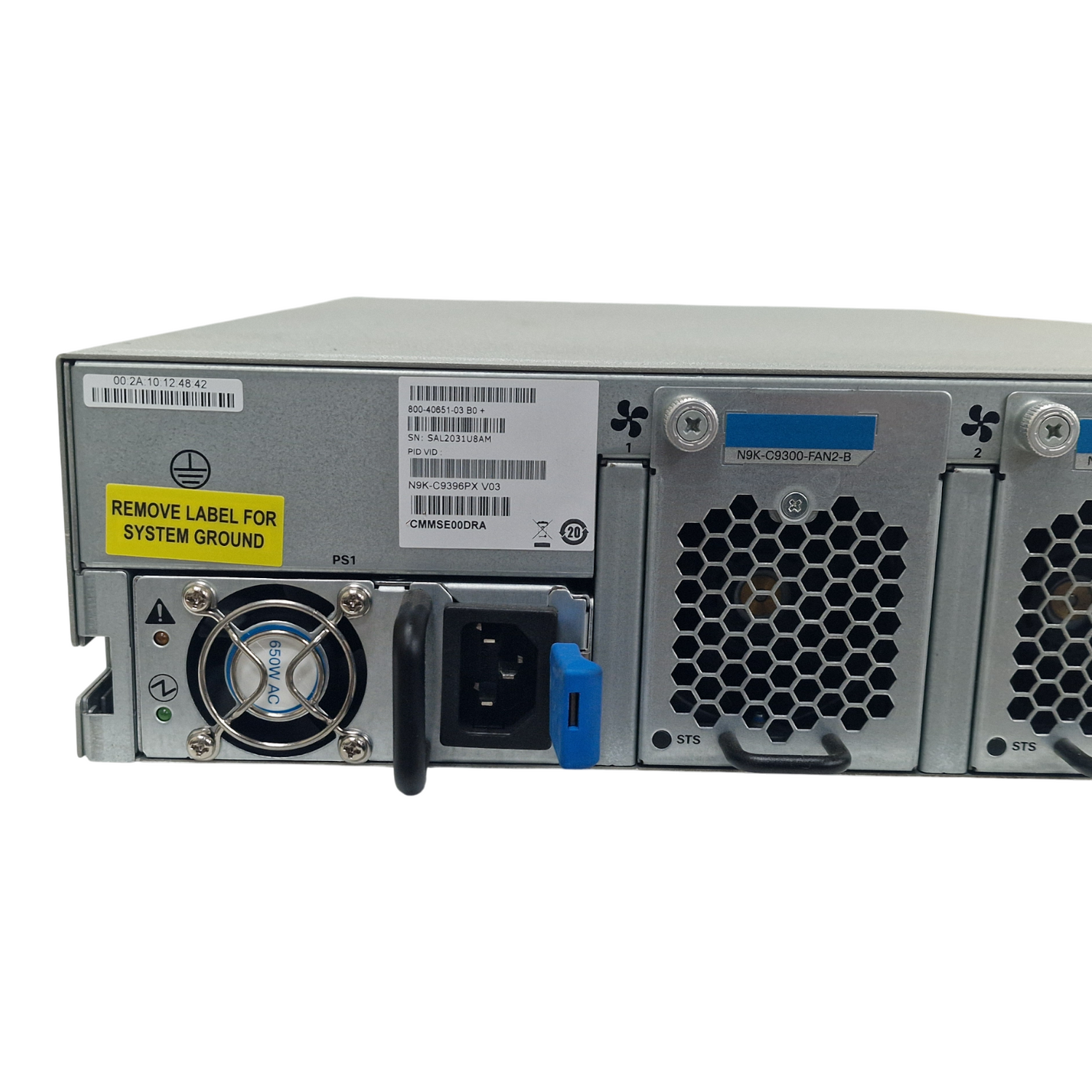

- Dual 650W power supplies (N9K-PAC-650W-B) for power redundancy
- Compact dimensions: 3.5 x 17.5 x 22.5 inches (8.9 x 44.5 x 57.1 cm)
- RoHS compliant

Technical Specifications:
- Supported speeds: 1/10 Gigabit Ethernet and 40 Gigabit Ethernet uplinks
- Optional 100 Gigabit Ethernet uplinks via additional modules
- Typical power consumption: 232W (AC)
- Maximum power consumption: 455W (AC)
- Input voltage range: 100-240V AC, 200-277V HVAC, –48 to –60V DC, –240 to –380V HVDC
- Acoustic noise levels: 68.3 dBA at 40% fan speed to 84.5 dBA at 100% fan speed
- Weight: 10.2 kg (without power supplies, fans, or uplink module)

Includes:
- Cisco Nexus 9396PX chassis with 48x 1/10GE SFP+ ports
- N9K-M12PQ 12x 40GE QSFP uplink
