Dell Brocade 6520 96x 16G SFP+ FC SAN Switch (96-Active) X9KG1 DL-6520-48-16G-R

Condition : Refurbished – tested and working grade A refurbished part

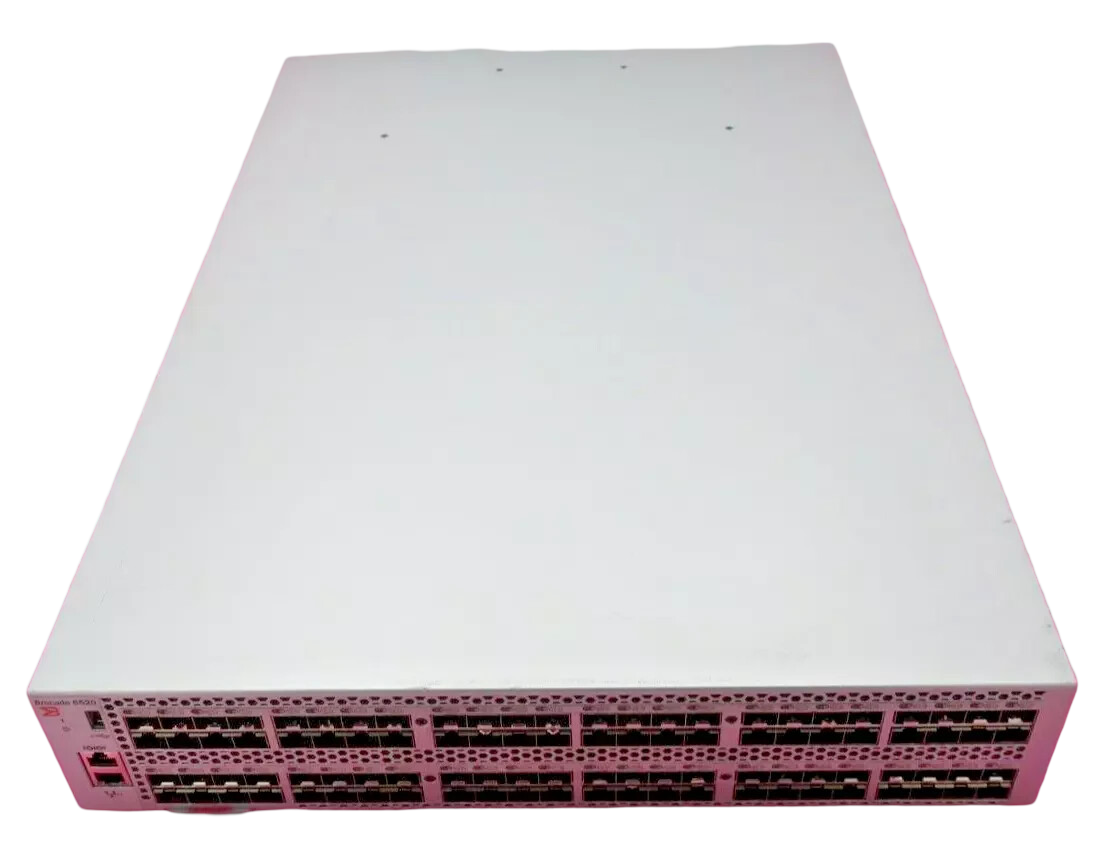

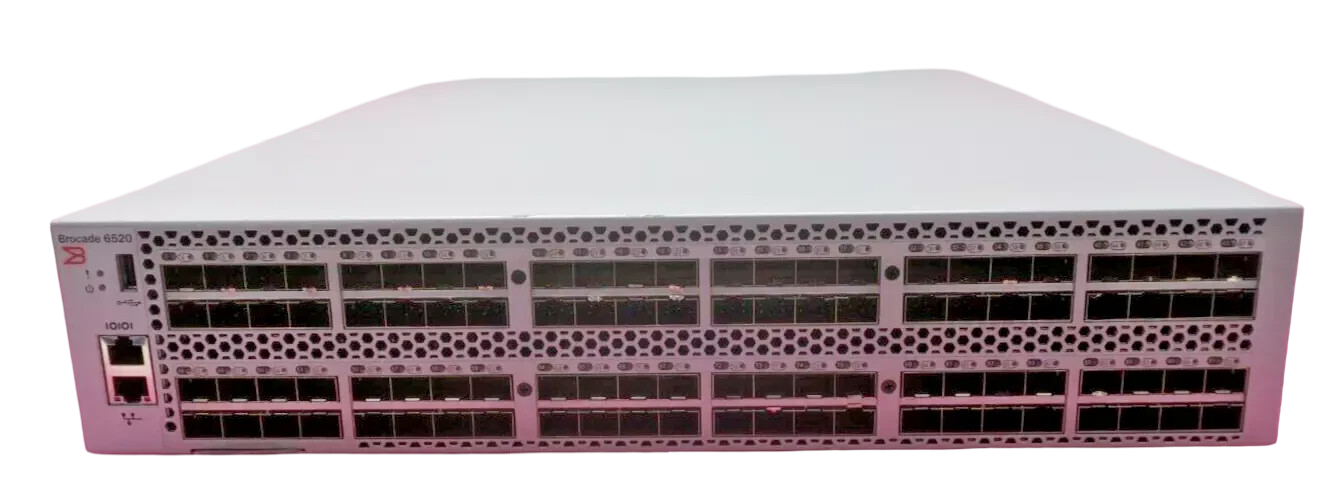

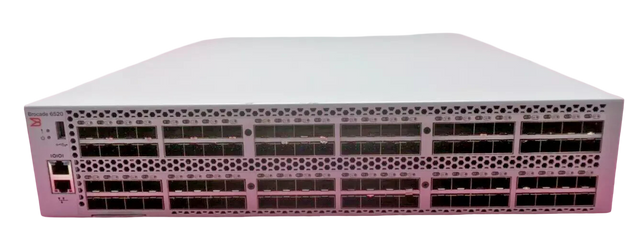

Dell Brocade 6520 96-Port 16G SFP+ Fibre Channel SAN Switch

This high-density Brocade 6520 switch offers 96 active 16 Gbps Fibre Channel ports, ideal for highly virtualised and private cloud storage environments. It supports "pay-as-you-grow" scalability, expanding from 48 to 96 ports with flexible port speeds up to 16 Gbps.

Key Features:
- Supports extensive SAN infrastructures with industry-leading scalability
- High throughput with aggregate bandwidth of 1,536 Gbps full-duplex
- Advanced diagnostics and management tools including Brocade Fabric Vision technology
- In-flight data compression and encryption for enhanced security and bandwidth efficiency
- Dual-direction airflow for hot aisle/cold aisle data centre configurations
- Includes Fabric Watch, Performance Monitor, Extended Fabric, Trunking, Fabric Vision, and Ports on Demand upgrade licenses

Technical Specifications:
- Form factor: 2U rackmount
- Dimensions: 429.25 mm (W) x 86.74 mm (H) x 609.75 mm (D)
- Weight: 16.92 kg without transceivers

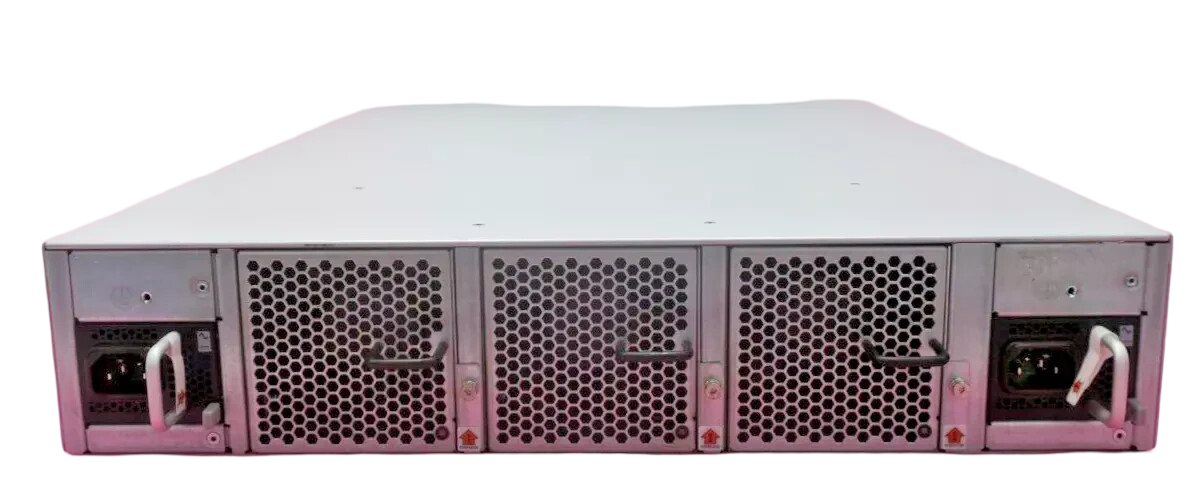

- Power supplies: Dual 1100W hot-swappable redundant units
- Operating temperature: 0 to 40 °C
- Humidity: 10% to 85% non-condensing

Management and Security:
- Supports HTTP, SNMP v1/v3, SSH v2, and CLI
- AES-GCM-256 encryption on ISLs
- Advanced zoning and traffic management capabilities

Ideal for bandwidth-intensive workloads, virtualised data centres, and private cloud architectures.
