Dell EMC ED-DCX6-8B 8-Slot Gen6 Director + 8x FC32-48 2x CPX6 2x CR32-8 Modules

Condition : Refurbished – tested and working grade A refurbished part

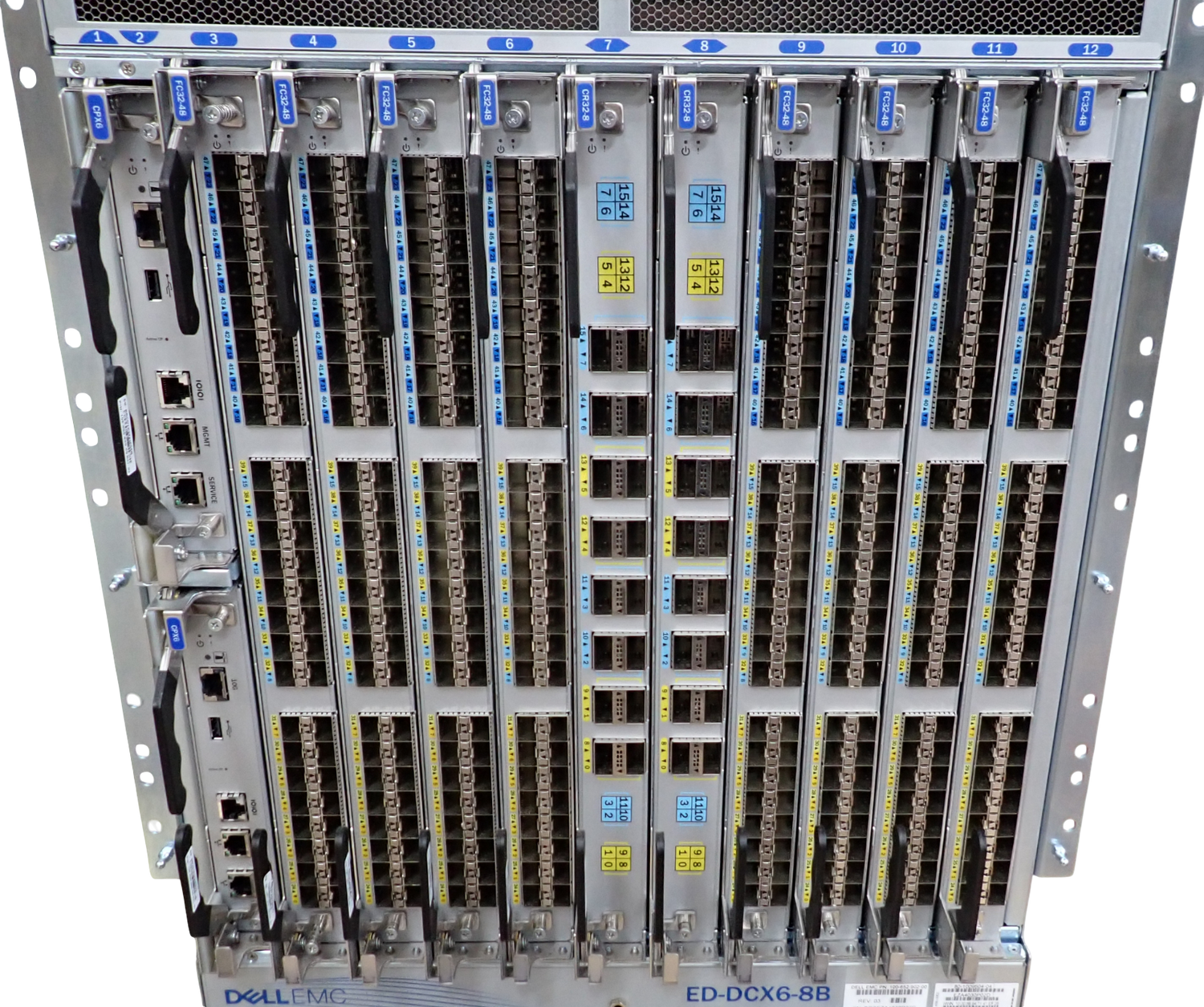

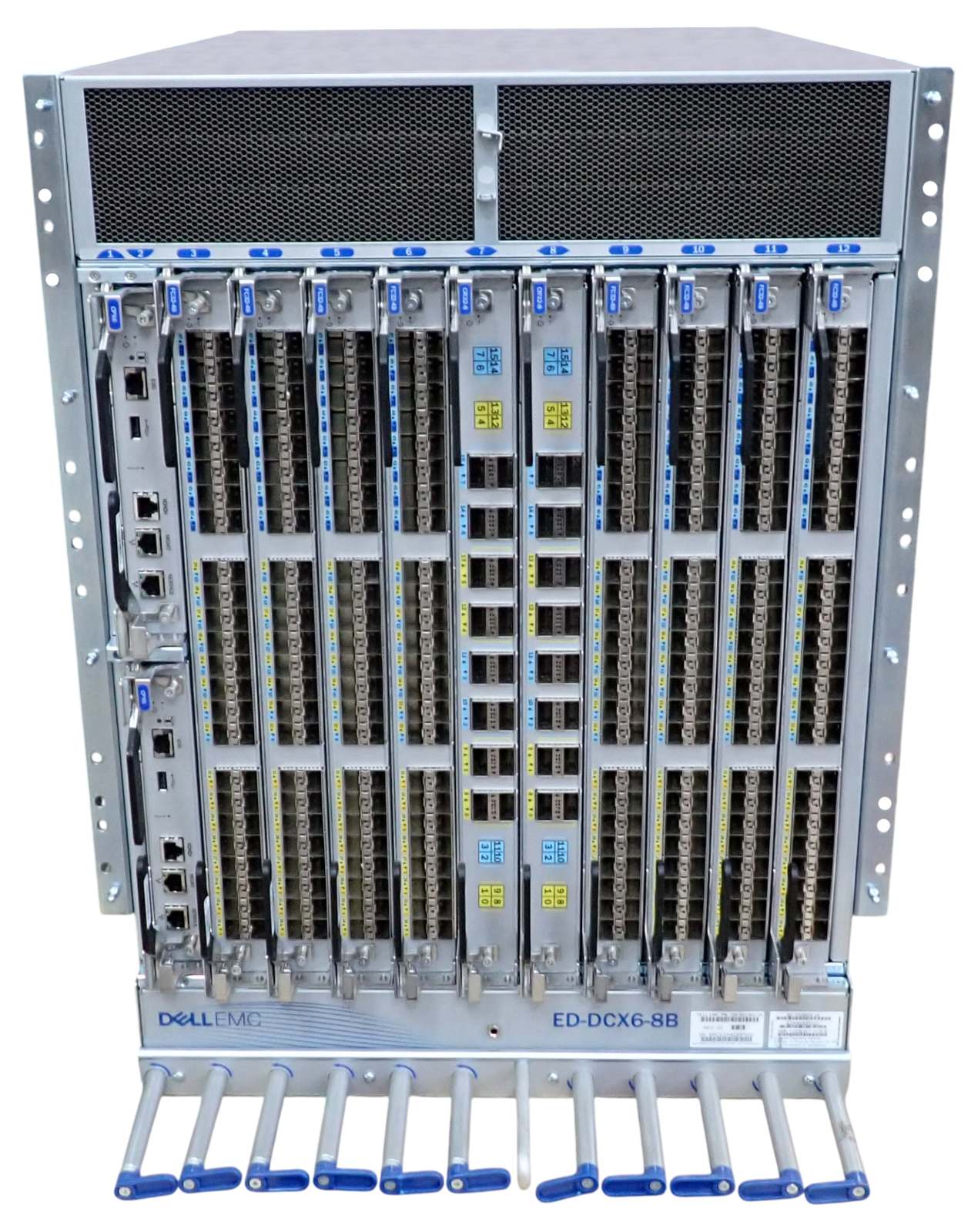

Dell EMC ED-DCX6-8B 8-Slot Gen6 Fibre Channel Director with Enhanced Module Set

Includes:
- 1 x Dell EMC 8-Slot Fibre Channel Gen6 Director
- 8 x Brocade 48-port 32Gb/s Fibre Channel Port Blades (FC32-48)
- 2 x Brocade Control Processor Blades (CPX6)
- 2 x Brocade Core Routing Blades with 16x 4x32Gbps QSFP+ Ports (CR32-8)

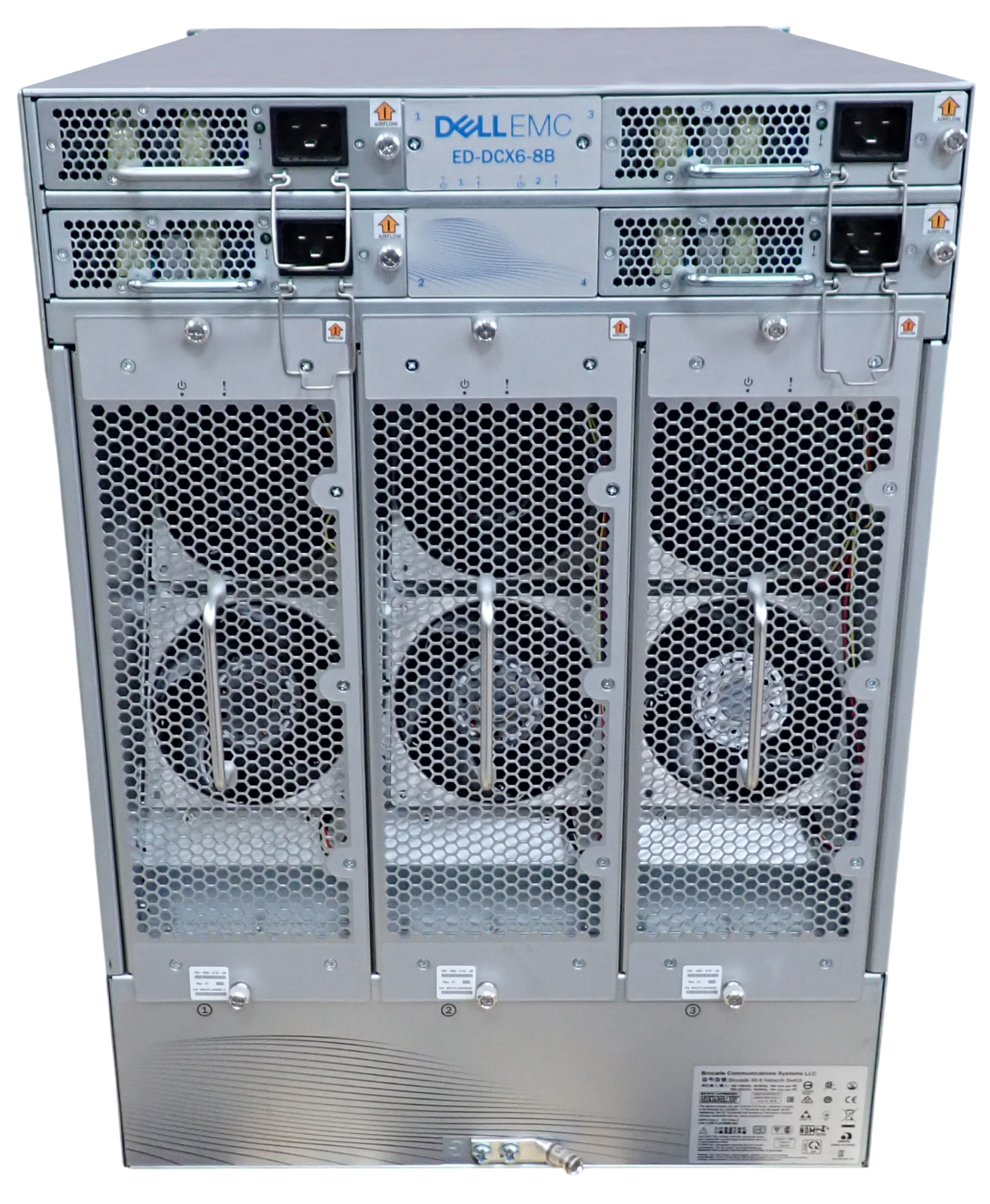

- 3 x Fan Modules (60-1003203-05)
- 4 x 3000W Power Supplies (23-0000161-04)

Overview:
The Dell EMC Connectrix ED-DCX6 Director series supports Fibre Channel speeds up to 32Gb/s with high scalability and resilience for virtualised and all-flash data centres. This model supports up to 384 ports with a switching capacity of 13.5 billion frames per second and 16Tb/s chassis bandwidth including 4Tb/s Inter-chassis Link bandwidth.

Key Features:
- Enterprise software package with Fabric Vision for comprehensive monitoring and diagnostics
- ISL Trunking for enhanced port aggregation
- Extended Fabric for distance extension capabilities
- FICON Control Unit Port support for mainframe environments
- Hot-swappable components for ease of maintenance
- NVMe-ready design for next-generation storage protocols

Technical Specifications:
- Chassis: 14U rack-mountable supporting eight vertical switching blades
- Fibre Channel Ports: 48-port switching blades and FCiP blades
- Performance: Auto-sensing 4/8/16/32Gb/s port speeds
- Fabric Latency: Local switching 900 ns; blade-to-blade 2.7 µs
- Security Features: Advanced authentication and encryption including DH_CHAP, FCAP, FIPS compliance, HTTPS, IPSec, LDAP, RADIUS, RBAC, SSH, SSL, TACACS+, and Trusted Switch
- Management: Connectrix Manager Converged Network Edition, CLI, and Web Tools
- Physical Dimensions: 61.23 cm (H) x 43.74 cm (W) x 61.04 cm (D)
- Weight: 35.61 kg chassis only; 145.8 kg fully populated
- Operating Conditions: 0°C to 40°C, 5% to 93% non-condensing humidity

Designed for demanding storage area network environments, this director ensures high availability, performance, and operational stability.
